| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58263cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58263cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,218,880 | 87,796,800 |
| Size | 540.9 MB | 83.7 MB |
| Events in quadrant A | 3,040,373 | 600,920 |
| Events in quadrant B | 4,028,609 | 639,014 |
| Events in quadrant C | 3,190,688 | 579,999 |
| Events in quadrant D | 10,241,256 | 392,618 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13855 | 1 |
| B | 0 | 16257 | 1 |
| C | 0 | 14281 | 1 |
| D | 0 | 34849 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6387 | 35 | 0.547988% |
| B | 6388 | 155 | 2.426425% |
| C | 6388 | 92 | 1.440200% |
| D | 6388 | 2041 | 31.950532% |

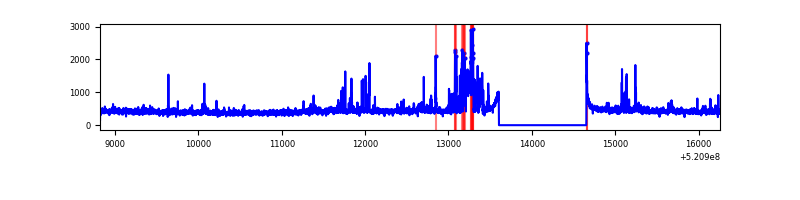

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7437 | 6388 | 18 | 18 | 0.24% | 0.28% |  |
| B | 7438 | 6389 | 87 | 87 | 1.17% | 1.36% |  |
| C | 7438 | 6389 | 59 | 59 | 0.79% | 0.92% |  |
| D | 7438 | 6389 | 1975 | 1975 | 26.55% | 30.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 249 | 234043 | 1390.94 | 676 | 658 | 167.8 |
| A | 13 | 248 | 52356 | 308.11 | 676 | 658 | 167.8 |
| A | 10 | 251 | 28686 | 167.04 | 676 | 658 | 167.8 |
| B | 2 | 249 | 425335 | 2956.65 | 669 | 643 | 143.6 |
| B | 4 | 206 | 221841 | 1539.95 | 669 | 643 | 143.6 |
| B | 0 | 156 | 149534 | 1036.56 | 669 | 643 | 143.6 |
| C | 12 | 252 | 205571 | 1134.09 | 657 | 651 | 180.7 |
| C | 6 | 223 | 111577 | 613.9 | 657 | 651 | 180.7 |
| C | 14 | 254 | 77431 | 424.93 | 657 | 651 | 180.7 |
| D | 12 | 110 | 4932541 | 30040.12 | 571 | 544 | 164.2 |
| D | 8 | 160 | 2773382 | 16888.98 | 571 | 544 | 164.2 |
| D | 2 | 249 | 82388 | 498.5 | 571 | 544 | 164.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

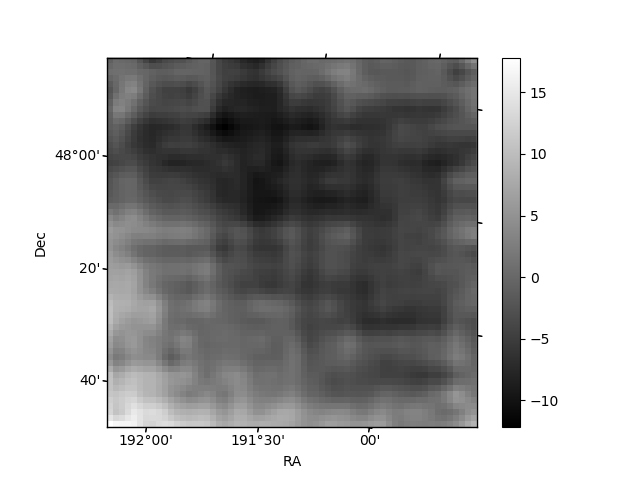

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

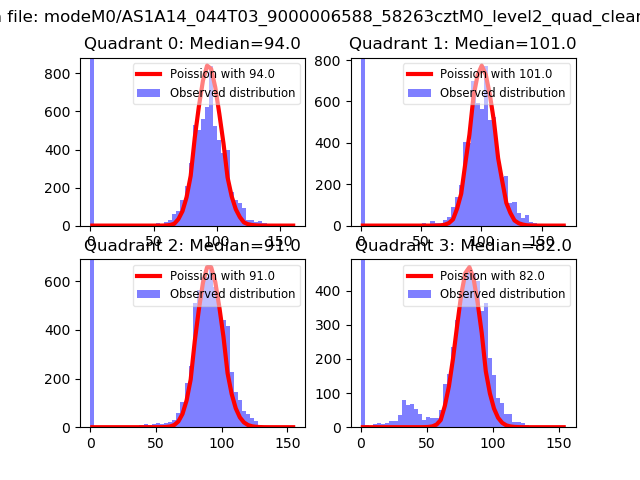

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

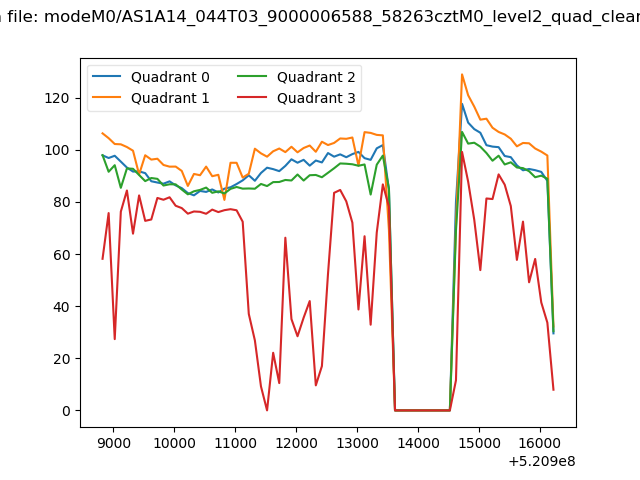

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

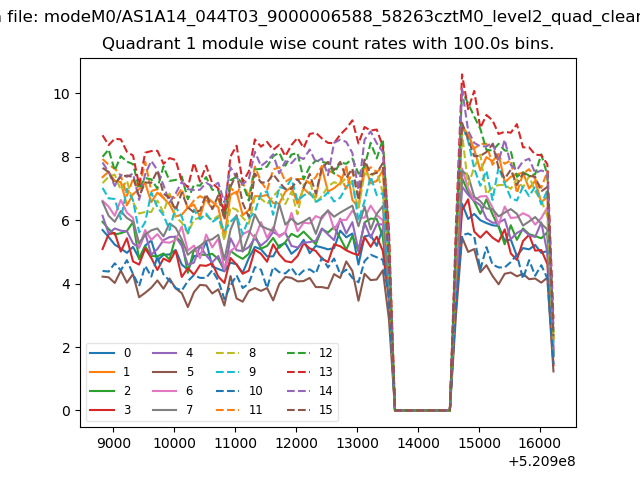

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

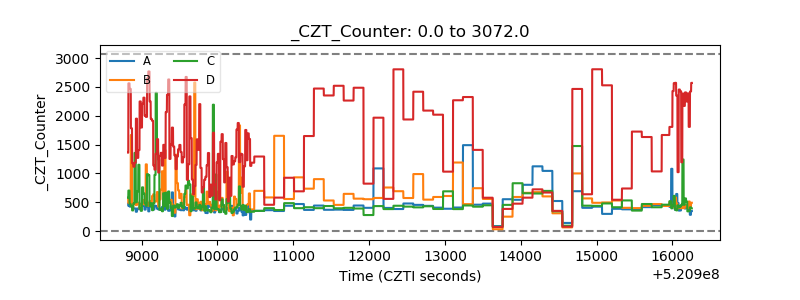

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

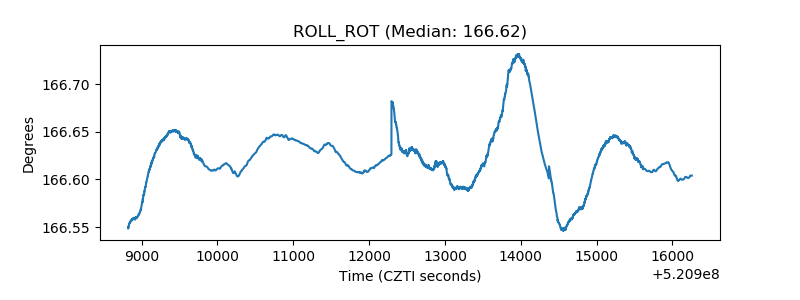

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

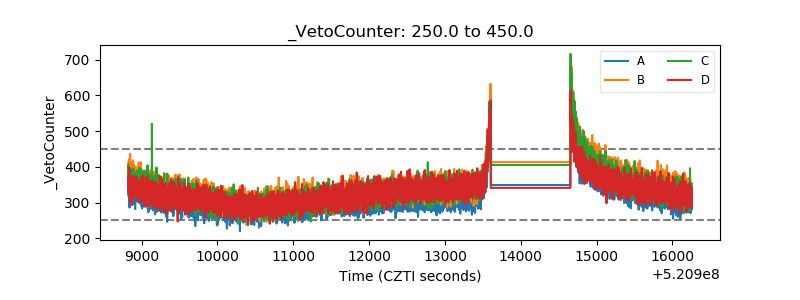

| Veto Counter |  |
