| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58264cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58264cztM0_level2_quad_clean.evt |
| Size (bytes) | 617,886,720 | 78,059,520 |
| Size | 589.3 MB | 74.4 MB |
| Events in quadrant A | 3,562,519 | 542,765 |
| Events in quadrant B | 5,042,750 | 554,561 |
| Events in quadrant C | 2,756,478 | 550,957 |
| Events in quadrant D | 11,051,934 | 301,821 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14822 | 1 |
| B | 0 | 18931 | 1 |
| C | 0 | 12648 | 2 |
| D | 0 | 36888 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5907 | 384 | 6.500762% |
| B | 5908 | 707 | 11.966825% |
| C | 5907 | 50 | 0.846453% |
| D | 5907 | 2814 | 47.638395% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7052 | 5908 | 282 | 282 | 4.00% | 4.77% |  |
| B | 7053 | 5909 | 478 | 478 | 6.78% | 8.09% |  |
| C | 7052 | 5908 | 32 | 32 | 0.45% | 0.54% |  |
| D | 7052 | 5908 | 2786 | 2786 | 39.51% | 47.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 238 | 536688 | 3485.28 | 624 | 608 | 153.8 |
| A | 8 | 26 | 472453 | 3067.66 | 624 | 608 | 153.8 |
| A | 0 | 12 | 26503 | 168.35 | 624 | 608 | 153.8 |
| B | 2 | 249 | 1297656 | 10053.89 | 603 | 582 | 129.0 |
| B | 6 | 255 | 497096 | 3848.58 | 603 | 582 | 129.0 |
| B | 4 | 206 | 200628 | 1550.6 | 603 | 582 | 129.0 |
| C | 1 | 27 | 110664 | 638.74 | 619 | 613 | 172.3 |
| C | 12 | 252 | 39747 | 227.14 | 619 | 613 | 172.3 |
| C | 6 | 223 | 38359 | 219.08 | 619 | 613 | 172.3 |
| D | 12 | 110 | 6029498 | 40830.2 | 519 | 497 | 147.7 |
| D | 8 | 160 | 2158827 | 14616.86 | 519 | 497 | 147.7 |
| D | 7 | 222 | 144111 | 972.6 | 519 | 497 | 147.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

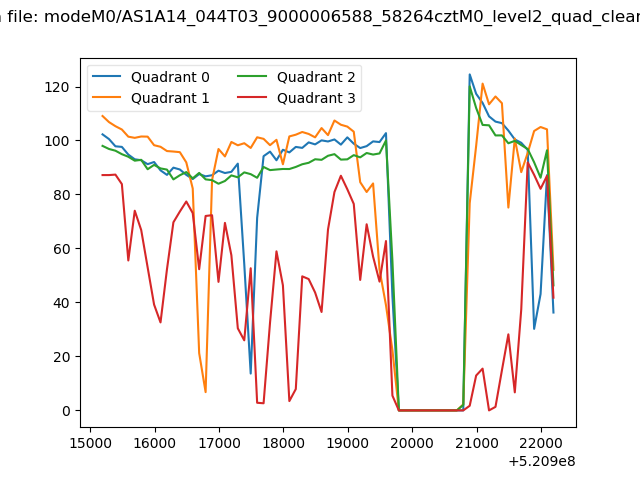

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

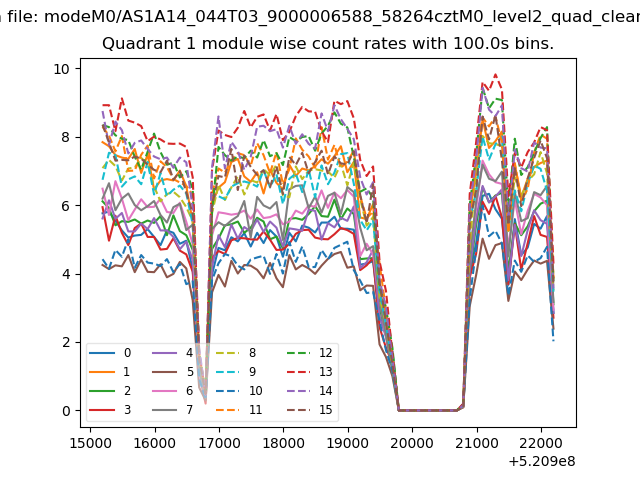

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

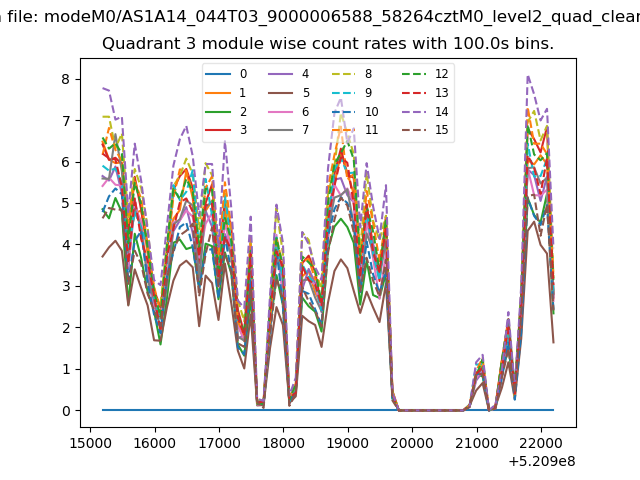

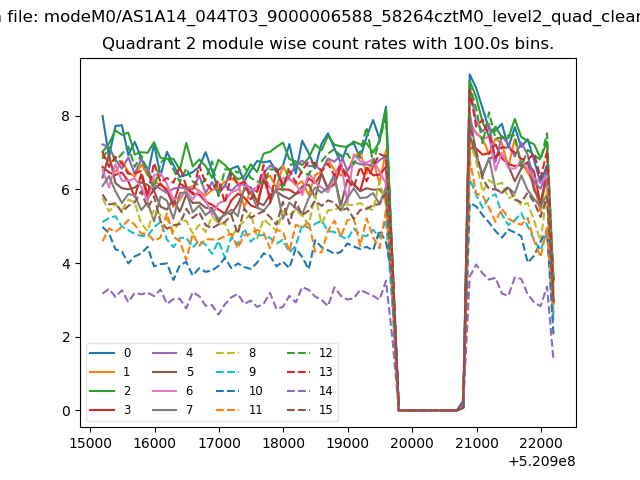

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

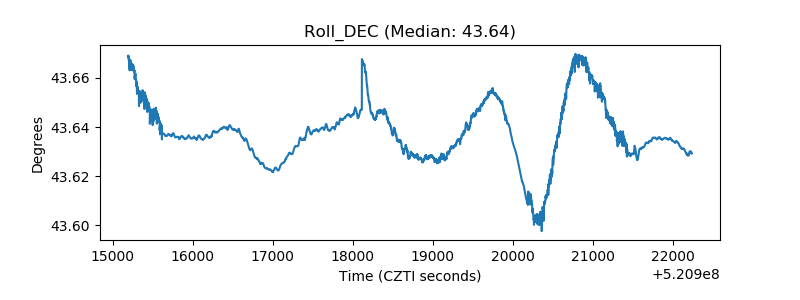

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
