| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58265cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58265cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,225,600 | 87,298,560 |
| Size | 500.9 MB | 83.3 MB |
| Events in quadrant A | 3,870,567 | 569,322 |
| Events in quadrant B | 4,249,523 | 620,935 |
| Events in quadrant C | 3,020,434 | 562,129 |
| Events in quadrant D | 7,830,466 | 466,652 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15779 | 1 |
| B | 0 | 16717 | 1 |
| C | 0 | 13591 | 1 |
| D | 0 | 27447 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6072 | 410 | 6.752306% |
| B | 6073 | 332 | 5.466820% |
| C | 6073 | 189 | 3.112136% |
| D | 6073 | 944 | 15.544212% |

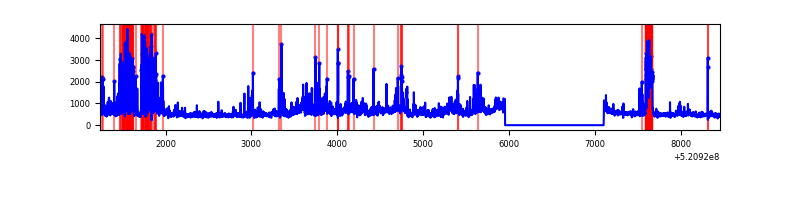

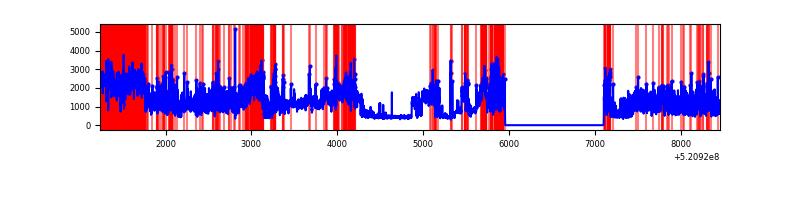

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7222 | 6073 | 277 | 277 | 3.84% | 4.56% |  |
| B | 7223 | 6073 | 171 | 171 | 2.37% | 2.82% |  |
| C | 7223 | 6074 | 108 | 108 | 1.50% | 1.78% |  |
| D | 7223 | 6074 | 919 | 919 | 12.72% | 15.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 26 | 1092156 | 6708.17 | 663 | 647 | 162.7 |
| A | 4 | 238 | 38440 | 232.27 | 663 | 647 | 162.7 |
| A | 3 | 245 | 27382 | 164.31 | 663 | 647 | 162.7 |
| B | 2 | 249 | 576092 | 4116.87 | 657 | 633 | 139.8 |
| B | 4 | 206 | 239231 | 1706.95 | 657 | 633 | 139.8 |
| B | 0 | 156 | 221645 | 1581.13 | 657 | 633 | 139.8 |
| C | 12 | 249 | 285783 | 1588.14 | 646 | 641 | 179.5 |
| C | 1 | 27 | 102128 | 565.25 | 646 | 641 | 179.5 |
| C | 14 | 96 | 15517 | 82.85 | 646 | 641 | 179.5 |
| D | 12 | 110 | 4613765 | 26616.64 | 611 | 582 | 173.3 |
| D | 8 | 160 | 280456 | 1614.78 | 611 | 582 | 173.3 |
| D | 14 | 49 | 176065 | 1012.48 | 611 | 582 | 173.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

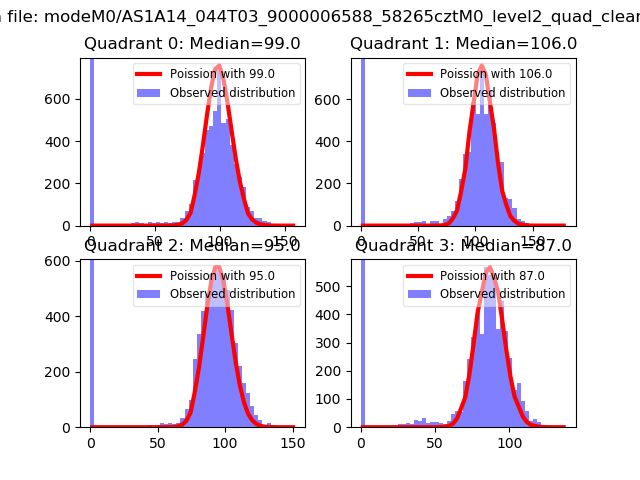

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

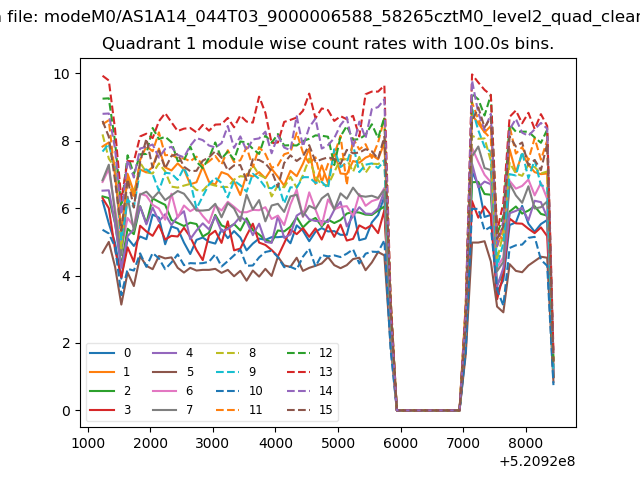

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

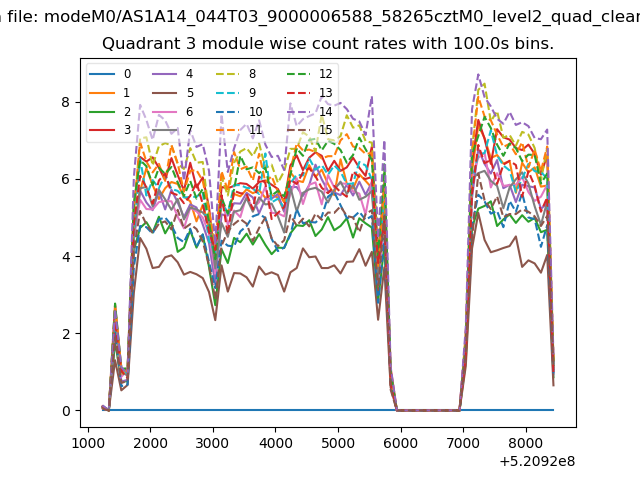

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

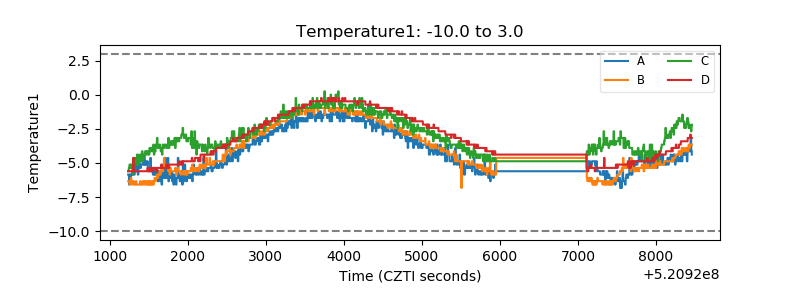

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

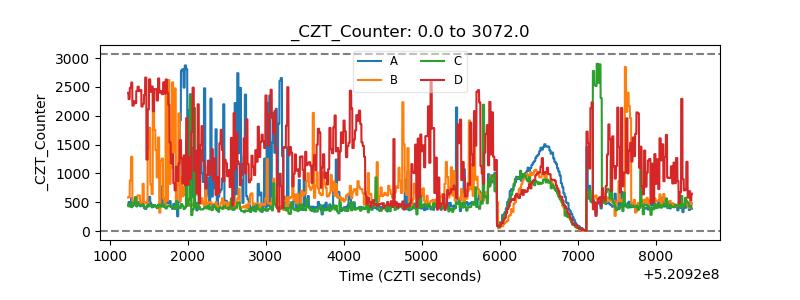

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

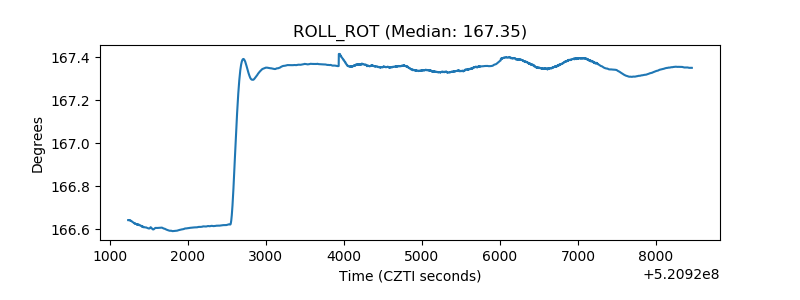

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
