| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58268cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58268cztM0_level2_quad_clean.evt |
| Size (bytes) | 693,126,720 | 93,525,120 |
| Size | 661.0 MB | 89.2 MB |
| Events in quadrant A | 5,194,078 | 617,433 |
| Events in quadrant B | 5,309,776 | 658,838 |
| Events in quadrant C | 3,456,714 | 624,930 |
| Events in quadrant D | 11,152,576 | 441,305 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20496 | 1 |
| B | 0 | 20486 | 1 |
| C | 0 | 15631 | 1 |
| D | 0 | 37971 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7022 | 626 | 8.914839% |
| B | 7022 | 690 | 9.826260% |
| C | 7023 | 145 | 2.064645% |
| D | 7023 | 2127 | 30.286202% |

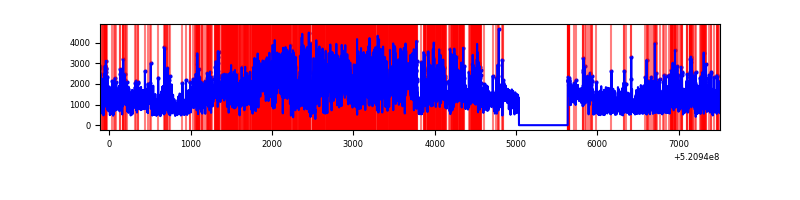

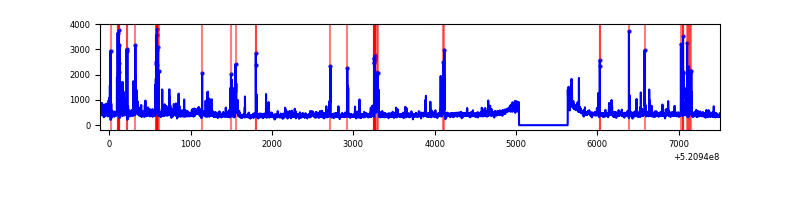

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

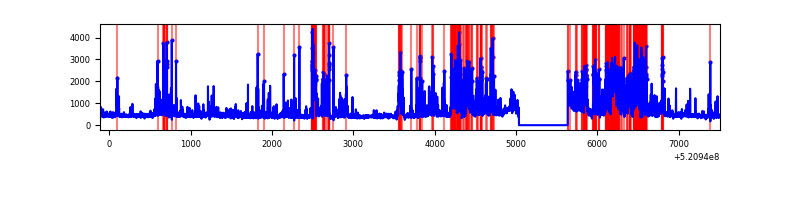

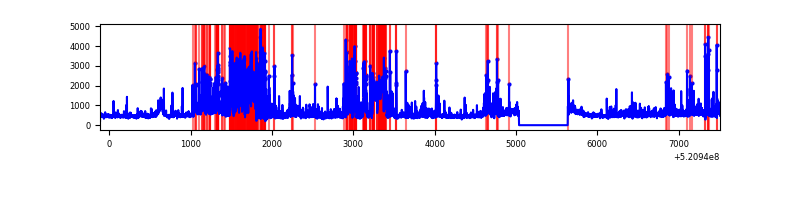

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7622 | 7023 | 370 | 370 | 4.85% | 5.27% |  |
| B | 7622 | 7023 | 346 | 346 | 4.54% | 4.93% |  |
| C | 7623 | 7024 | 53 | 53 | 0.70% | 0.75% |  |
| D | 7623 | 7023 | 1685 | 1685 | 22.10% | 23.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 1564332 | 8548.3 | 740 | 719 | 182.9 |
| A | 10 | 253 | 243740 | 1328.6 | 740 | 719 | 182.9 |
| A | 4 | 249 | 130633 | 710.24 | 740 | 719 | 182.9 |
| B | 4 | 206 | 805858 | 5223.85 | 722 | 695 | 154.1 |
| B | 6 | 255 | 663707 | 4301.59 | 722 | 695 | 154.1 |
| B | 0 | 156 | 193528 | 1251.09 | 722 | 695 | 154.1 |
| C | 6 | 223 | 176268 | 869.49 | 734 | 726 | 201.9 |
| C | 15 | 254 | 106158 | 522.22 | 734 | 726 | 201.9 |
| C | 5 | 63 | 77479 | 380.17 | 734 | 726 | 201.9 |
| D | 12 | 110 | 4894926 | 25978.63 | 665 | 637 | 188.4 |
| D | 2 | 120 | 2210633 | 11730.54 | 665 | 637 | 188.4 |
| D | 8 | 160 | 618460 | 3279.37 | 665 | 637 | 188.4 |

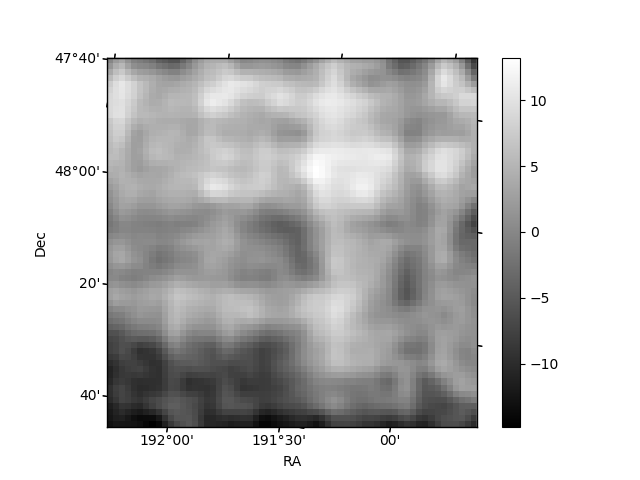

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

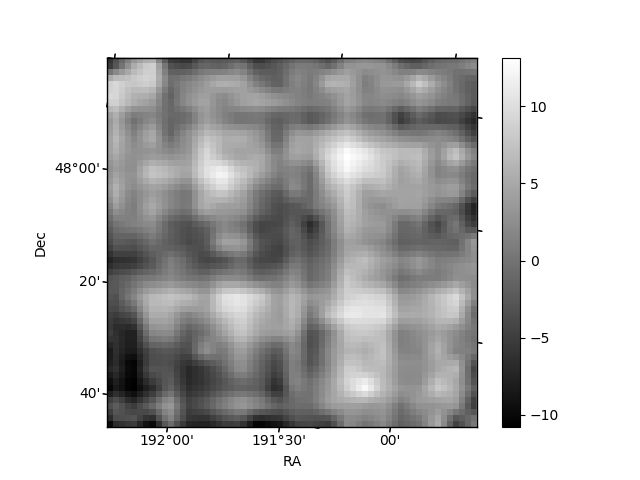

| Plot type | Count rate plots | Images |
|---|---|---|

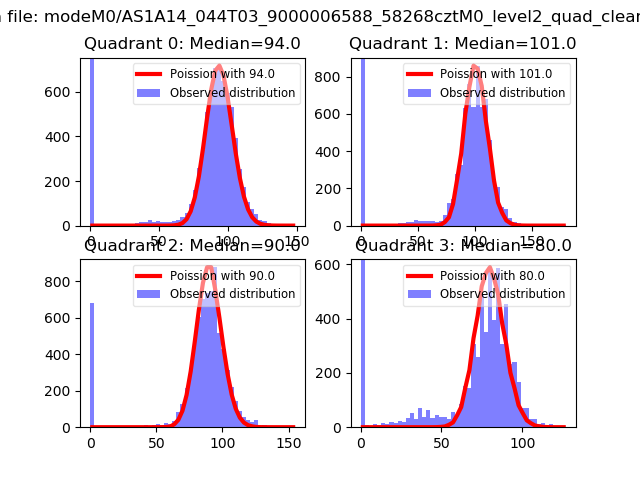

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

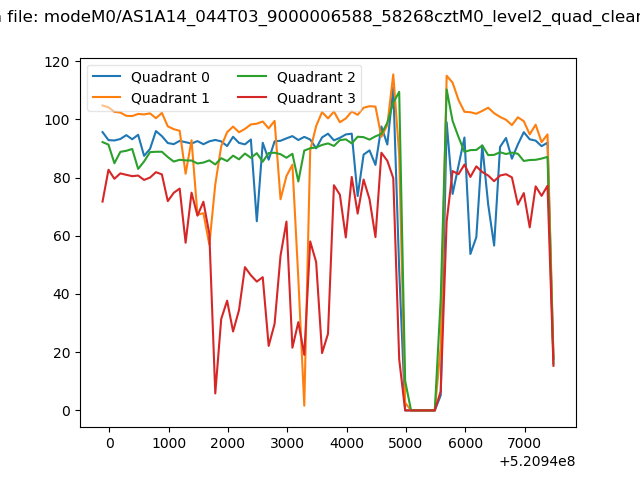

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

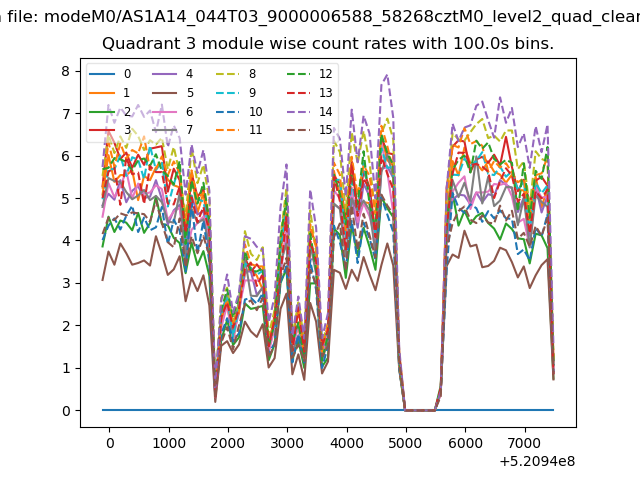

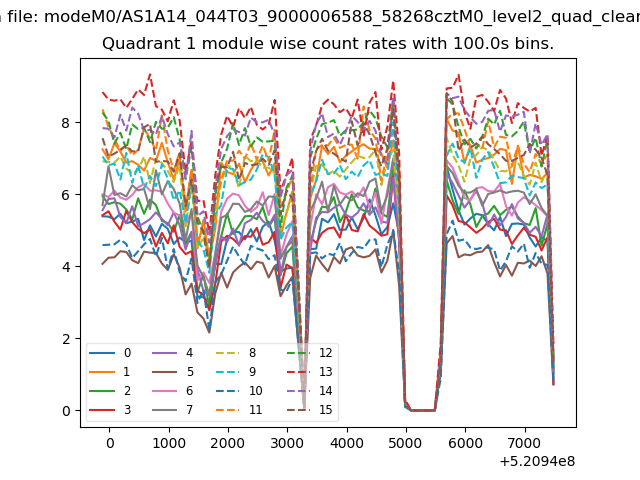

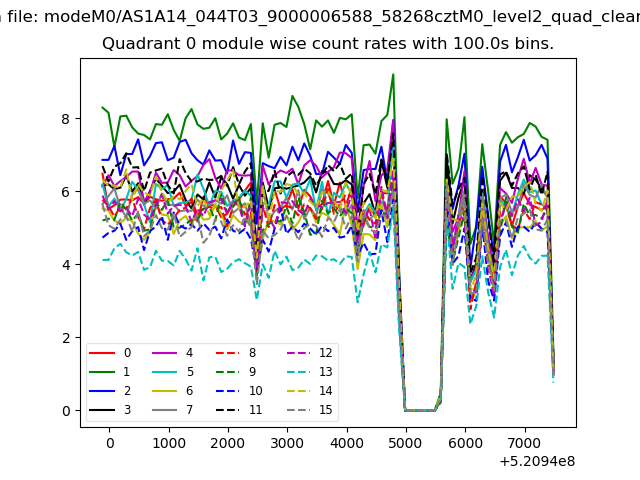

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

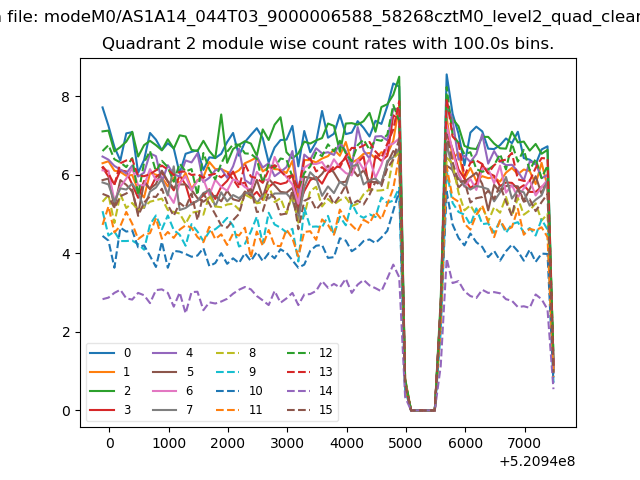

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

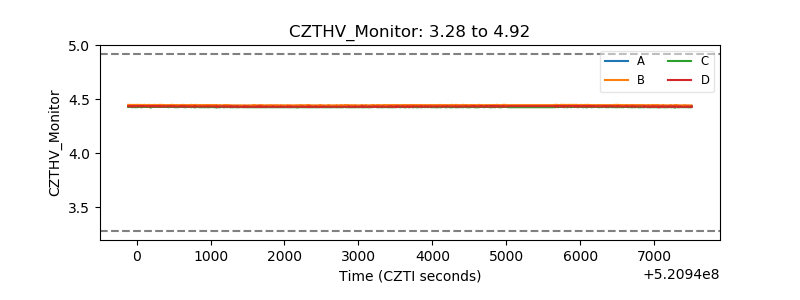

| CZT HV Monitor |  |
| D_VDD |  |

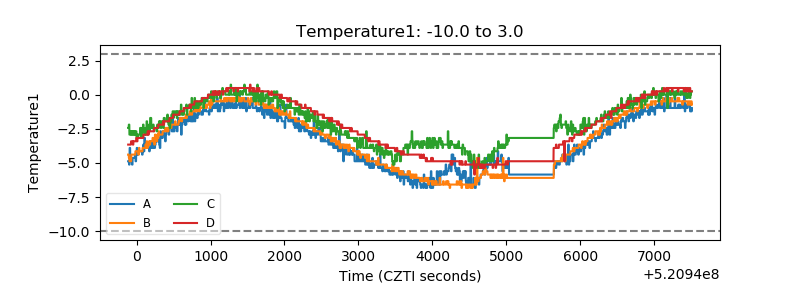

| Temperature 1 |  |
| Veto HV Monitor |  |

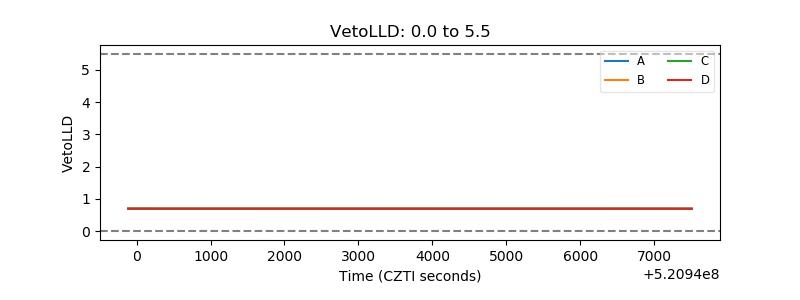

| Veto LLD |  |

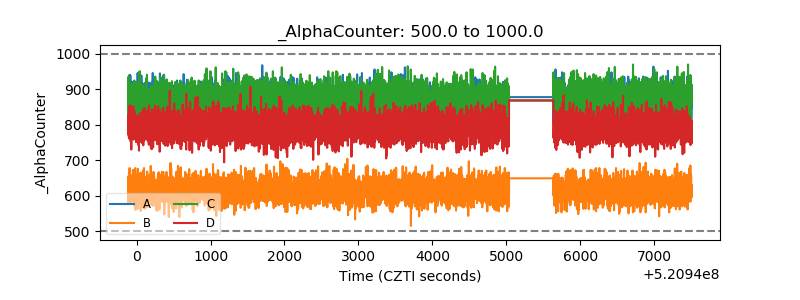

| Alpha Counter |  |

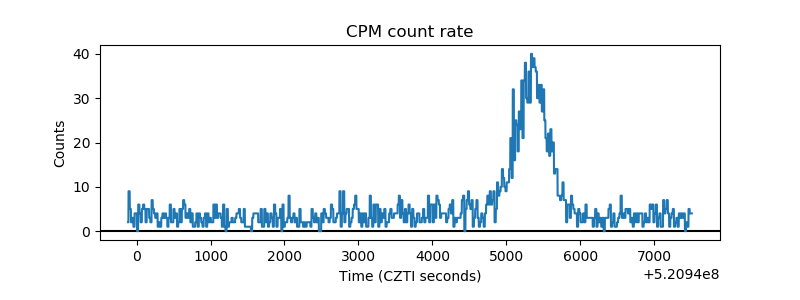

| _CPM_Rate |  |

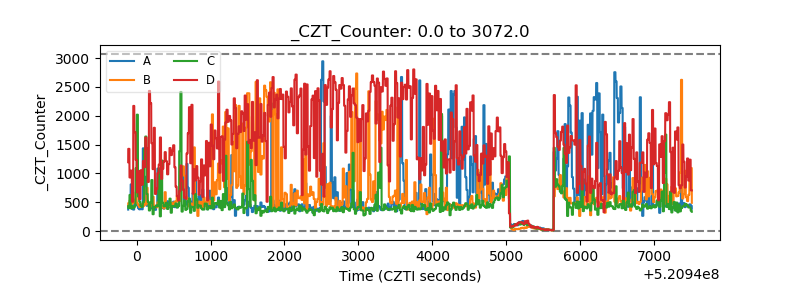

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

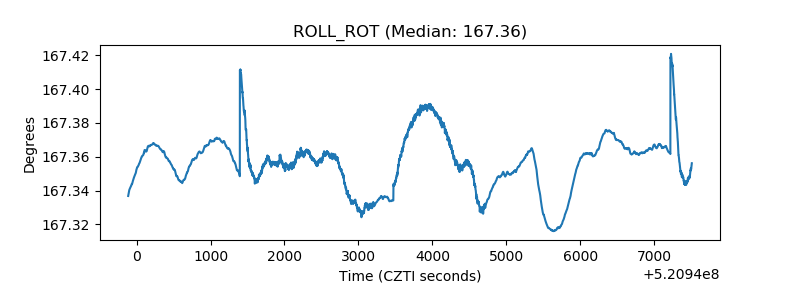

| _ROLL_ROT |  |

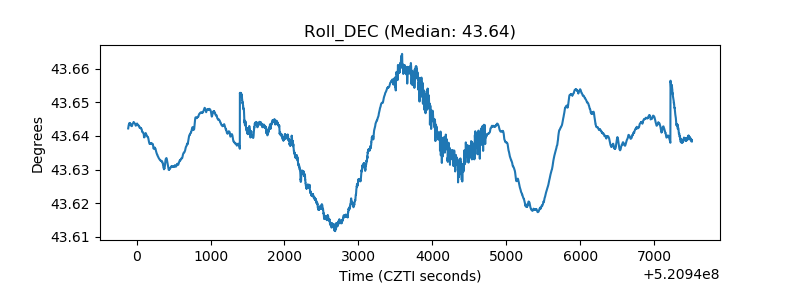

| _Roll_DEC |  |

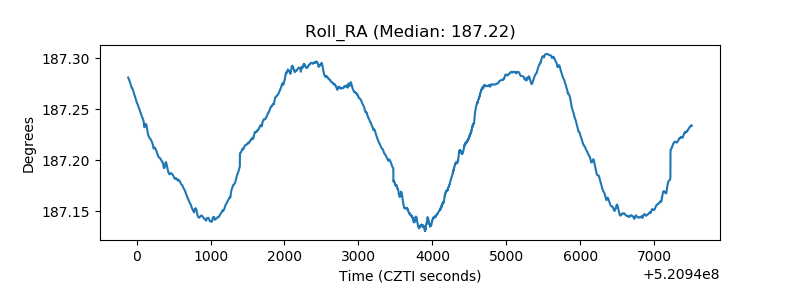

| _Roll_RA |  |

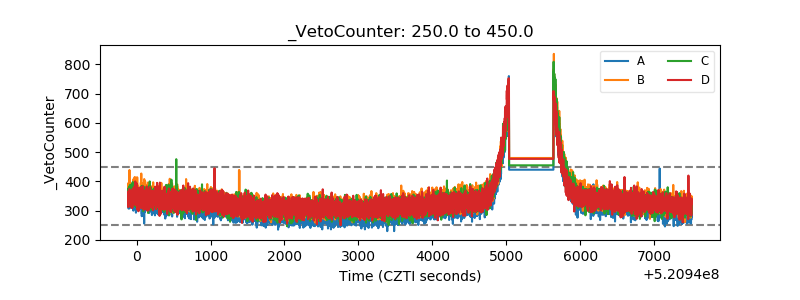

| Veto Counter |  |
