| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58270cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58270cztM0_level2_quad_clean.evt |
| Size (bytes) | 686,741,760 | 92,321,280 |
| Size | 654.9 MB | 88.0 MB |
| Events in quadrant A | 4,198,678 | 621,363 |
| Events in quadrant B | 5,853,662 | 575,946 |
| Events in quadrant C | 5,203,756 | 598,958 |
| Events in quadrant D | 9,634,316 | 521,017 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17303 | 0 |
| B | 0 | 22161 | 3 |
| C | 0 | 20457 | 0 |
| D | 0 | 33452 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6861 | 268 | 3.906136% |
| B | 6861 | 1190 | 17.344410% |
| C | 6861 | 254 | 3.702084% |
| D | 6861 | 904 | 13.175922% |

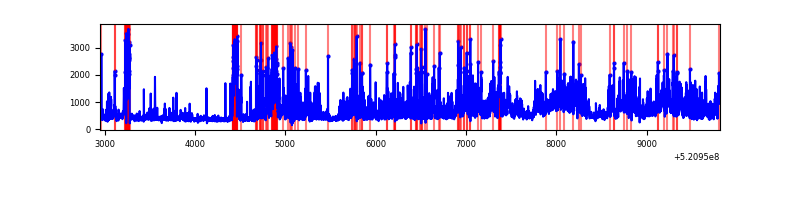

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6861 | 6861 | 190 | 190 | 2.77% | 2.77% |  |
| B | 6861 | 6861 | 504 | 504 | 7.35% | 7.35% |  |
| C | 6861 | 6861 | 182 | 182 | 2.65% | 2.65% |  |
| D | 6861 | 6861 | 846 | 846 | 12.33% | 12.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 868066 | 4810.51 | 722 | 703 | 180.3 |
| A | 4 | 249 | 175101 | 967.23 | 722 | 703 | 180.3 |
| A | 3 | 14 | 122093 | 673.25 | 722 | 703 | 180.3 |
| B | 6 | 255 | 1822929 | 13014.34 | 649 | 625 | 140.0 |
| B | 3 | 238 | 809162 | 5774.32 | 649 | 625 | 140.0 |
| B | 10 | 128 | 99613 | 706.94 | 649 | 625 | 140.0 |
| C | 6 | 223 | 1585505 | 8198.73 | 701 | 695 | 193.3 |
| C | 15 | 198 | 350678 | 1810.58 | 701 | 695 | 193.3 |
| C | 13 | 3 | 142176 | 731.93 | 701 | 695 | 193.3 |
| D | 12 | 110 | 5502047 | 28192.25 | 686 | 659 | 195.1 |
| D | 8 | 160 | 347808 | 1778.99 | 686 | 659 | 195.1 |
| D | 2 | 120 | 237338 | 1212.88 | 686 | 659 | 195.1 |

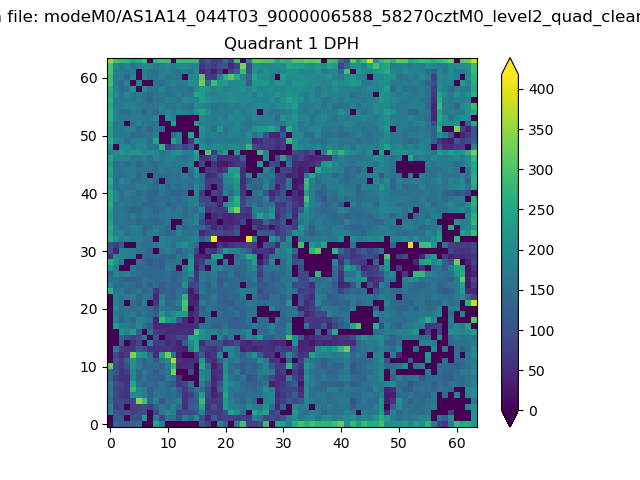

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

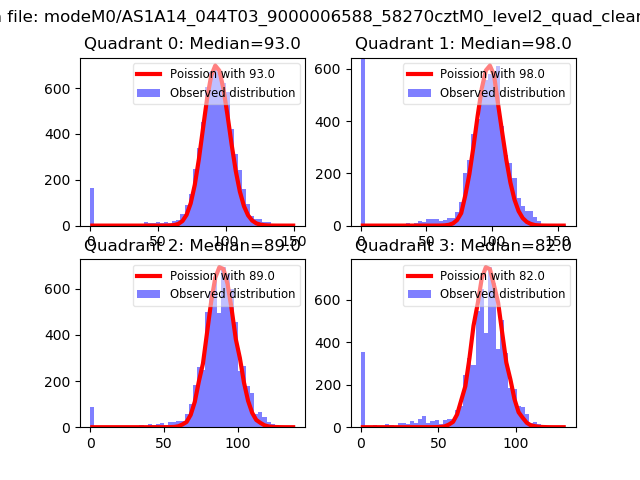

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

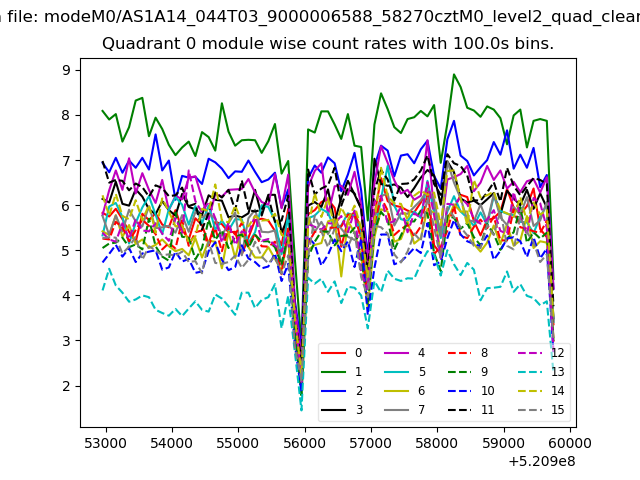

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

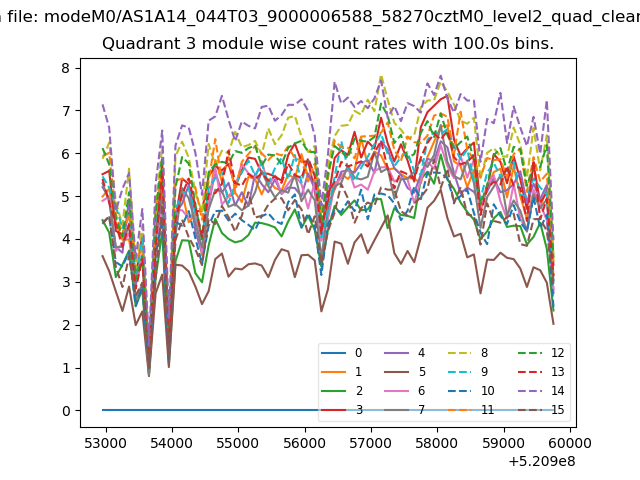

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

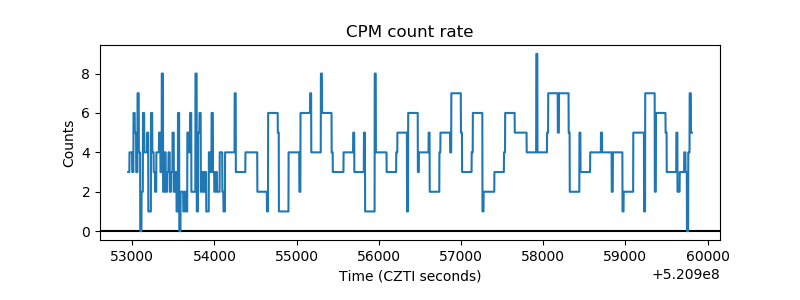

| _CPM_Rate |  |

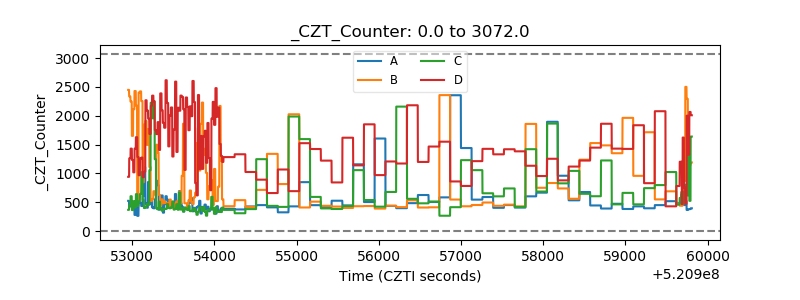

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

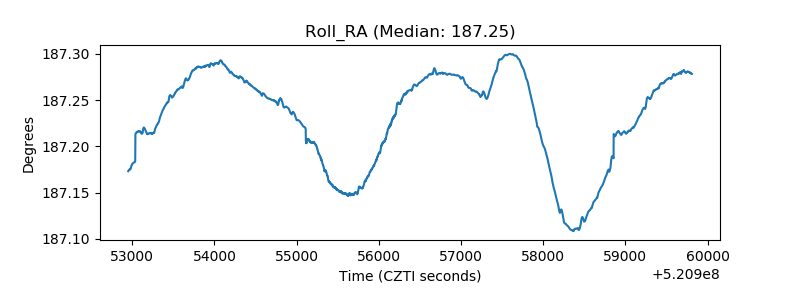

| _Roll_RA |  |
| Veto Counter |  |
