| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58277cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58277cztM0_level2_quad_clean.evt |
| Size (bytes) | 409,924,800 | 102,844,800 |
| Size | 390.9 MB | 98.1 MB |
| Events in quadrant A | 3,500,417 | 668,663 |
| Events in quadrant B | 3,683,967 | 715,587 |
| Events in quadrant C | 3,666,756 | 635,179 |
| Events in quadrant D | 3,774,006 | 603,608 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15542 | 2 |
| B | 0 | 15920 | 2 |
| C | 0 | 16241 | 2 |
| D | 0 | 16262 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7053 | 66 | 0.935772% |
| B | 7054 | 119 | 1.686986% |
| C | 7054 | 141 | 1.998866% |
| D | 7053 | 106 | 1.502907% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8913 | 7055 | 20 | 20 | 0.22% | 0.28% |  |
| B | 8914 | 7056 | 55 | 55 | 0.62% | 0.78% |  |
| C | 8914 | 7056 | 96 | 96 | 1.08% | 1.36% |  |
| D | 8913 | 7055 | 102 | 102 | 1.14% | 1.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 182401 | 961.68 | 759 | 738 | 188.9 |
| A | 4 | 238 | 129323 | 680.7 | 759 | 738 | 188.9 |
| A | 12 | 114 | 72886 | 381.93 | 759 | 738 | 188.9 |
| B | 10 | 246 | 139582 | 860.71 | 751 | 723 | 161.3 |
| B | 4 | 201 | 94854 | 583.47 | 751 | 723 | 161.3 |
| B | 0 | 153 | 72819 | 446.88 | 751 | 723 | 161.3 |
| C | 13 | 3 | 493591 | 2413.95 | 735 | 728 | 204.2 |
| C | 6 | 223 | 153785 | 749.64 | 735 | 728 | 204.2 |
| C | 12 | 252 | 50237 | 242.49 | 735 | 728 | 204.2 |
| D | 12 | 110 | 283054 | 1361.48 | 732 | 698 | 207.4 |
| D | 2 | 249 | 223413 | 1073.9 | 732 | 698 | 207.4 |
| D | 12 | 248 | 87016 | 416.21 | 732 | 698 | 207.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

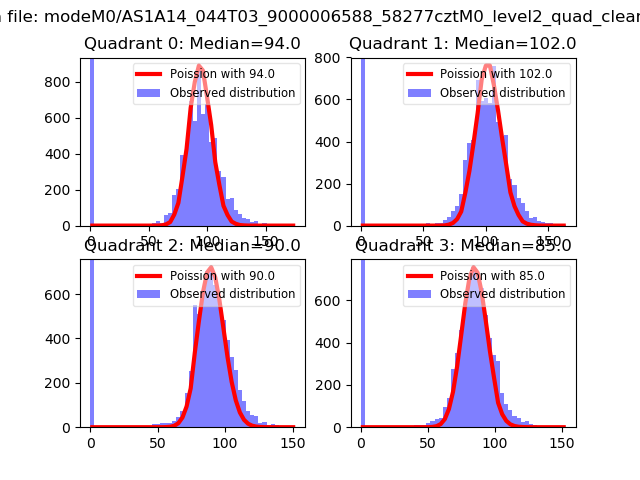

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

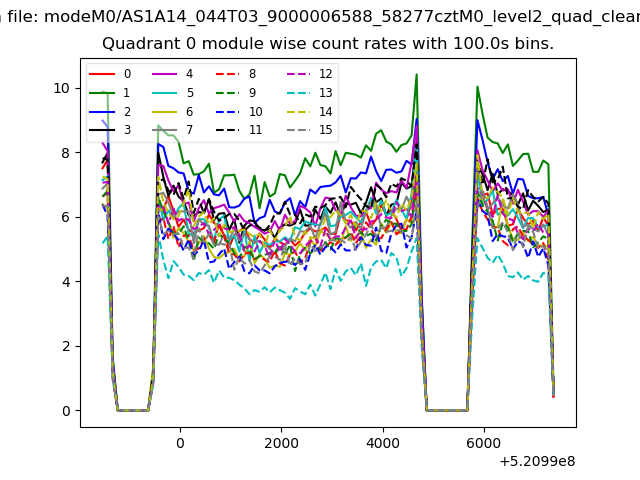

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

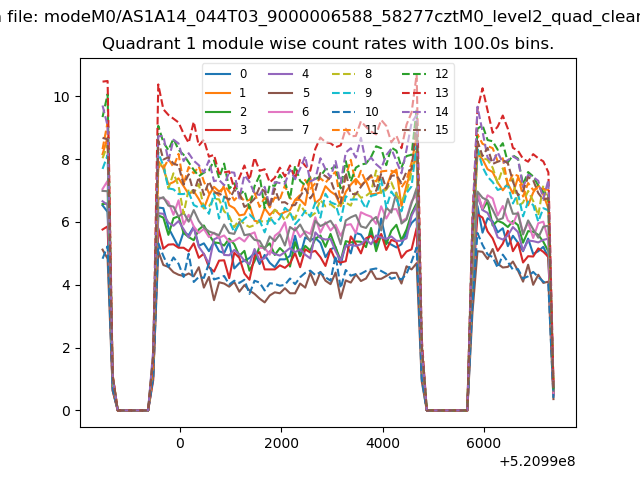

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

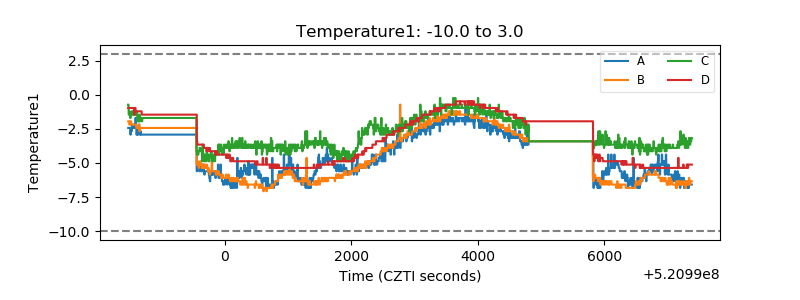

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

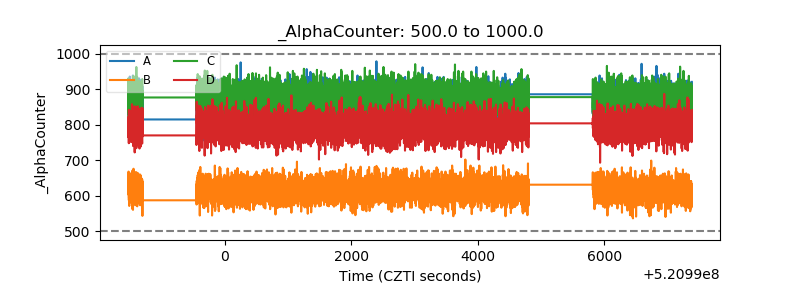

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

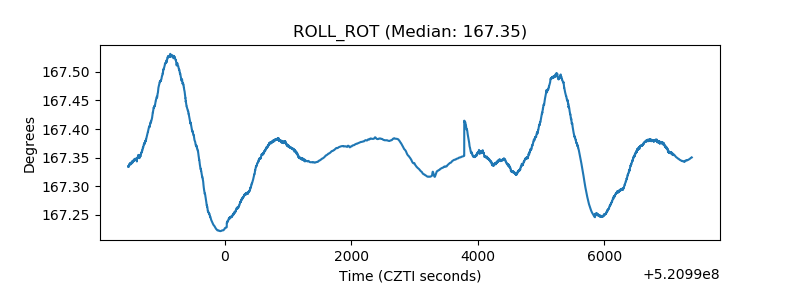

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
