| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58278cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58278cztM0_level2_quad_clean.evt |
| Size (bytes) | 383,624,640 | 96,989,760 |
| Size | 365.9 MB | 92.5 MB |
| Events in quadrant A | 3,248,107 | 628,569 |
| Events in quadrant B | 3,418,669 | 678,144 |
| Events in quadrant C | 3,719,003 | 605,429 |
| Events in quadrant D | 3,306,929 | 569,438 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14237 | 2 |
| B | 0 | 14665 | 2 |
| C | 0 | 15843 | 2 |
| D | 0 | 14501 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6525 | 76 | 1.164751% |
| B | 6525 | 91 | 1.394636% |
| C | 6525 | 145 | 2.222222% |
| D | 6524 | 53 | 0.812385% |

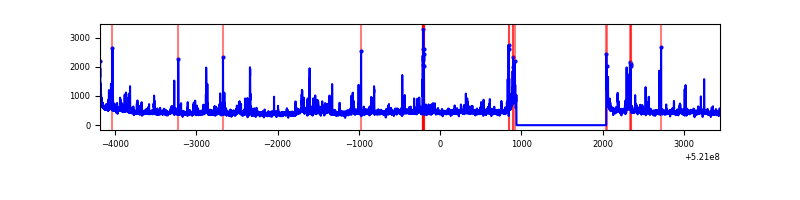

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 6526 | 25 | 25 | 0.33% | 0.38% |  |
| B | 7630 | 6526 | 29 | 29 | 0.38% | 0.44% |  |
| C | 7630 | 6526 | 102 | 102 | 1.34% | 1.56% |  |
| D | 7629 | 6525 | 46 | 46 | 0.60% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 142166 | 793.55 | 711 | 690 | 178.3 |
| A | 4 | 238 | 87857 | 488.93 | 711 | 690 | 178.3 |
| A | 12 | 114 | 85562 | 476.05 | 711 | 690 | 178.3 |
| B | 4 | 206 | 200021 | 1325.34 | 704 | 678 | 150.4 |
| B | 10 | 247 | 84670 | 558.42 | 704 | 678 | 150.4 |
| B | 0 | 153 | 82000 | 540.67 | 704 | 678 | 150.4 |
| C | 13 | 3 | 497294 | 2619.54 | 687 | 681 | 189.6 |
| C | 15 | 204 | 287313 | 1511.93 | 687 | 681 | 189.6 |
| C | 6 | 223 | 187223 | 983.97 | 687 | 681 | 189.6 |
| D | 2 | 120 | 148778 | 757.09 | 684 | 652 | 195.7 |
| D | 3 | 47 | 108631 | 551.89 | 684 | 652 | 195.7 |
| D | 2 | 249 | 103473 | 525.53 | 684 | 652 | 195.7 |

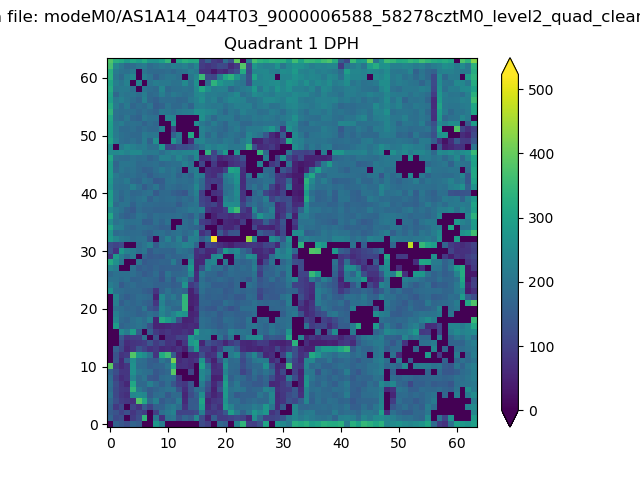

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

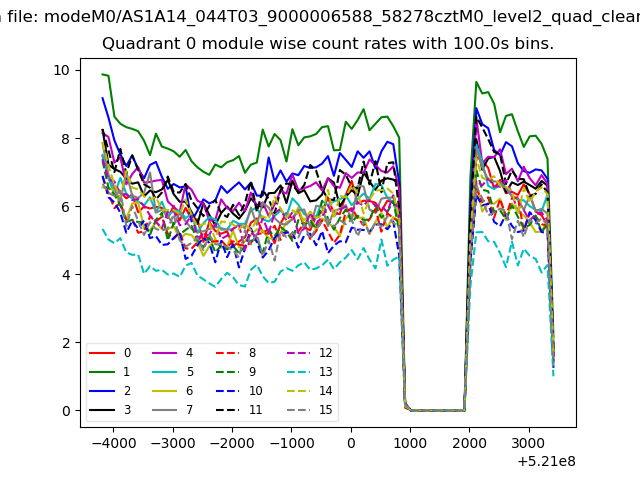

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

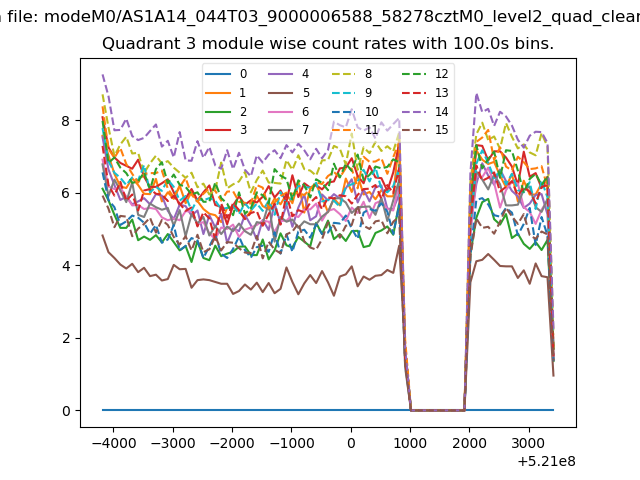

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

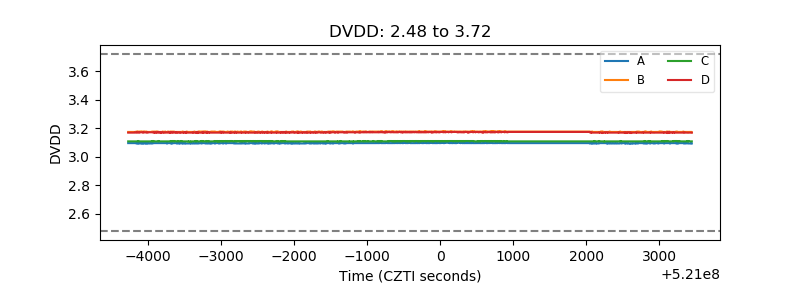

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

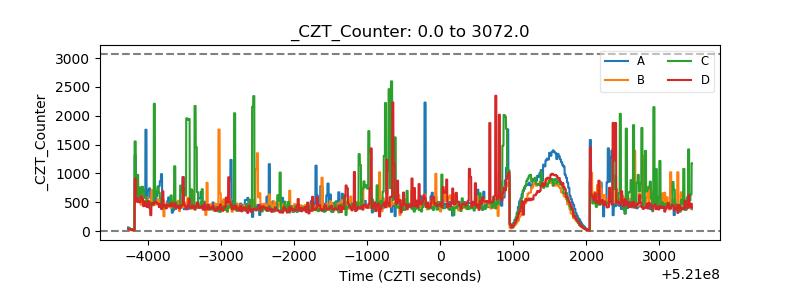

| CZT Counter |  |

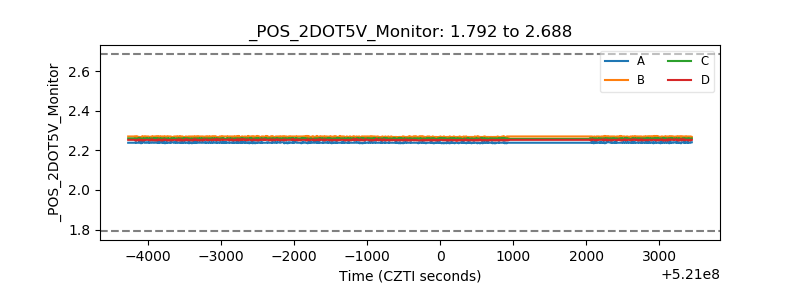

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

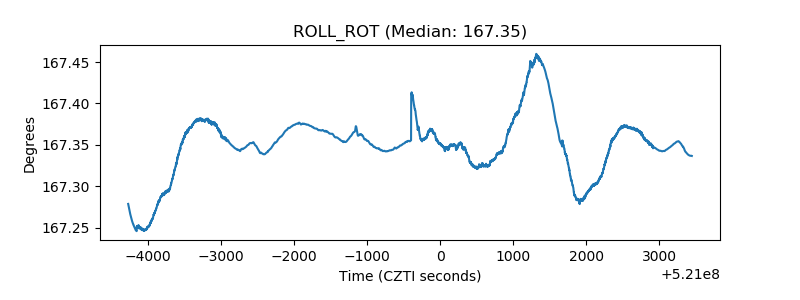

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
