| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58279cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58279cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,791,360 | 95,639,040 |
| Size | 465.2 MB | 91.2 MB |
| Events in quadrant A | 3,831,336 | 633,566 |
| Events in quadrant B | 4,096,810 | 674,750 |
| Events in quadrant C | 4,491,860 | 588,708 |
| Events in quadrant D | 5,134,352 | 548,074 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15785 | 2 |
| B | 0 | 16547 | 2 |
| C | 0 | 17963 | 2 |
| D | 0 | 19764 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6467 | 177 | 2.736972% |
| B | 6466 | 290 | 4.484998% |
| C | 6466 | 453 | 7.005877% |
| D | 6466 | 461 | 7.129601% |

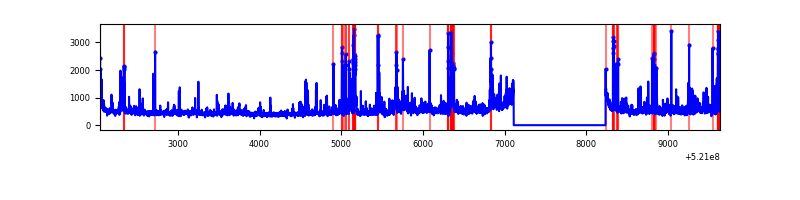

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7592 | 6467 | 92 | 92 | 1.21% | 1.42% |  |
| B | 7591 | 6466 | 133 | 133 | 1.75% | 2.06% |  |
| C | 7591 | 6467 | 414 | 414 | 5.45% | 6.40% |  |
| D | 7591 | 6467 | 377 | 377 | 4.97% | 5.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 238 | 465953 | 2630.98 | 721 | 703 | 176.8 |
| A | 3 | 14 | 235598 | 1328.33 | 721 | 703 | 176.8 |
| A | 4 | 249 | 89639 | 502.93 | 721 | 703 | 176.8 |
| B | 4 | 206 | 573371 | 3791.17 | 712 | 685 | 151.1 |
| B | 0 | 156 | 149651 | 986.15 | 712 | 685 | 151.1 |
| B | 4 | 201 | 140855 | 927.92 | 712 | 685 | 151.1 |
| C | 12 | 249 | 1129066 | 5978.12 | 688 | 682 | 188.8 |
| C | 15 | 204 | 266981 | 1410.84 | 688 | 682 | 188.8 |
| C | 13 | 3 | 239101 | 1263.13 | 688 | 682 | 188.8 |
| D | 12 | 110 | 1870819 | 9591.13 | 683 | 653 | 195.0 |
| D | 3 | 12 | 174183 | 889.95 | 683 | 653 | 195.0 |
| D | 2 | 249 | 62363 | 316.48 | 683 | 653 | 195.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

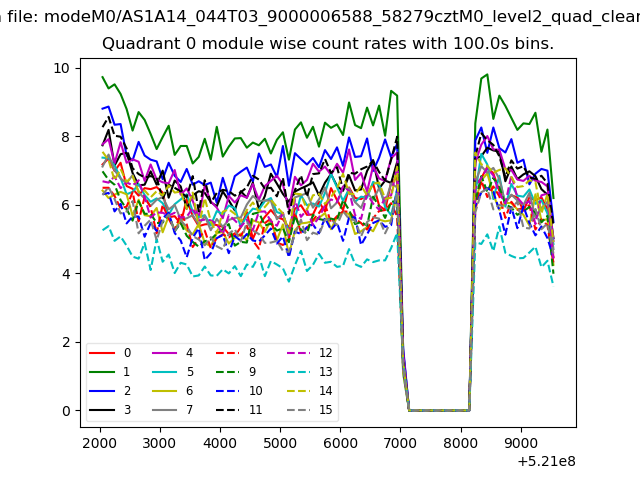

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

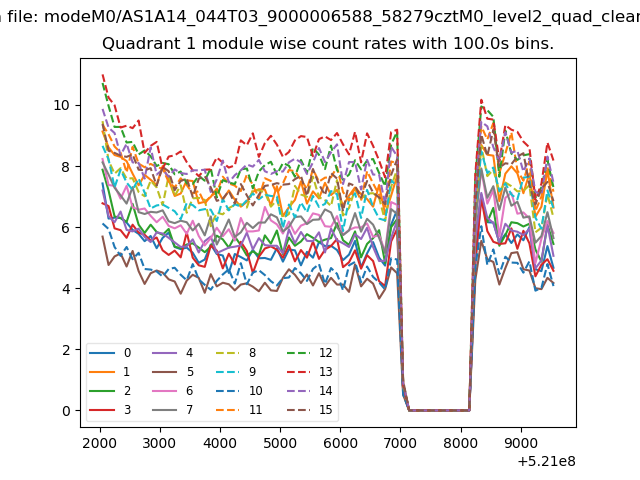

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

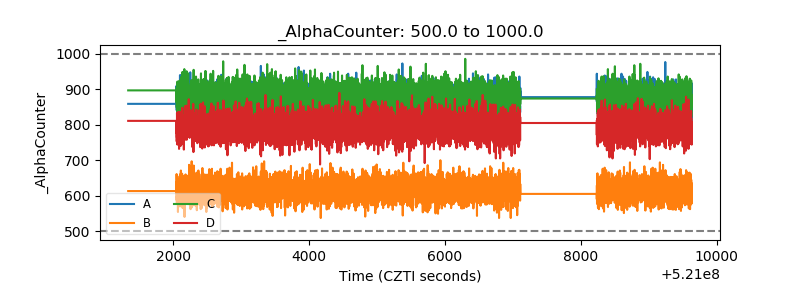

| Alpha Counter |  |

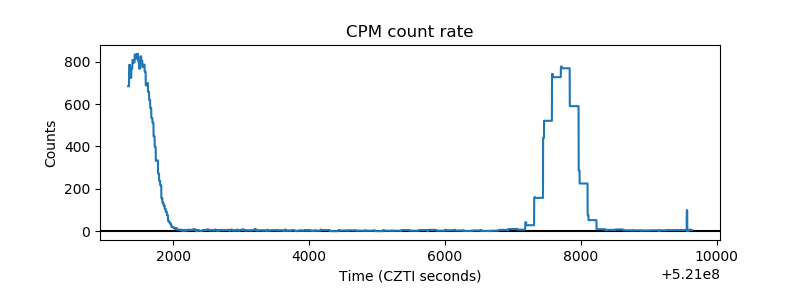

| _CPM_Rate |  |

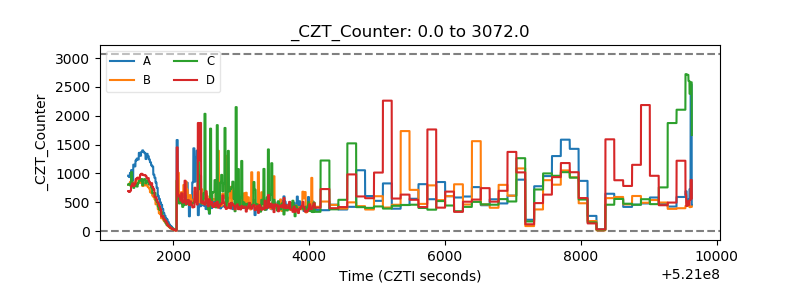

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

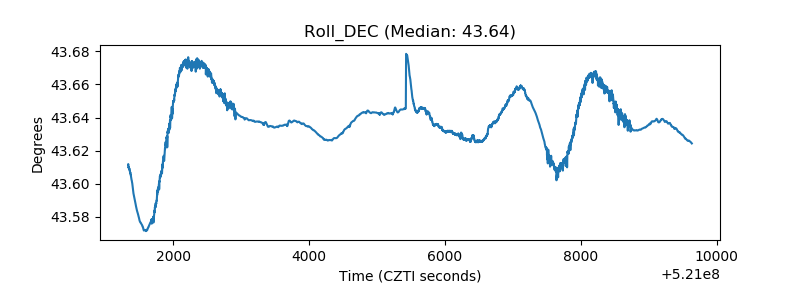

| _Roll_DEC |  |
| _Roll_RA |  |

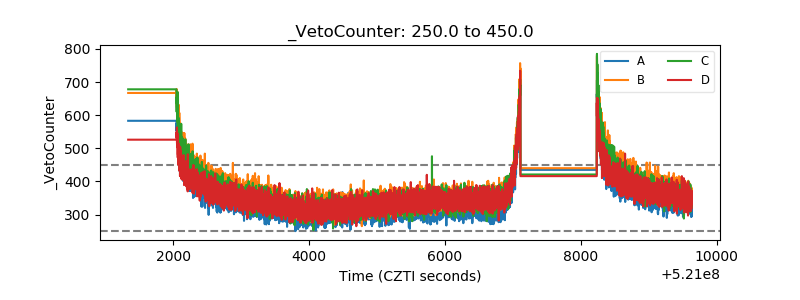

| Veto Counter |  |
