| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58281cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58281cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,447,040 | 89,323,200 |
| Size | 523.0 MB | 85.2 MB |
| Events in quadrant A | 3,525,522 | 614,094 |
| Events in quadrant B | 4,158,029 | 651,346 |
| Events in quadrant C | 3,427,514 | 592,427 |
| Events in quadrant D | 8,691,124 | 398,469 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14770 | 1 |
| B | 0 | 16626 | 1 |
| C | 0 | 14939 | 1 |
| D | 0 | 30241 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6426 | 223 | 3.470277% |
| B | 6427 | 384 | 5.974794% |
| C | 6427 | 208 | 3.236347% |
| D | 6427 | 2142 | 33.328147% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7426 | 6426 | 48 | 48 | 0.65% | 0.75% |  |
| B | 7427 | 6427 | 108 | 108 | 1.45% | 1.68% |  |
| C | 7427 | 6427 | 96 | 96 | 1.29% | 1.49% |  |
| D | 7427 | 6427 | 1849 | 1849 | 24.90% | 28.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 303627 | 1701.87 | 718 | 699 | 178.0 |
| A | 8 | 246 | 107869 | 602.09 | 718 | 699 | 178.0 |
| A | 3 | 14 | 102244 | 570.49 | 718 | 699 | 178.0 |
| B | 4 | 206 | 726066 | 4895.41 | 698 | 674 | 148.2 |
| B | 10 | 247 | 131103 | 880.22 | 698 | 674 | 148.2 |
| B | 0 | 153 | 120355 | 807.68 | 698 | 674 | 148.2 |
| C | 13 | 3 | 328724 | 1723.6 | 693 | 686 | 190.3 |
| C | 6 | 223 | 160137 | 837.8 | 693 | 686 | 190.3 |
| C | 12 | 252 | 123241 | 643.94 | 693 | 686 | 190.3 |
| D | 12 | 110 | 5423559 | 30748.47 | 617 | 591 | 176.4 |
| D | 2 | 249 | 304331 | 1722.22 | 617 | 591 | 176.4 |
| D | 7 | 222 | 140360 | 792.5 | 617 | 591 | 176.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

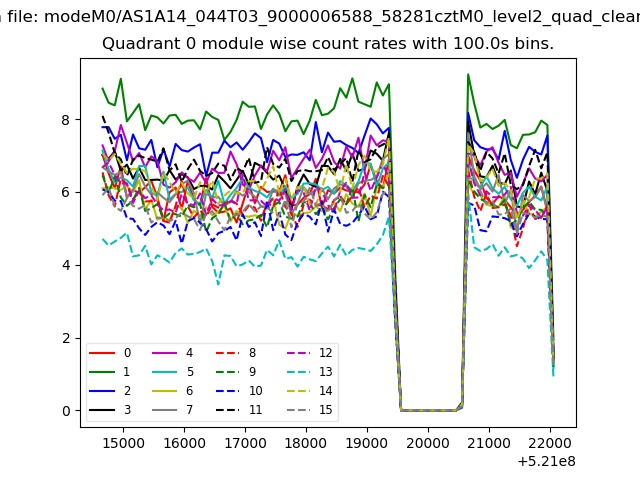

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

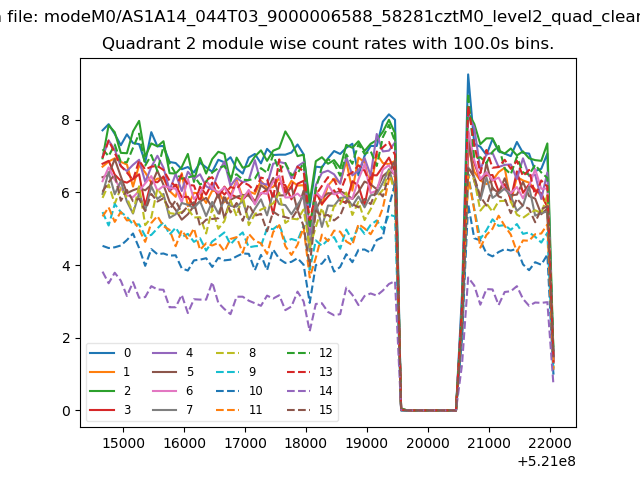

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

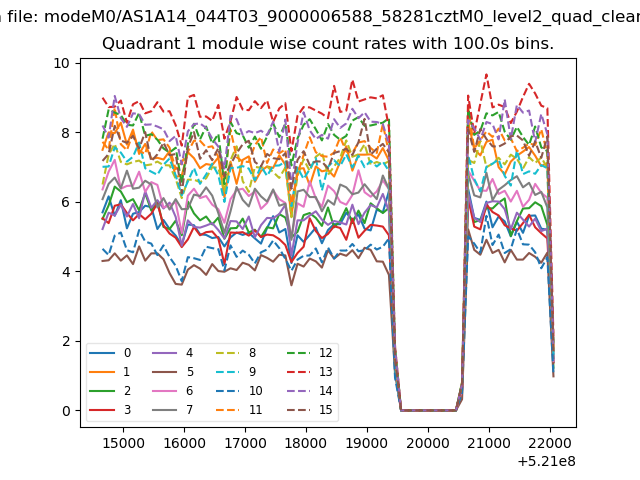

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

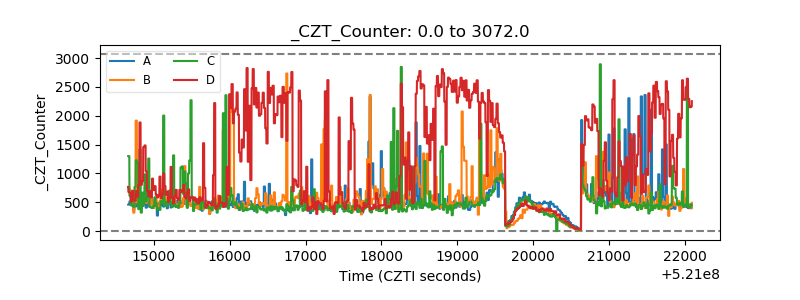

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

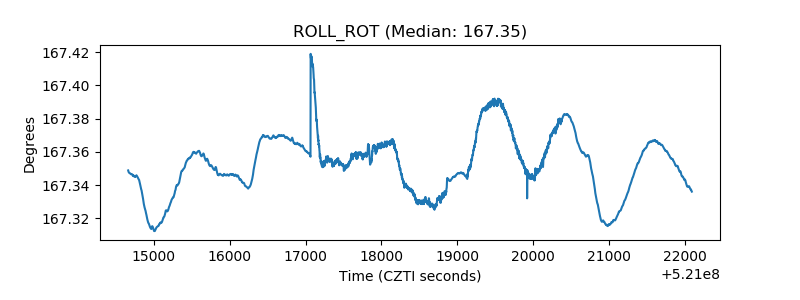

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
