| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58282cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58282cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,420,160 | 78,727,680 |
| Size | 580.2 MB | 75.1 MB |
| Events in quadrant A | 3,109,395 | 578,983 |
| Events in quadrant B | 3,914,954 | 604,958 |
| Events in quadrant C | 3,014,729 | 556,723 |
| Events in quadrant D | 12,000,731 | 211,312 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13535 | 1 |
| B | 0 | 15875 | 1 |
| C | 0 | 13635 | 1 |
| D | 0 | 39761 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6188 | 182 | 2.941176% |
| B | 6189 | 404 | 6.527710% |
| C | 6189 | 155 | 2.504443% |
| D | 6189 | 4005 | 64.711585% |

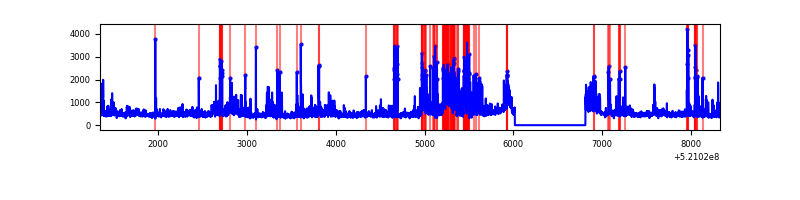

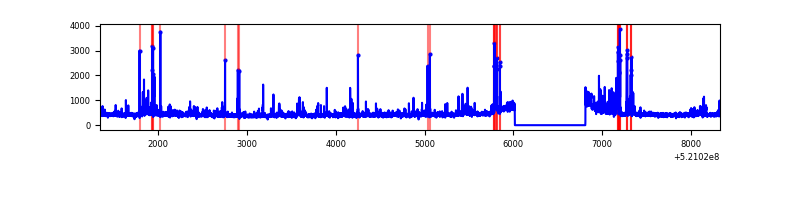

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6983 | 6188 | 18 | 18 | 0.26% | 0.29% |  |
| B | 6984 | 6189 | 142 | 142 | 2.03% | 2.29% |  |
| C | 6984 | 6189 | 36 | 36 | 0.52% | 0.58% |  |
| D | 6984 | 6189 | 3713 | 3713 | 53.16% | 59.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 141638 | 837.68 | 681 | 663 | 168.3 |
| A | 0 | 12 | 123734 | 731.3 | 681 | 663 | 168.3 |
| A | 3 | 14 | 92287 | 544.44 | 681 | 663 | 168.3 |
| B | 4 | 206 | 717036 | 5110.99 | 656 | 632 | 140.2 |
| B | 0 | 153 | 121121 | 859.6 | 656 | 632 | 140.2 |
| B | 0 | 156 | 84367 | 597.38 | 656 | 632 | 140.2 |
| C | 6 | 223 | 199526 | 1101.46 | 657 | 652 | 180.6 |
| C | 13 | 3 | 84800 | 466.05 | 657 | 652 | 180.6 |
| C | 12 | 252 | 53040 | 290.15 | 657 | 652 | 180.6 |
| D | 12 | 110 | 9539156 | 75601.06 | 439 | 418 | 126.2 |
| D | 2 | 249 | 230859 | 1826.4 | 439 | 418 | 126.2 |
| D | 7 | 222 | 166647 | 1317.48 | 439 | 418 | 126.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

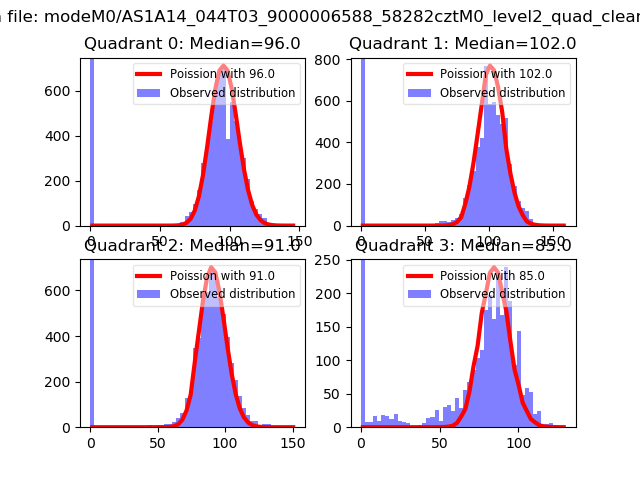

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

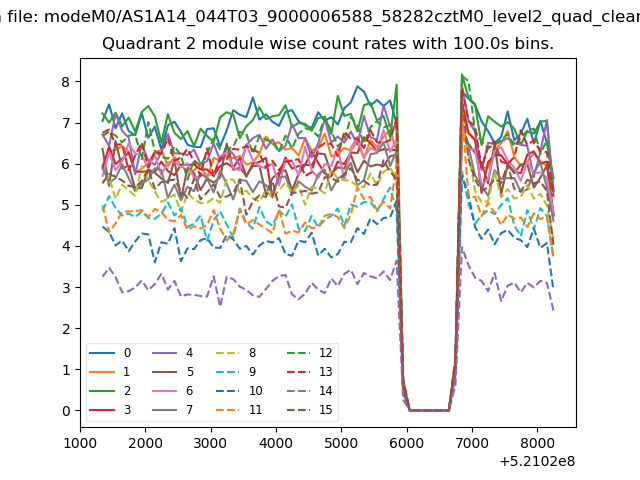

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

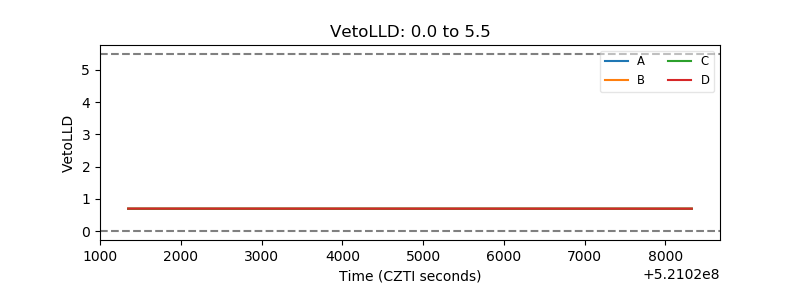

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

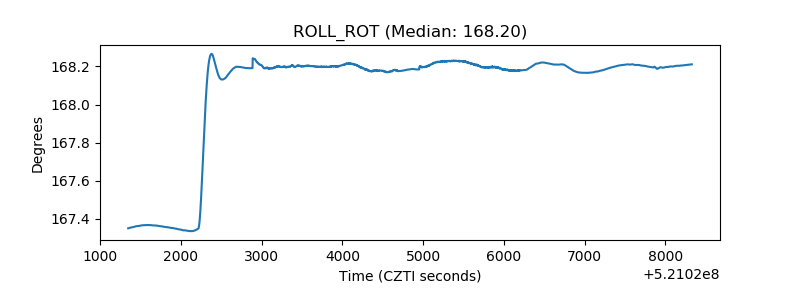

| _ROLL_ROT |  |

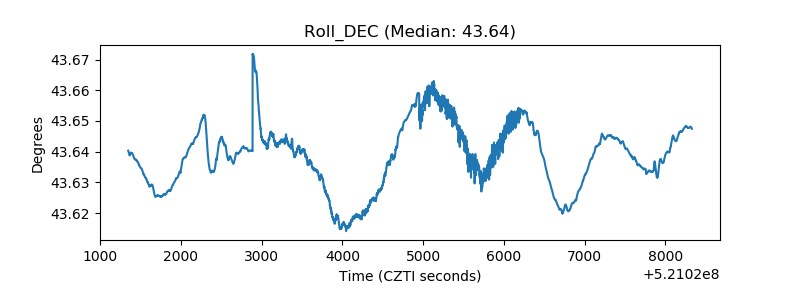

| _Roll_DEC |  |
| _Roll_RA |  |

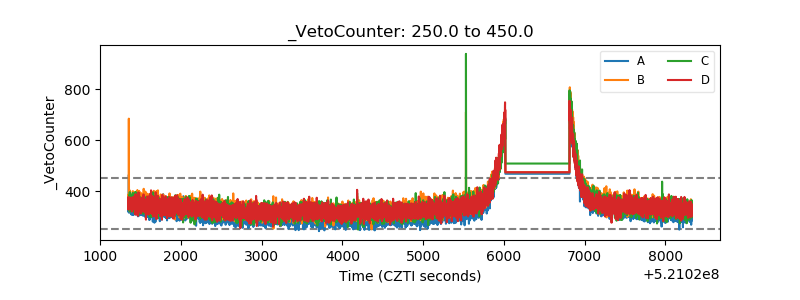

| Veto Counter |  |
