| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58283cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58283cztM0_level2_quad_clean.evt |
| Size (bytes) | 736,623,360 | 87,206,400 |
| Size | 702.5 MB | 83.2 MB |
| Events in quadrant A | 3,646,728 | 650,923 |
| Events in quadrant B | 4,690,058 | 681,757 |
| Events in quadrant C | 3,840,418 | 632,056 |
| Events in quadrant D | 14,540,810 | 183,226 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15955 | 7 |
| B | 0 | 18868 | 1 |
| C | 0 | 16523 | 1 |
| D | 0 | 47983 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7067 | 233 | 3.297014% |
| B | 7068 | 463 | 6.550651% |
| C | 7068 | 178 | 2.518393% |
| D | 7068 | 5042 | 71.335597% |

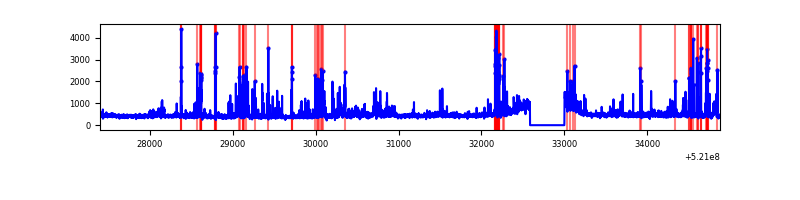

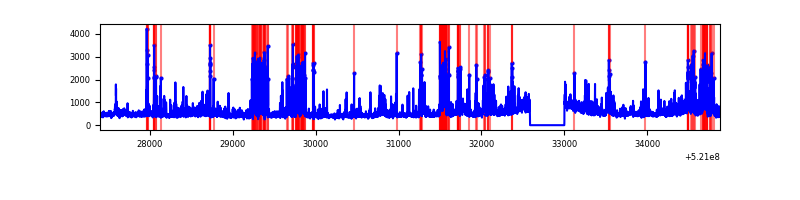

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7482 | 7068 | 62 | 62 | 0.83% | 0.88% |  |
| B | 7483 | 7068 | 200 | 200 | 2.67% | 2.83% |  |
| C | 7483 | 7069 | 85 | 85 | 1.14% | 1.20% |  |
| D | 7482 | 7067 | 4851 | 4851 | 64.84% | 68.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 238 | 207613 | 1082.35 | 768 | 748 | 191.1 |
| A | 3 | 245 | 114766 | 596.56 | 768 | 748 | 191.1 |
| A | 12 | 114 | 105470 | 547.92 | 768 | 748 | 191.1 |
| B | 4 | 206 | 612113 | 3835.74 | 743 | 715 | 159.4 |
| B | 2 | 249 | 359742 | 2252.43 | 743 | 715 | 159.4 |
| B | 4 | 158 | 162048 | 1012.16 | 743 | 715 | 159.4 |
| C | 12 | 252 | 337140 | 1651.71 | 744 | 740 | 203.7 |
| C | 6 | 223 | 182816 | 893.99 | 744 | 740 | 203.7 |
| C | 15 | 199 | 130856 | 638.86 | 744 | 740 | 203.7 |
| D | 12 | 110 | 12141717 | 103856.56 | 407 | 388 | 116.9 |
| D | 2 | 249 | 160301 | 1367.89 | 407 | 388 | 116.9 |
| D | 7 | 222 | 136593 | 1165.09 | 407 | 388 | 116.9 |

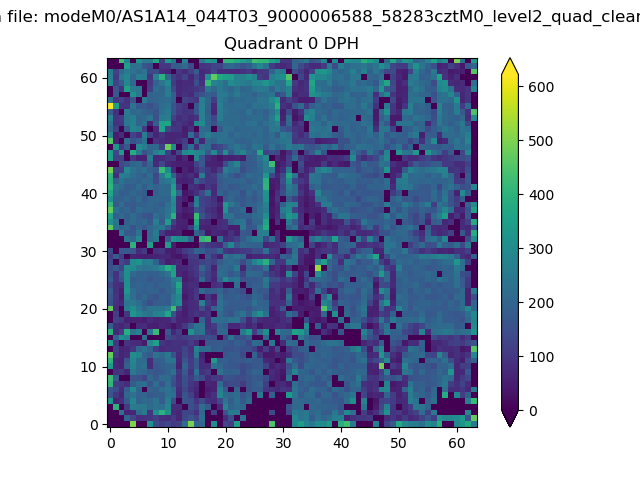

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

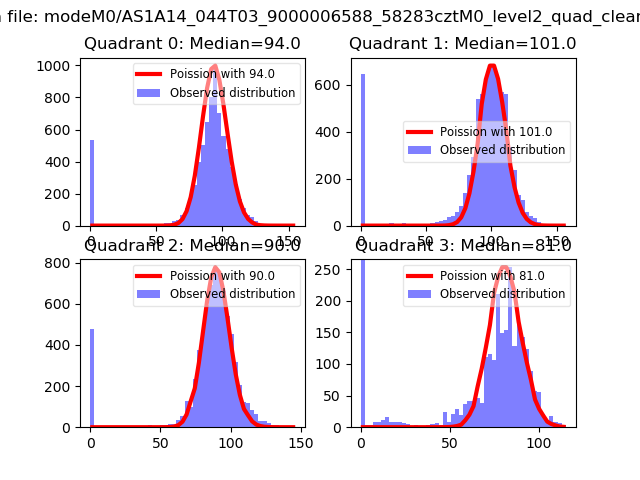

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

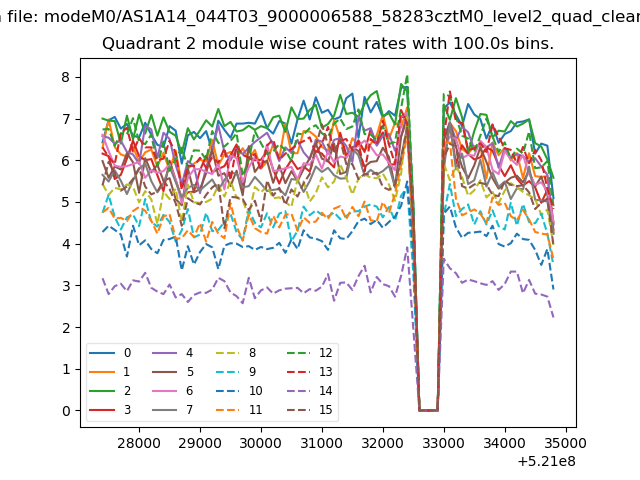

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

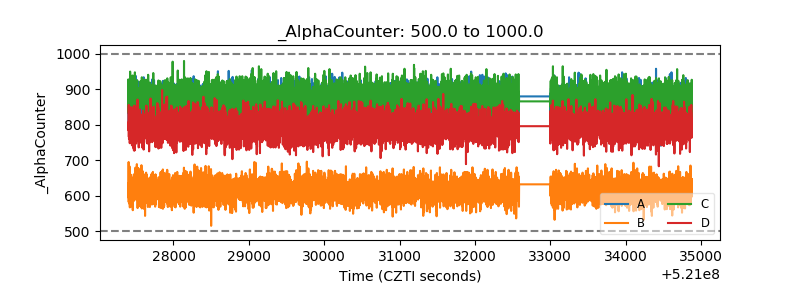

| Alpha Counter |  |

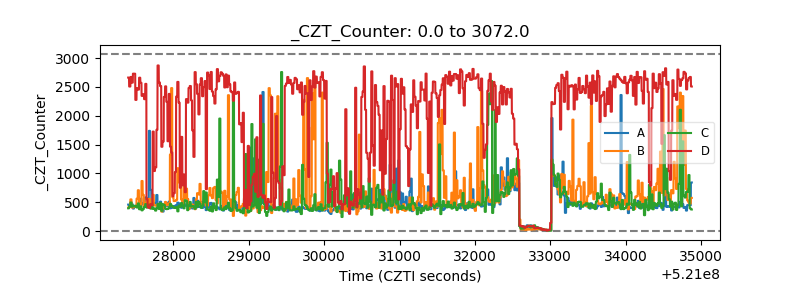

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

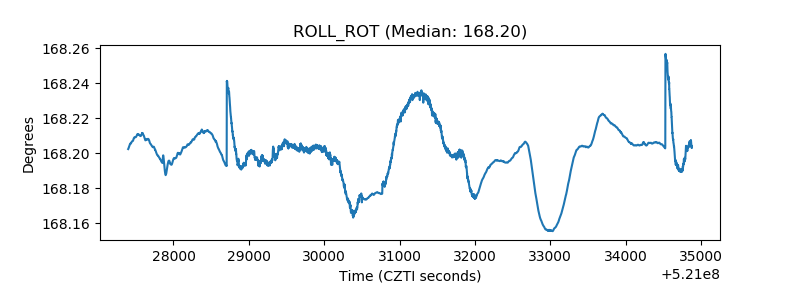

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
