| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58284cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58284cztM0_level2_quad_clean.evt |
| Size (bytes) | 881,464,320 | 81,270,720 |
| Size | 840.6 MB | 77.5 MB |
| Events in quadrant A | 3,412,142 | 658,552 |
| Events in quadrant B | 7,322,801 | 630,855 |
| Events in quadrant C | 4,117,883 | 628,738 |
| Events in quadrant D | 17,231,928 | 53,716 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15341 | 0 |
| B | 0 | 26657 | 5 |
| C | 0 | 17382 | 0 |
| D | 0 | 56088 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7015 | 79 | 1.126158% |
| B | 7015 | 1020 | 14.540271% |
| C | 7015 | 165 | 2.352103% |
| D | 7015 | 6474 | 92.287954% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7015 | 7015 | 38 | 38 | 0.54% | 0.54% |  |
| B | 7015 | 7015 | 724 | 724 | 10.32% | 10.32% |  |
| C | 7015 | 7015 | 115 | 115 | 1.64% | 1.64% |  |
| D | 7015 | 7015 | 6343 | 6343 | 90.42% | 90.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 238 | 227987 | 1197.13 | 764 | 747 | 189.8 |
| A | 8 | 249 | 47962 | 248.73 | 764 | 747 | 189.8 |
| A | 3 | 62 | 44135 | 228.57 | 764 | 747 | 189.8 |
| B | 10 | 128 | 2076542 | 13500.67 | 717 | 691 | 153.8 |
| B | 4 | 206 | 861097 | 5595.81 | 717 | 691 | 153.8 |
| B | 4 | 158 | 668208 | 4341.32 | 717 | 691 | 153.8 |
| C | 12 | 252 | 794848 | 3885.74 | 740 | 733 | 204.4 |
| C | 13 | 3 | 159876 | 778.71 | 740 | 733 | 204.4 |
| C | 6 | 223 | 74989 | 363.35 | 740 | 733 | 204.4 |
| D | 12 | 110 | 15317878 | 163352.12 | 326 | 311 | 93.8 |
| D | 13 | 170 | 161598 | 1720.02 | 326 | 311 | 93.8 |
| D | 2 | 249 | 89027 | 946.1 | 326 | 311 | 93.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

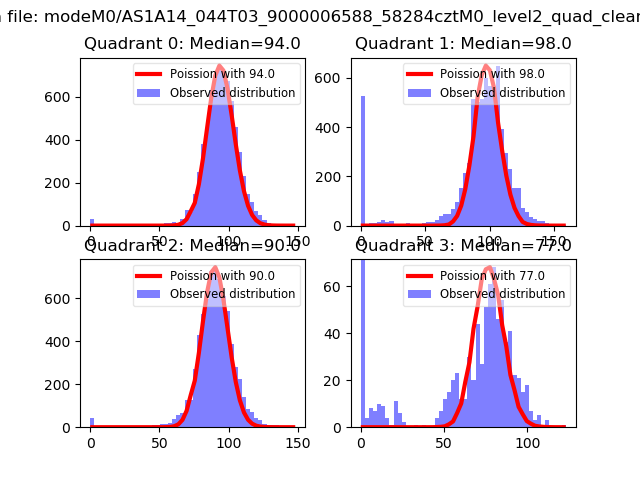

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
