| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58289cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58289cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,110,676,480 | 257,921,280 |
| Size | 2.9 GB | 246.0 MB |
| Events in quadrant A | 13,966,356 | 2,227,244 |
| Events in quadrant B | 53,516,911 | 525,507 |
| Events in quadrant C | 11,224,493 | 2,164,680 |
| Events in quadrant D | 34,573,255 | 1,226,598 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 492 | 0 |
| B | 0 | 492 | 0 |
| C | 0 | 492 | 0 |
| D | 0 | 492 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58281 | 4 |
| B | 0 | 175584 | 4 |
| C | 0 | 51994 | 5 |
| D | 0 | 119489 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24178 | 601 | 2.485731% |
| B | 24179 | 19597 | 81.049671% |
| C | 24178 | 263 | 1.087766% |
| D | 24178 | 9200 | 38.051121% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26078 | 24182 | 493 | 493 | 1.89% | 2.04% |  |
| B | 26079 | 24179 | 17966 | 17966 | 68.89% | 74.30% |  |
| C | 26078 | 24181 | 174 | 174 | 0.67% | 0.72% |  |
| D | 26078 | 24181 | 8799 | 8799 | 33.74% | 36.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 12 | 1178909 | 1870.4 | 2557 | 2490 | 629.0 |
| A | 3 | 14 | 708507 | 1122.5 | 2557 | 2490 | 629.0 |
| A | 12 | 114 | 641877 | 1016.57 | 2557 | 2490 | 629.0 |
| B | 10 | 128 | 45738682 | 165084.12 | 1310 | 1260 | 277.1 |
| B | 6 | 255 | 695332 | 2505.18 | 1310 | 1260 | 277.1 |
| B | 4 | 158 | 325722 | 1171.11 | 1310 | 1260 | 277.1 |
| C | 13 | 3 | 354180 | 513.87 | 2509 | 2488 | 684.4 |
| C | 6 | 223 | 318224 | 461.34 | 2509 | 2488 | 684.4 |
| C | 15 | 199 | 294376 | 426.49 | 2509 | 2488 | 684.4 |
| D | 12 | 110 | 24305734 | 42318.52 | 2027 | 1941 | 574.3 |
| D | 2 | 249 | 836677 | 1453.47 | 2027 | 1941 | 574.3 |
| D | 2 | 120 | 354800 | 614.41 | 2027 | 1941 | 574.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

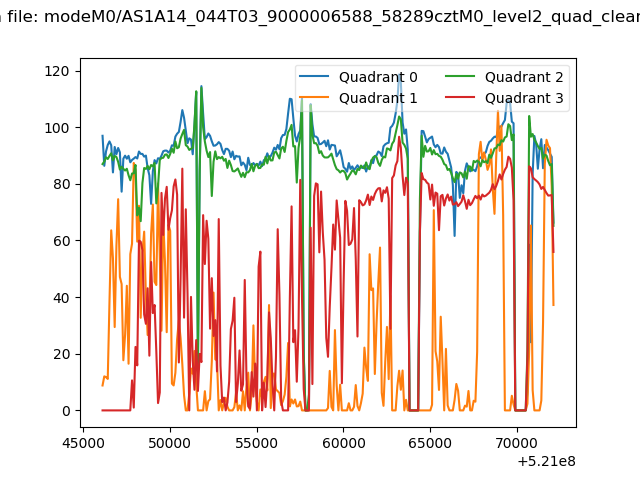

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

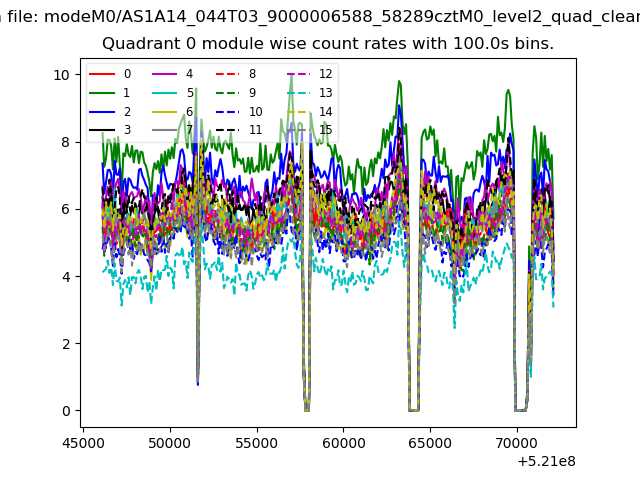

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

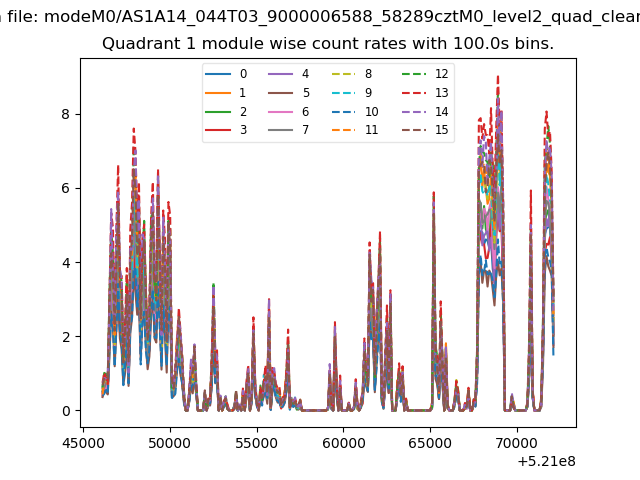

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

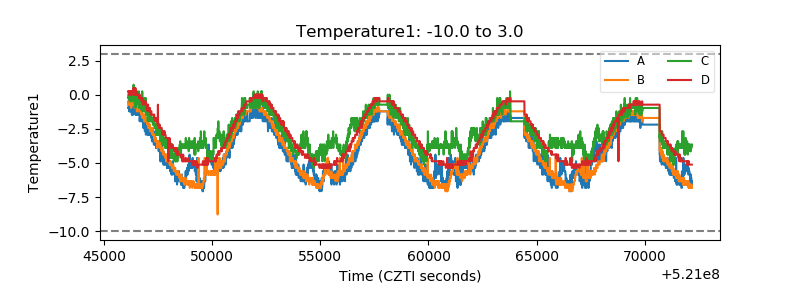

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

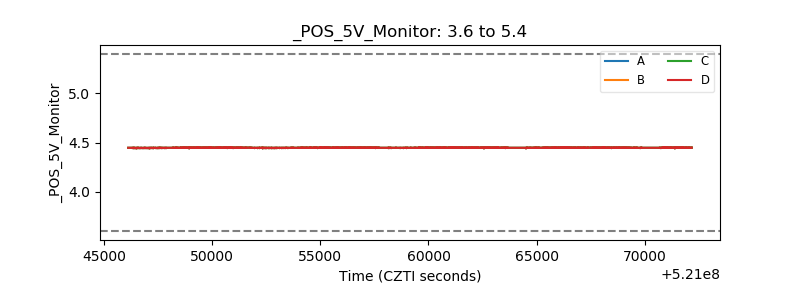

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

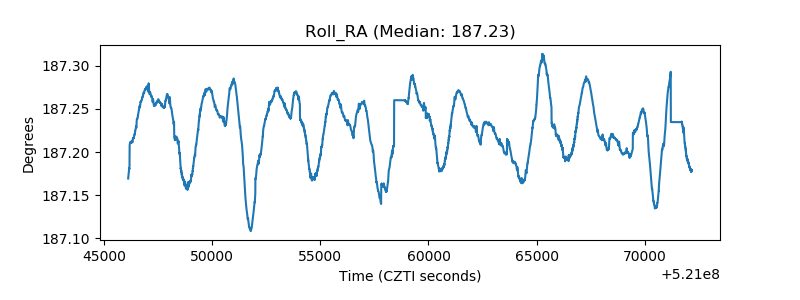

| _Roll_RA |  |
| Veto Counter |  |
