| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58290cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58290cztM0_level2_quad_clean.evt |
| Size (bytes) | 717,857,280 | 84,905,280 |
| Size | 684.6 MB | 81.0 MB |
| Events in quadrant A | 4,263,386 | 641,373 |
| Events in quadrant B | 15,084,357 | 196,027 |
| Events in quadrant C | 3,024,119 | 641,623 |
| Events in quadrant D | 3,653,069 | 601,717 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17684 | 2 |
| B | 0 | 49670 | 2 |
| C | 0 | 14466 | 2 |
| D | 0 | 15693 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7042 | 300 | 4.260153% |
| B | 7043 | 5274 | 74.882862% |
| C | 7043 | 14 | 0.198779% |
| D | 7043 | 68 | 0.965498% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8777 | 7044 | 261 | 261 | 2.97% | 3.71% |  |
| B | 8777 | 7042 | 4921 | 4921 | 56.07% | 69.88% |  |
| C | 8778 | 7045 | 4 | 4 | 0.05% | 0.06% |  |
| D | 8778 | 7045 | 50 | 50 | 0.57% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 12 | 665586 | 3656.06 | 739 | 719 | 181.9 |
| A | 12 | 114 | 259325 | 1422.06 | 739 | 719 | 181.9 |
| A | 3 | 14 | 191873 | 1051.14 | 739 | 719 | 181.9 |
| B | 10 | 128 | 12474037 | 139659.77 | 411 | 397 | 89.3 |
| B | 6 | 255 | 412291 | 4611.73 | 411 | 397 | 89.3 |
| B | 2 | 249 | 143653 | 1603.95 | 411 | 397 | 89.3 |
| C | 6 | 223 | 35379 | 170.25 | 738 | 733 | 203.5 |
| C | 15 | 204 | 19857 | 93.98 | 738 | 733 | 203.5 |
| C | 12 | 252 | 13738 | 63.91 | 738 | 733 | 203.5 |
| D | 2 | 120 | 241908 | 1149.37 | 731 | 699 | 209.9 |
| D | 11 | 129 | 206091 | 978.7 | 731 | 699 | 209.9 |
| D | 12 | 110 | 123235 | 583.89 | 731 | 699 | 209.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

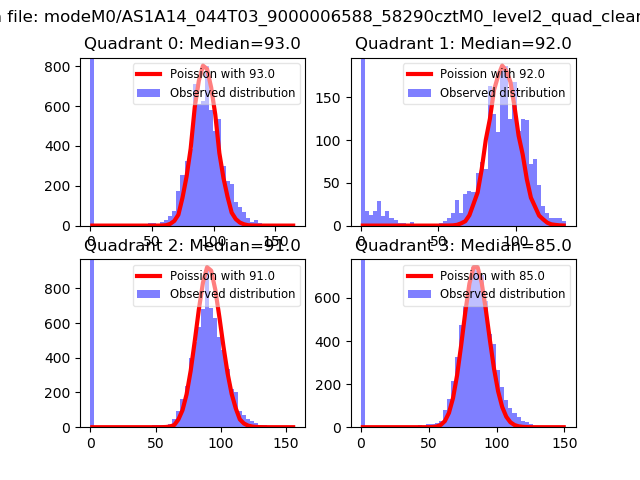

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

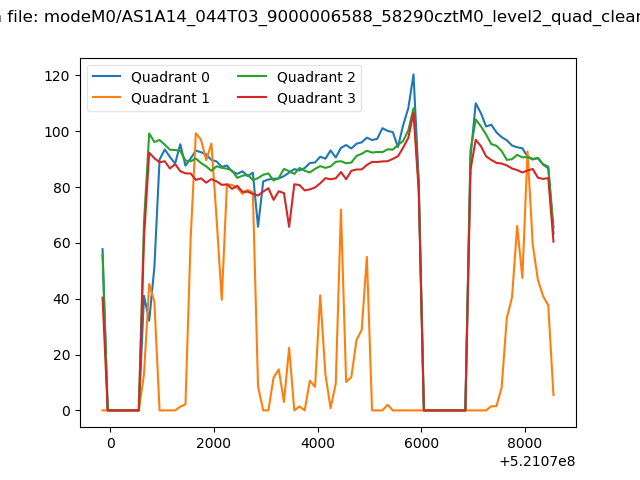

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

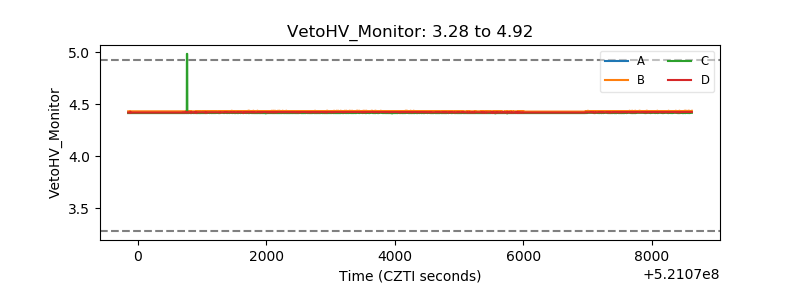

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

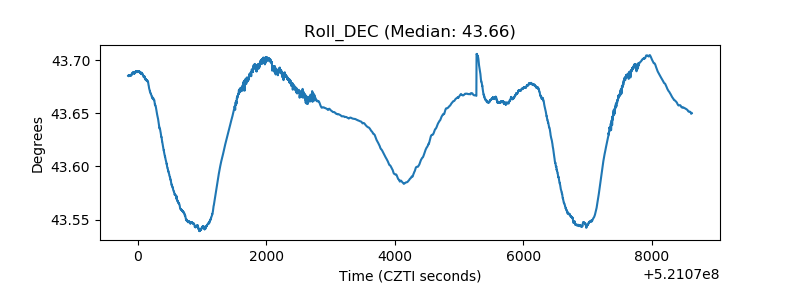

| _Roll_DEC |  |
| _Roll_RA |  |

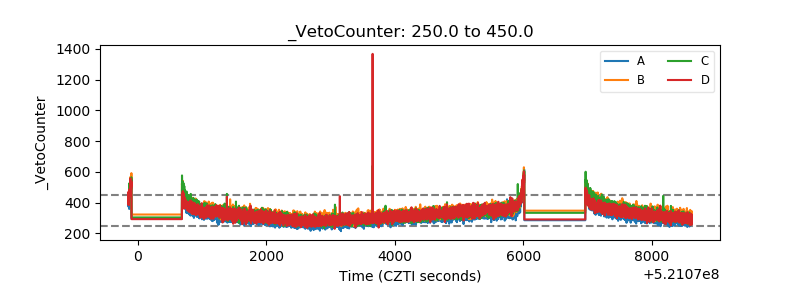

| Veto Counter |  |
