| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58292cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58292cztM0_level2_quad_clean.evt |
| Size (bytes) | 657,918,720 | 78,114,240 |
| Size | 627.4 MB | 74.5 MB |
| Events in quadrant A | 4,147,451 | 596,259 |
| Events in quadrant B | 13,818,318 | 186,824 |
| Events in quadrant C | 2,805,577 | 588,877 |
| Events in quadrant D | 3,087,708 | 549,624 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16626 | 1 |
| B | 0 | 45435 | 1 |
| C | 0 | 13207 | 1 |
| D | 0 | 13647 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6360 | 165 | 2.594340% |
| B | 6360 | 4858 | 76.383648% |
| C | 6359 | 13 | 0.204435% |
| D | 6360 | 52 | 0.817610% |

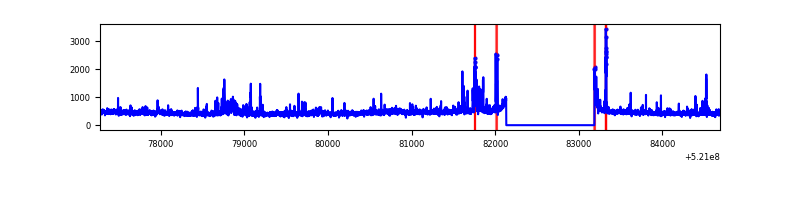

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7415 | 6361 | 124 | 124 | 1.67% | 1.95% |  |
| B | 7414 | 6359 | 4466 | 4466 | 60.24% | 70.23% |  |
| C | 7414 | 6360 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7415 | 6361 | 20 | 20 | 0.27% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 863453 | 5158.73 | 678 | 662 | 167.2 |
| A | 3 | 14 | 398356 | 2377.86 | 678 | 662 | 167.2 |
| A | 10 | 251 | 99585 | 591.47 | 678 | 662 | 167.2 |
| B | 10 | 128 | 11504206 | 128900.32 | 412 | 397 | 89.2 |
| B | 2 | 249 | 258007 | 2886.52 | 412 | 397 | 89.2 |
| B | 5 | 185 | 165171 | 1846.29 | 412 | 397 | 89.2 |
| C | 5 | 63 | 58365 | 315.57 | 667 | 662 | 182.9 |
| C | 12 | 249 | 39461 | 212.19 | 667 | 662 | 182.9 |
| C | 12 | 252 | 38122 | 204.87 | 667 | 662 | 182.9 |
| D | 11 | 129 | 122730 | 646.47 | 660 | 629 | 188.9 |
| D | 2 | 249 | 122517 | 645.35 | 660 | 629 | 188.9 |
| D | 12 | 128 | 84708 | 445.16 | 660 | 629 | 188.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

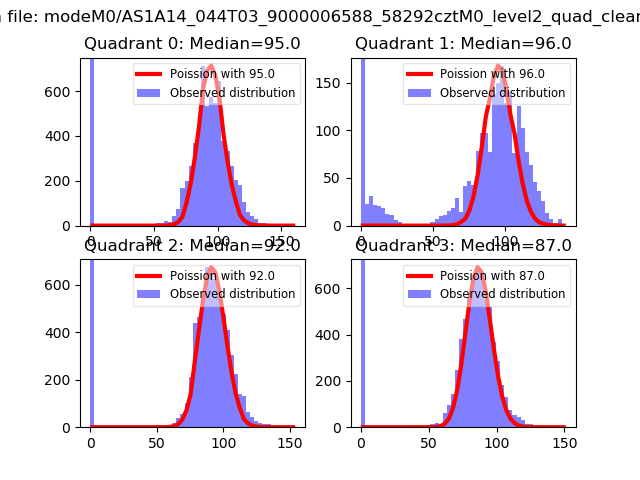

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

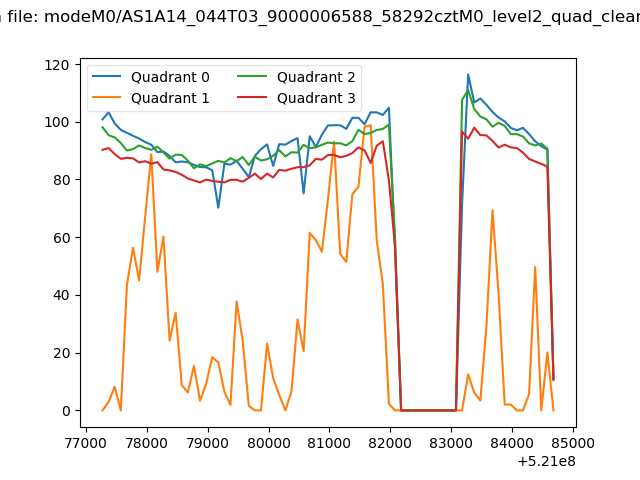

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

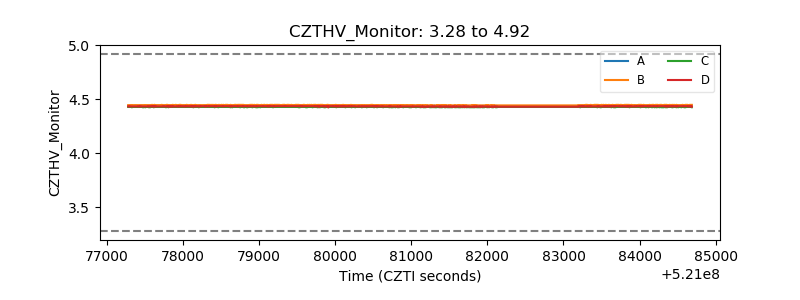

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

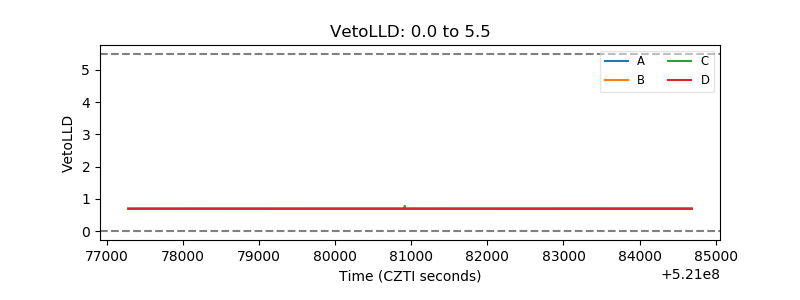

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

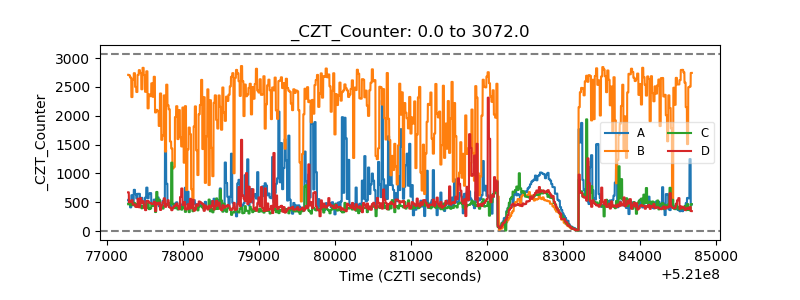

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

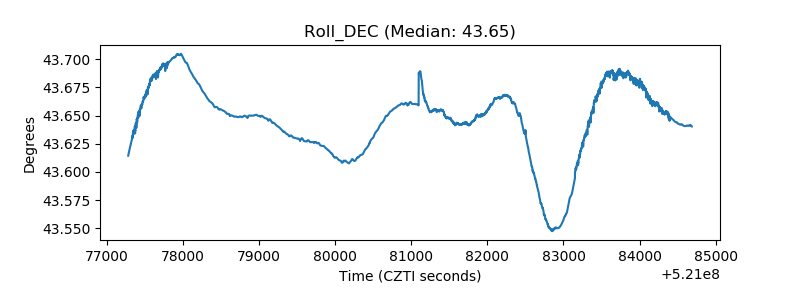

| _ROLL_ROT |  |
