| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58294cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58294cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,122,880 | 90,780,480 |
| Size | 495.1 MB | 86.6 MB |
| Events in quadrant A | 6,716,559 | 561,007 |
| Events in quadrant B | 4,791,144 | 614,453 |
| Events in quadrant C | 2,892,216 | 598,842 |
| Events in quadrant D | 4,333,936 | 540,066 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24172 | 1 |
| B | 0 | 18387 | 1 |
| C | 0 | 13177 | 1 |
| D | 0 | 17046 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6214 | 843 | 13.566141% |
| B | 6215 | 633 | 10.185036% |
| C | 6215 | 64 | 1.029767% |
| D | 6215 | 335 | 5.390185% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

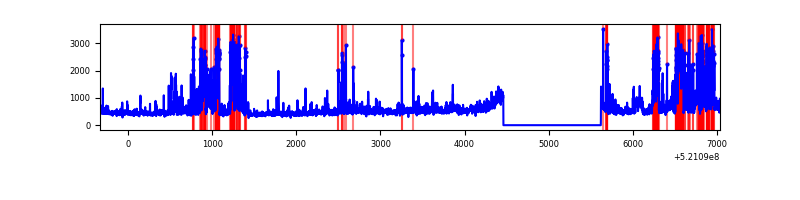

| A | 7373 | 6213 | 745 | 745 | 10.10% | 11.99% |  |

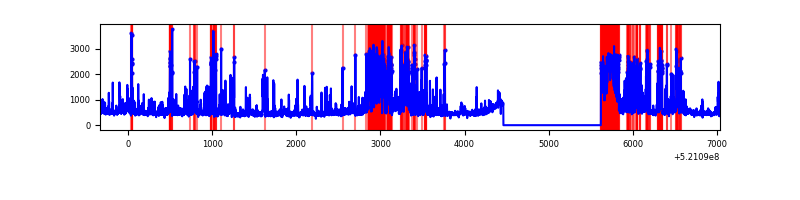

| B | 7375 | 6215 | 454 | 454 | 6.16% | 7.30% |  |
| C | 7375 | 6215 | 20 | 20 | 0.27% | 0.32% |  |
| D | 7375 | 6215 | 298 | 298 | 4.04% | 4.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 3144122 | 18934.68 | 674 | 657 | 166.0 |
| A | 3 | 14 | 756265 | 4551.41 | 674 | 657 | 166.0 |
| A | 3 | 245 | 35085 | 207.38 | 674 | 657 | 166.0 |
| B | 10 | 128 | 1466500 | 10344.59 | 667 | 643 | 141.7 |
| B | 4 | 206 | 347638 | 2448.75 | 667 | 643 | 141.7 |
| B | 2 | 249 | 111417 | 781.73 | 667 | 643 | 141.7 |
| C | 12 | 249 | 108581 | 576.88 | 677 | 673 | 187.1 |
| C | 6 | 223 | 43844 | 230.79 | 677 | 673 | 187.1 |
| C | 15 | 250 | 28299 | 147.69 | 677 | 673 | 187.1 |
| D | 2 | 249 | 1113013 | 5927.59 | 663 | 634 | 187.7 |
| D | 12 | 110 | 207538 | 1102.54 | 663 | 634 | 187.7 |
| D | 11 | 129 | 173286 | 920.02 | 663 | 634 | 187.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

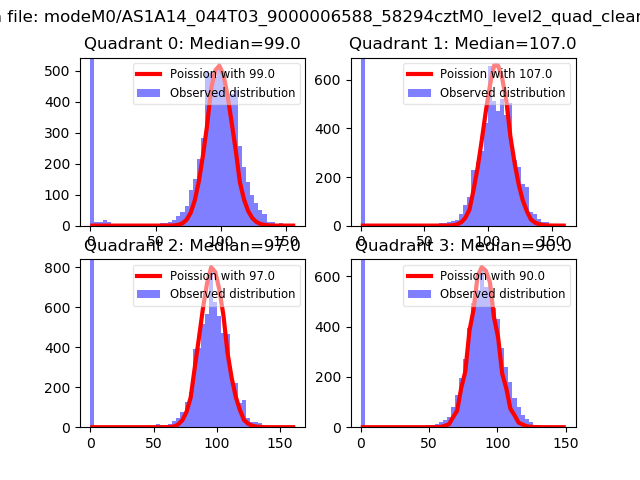

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

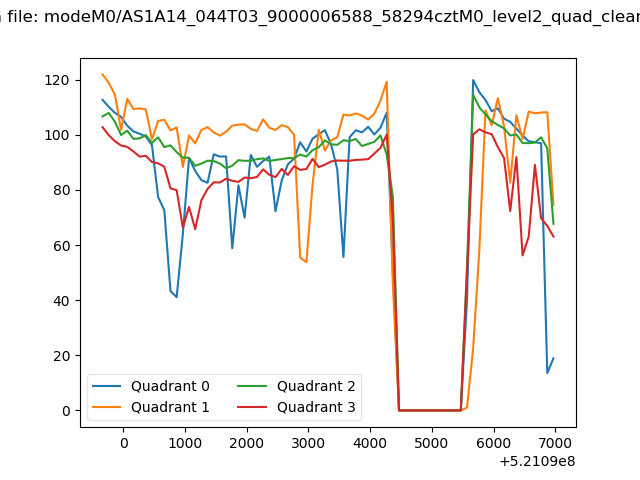

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

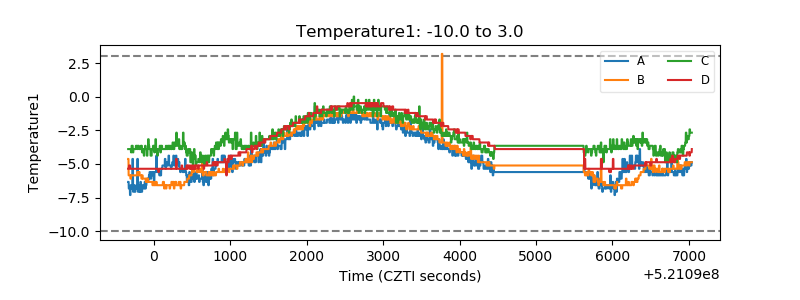

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

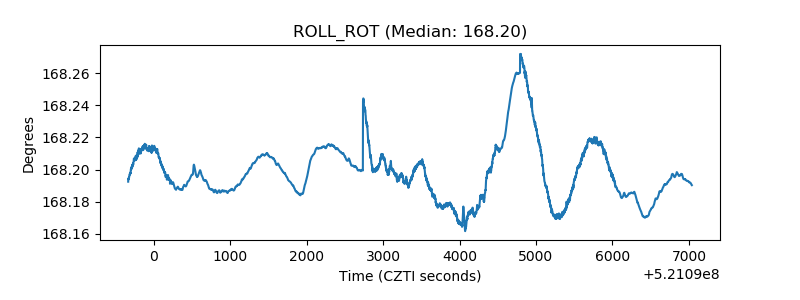

| _ROLL_ROT |  |

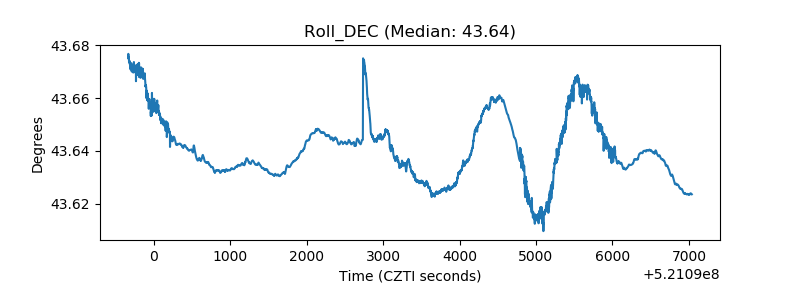

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
