| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58295cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58295cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,661,440 | 94,671,360 |
| Size | 478.4 MB | 90.3 MB |
| Events in quadrant A | 5,159,167 | 579,879 |
| Events in quadrant B | 4,635,642 | 649,621 |
| Events in quadrant C | 3,408,660 | 617,369 |
| Events in quadrant D | 4,858,612 | 563,393 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19801 | 2 |
| B | 0 | 18127 | 2 |
| C | 0 | 14934 | 2 |
| D | 0 | 18930 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6532 | 798 | 12.216779% |
| B | 6532 | 613 | 9.384568% |
| C | 6532 | 187 | 2.862829% |
| D | 6532 | 380 | 5.817514% |

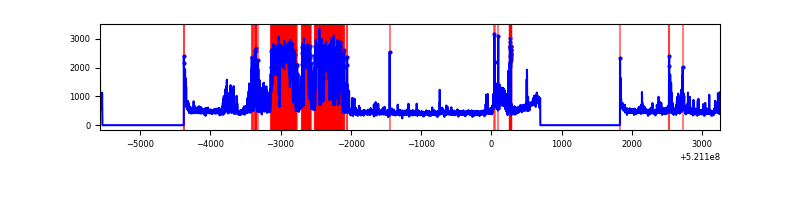

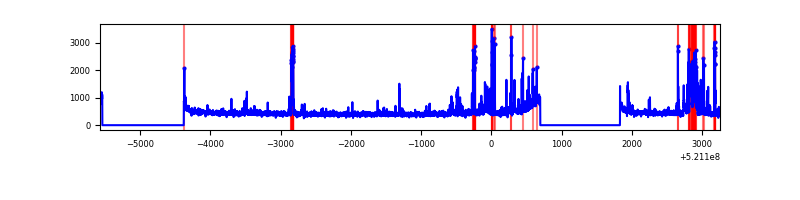

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8827 | 6532 | 641 | 641 | 7.26% | 9.81% |  |
| B | 8827 | 6532 | 317 | 317 | 3.59% | 4.85% |  |
| C | 8827 | 6533 | 82 | 82 | 0.93% | 1.26% |  |
| D | 8827 | 6532 | 273 | 273 | 3.09% | 4.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 2101437 | 11875.16 | 720 | 703 | 176.9 |
| A | 8 | 246 | 89252 | 500.56 | 720 | 703 | 176.9 |
| A | 4 | 249 | 63947 | 357.51 | 720 | 703 | 176.9 |
| B | 10 | 128 | 1033285 | 6785.82 | 714 | 689 | 152.2 |
| B | 4 | 206 | 355527 | 2331.86 | 714 | 689 | 152.2 |
| B | 2 | 249 | 132854 | 868.54 | 714 | 689 | 152.2 |
| C | 12 | 249 | 187455 | 944.99 | 719 | 715 | 197.6 |
| C | 15 | 204 | 186260 | 938.95 | 719 | 715 | 197.6 |
| C | 6 | 223 | 66681 | 333.82 | 719 | 715 | 197.6 |
| D | 2 | 249 | 694446 | 3458.91 | 709 | 678 | 200.6 |
| D | 12 | 110 | 563928 | 2808.19 | 709 | 678 | 200.6 |
| D | 8 | 160 | 490744 | 2443.31 | 709 | 678 | 200.6 |

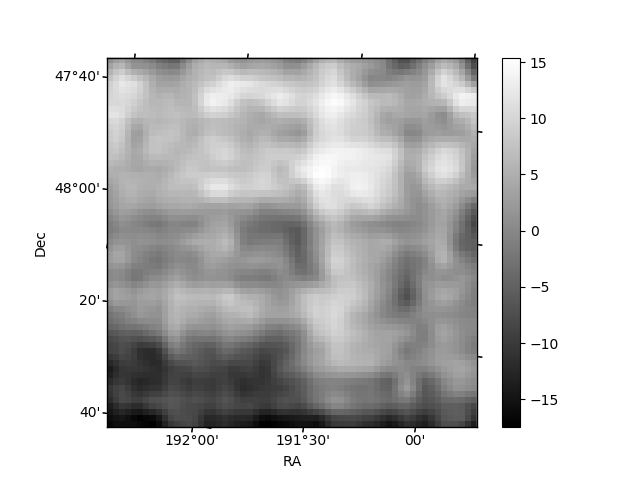

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

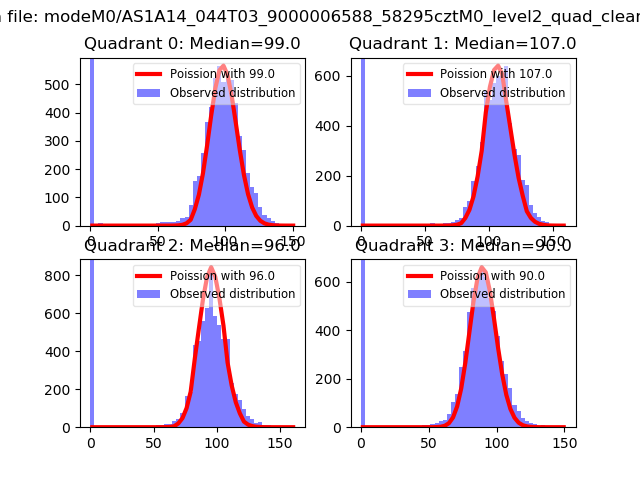

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

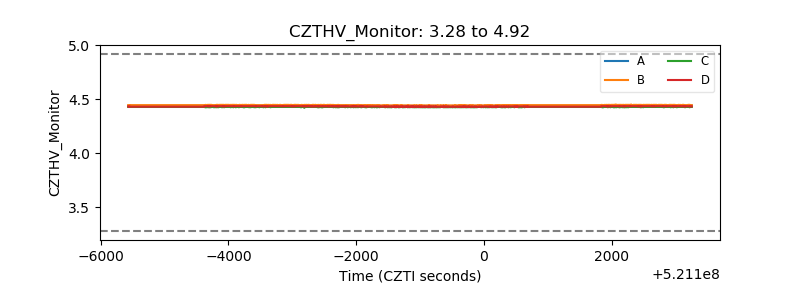

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

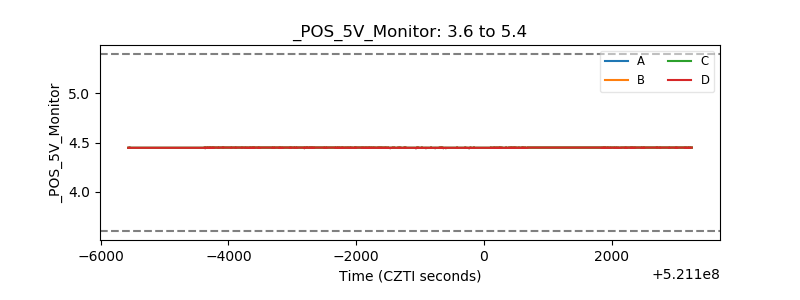

| +5 Volts monitor |  |

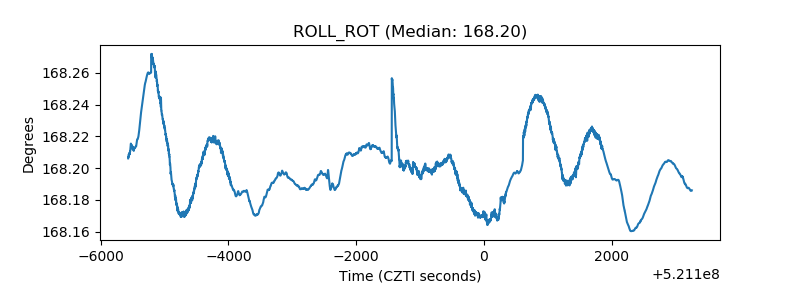

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

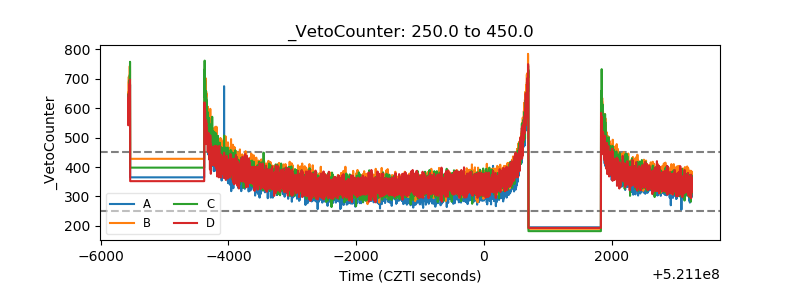

| Veto Counter |  |
