| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58296cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58296cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,629,760 | 90,671,040 |
| Size | 572.8 MB | 86.5 MB |
| Events in quadrant A | 3,797,210 | 647,553 |
| Events in quadrant B | 9,578,815 | 436,025 |
| Events in quadrant C | 3,702,362 | 615,580 |
| Events in quadrant D | 4,630,016 | 575,318 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16032 | 2 |
| B | 0 | 33051 | 3 |
| C | 0 | 15982 | 2 |
| D | 0 | 18274 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6754 | 237 | 3.509032% |
| B | 6753 | 2859 | 42.336739% |
| C | 6753 | 270 | 3.998223% |
| D | 6753 | 298 | 4.412854% |

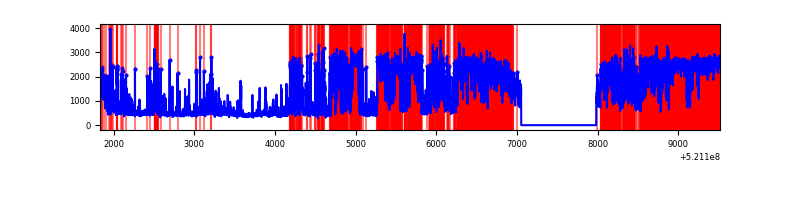

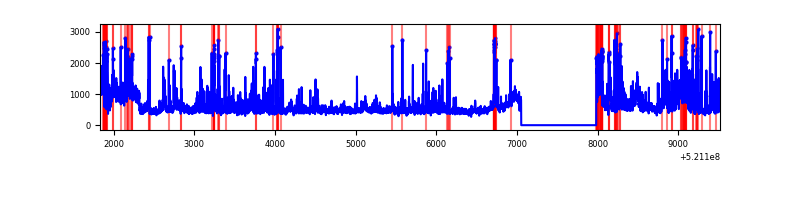

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

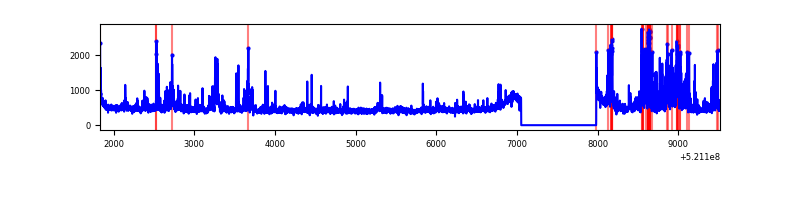

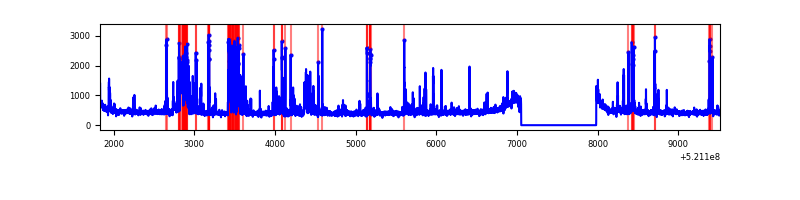

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7684 | 6754 | 52 | 52 | 0.68% | 0.77% |  |
| B | 7682 | 6752 | 2319 | 2319 | 30.19% | 34.35% |  |
| C | 7683 | 6753 | 114 | 114 | 1.48% | 1.69% |  |
| D | 7683 | 6753 | 148 | 148 | 1.93% | 2.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 712580 | 3806.17 | 761 | 738 | 187.0 |
| A | 3 | 14 | 36501 | 191.22 | 761 | 738 | 187.0 |
| A | 4 | 3 | 20693 | 106.7 | 761 | 738 | 187.0 |
| B | 10 | 128 | 6082392 | 48239.66 | 590 | 570 | 126.1 |
| B | 4 | 206 | 356805 | 2825.58 | 590 | 570 | 126.1 |
| B | 3 | 238 | 241549 | 1911.39 | 590 | 570 | 126.1 |
| C | 15 | 204 | 433742 | 2159.11 | 732 | 726 | 200.6 |
| C | 6 | 223 | 213982 | 1063.34 | 732 | 726 | 200.6 |
| C | 12 | 249 | 54124 | 266.25 | 732 | 726 | 200.6 |
| D | 8 | 160 | 882358 | 4277.57 | 729 | 696 | 206.1 |
| D | 12 | 110 | 263850 | 1276.75 | 729 | 696 | 206.1 |
| D | 11 | 129 | 235076 | 1137.15 | 729 | 696 | 206.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

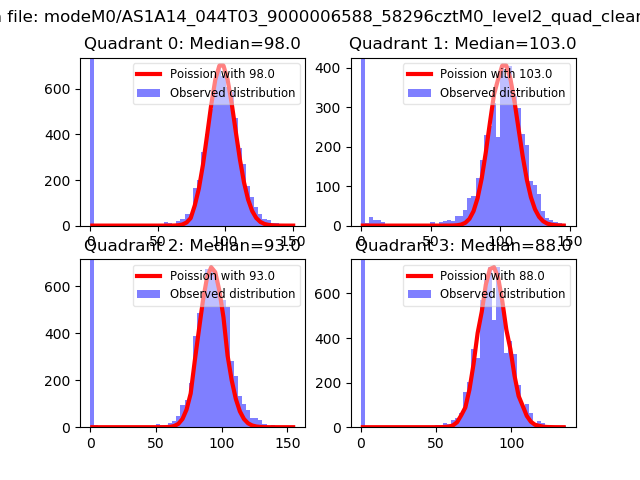

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

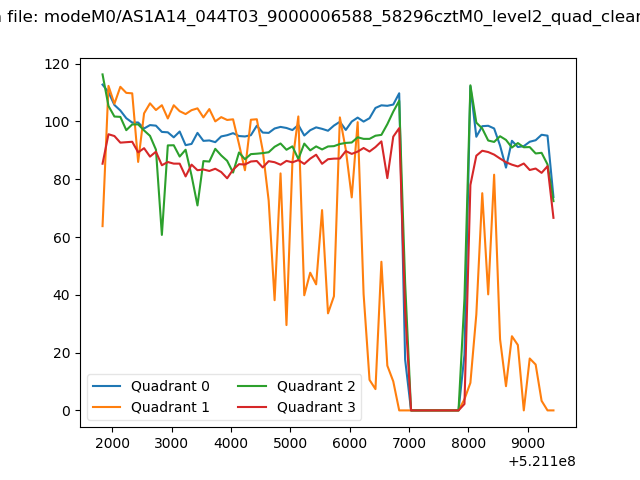

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

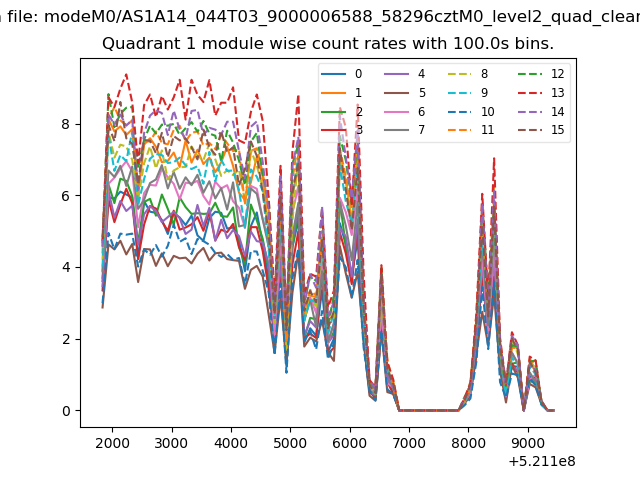

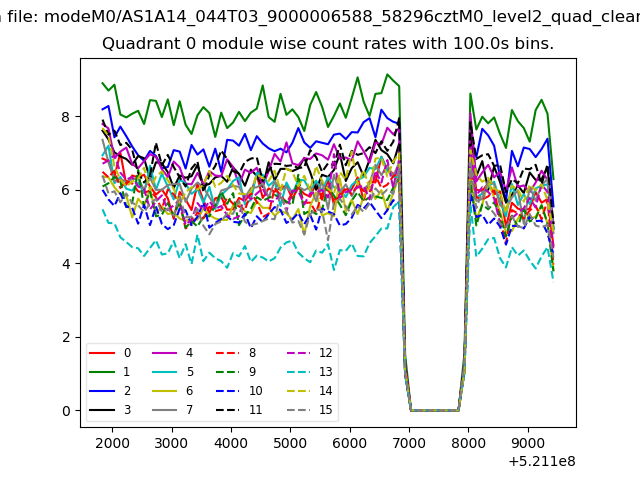

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

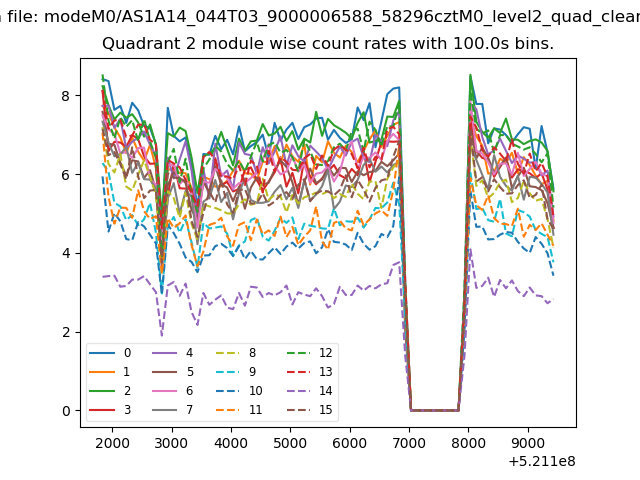

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

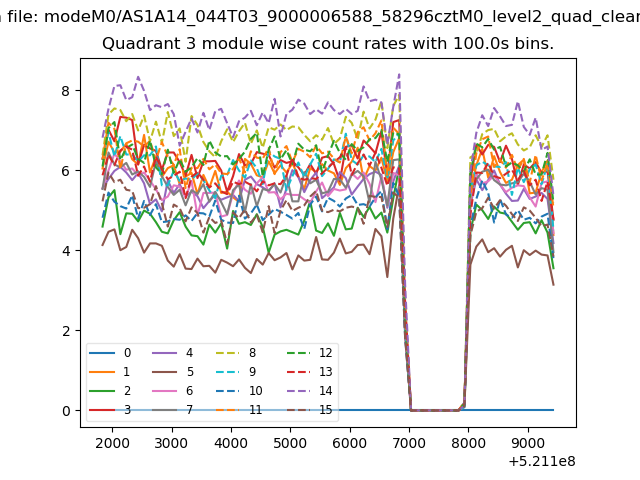

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

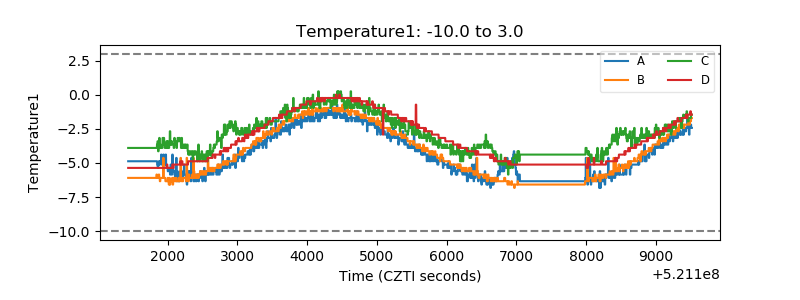

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

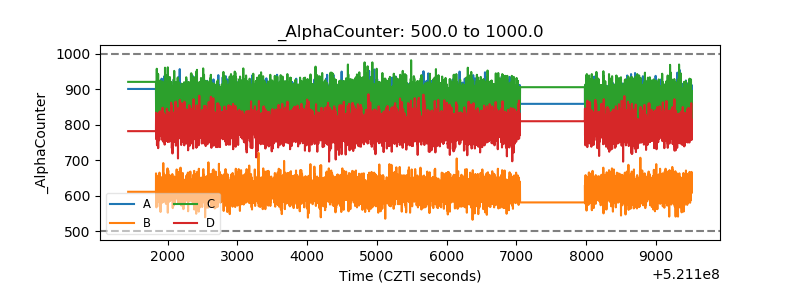

| Alpha Counter |  |

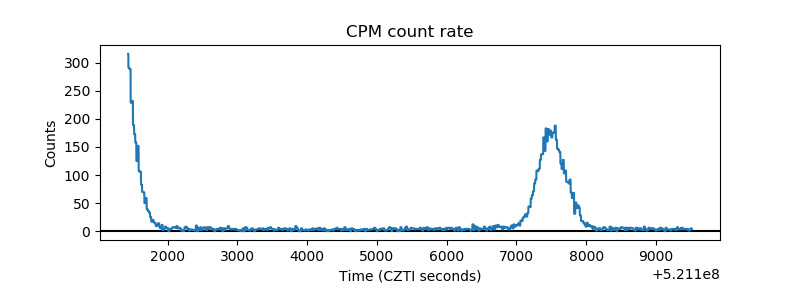

| _CPM_Rate |  |

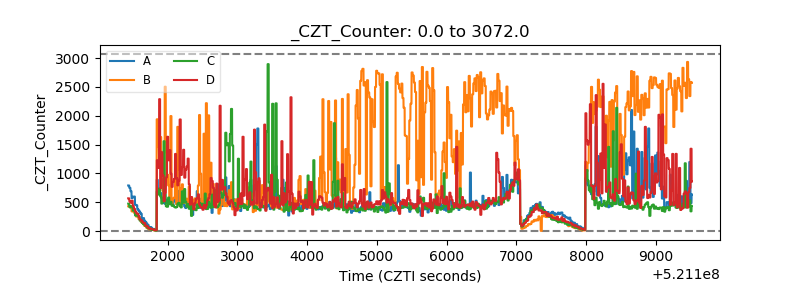

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

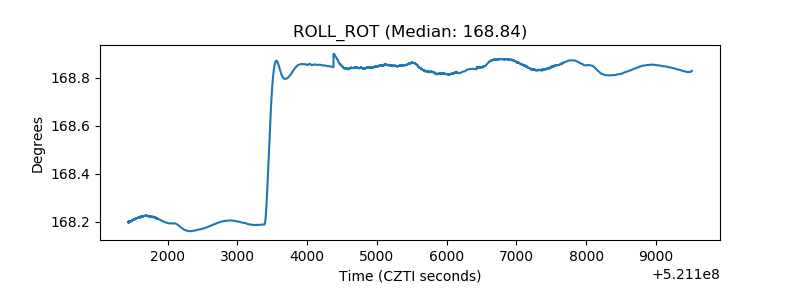

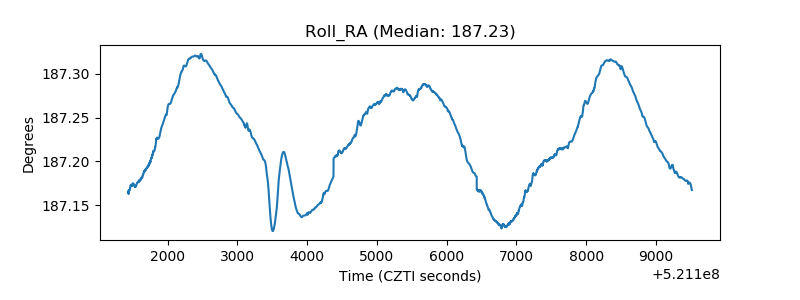

| _ROLL_ROT |  |

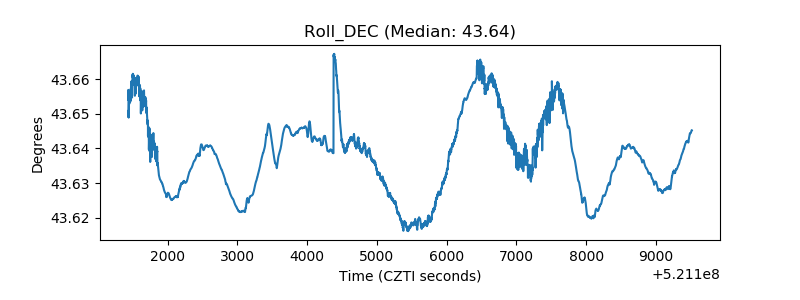

| _Roll_DEC |  |
| _Roll_RA |  |

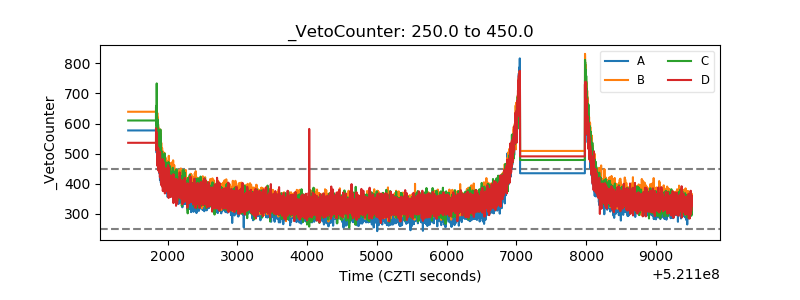

| Veto Counter |  |
