| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58298cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58298cztM0_level2_quad_clean.evt |
| Size (bytes) | 746,971,200 | 87,863,040 |
| Size | 712.4 MB | 83.8 MB |
| Events in quadrant A | 3,495,426 | 676,547 |
| Events in quadrant B | 15,295,421 | 200,551 |
| Events in quadrant C | 4,005,064 | 660,743 |
| Events in quadrant D | 4,288,443 | 615,699 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15810 | 0 |
| B | 0 | 50487 | 0 |
| C | 0 | 17211 | 0 |
| D | 0 | 17548 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7276 | 247 | 3.394722% |
| B | 7276 | 5672 | 77.954920% |
| C | 7277 | 165 | 2.267418% |
| D | 7276 | 218 | 2.996152% |

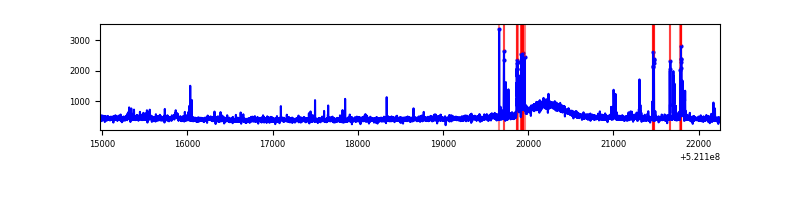

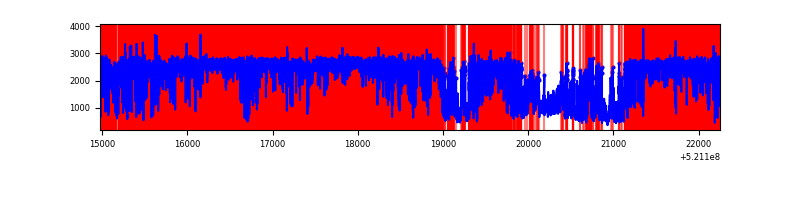

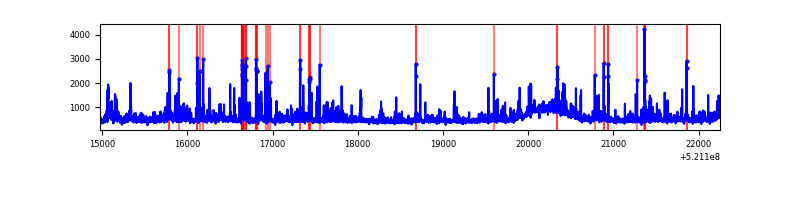

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7276 | 7276 | 34 | 34 | 0.47% | 0.47% |  |
| B | 7276 | 7276 | 4930 | 4930 | 67.76% | 67.76% |  |
| C | 7277 | 7277 | 84 | 84 | 1.15% | 1.15% |  |
| D | 7276 | 7276 | 61 | 61 | 0.84% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 237 | 122764 | 607.32 | 817 | 794 | 200.8 |
| A | 3 | 245 | 46220 | 226.19 | 817 | 794 | 200.8 |
| A | 10 | 251 | 31091 | 150.86 | 817 | 794 | 200.8 |
| B | 10 | 128 | 12123359 | 119086.9 | 469 | 452 | 101.8 |
| B | 3 | 238 | 651440 | 6394.85 | 469 | 452 | 101.8 |
| B | 2 | 249 | 183759 | 1800.68 | 469 | 452 | 101.8 |
| C | 4 | 5 | 514120 | 2358.02 | 795 | 787 | 217.7 |
| C | 9 | 38 | 100400 | 457.58 | 795 | 787 | 217.7 |
| C | 12 | 249 | 75962 | 345.32 | 795 | 787 | 217.7 |
| D | 11 | 129 | 296183 | 1313.87 | 800 | 764 | 224.8 |
| D | 2 | 249 | 155885 | 689.9 | 800 | 764 | 224.8 |
| D | 12 | 248 | 106307 | 469.4 | 800 | 764 | 224.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

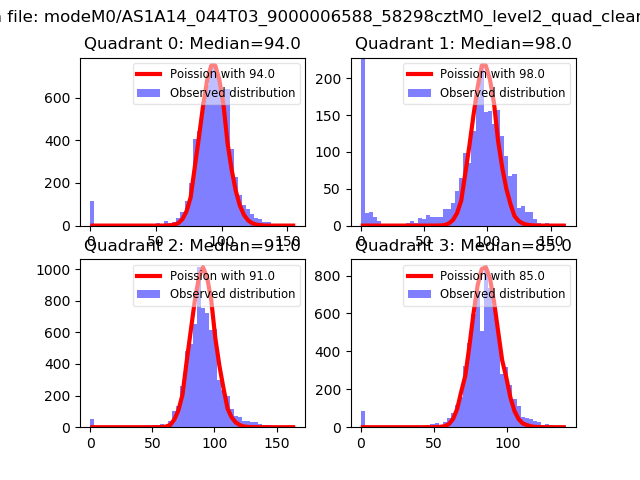

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

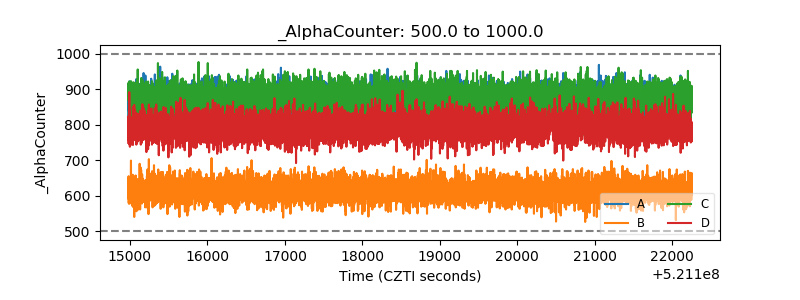

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

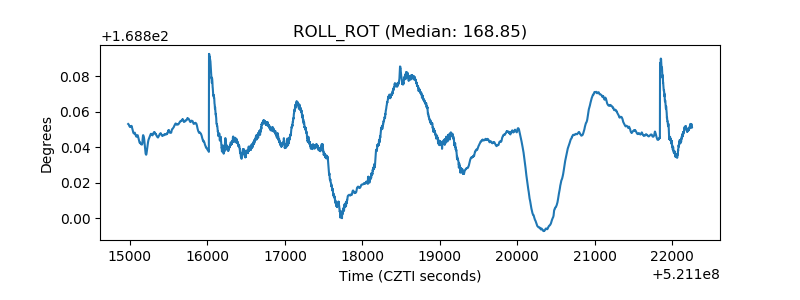

| _ROLL_ROT |  |

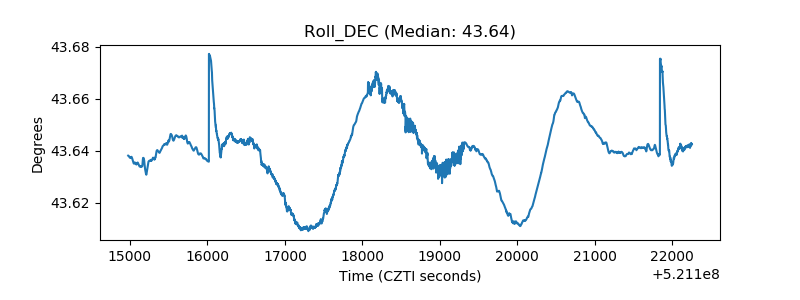

| _Roll_DEC |  |

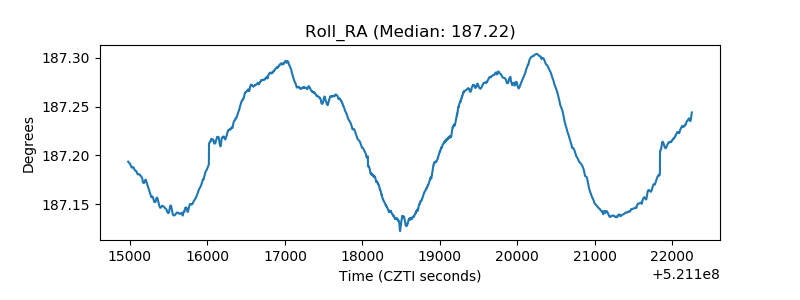

| _Roll_RA |  |
| Veto Counter |  |
