| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58299cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58299cztM0_level2_quad_clean.evt |
| Size (bytes) | 825,039,360 | 75,510,720 |
| Size | 786.8 MB | 72.0 MB |
| Events in quadrant A | 3,251,518 | 652,882 |
| Events in quadrant B | 15,041,607 | 183,765 |
| Events in quadrant C | 7,742,196 | 375,823 |
| Events in quadrant D | 3,961,945 | 586,929 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14897 | 0 |
| B | 0 | 49453 | 0 |
| C | 0 | 28077 | 0 |
| D | 0 | 16464 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6984 | 46 | 0.658648% |
| B | 6985 | 5498 | 78.711525% |
| C | 6985 | 2778 | 39.770938% |
| D | 6985 | 85 | 1.216893% |

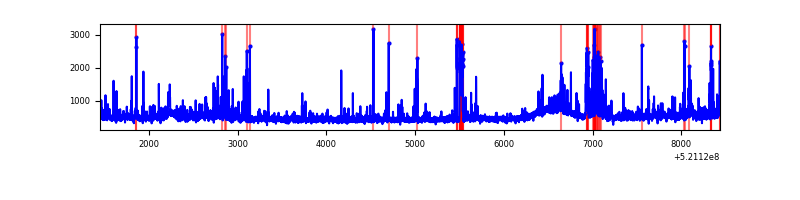

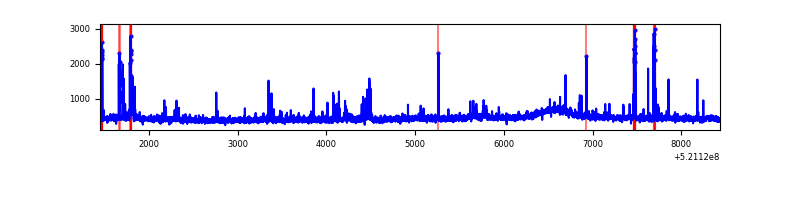

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6984 | 6984 | 33 | 33 | 0.47% | 0.47% |  |
| B | 6984 | 6984 | 4957 | 4957 | 70.98% | 70.98% |  |
| C | 6985 | 6985 | 1336 | 1336 | 19.13% | 19.13% |  |
| D | 6985 | 6985 | 73 | 73 | 1.05% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 77123 | 406.94 | 751 | 730 | 187.7 |
| A | 10 | 251 | 66741 | 351.64 | 751 | 730 | 187.7 |
| A | 2 | 143 | 41902 | 219.32 | 751 | 730 | 187.7 |
| B | 10 | 128 | 11406867 | 125500.28 | 419 | 406 | 90.9 |
| B | 2 | 249 | 797301 | 8767.89 | 419 | 406 | 90.9 |
| B | 3 | 238 | 507189 | 5575.91 | 419 | 406 | 90.9 |
| C | 15 | 199 | 4943318 | 36337.76 | 493 | 489 | 136.0 |
| C | 12 | 249 | 393609 | 2890.07 | 493 | 489 | 136.0 |
| C | 4 | 5 | 215215 | 1578.58 | 493 | 489 | 136.0 |
| D | 11 | 129 | 286245 | 1379.51 | 730 | 698 | 207.0 |
| D | 12 | 110 | 172707 | 831.0 | 730 | 698 | 207.0 |
| D | 12 | 3 | 132105 | 634.84 | 730 | 698 | 207.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

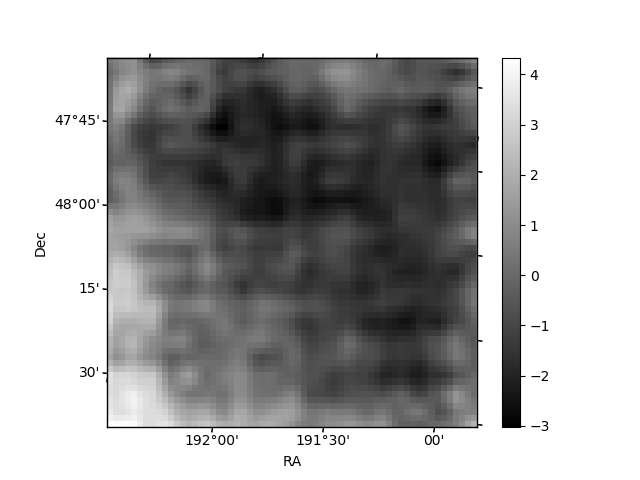

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

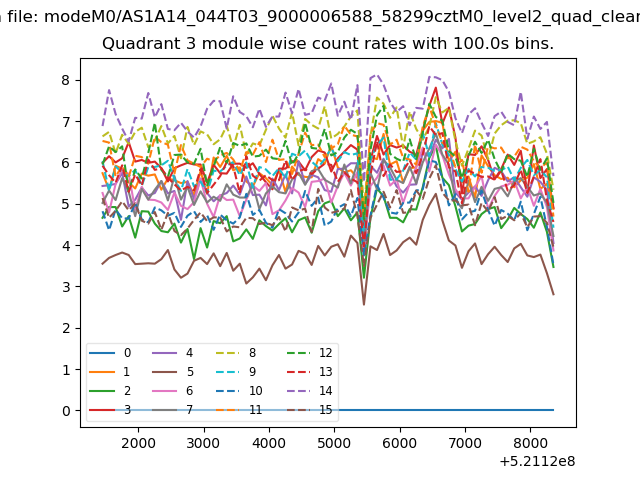

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

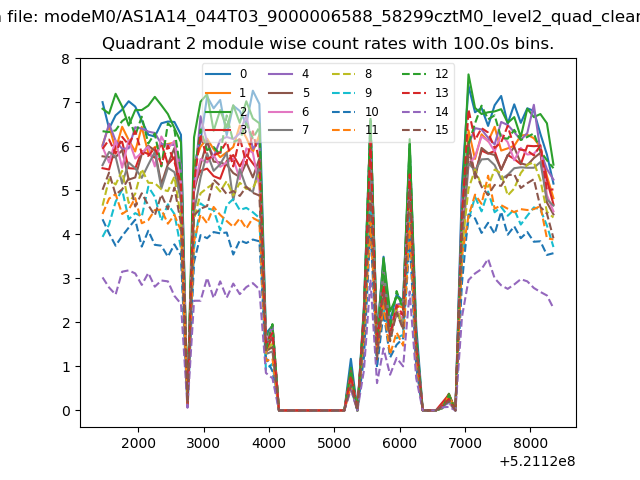

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

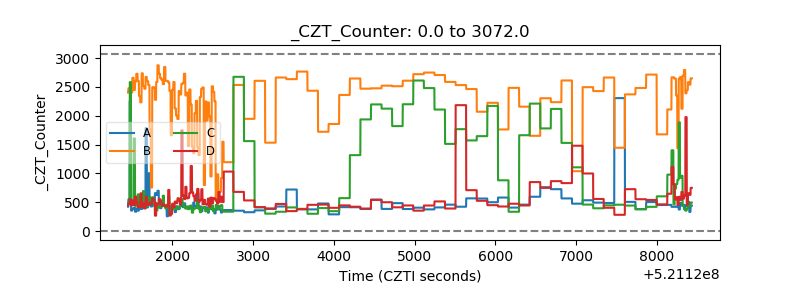

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

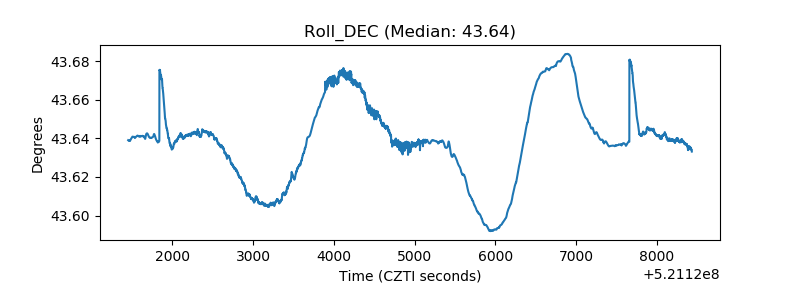

| _Roll_DEC |  |

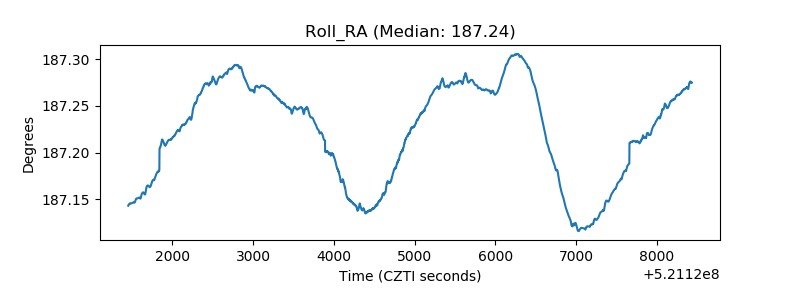

| _Roll_RA |  |
| Veto Counter |  |
