| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58303cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58303cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,822,199,040 | 231,952,320 |
| Size | 1.7 GB | 221.2 MB |
| Events in quadrant A | 18,554,455 | 1,345,907 |
| Events in quadrant B | 25,315,742 | 1,270,003 |
| Events in quadrant C | 11,148,722 | 1,583,963 |
| Events in quadrant D | 10,997,321 | 1,540,671 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68700 | 3 |
| B | 0 | 88037 | 3 |
| C | 0 | 46919 | 3 |
| D | 0 | 45222 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18583 | 3668 | 19.738471% |
| B | 18584 | 5968 | 32.113646% |
| C | 18584 | 839 | 4.514636% |
| D | 18584 | 209 | 1.124623% |

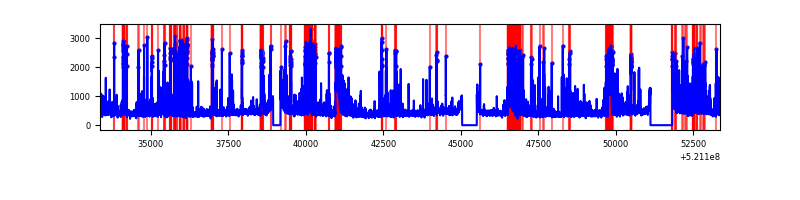

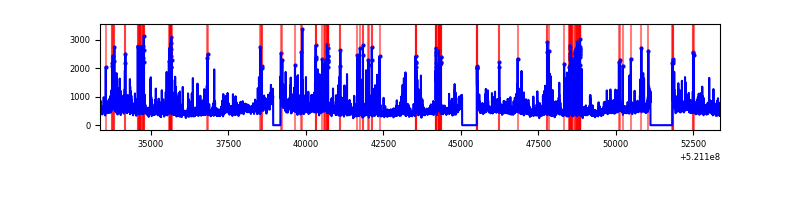

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19998 | 18583 | 3245 | 3245 | 16.23% | 17.46% |  |
| B | 19999 | 18584 | 5211 | 5211 | 26.06% | 28.04% |  |
| C | 19999 | 18585 | 765 | 765 | 3.83% | 4.12% |  |
| D | 19999 | 18586 | 173 | 173 | 0.87% | 0.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 10396938 | 22457.77 | 1849 | 1800 | 462.9 |
| A | 13 | 248 | 474460 | 1021.14 | 1849 | 1800 | 462.9 |
| A | 7 | 237 | 77110 | 162.7 | 1849 | 1800 | 462.9 |
| B | 10 | 128 | 13747905 | 38031.84 | 1710 | 1647 | 361.4 |
| B | 3 | 238 | 2743116 | 7584.84 | 1710 | 1647 | 361.4 |
| B | 4 | 206 | 373124 | 1027.77 | 1710 | 1647 | 361.4 |
| C | 15 | 198 | 1096584 | 2091.41 | 1900 | 1883 | 523.4 |
| C | 4 | 5 | 1001625 | 1909.99 | 1900 | 1883 | 523.4 |
| C | 9 | 38 | 699218 | 1332.25 | 1900 | 1883 | 523.4 |
| D | 11 | 129 | 1389066 | 2534.47 | 1921 | 1836 | 547.3 |
| D | 2 | 249 | 466548 | 849.03 | 1921 | 1836 | 547.3 |
| D | 12 | 248 | 346128 | 629.02 | 1921 | 1836 | 547.3 |

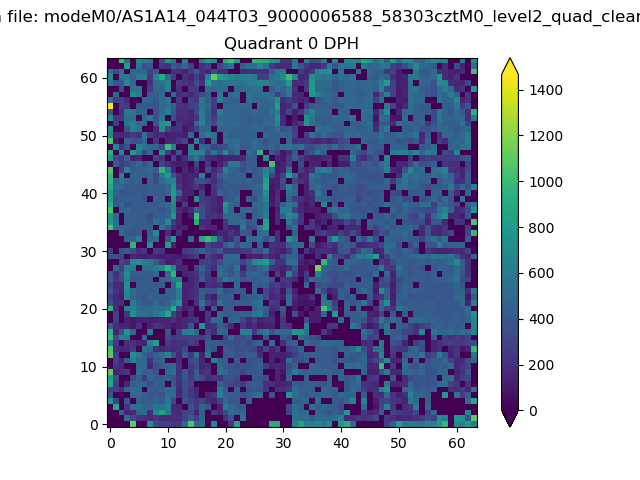

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

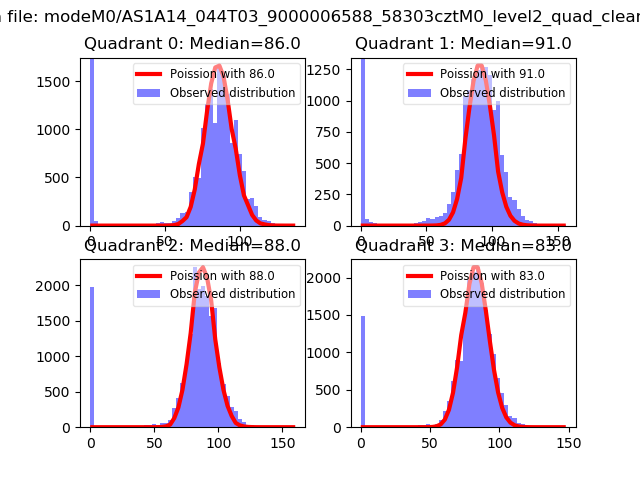

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

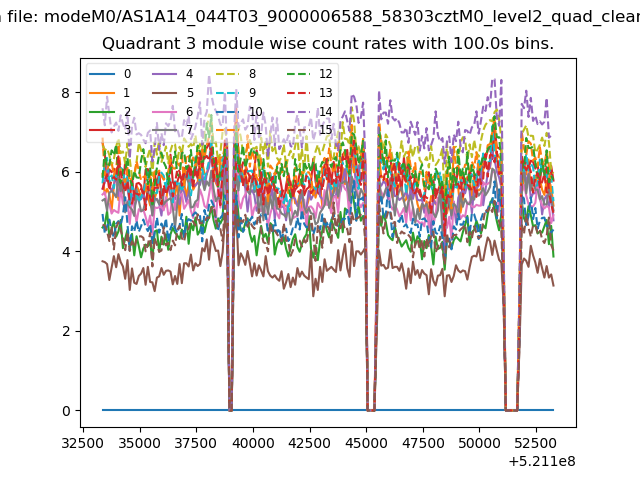

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

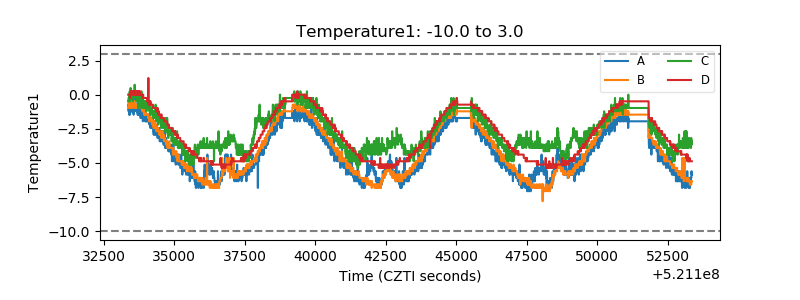

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

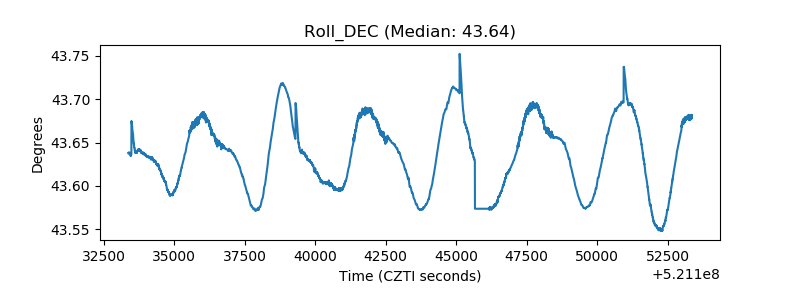

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
