| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58304cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58304cztM0_level2_quad_clean.evt |
| Size (bytes) | 674,481,600 | 86,993,280 |
| Size | 643.2 MB | 83.0 MB |
| Events in quadrant A | 10,184,505 | 418,957 |
| Events in quadrant B | 4,337,089 | 633,318 |
| Events in quadrant C | 5,928,500 | 550,746 |
| Events in quadrant D | 3,997,325 | 563,357 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34847 | 1 |
| B | 0 | 17560 | 2 |
| C | 0 | 22329 | 1 |
| D | 0 | 16506 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6702 | 2548 | 38.018502% |
| B | 6702 | 439 | 6.550283% |
| C | 6702 | 727 | 10.847508% |
| D | 6702 | 77 | 1.148911% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7556 | 6701 | 2600 | 2600 | 34.41% | 38.80% |  |
| B | 7557 | 6702 | 301 | 301 | 3.98% | 4.49% |  |
| C | 7557 | 6702 | 664 | 664 | 8.79% | 9.91% |  |
| D | 7557 | 6702 | 72 | 72 | 0.95% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 7257780 | 46604.43 | 626 | 610 | 155.7 |
| A | 13 | 248 | 309102 | 1981.09 | 626 | 610 | 155.7 |
| A | 2 | 143 | 43521 | 275.57 | 626 | 610 | 155.7 |
| B | 4 | 206 | 533870 | 3618.23 | 683 | 659 | 147.4 |
| B | 2 | 249 | 393719 | 2667.2 | 683 | 659 | 147.4 |
| B | 3 | 238 | 210000 | 1420.53 | 683 | 659 | 147.4 |
| C | 9 | 38 | 2371346 | 12867.68 | 665 | 660 | 184.2 |
| C | 15 | 198 | 635189 | 3444.11 | 665 | 660 | 184.2 |
| C | 14 | 254 | 98588 | 531.54 | 665 | 660 | 184.2 |
| D | 11 | 129 | 751280 | 3864.24 | 687 | 659 | 194.2 |
| D | 2 | 249 | 190772 | 978.71 | 687 | 659 | 194.2 |
| D | 8 | 160 | 79164 | 404.15 | 687 | 659 | 194.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

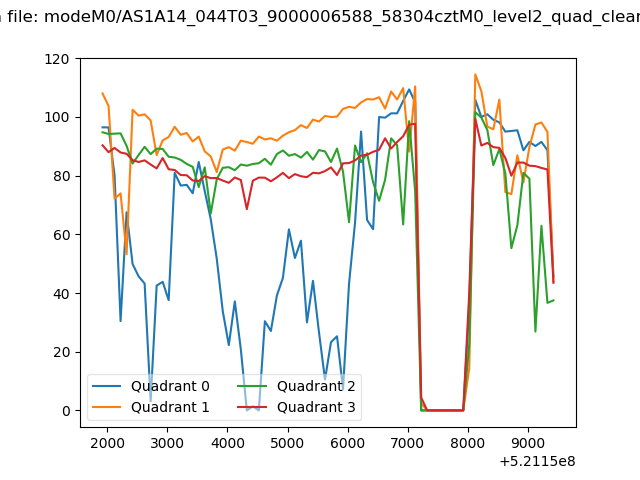

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

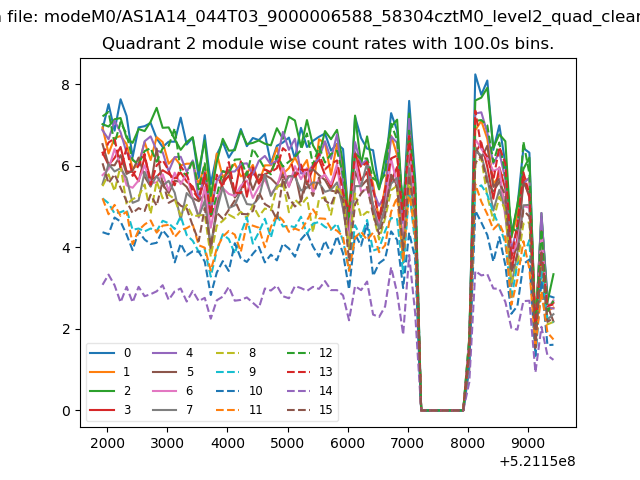

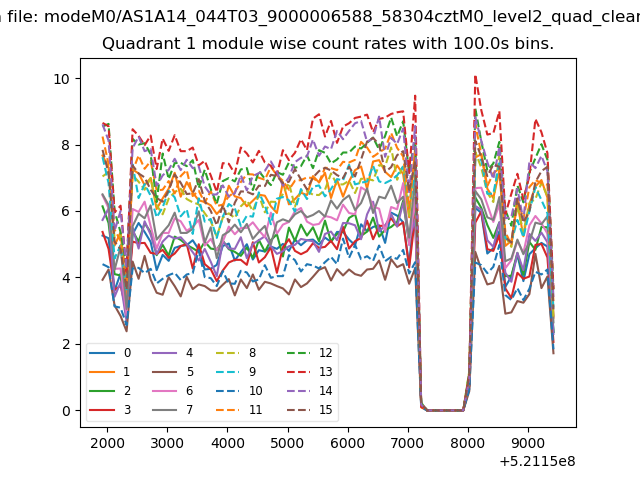

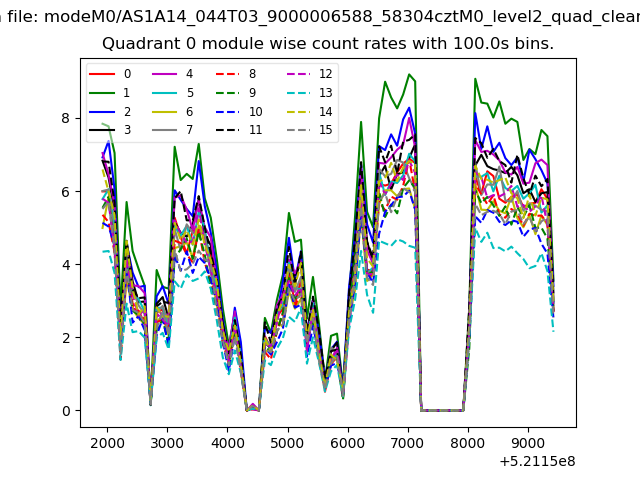

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

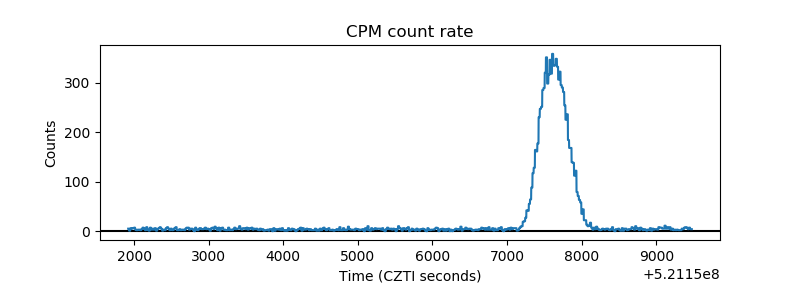

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

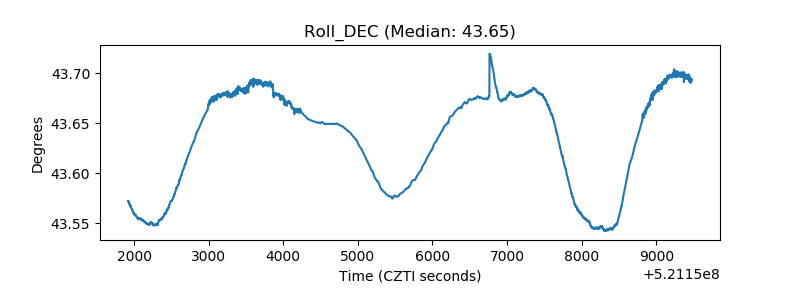

| _Roll_DEC |  |

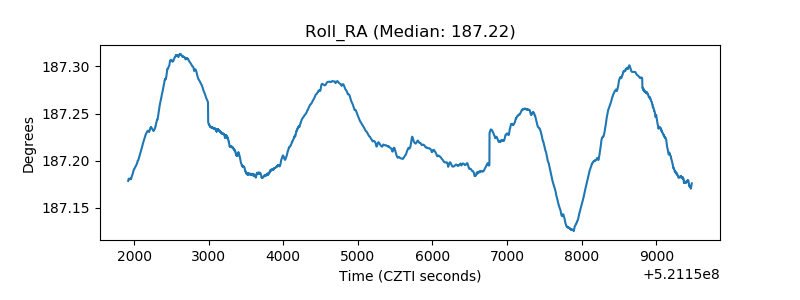

| _Roll_RA |  |

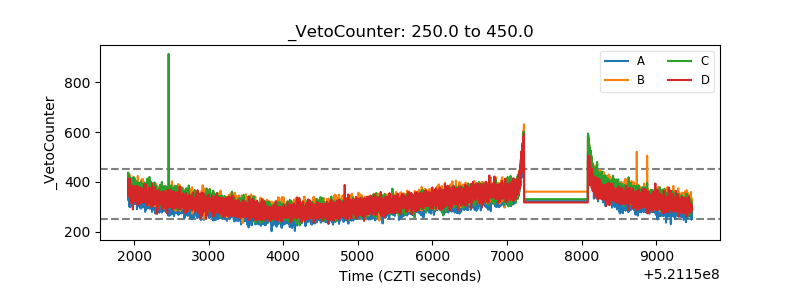

| Veto Counter |  |
