| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58306cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58306cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,601,280 | 92,661,120 |
| Size | 559.4 MB | 88.4 MB |
| Events in quadrant A | 3,565,154 | 639,737 |
| Events in quadrant B | 5,242,435 | 621,662 |
| Events in quadrant C | 8,696,871 | 489,178 |
| Events in quadrant D | 3,680,838 | 580,591 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15585 | 2 |
| B | 0 | 20249 | 2 |
| C | 0 | 30589 | 2 |
| D | 0 | 15573 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6811 | 81 | 1.189253% |
| B | 6811 | 805 | 11.819116% |
| C | 6811 | 1751 | 25.708413% |
| D | 6810 | 52 | 0.763583% |

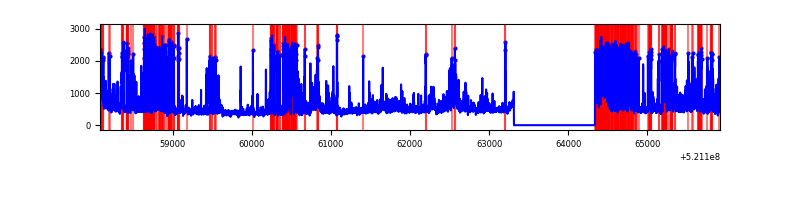

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7836 | 6812 | 82 | 82 | 1.05% | 1.20% |  |
| B | 7836 | 6812 | 500 | 500 | 6.38% | 7.34% |  |
| C | 7836 | 6811 | 1691 | 1691 | 21.58% | 24.83% |  |
| D | 7835 | 6811 | 49 | 49 | 0.63% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 470513 | 2620.87 | 722 | 704 | 179.3 |
| A | 13 | 248 | 112365 | 622.91 | 722 | 704 | 179.3 |
| A | 2 | 143 | 43689 | 239.8 | 722 | 704 | 179.3 |
| B | 4 | 206 | 1821485 | 12499.45 | 678 | 653 | 145.7 |
| B | 0 | 156 | 218560 | 1495.86 | 678 | 653 | 145.7 |
| B | 5 | 185 | 132881 | 907.7 | 678 | 653 | 145.7 |
| C | 9 | 38 | 5815833 | 32910.09 | 641 | 633 | 176.7 |
| C | 12 | 249 | 239904 | 1354.11 | 641 | 633 | 176.7 |
| C | 6 | 223 | 53405 | 298.65 | 641 | 633 | 176.7 |
| D | 11 | 129 | 477857 | 2395.5 | 701 | 670 | 199.2 |
| D | 12 | 110 | 125305 | 625.67 | 701 | 670 | 199.2 |
| D | 2 | 249 | 112890 | 563.35 | 701 | 670 | 199.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

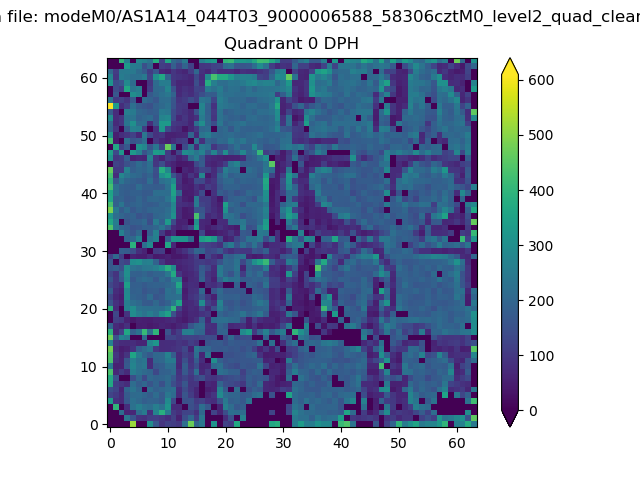

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

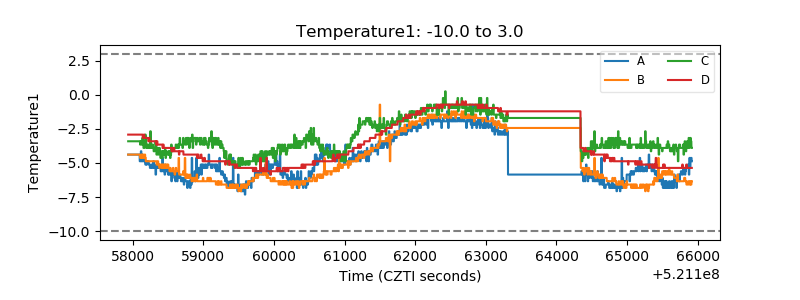

| Temperature 1 |  |

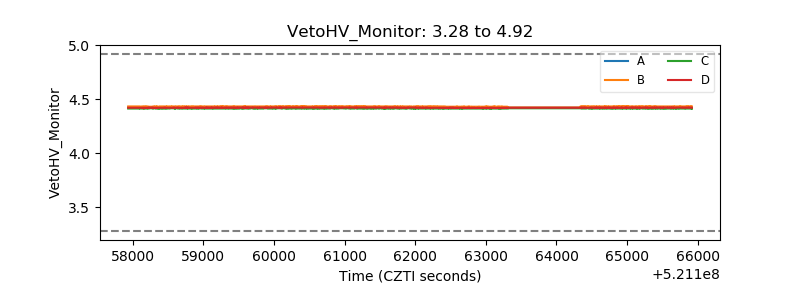

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

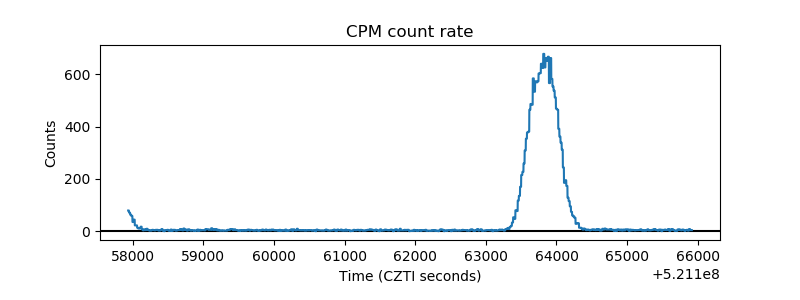

| _CPM_Rate |  |

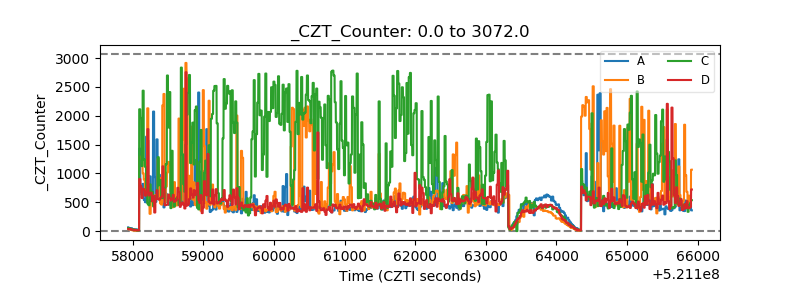

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

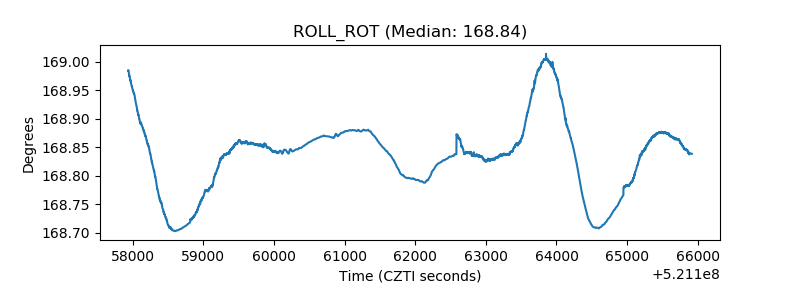

| _ROLL_ROT |  |
| _Roll_DEC |  |

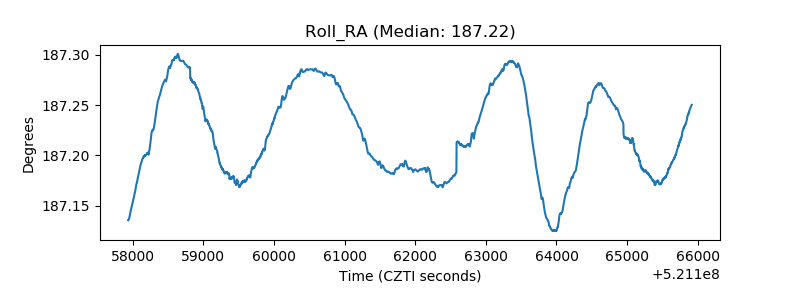

| _Roll_RA |  |
| Veto Counter |  |
