| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58307cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58307cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,416,960 | 86,569,920 |
| Size | 421.9 MB | 82.6 MB |
| Events in quadrant A | 3,229,998 | 564,473 |
| Events in quadrant B | 5,212,309 | 558,299 |
| Events in quadrant C | 3,929,749 | 544,363 |
| Events in quadrant D | 3,514,421 | 513,879 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14176 | 1 |
| B | 0 | 19811 | 1 |
| C | 0 | 16128 | 1 |
| D | 0 | 14784 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6306 | 105 | 1.665081% |
| B | 6307 | 744 | 11.796417% |
| C | 6307 | 181 | 2.869827% |
| D | 6307 | 56 | 0.887902% |

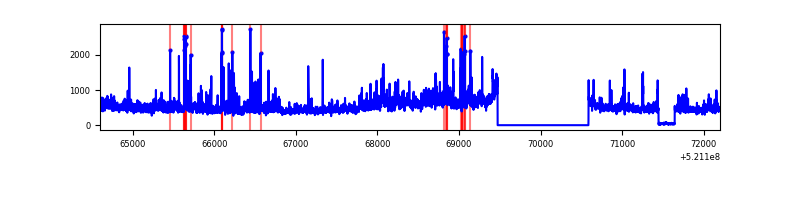

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

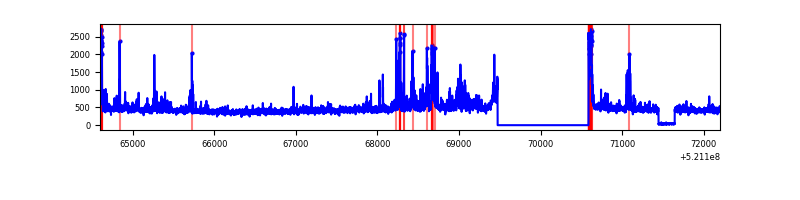

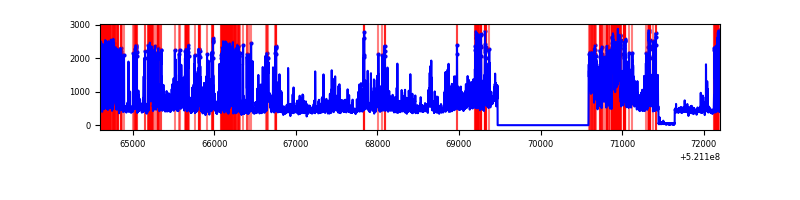

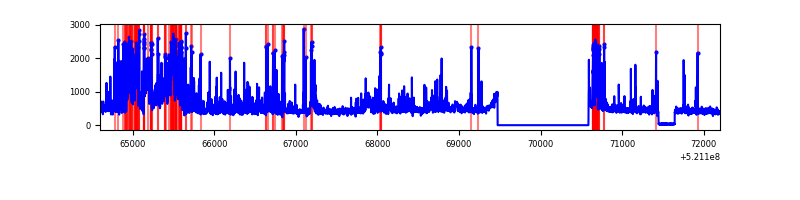

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7602 | 6487 | 74 | 74 | 0.97% | 1.14% |  |
| B | 7603 | 6488 | 439 | 439 | 5.77% | 6.77% |  |
| C | 7603 | 6488 | 168 | 168 | 2.21% | 2.59% |  |
| D | 7603 | 6488 | 31 | 31 | 0.41% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 496360 | 2915.02 | 680 | 662 | 170.0 |
| A | 13 | 248 | 31612 | 182.01 | 680 | 662 | 170.0 |
| A | 4 | 238 | 21272 | 121.2 | 680 | 662 | 170.0 |
| B | 4 | 206 | 1535200 | 10997.26 | 647 | 623 | 139.5 |
| B | 2 | 249 | 503666 | 3604.97 | 647 | 623 | 139.5 |
| B | 0 | 156 | 251325 | 1796.61 | 647 | 623 | 139.5 |
| C | 9 | 38 | 694852 | 3835.45 | 658 | 652 | 181.0 |
| C | 12 | 249 | 359384 | 1981.99 | 658 | 652 | 181.0 |
| C | 1 | 12 | 140638 | 773.42 | 658 | 652 | 181.0 |
| D | 11 | 129 | 394276 | 2080.08 | 658 | 627 | 189.2 |
| D | 2 | 249 | 181511 | 955.81 | 658 | 627 | 189.2 |
| D | 12 | 110 | 147259 | 774.82 | 658 | 627 | 189.2 |

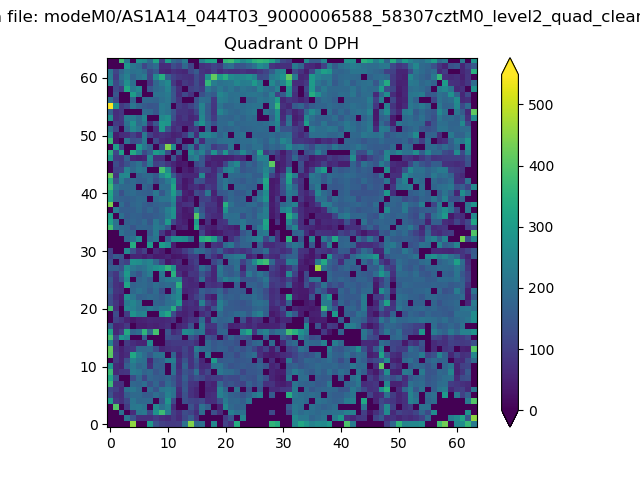

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

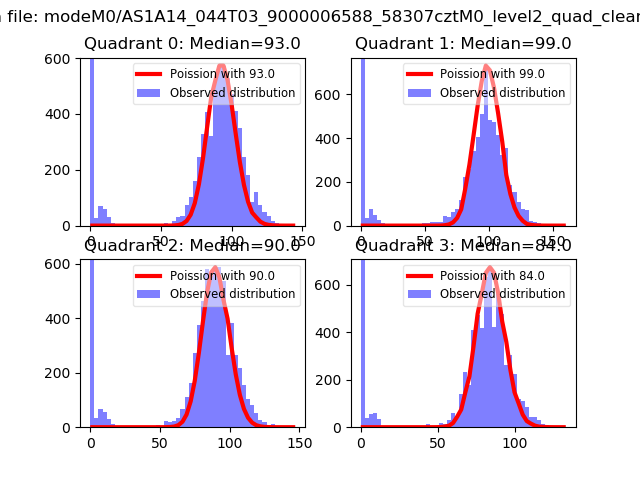

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

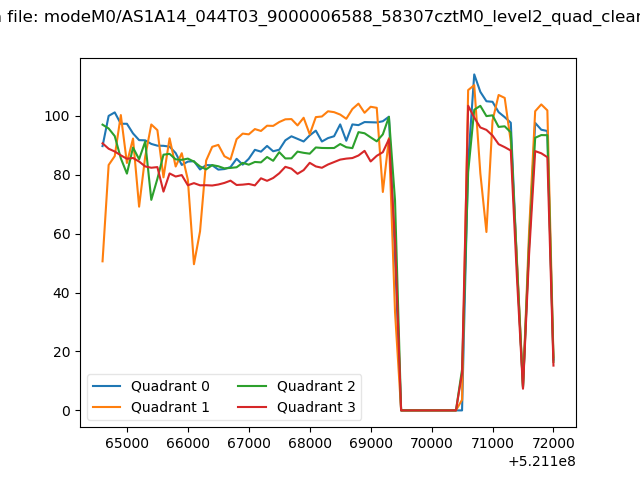

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

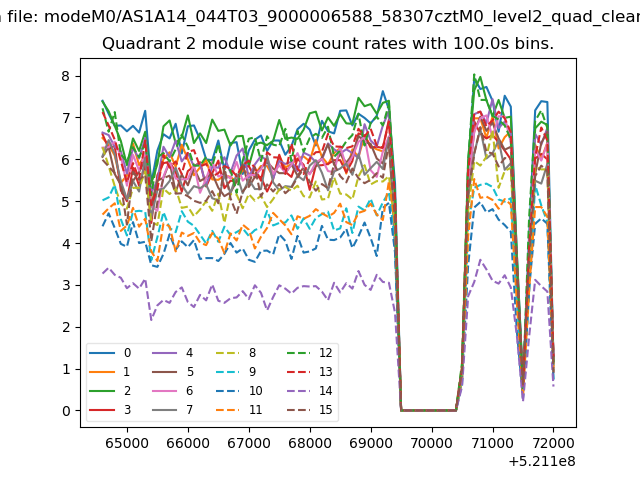

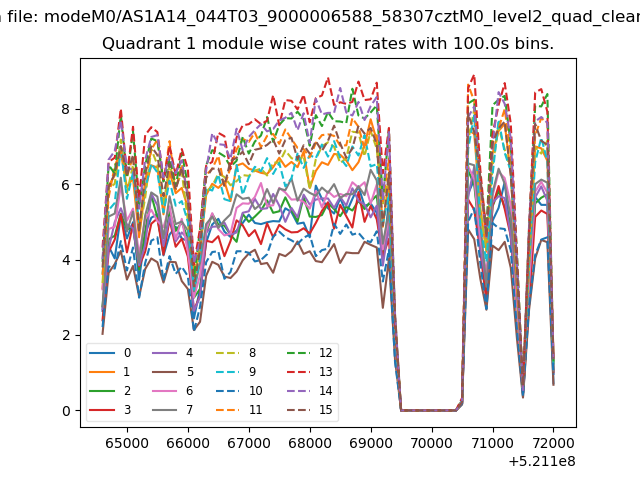

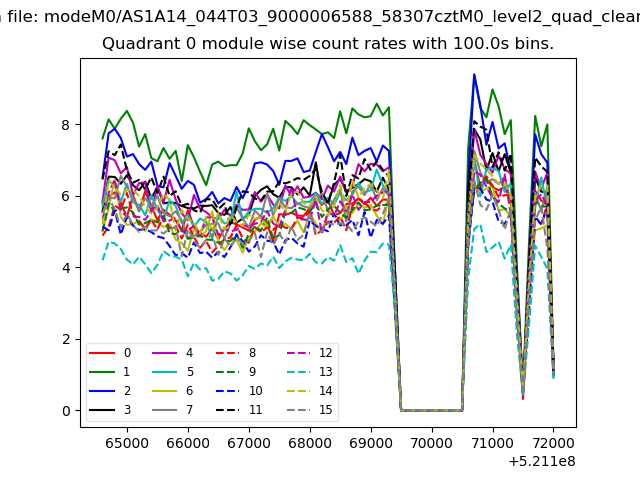

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

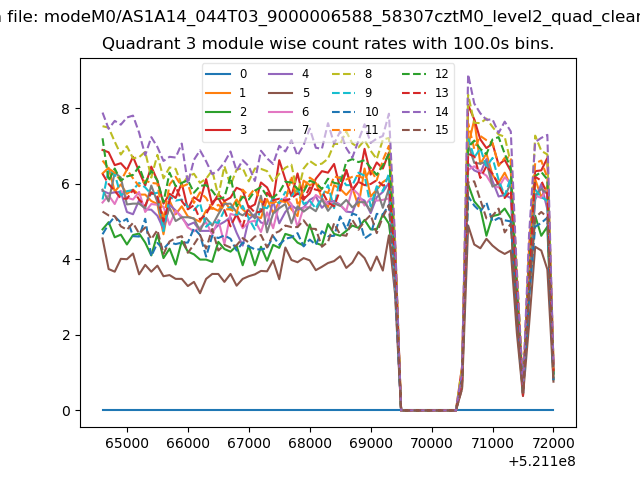

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

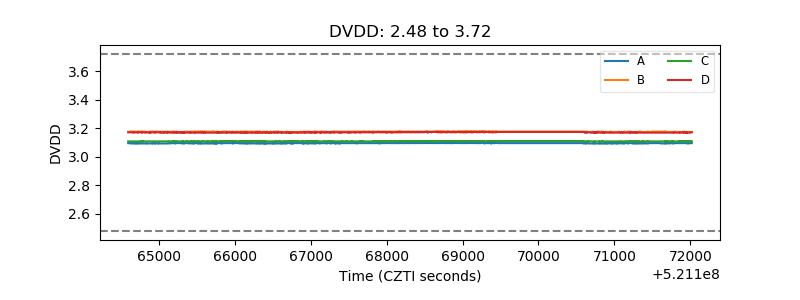

| D_VDD |  |

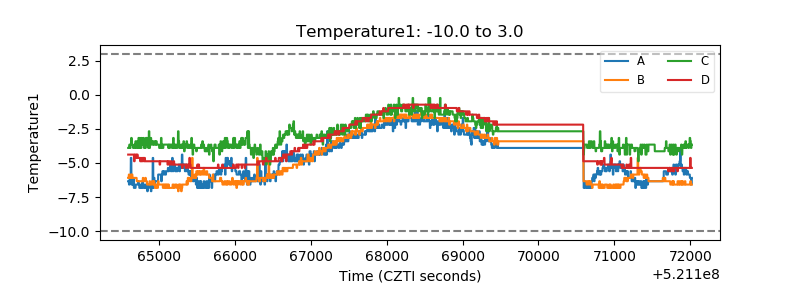

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

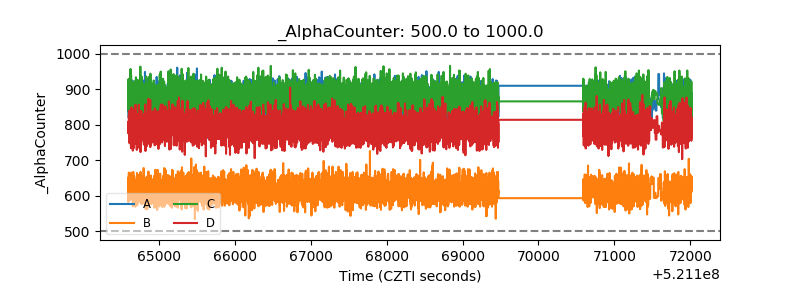

| Alpha Counter |  |
| _CPM_Rate |  |

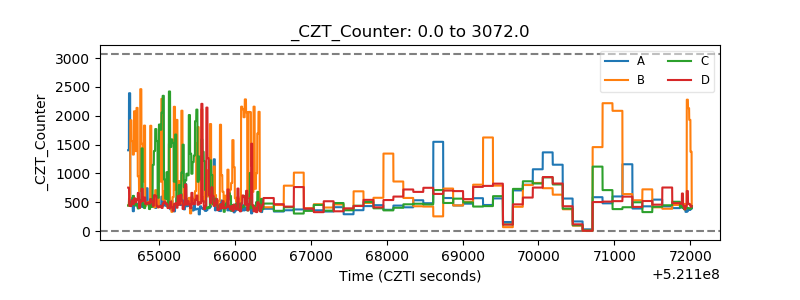

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

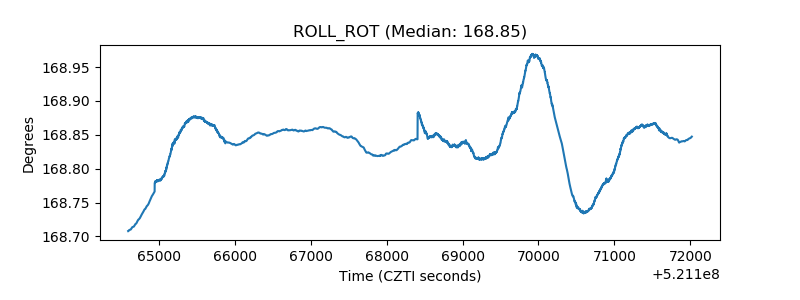

| _ROLL_ROT |  |

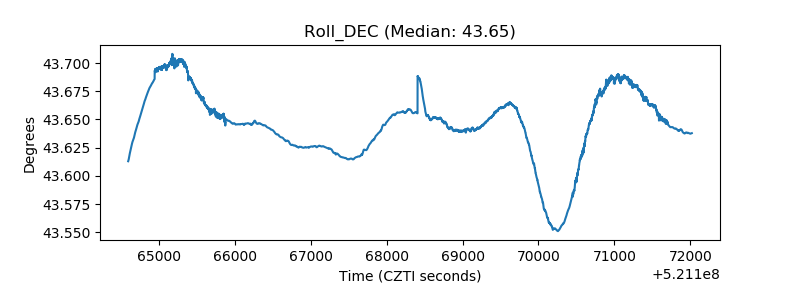

| _Roll_DEC |  |

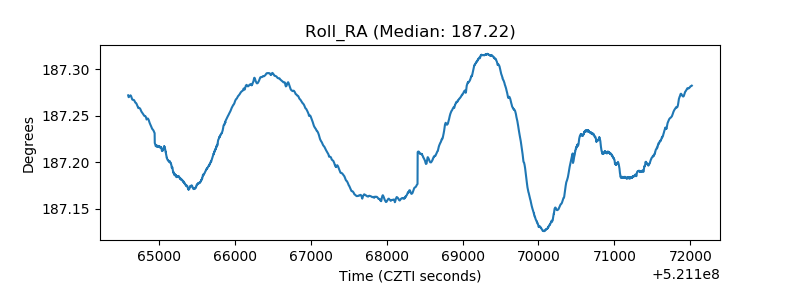

| _Roll_RA |  |

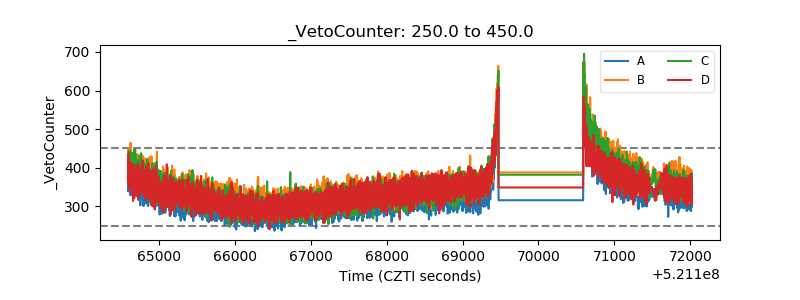

| Veto Counter |  |
