| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58309cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58309cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,786,240 | 101,845,440 |
| Size | 507.2 MB | 97.1 MB |
| Events in quadrant A | 3,359,055 | 691,445 |
| Events in quadrant B | 5,609,057 | 666,134 |
| Events in quadrant C | 3,859,308 | 662,898 |
| Events in quadrant D | 6,323,935 | 584,988 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14771 | 2 |
| B | 0 | 21326 | 2 |
| C | 0 | 16270 | 2 |
| D | 0 | 23433 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6870 | 117 | 1.703057% |
| B | 6871 | 1010 | 14.699462% |
| C | 6871 | 152 | 2.212196% |
| D | 6870 | 617 | 8.981077% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

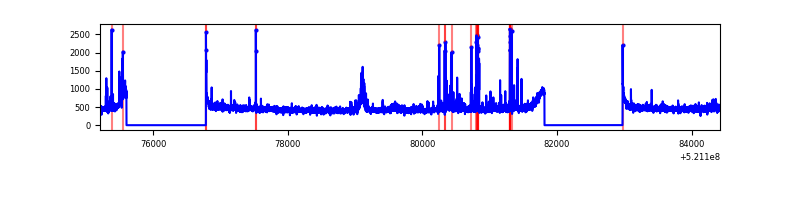

| A | 9209 | 6870 | 26 | 26 | 0.28% | 0.38% |  |

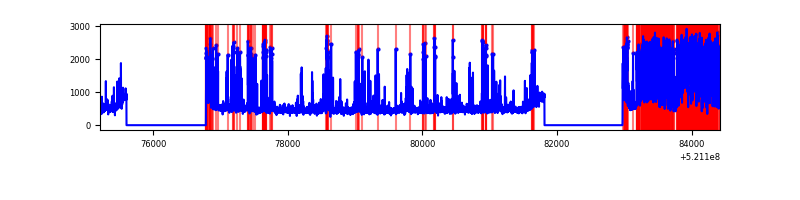

| B | 9210 | 6871 | 680 | 680 | 7.38% | 9.90% |  |
| C | 9210 | 6871 | 96 | 96 | 1.04% | 1.40% |  |
| D | 9209 | 6871 | 601 | 601 | 6.53% | 8.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 61 | 70232 | 359.48 | 793 | 773 | 193.2 |
| A | 3 | 245 | 66777 | 341.6 | 793 | 773 | 193.2 |
| A | 12 | 3 | 48731 | 248.21 | 793 | 773 | 193.2 |
| B | 3 | 238 | 1374408 | 8689.09 | 740 | 714 | 158.1 |
| B | 4 | 206 | 616159 | 3892.9 | 740 | 714 | 158.1 |
| B | 2 | 249 | 352952 | 2228.03 | 740 | 714 | 158.1 |
| C | 12 | 249 | 472332 | 2239.52 | 764 | 757 | 210.6 |
| C | 15 | 198 | 127275 | 600.84 | 764 | 757 | 210.6 |
| C | 15 | 204 | 72810 | 342.18 | 764 | 757 | 210.6 |
| D | 11 | 129 | 2069364 | 9828.37 | 742 | 710 | 210.5 |
| D | 12 | 110 | 1145744 | 5440.16 | 742 | 710 | 210.5 |
| D | 12 | 128 | 70448 | 331.33 | 742 | 710 | 210.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

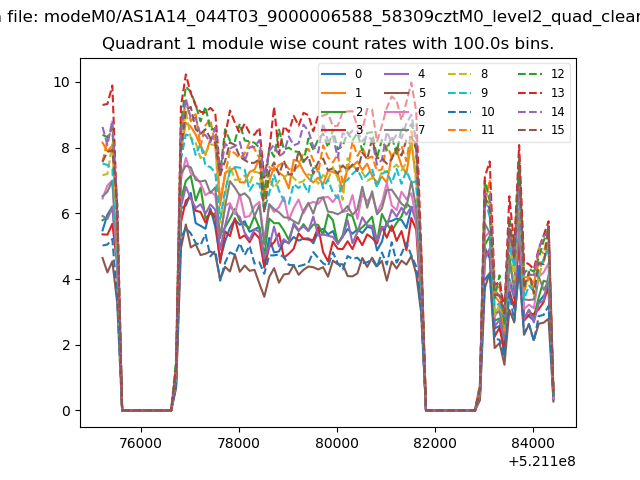

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

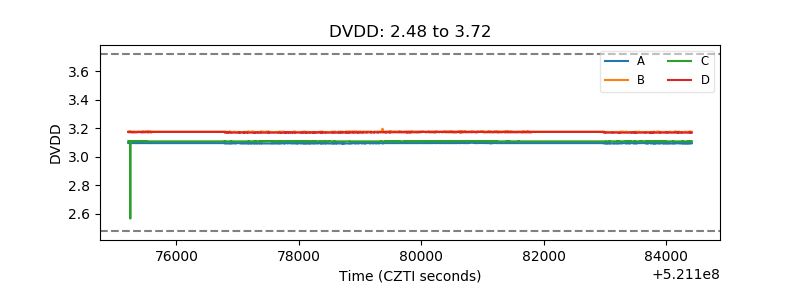

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

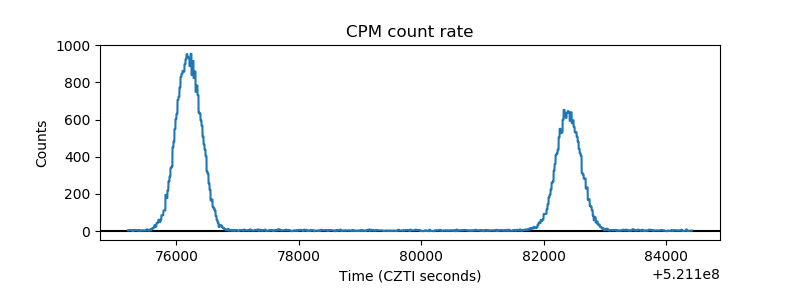

| _CPM_Rate |  |

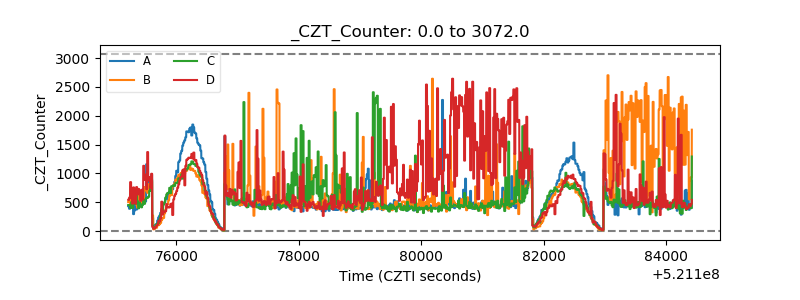

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

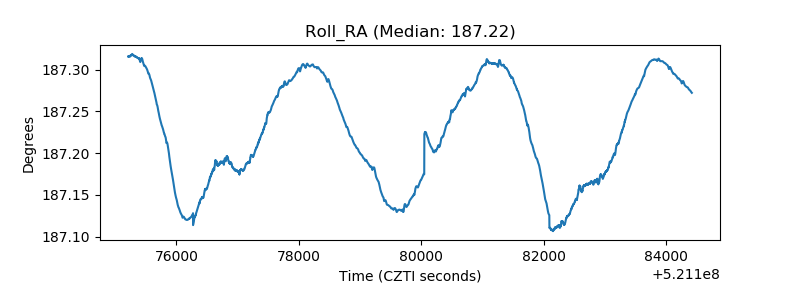

| _Roll_RA |  |

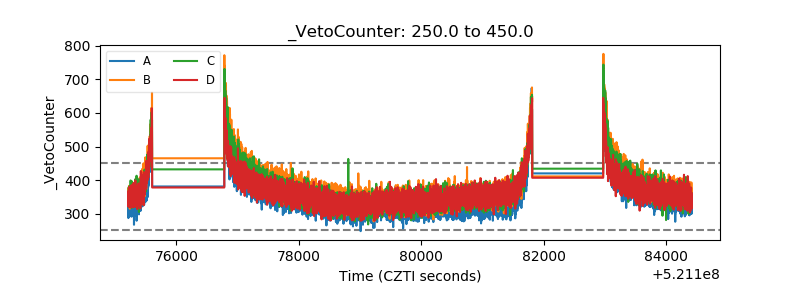

| Veto Counter |  |
