| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58311cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58311cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,023,680 | 92,272,320 |
| Size | 514.1 MB | 88.0 MB |
| Events in quadrant A | 3,418,257 | 642,468 |
| Events in quadrant B | 8,174,134 | 467,134 |
| Events in quadrant C | 3,597,029 | 625,445 |
| Events in quadrant D | 4,231,510 | 582,810 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15054 | 2 |
| B | 0 | 28982 | 2 |
| C | 0 | 15695 | 2 |
| D | 0 | 17142 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6832 | 245 | 3.586066% |
| B | 6832 | 2593 | 37.953747% |
| C | 6832 | 188 | 2.751756% |
| D | 6832 | 192 | 2.810304% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7702 | 6833 | 83 | 83 | 1.08% | 1.21% |  |
| B | 7702 | 6833 | 1378 | 1378 | 17.89% | 20.17% |  |
| C | 7702 | 6833 | 69 | 69 | 0.90% | 1.01% |  |
| D | 7702 | 6833 | 84 | 84 | 1.09% | 1.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 173959 | 926.46 | 762 | 742 | 187.0 |
| A | 7 | 160 | 103075 | 547.33 | 762 | 742 | 187.0 |
| A | 12 | 114 | 47945 | 252.47 | 762 | 742 | 187.0 |
| B | 3 | 238 | 4869264 | 37850.19 | 605 | 584 | 128.6 |
| B | 2 | 249 | 511176 | 3969.45 | 605 | 584 | 128.6 |
| B | 4 | 201 | 120515 | 932.37 | 605 | 584 | 128.6 |
| C | 15 | 204 | 494291 | 2449.38 | 737 | 728 | 201.5 |
| C | 9 | 38 | 55382 | 271.23 | 737 | 728 | 201.5 |
| C | 12 | 252 | 48699 | 238.06 | 737 | 728 | 201.5 |
| D | 11 | 129 | 786500 | 3793.62 | 737 | 705 | 207.1 |
| D | 12 | 128 | 135520 | 650.85 | 737 | 705 | 207.1 |
| D | 12 | 110 | 113563 | 544.85 | 737 | 705 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

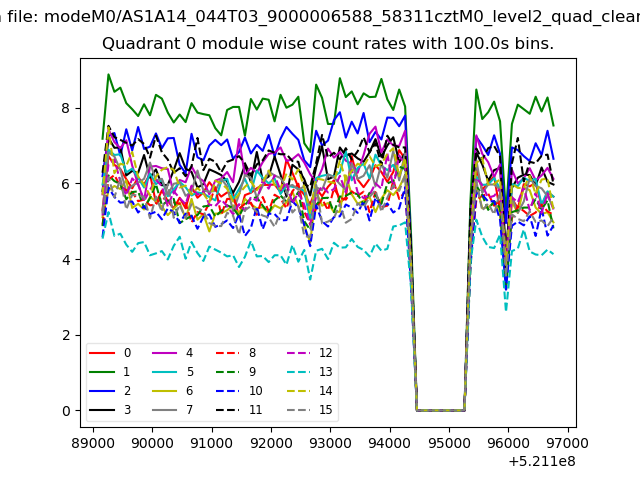

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

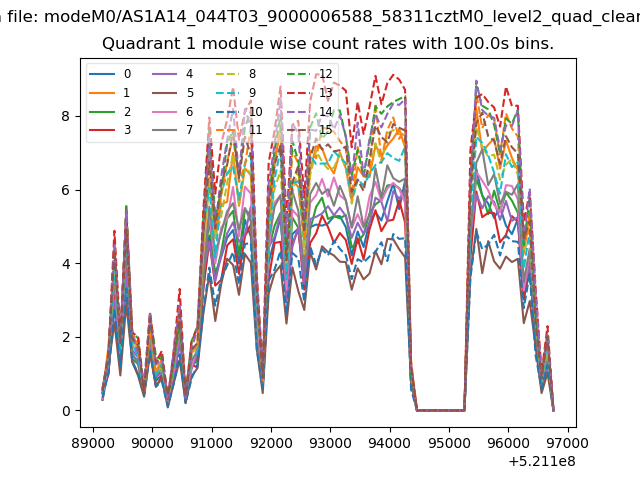

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

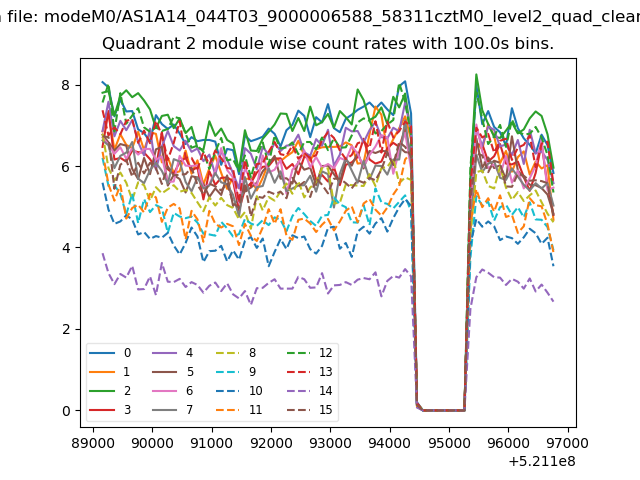

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

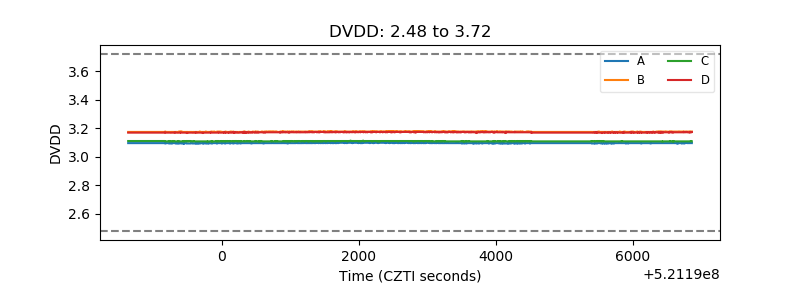

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

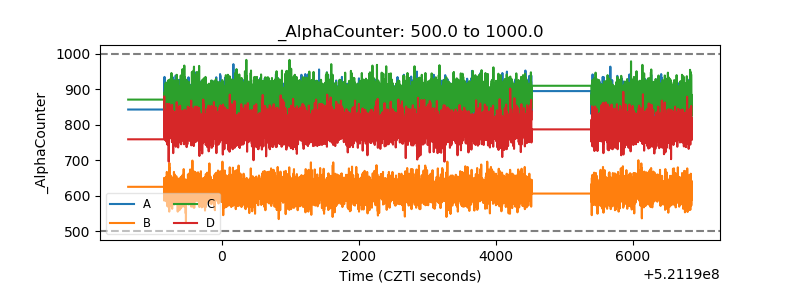

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
