| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58315cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58315cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,689,280 | 95,976,000 |
| Size | 552.8 MB | 91.5 MB |
| Events in quadrant A | 4,742,245 | 641,730 |
| Events in quadrant B | 7,963,347 | 539,255 |
| Events in quadrant C | 3,948,939 | 634,020 |
| Events in quadrant D | 4,256,248 | 599,538 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19064 | 0 |
| B | 0 | 28451 | 0 |
| C | 0 | 16832 | 0 |
| D | 0 | 17344 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7051 | 383 | 5.431854% |
| B | 7051 | 1875 | 26.591973% |
| C | 7050 | 103 | 1.460993% |
| D | 7050 | 54 | 0.765957% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7051 | 7051 | 310 | 310 | 4.40% | 4.40% |  |
| B | 7051 | 7051 | 1195 | 1195 | 16.95% | 16.95% |  |
| C | 7050 | 7050 | 88 | 88 | 1.25% | 1.25% |  |
| D | 7050 | 7050 | 49 | 49 | 0.70% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 569920 | 2983.49 | 765 | 744 | 190.8 |
| A | 15 | 233 | 543861 | 2846.9 | 765 | 744 | 190.8 |
| A | 10 | 251 | 387335 | 2026.42 | 765 | 744 | 190.8 |
| B | 4 | 206 | 4105767 | 28200.9 | 673 | 649 | 145.6 |
| B | 3 | 238 | 227469 | 1558.18 | 673 | 649 | 145.6 |
| B | 2 | 249 | 180453 | 1235.2 | 673 | 649 | 145.6 |
| C | 15 | 198 | 331586 | 1583.11 | 754 | 746 | 209.0 |
| C | 9 | 38 | 174497 | 831.42 | 754 | 746 | 209.0 |
| C | 8 | 7 | 149521 | 711.91 | 754 | 746 | 209.0 |
| D | 11 | 129 | 382709 | 1779.9 | 756 | 722 | 214.6 |
| D | 12 | 110 | 260731 | 1211.53 | 756 | 722 | 214.6 |
| D | 11 | 176 | 135703 | 628.95 | 756 | 722 | 214.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

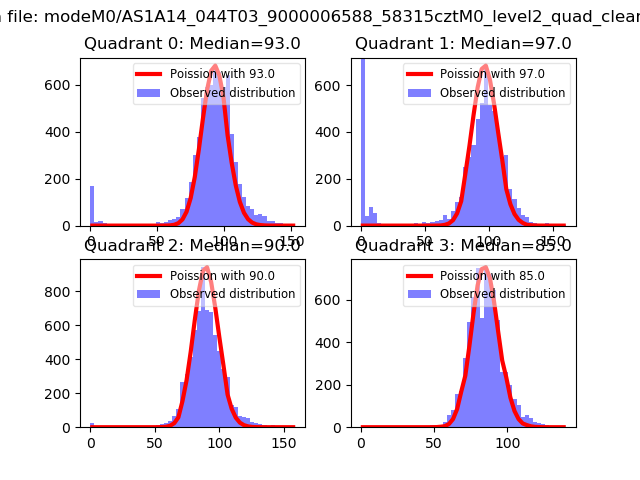

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

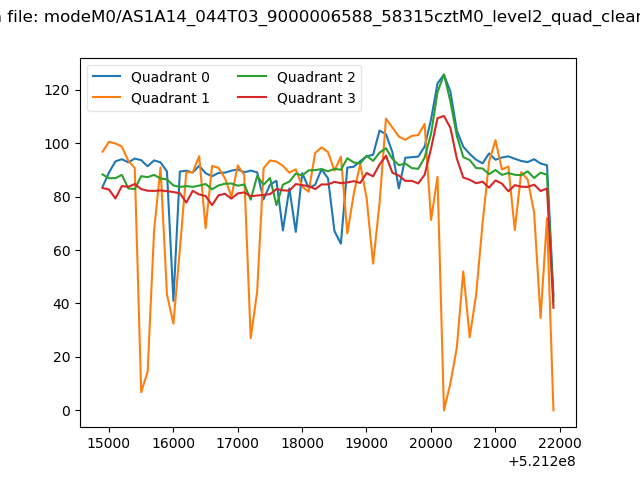

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

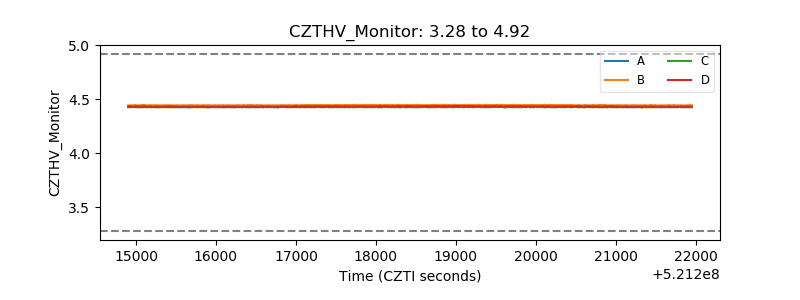

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

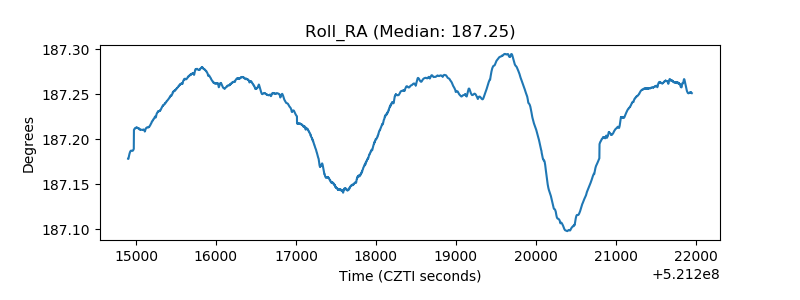

| _Roll_RA |  |
| Veto Counter |  |
