| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58318cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58318cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,240,081,920 | 248,400,000 |
| Size | 1.2 GB | 236.9 MB |
| Events in quadrant A | 12,507,037 | 1,581,371 |
| Events in quadrant B | 13,114,790 | 1,634,257 |
| Events in quadrant C | 8,222,634 | 1,586,454 |
| Events in quadrant D | 10,674,022 | 1,483,893 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 366 | 0 |
| B | 0 | 366 | 0 |
| C | 0 | 366 | 0 |
| D | 0 | 366 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49681 | 4 |
| B | 0 | 51360 | 4 |
| C | 0 | 37983 | 4 |
| D | 0 | 44026 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17902 | 934 | 5.217294% |
| B | 17903 | 1481 | 8.272357% |
| C | 17902 | 99 | 0.553011% |
| D | 17902 | 236 | 1.318288% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19667 | 17906 | 777 | 777 | 3.95% | 4.34% |  |
| B | 19668 | 17907 | 934 | 934 | 4.75% | 5.22% |  |
| C | 19667 | 17906 | 39 | 39 | 0.20% | 0.22% |  |
| D | 19667 | 17906 | 180 | 180 | 0.92% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 2727197 | 5842.38 | 1882 | 1831 | 466.5 |
| A | 7 | 160 | 685863 | 1466.36 | 1882 | 1831 | 466.5 |
| A | 15 | 233 | 562254 | 1201.38 | 1882 | 1831 | 466.5 |
| B | 4 | 206 | 2580448 | 6629.9 | 1831 | 1763 | 388.9 |
| B | 2 | 249 | 873061 | 2240.14 | 1831 | 1763 | 388.9 |
| B | 5 | 185 | 624200 | 1600.31 | 1831 | 1763 | 388.9 |
| C | 9 | 38 | 278529 | 537.05 | 1864 | 1841 | 515.2 |
| C | 6 | 13 | 157583 | 302.3 | 1864 | 1841 | 515.2 |
| C | 12 | 254 | 76331 | 144.59 | 1864 | 1841 | 515.2 |
| D | 11 | 129 | 1460127 | 2802.85 | 1849 | 1770 | 520.3 |
| D | 12 | 110 | 495306 | 948.54 | 1849 | 1770 | 520.3 |
| D | 3 | 12 | 240516 | 458.85 | 1849 | 1770 | 520.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

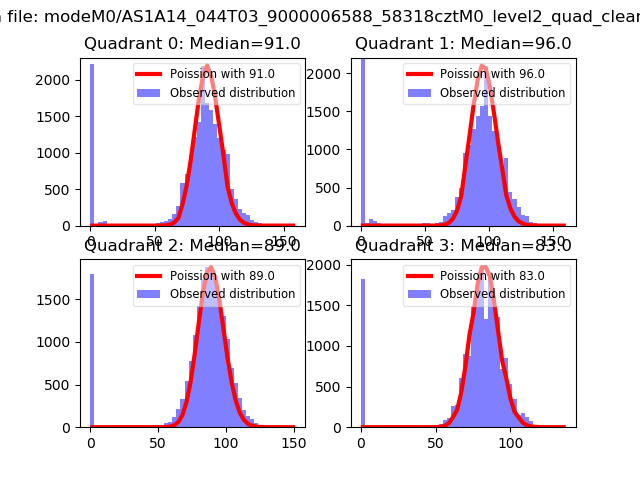

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

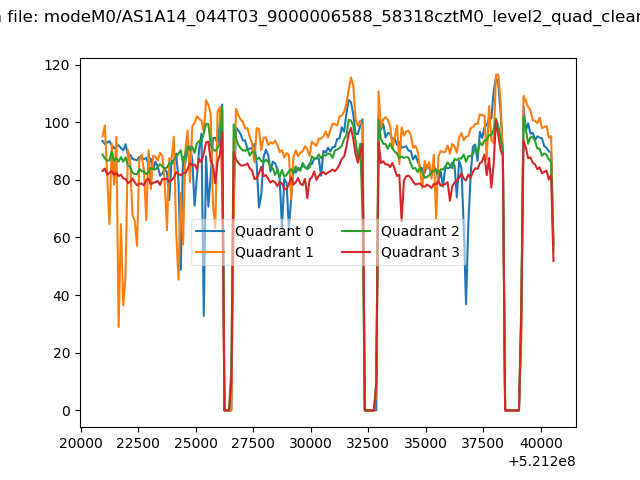

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

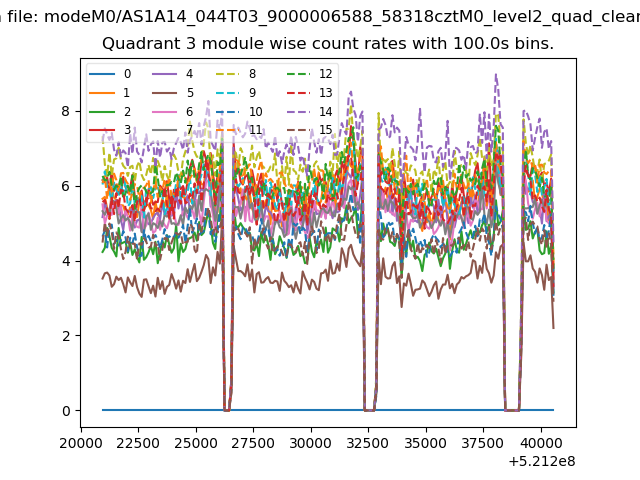

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
