| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58319cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58319cztM0_level2_quad_clean.evt |
| Size (bytes) | 404,884,800 | 100,679,040 |
| Size | 386.1 MB | 96.0 MB |
| Events in quadrant A | 3,439,679 | 653,710 |
| Events in quadrant B | 4,053,315 | 686,324 |
| Events in quadrant C | 3,082,529 | 633,018 |
| Events in quadrant D | 3,874,216 | 593,327 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15135 | 3 |
| B | 0 | 16893 | 2 |
| C | 0 | 14423 | 2 |
| D | 0 | 16382 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6913 | 58 | 0.838999% |
| B | 6914 | 265 | 3.832803% |
| C | 6914 | 33 | 0.477292% |
| D | 6914 | 66 | 0.954585% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8638 | 6915 | 21 | 21 | 0.24% | 0.30% |  |
| B | 8639 | 6916 | 167 | 167 | 1.93% | 2.41% |  |
| C | 8639 | 6916 | 17 | 17 | 0.20% | 0.25% |  |
| D | 8639 | 6916 | 55 | 55 | 0.64% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 230034 | 1207.77 | 747 | 726 | 189.9 |
| A | 7 | 64 | 59004 | 306.95 | 747 | 726 | 189.9 |
| A | 0 | 12 | 53572 | 278.34 | 747 | 726 | 189.9 |
| B | 4 | 201 | 320400 | 2029.25 | 731 | 704 | 157.5 |
| B | 2 | 249 | 172032 | 1087.49 | 731 | 704 | 157.5 |
| B | 5 | 185 | 153783 | 971.66 | 731 | 704 | 157.5 |
| C | 6 | 223 | 56896 | 280.04 | 730 | 725 | 200.6 |
| C | 12 | 252 | 34486 | 168.31 | 730 | 725 | 200.6 |
| C | 6 | 13 | 33807 | 164.93 | 730 | 725 | 200.6 |
| D | 11 | 129 | 371926 | 1797.98 | 721 | 690 | 206.5 |
| D | 12 | 110 | 222279 | 1073.2 | 721 | 690 | 206.5 |
| D | 2 | 62 | 183192 | 883.9 | 721 | 690 | 206.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

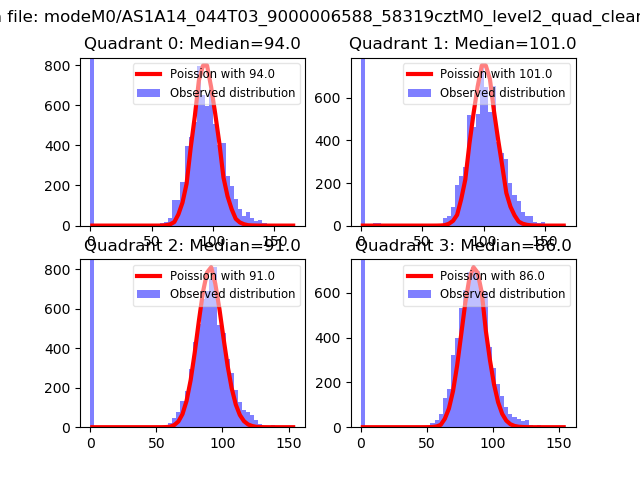

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

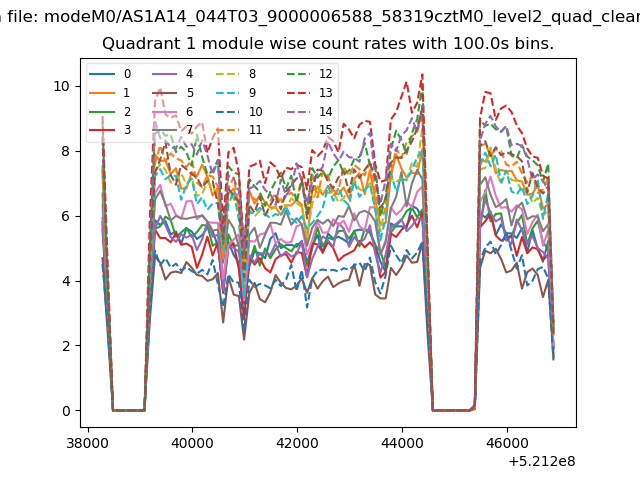

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

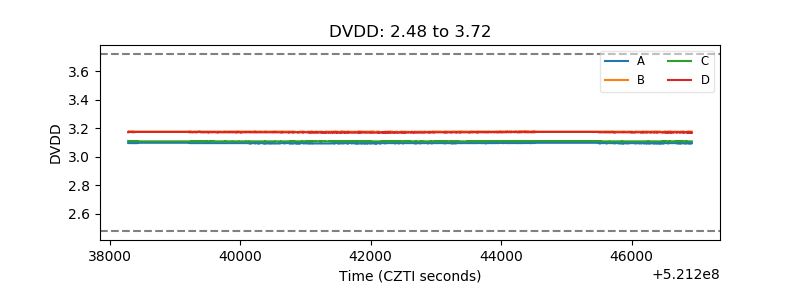

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

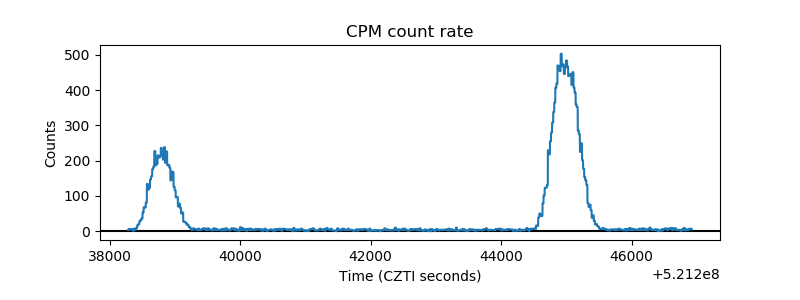

| _CPM_Rate |  |

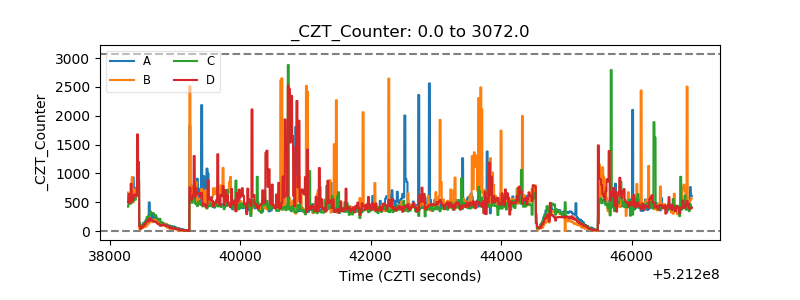

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

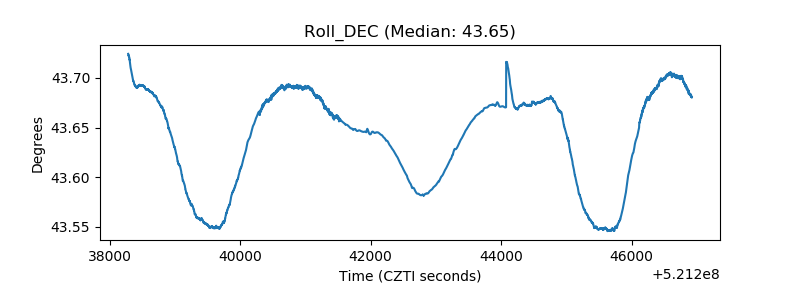

| _Roll_DEC |  |

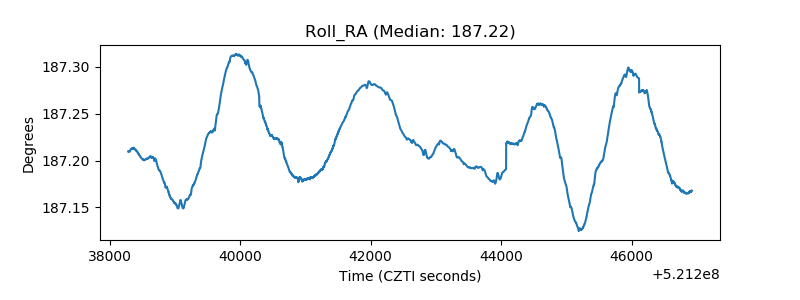

| _Roll_RA |  |
| Veto Counter |  |
