| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58321cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58321cztM0_level2_quad_clean.evt |
| Size (bytes) | 400,207,680 | 100,080,000 |
| Size | 381.7 MB | 95.4 MB |
| Events in quadrant A | 3,293,438 | 647,805 |
| Events in quadrant B | 4,198,224 | 685,033 |
| Events in quadrant C | 3,228,437 | 632,189 |
| Events in quadrant D | 3,564,359 | 590,422 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14663 | 2 |
| B | 0 | 17100 | 2 |
| C | 0 | 14685 | 2 |
| D | 0 | 15392 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6811 | 64 | 0.939656% |
| B | 6811 | 268 | 3.934811% |
| C | 6811 | 47 | 0.690060% |
| D | 6811 | 35 | 0.513875% |

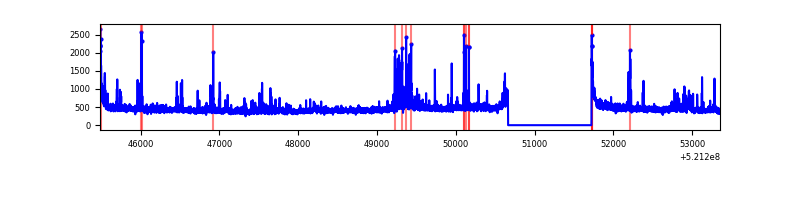

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7871 | 6812 | 22 | 22 | 0.28% | 0.32% |  |
| B | 7871 | 6812 | 152 | 152 | 1.93% | 2.23% |  |
| C | 7871 | 6812 | 26 | 26 | 0.33% | 0.38% |  |
| D | 7871 | 6812 | 27 | 27 | 0.34% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 118391 | 641.12 | 733 | 715 | 183.5 |
| A | 4 | 238 | 85916 | 464.19 | 733 | 715 | 183.5 |
| A | 3 | 14 | 52523 | 282.26 | 733 | 715 | 183.5 |
| B | 5 | 185 | 358377 | 2318.4 | 721 | 695 | 154.3 |
| B | 2 | 249 | 251935 | 1628.47 | 721 | 695 | 154.3 |
| B | 4 | 171 | 134360 | 866.38 | 721 | 695 | 154.3 |
| C | 9 | 38 | 152943 | 767.74 | 718 | 713 | 198.3 |
| C | 6 | 223 | 100353 | 502.52 | 718 | 713 | 198.3 |
| C | 7 | 2 | 35903 | 177.47 | 718 | 713 | 198.3 |
| D | 11 | 129 | 310510 | 1523.77 | 711 | 679 | 203.3 |
| D | 2 | 62 | 125404 | 613.4 | 711 | 679 | 203.3 |
| D | 12 | 110 | 97927 | 478.27 | 711 | 679 | 203.3 |

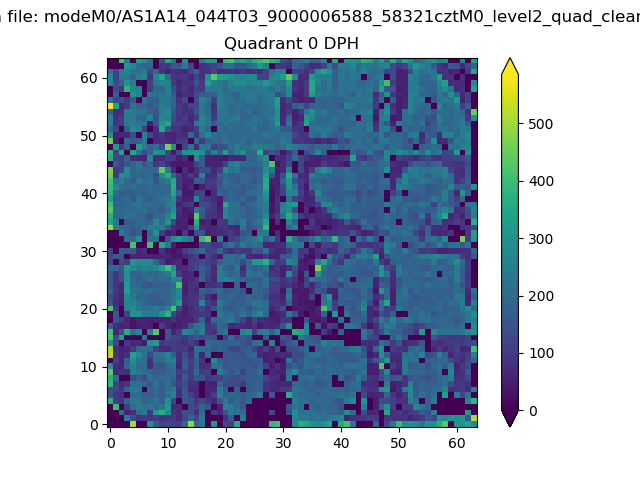

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

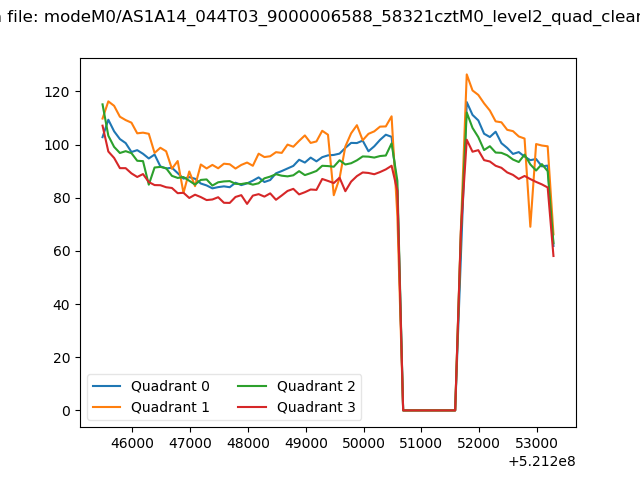

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

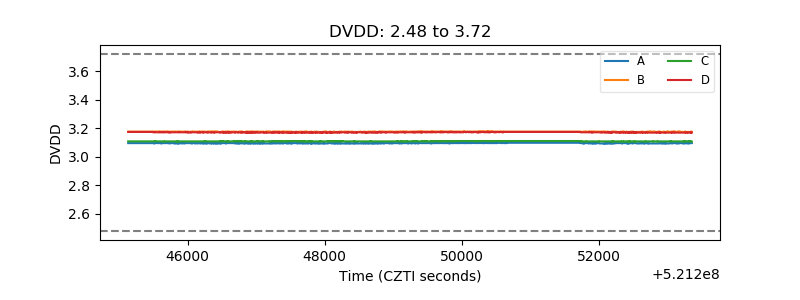

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

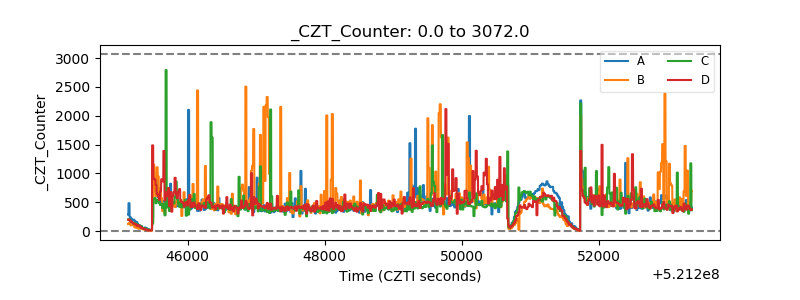

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

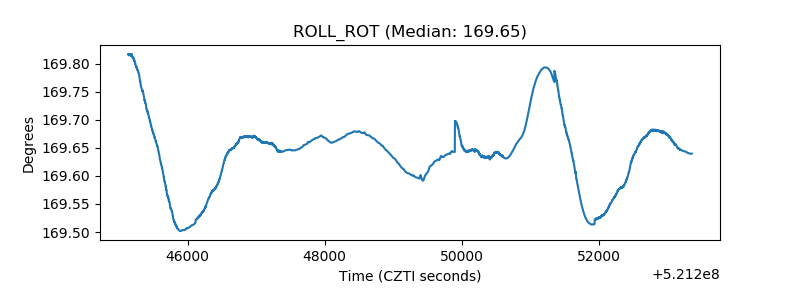

| _ROLL_ROT |  |
| _Roll_DEC |  |

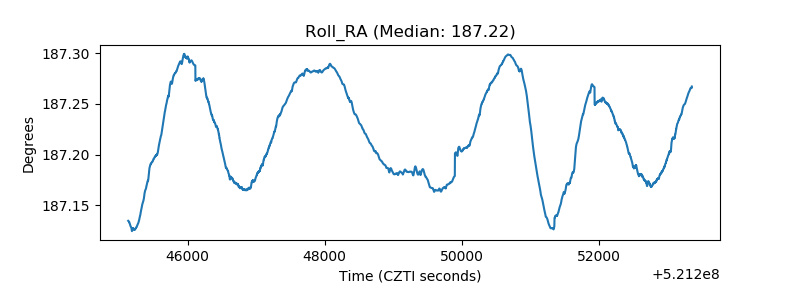

| _Roll_RA |  |

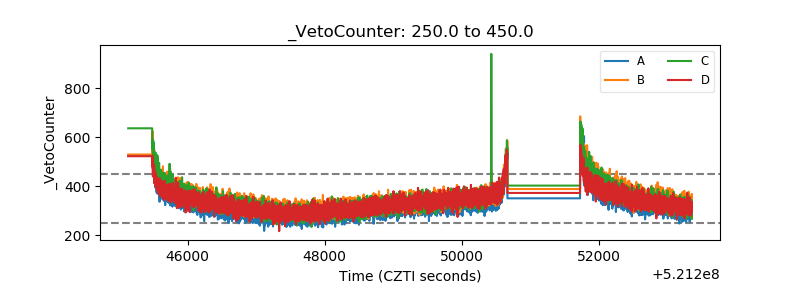

| Veto Counter |  |
