| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58322cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58322cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,424,960 | 95,028,480 |
| Size | 431.5 MB | 90.6 MB |
| Events in quadrant A | 3,602,988 | 629,566 |
| Events in quadrant B | 5,962,807 | 600,393 |
| Events in quadrant C | 3,135,166 | 618,708 |
| Events in quadrant D | 3,541,506 | 575,975 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15142 | 2 |
| B | 0 | 22143 | 2 |
| C | 0 | 14114 | 2 |
| D | 0 | 15037 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6490 | 153 | 2.357473% |
| B | 6490 | 974 | 15.007704% |
| C | 6490 | 49 | 0.755008% |
| D | 6490 | 79 | 1.217257% |

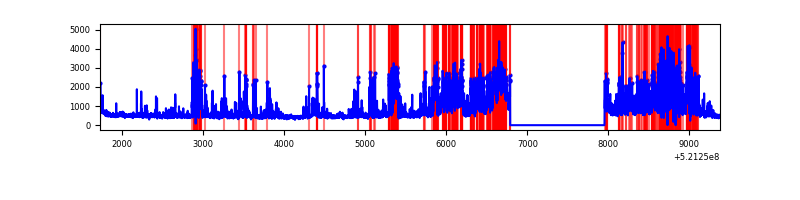

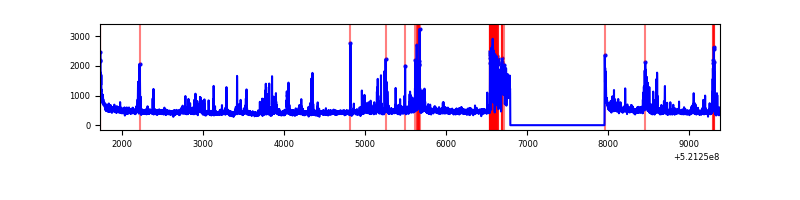

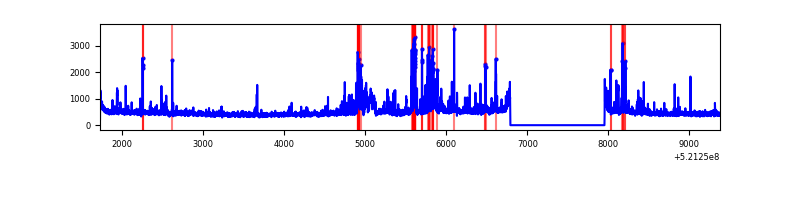

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7655 | 6491 | 80 | 80 | 1.05% | 1.23% |  |
| B | 7655 | 6491 | 671 | 671 | 8.77% | 10.34% |  |
| C | 7655 | 6491 | 42 | 42 | 0.55% | 0.65% |  |
| D | 7655 | 6491 | 70 | 70 | 0.91% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 12 | 274468 | 1542.98 | 714 | 697 | 177.4 |
| A | 4 | 238 | 130861 | 733.61 | 714 | 697 | 177.4 |
| A | 12 | 114 | 83773 | 468.22 | 714 | 697 | 177.4 |
| B | 10 | 128 | 1879776 | 13182.62 | 666 | 642 | 142.5 |
| B | 2 | 249 | 609066 | 4268.25 | 666 | 642 | 142.5 |
| B | 5 | 185 | 505468 | 3541.49 | 666 | 642 | 142.5 |
| C | 6 | 223 | 116212 | 602.54 | 699 | 695 | 191.7 |
| C | 9 | 38 | 114775 | 595.04 | 699 | 695 | 191.7 |
| C | 6 | 13 | 49018 | 252.05 | 699 | 695 | 191.7 |
| D | 11 | 129 | 307463 | 1572.22 | 688 | 659 | 195.1 |
| D | 8 | 160 | 148133 | 755.73 | 688 | 659 | 195.1 |
| D | 11 | 176 | 109446 | 557.48 | 688 | 659 | 195.1 |

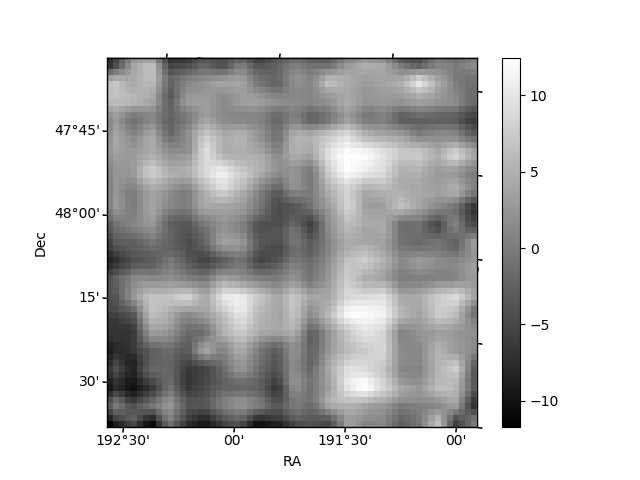

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |

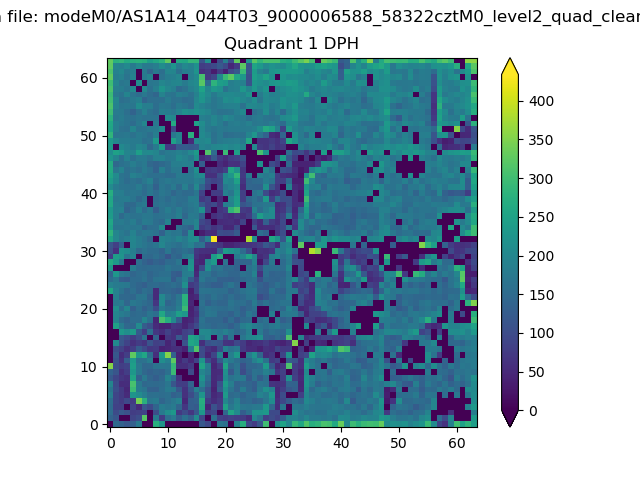

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

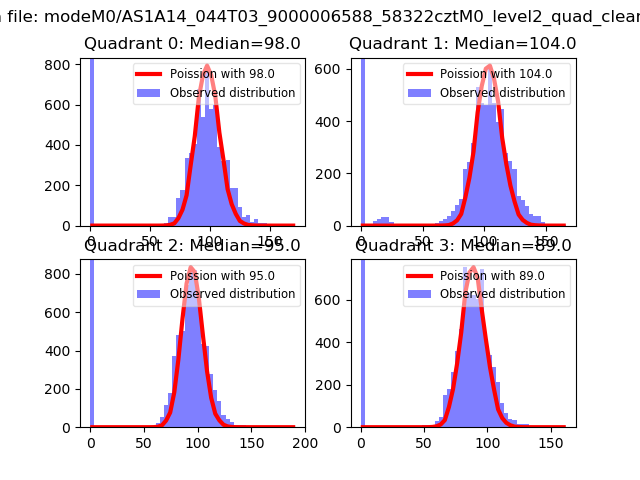

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

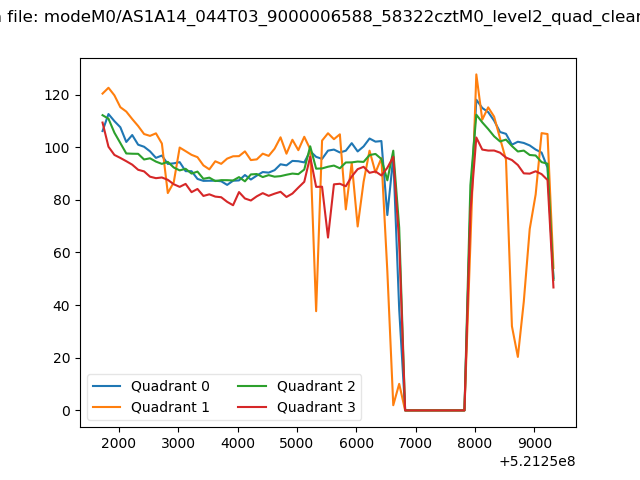

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

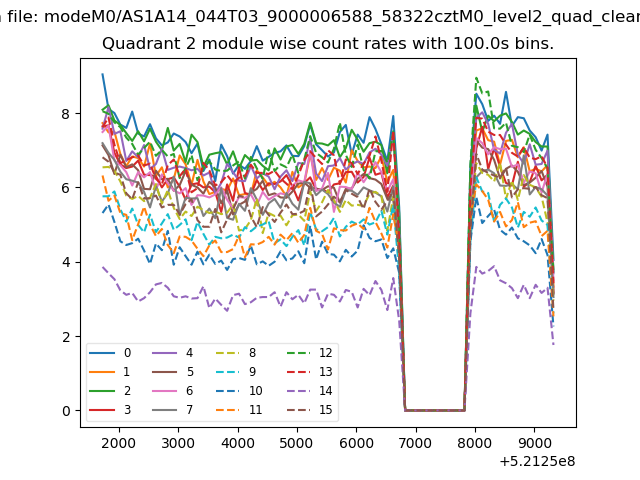

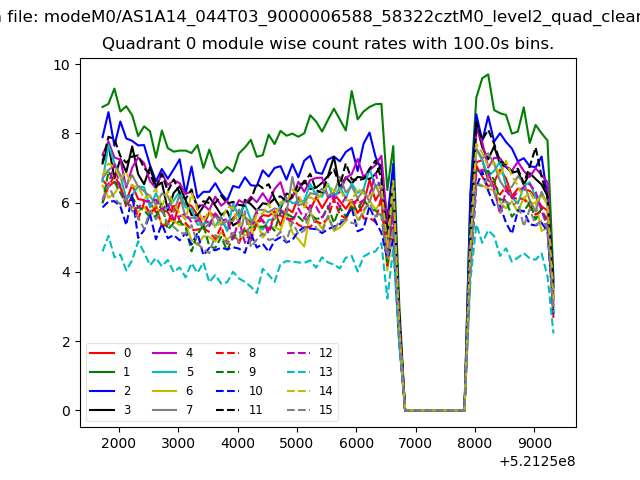

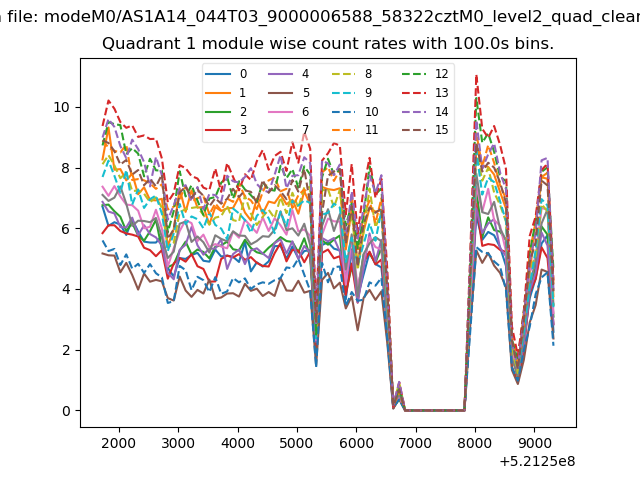

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

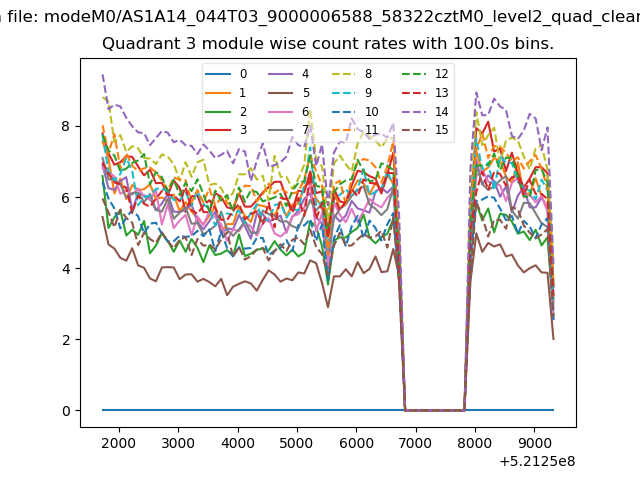

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

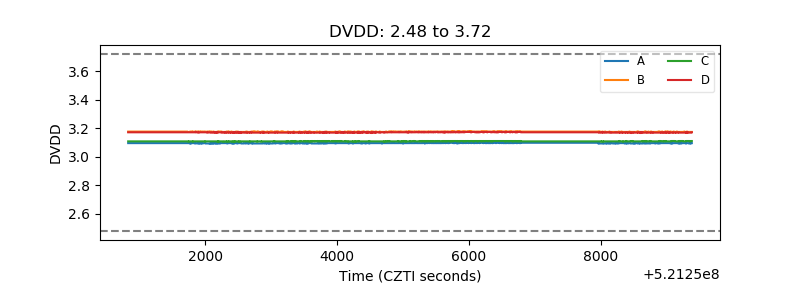

| D_VDD |  |

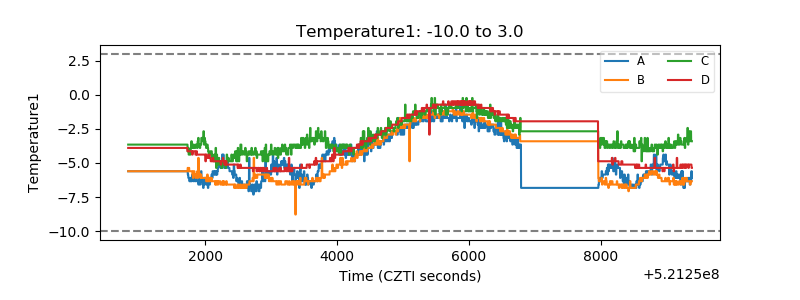

| Temperature 1 |  |
| Veto HV Monitor |  |

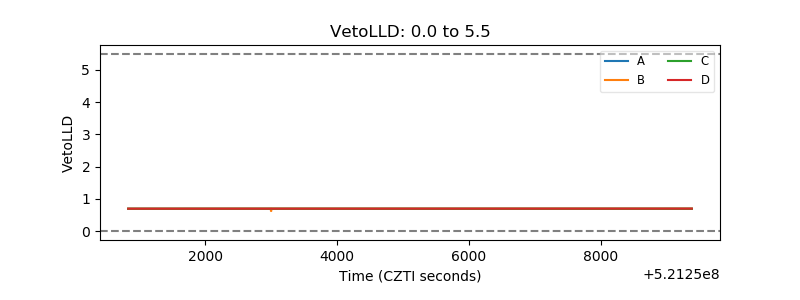

| Veto LLD |  |

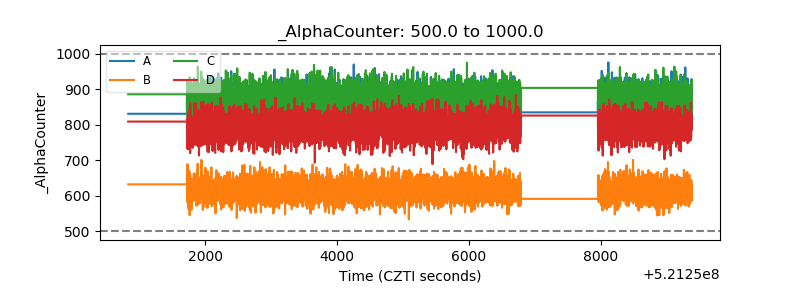

| Alpha Counter |  |

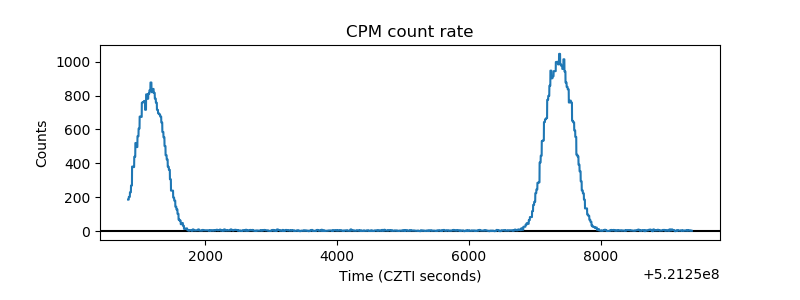

| _CPM_Rate |  |

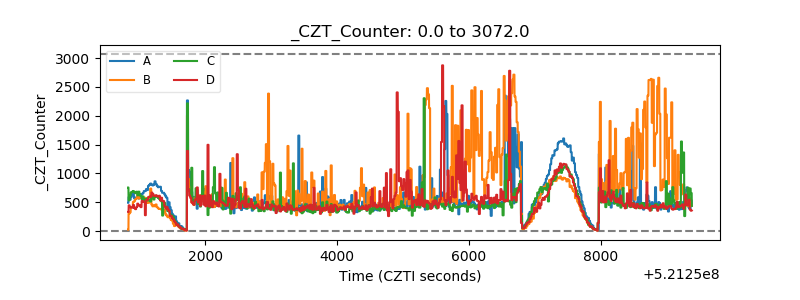

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

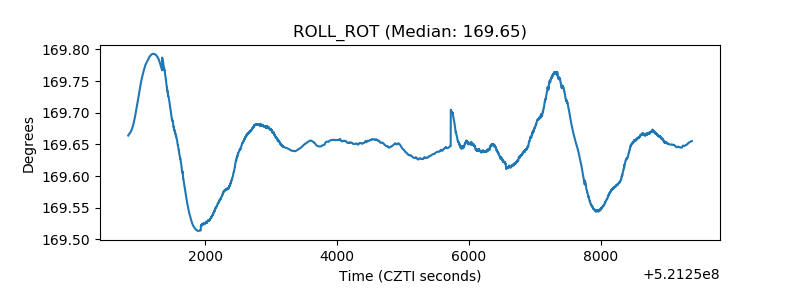

| _ROLL_ROT |  |

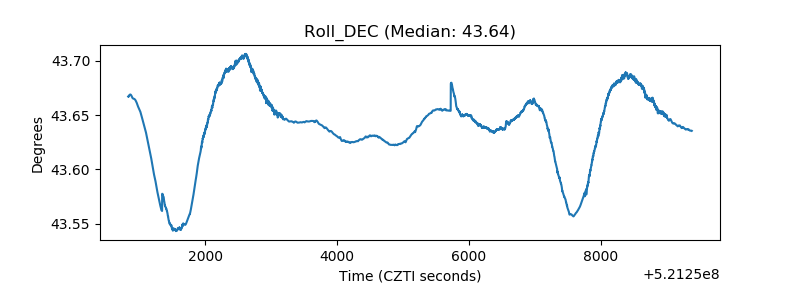

| _Roll_DEC |  |

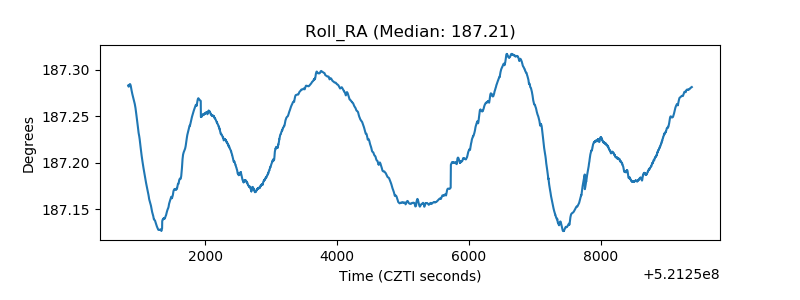

| _Roll_RA |  |

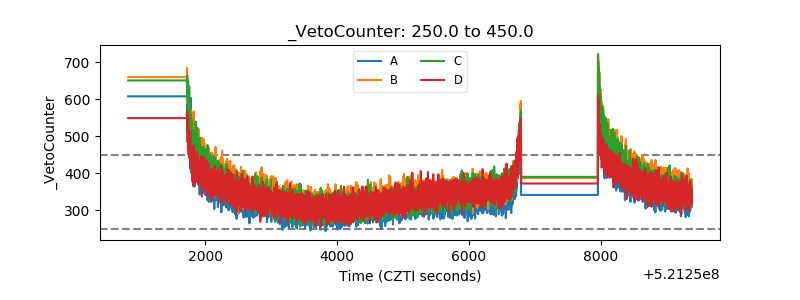

| Veto Counter |  |
