| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58324cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58324cztM0_level2_quad_clean.evt |
| Size (bytes) | 12,533,760 | 3,346,560 |
| Size | 12.0 MB | 3.2 MB |
| Events in quadrant A | 109,416 | 19,953 |
| Events in quadrant B | 118,220 | 22,360 |
| Events in quadrant C | 104,799 | 17,024 |
| Events in quadrant D | 108,390 | 16,719 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140320684902440 | 140316581560366 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 2 |
| B | 0 | 9 | 5 |
| C | 0 | 10 | 4 |
| D | 0 | 9 | 5 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 902 | 396 |
| B | 0 | 955 | 440 |
| C | 0 | 911 | 431 |
| D | 0 | 898 | 387 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 248 | 1 | 0.403226% |
| B | 251 | 1 | 0.398406% |
| C | 236 | 1 | 0.423729% |
| D | 253 | 0 | 0.000000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 340 | 269 | 1 | 1 | 0.29% | 0.37% |  |
| B | 315 | 273 | 0 | 0 | 0.00% | 0.00% |  |
| C | 298 | 260 | 0 | 0 | 0.00% | 0.00% |  |
| D | 309 | 282 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 160 | 4488 | 543.81 | 26 | 26 | 8.2 |
| A | 4 | 238 | 417 | 47.65 | 26 | 26 | 8.2 |
| A | 12 | 114 | 365 | 41.32 | 26 | 26 | 8.2 |
| B | 10 | 128 | 8052 | 1054.5 | 26 | 26 | 7.6 |
| B | 0 | 171 | 866 | 110.36 | 26 | 26 | 7.6 |
| B | 10 | 247 | 861 | 109.71 | 26 | 26 | 7.6 |
| C | 6 | 223 | 4023 | 480.79 | 24 | 23 | 8.3 |
| C | 14 | 246 | 2123 | 252.42 | 24 | 23 | 8.3 |
| C | 6 | 13 | 1395 | 164.91 | 24 | 23 | 8.3 |
| D | 11 | 129 | 3868 | 425.99 | 26 | 24 | 9.0 |
| D | 5 | 173 | 1603 | 174.98 | 26 | 24 | 9.0 |
| D | 15 | 234 | 1502 | 163.79 | 26 | 24 | 9.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

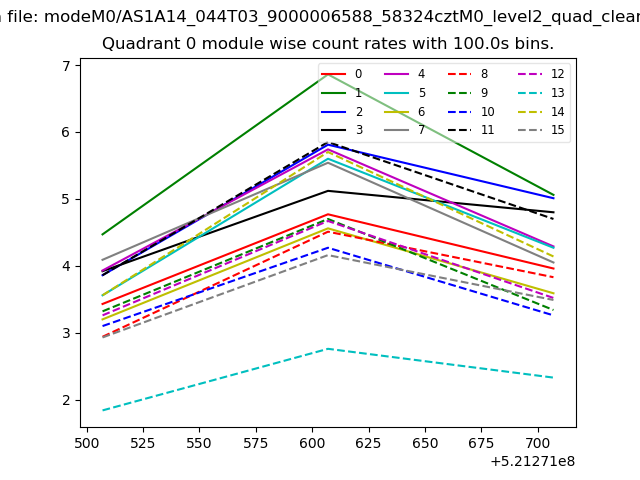

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

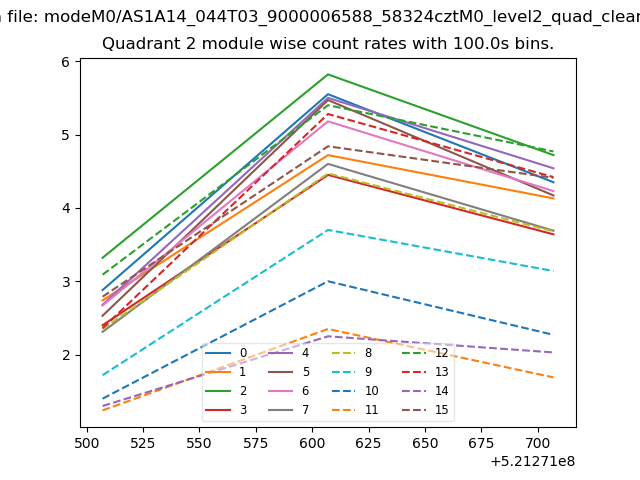

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

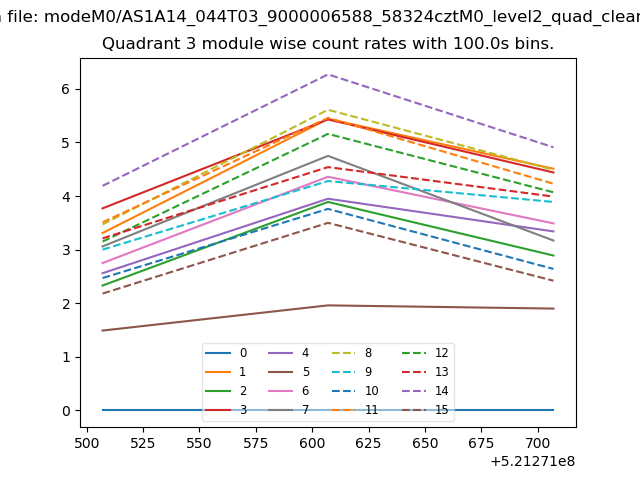

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

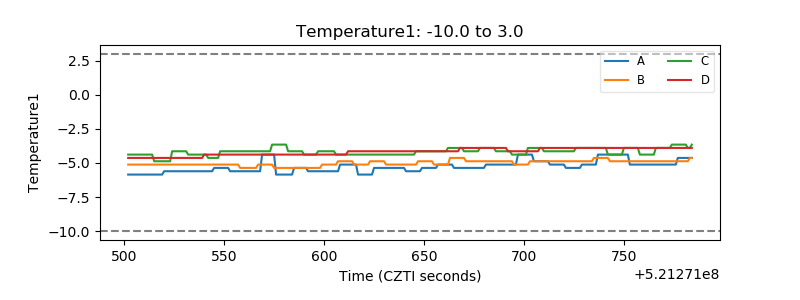

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

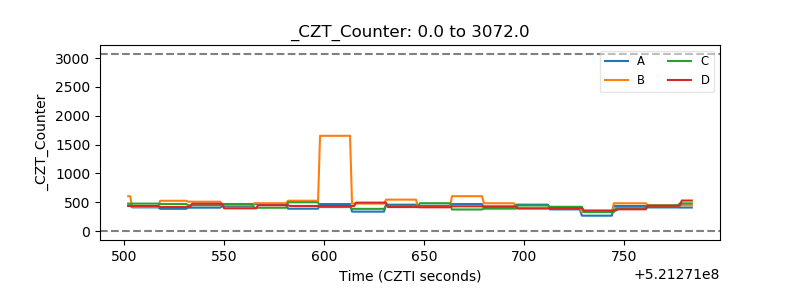

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

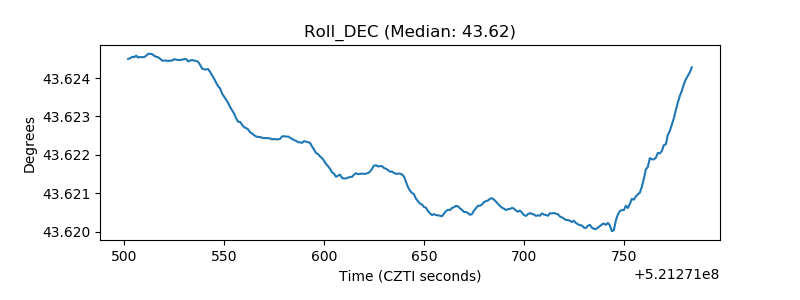

| _Roll_DEC |  |

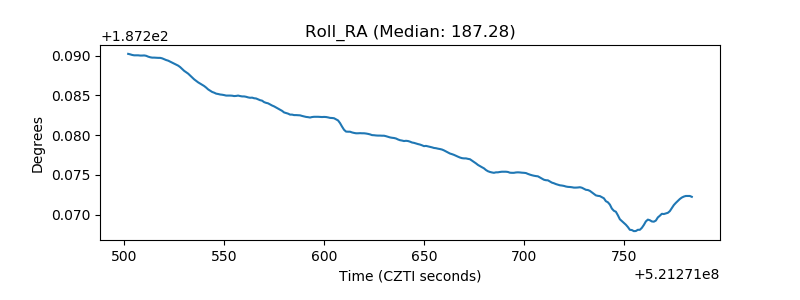

| _Roll_RA |  |

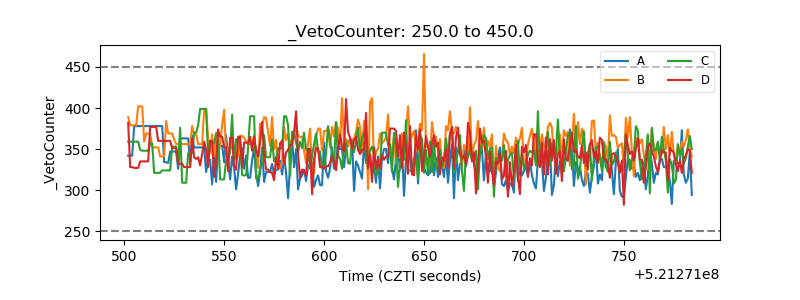

| Veto Counter |  |
