| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58326cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58326cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,167,680 | 95,279,040 |
| Size | 436.9 MB | 90.9 MB |
| Events in quadrant A | 3,513,324 | 625,045 |
| Events in quadrant B | 5,937,872 | 632,603 |
| Events in quadrant C | 3,404,677 | 593,869 |
| Events in quadrant D | 3,582,679 | 566,842 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15159 | 1 |
| B | 0 | 22203 | 1 |
| C | 0 | 15146 | 1 |
| D | 0 | 15413 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6701 | 209 | 3.118937% |
| B | 6701 | 741 | 11.058051% |
| C | 6702 | 318 | 4.744852% |
| D | 6702 | 187 | 2.790212% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7396 | 6702 | 73 | 73 | 0.99% | 1.09% |  |
| B | 7396 | 6702 | 419 | 419 | 5.67% | 6.25% |  |
| C | 7397 | 6703 | 123 | 123 | 1.66% | 1.83% |  |
| D | 7397 | 6703 | 86 | 86 | 1.16% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 283619 | 1547.27 | 738 | 718 | 182.8 |
| A | 2 | 143 | 129568 | 704.72 | 738 | 718 | 182.8 |
| A | 12 | 114 | 39699 | 213.2 | 738 | 718 | 182.8 |
| B | 10 | 128 | 2776957 | 18384.02 | 705 | 678 | 151.0 |
| B | 6 | 255 | 81655 | 536.22 | 705 | 678 | 151.0 |
| B | 5 | 185 | 53961 | 352.83 | 705 | 678 | 151.0 |
| C | 12 | 249 | 393959 | 2050.88 | 700 | 694 | 191.8 |
| C | 9 | 38 | 125004 | 648.28 | 700 | 694 | 191.8 |
| C | 12 | 252 | 44388 | 227.86 | 700 | 694 | 191.8 |
| D | 3 | 12 | 410876 | 2060.19 | 713 | 682 | 199.1 |
| D | 11 | 176 | 119366 | 596.09 | 713 | 682 | 199.1 |
| D | 11 | 129 | 111866 | 558.42 | 713 | 682 | 199.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

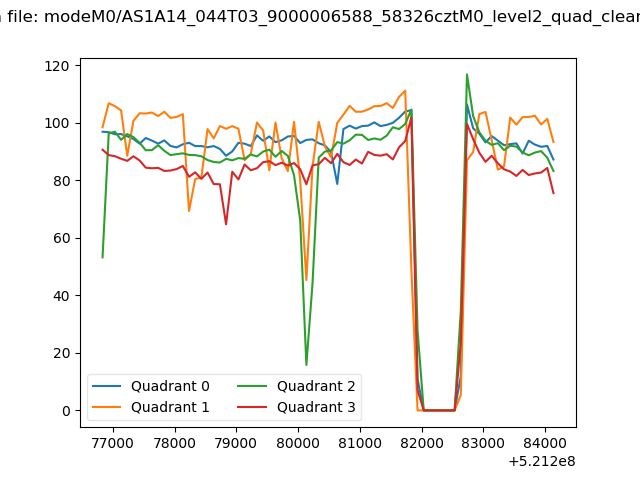

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

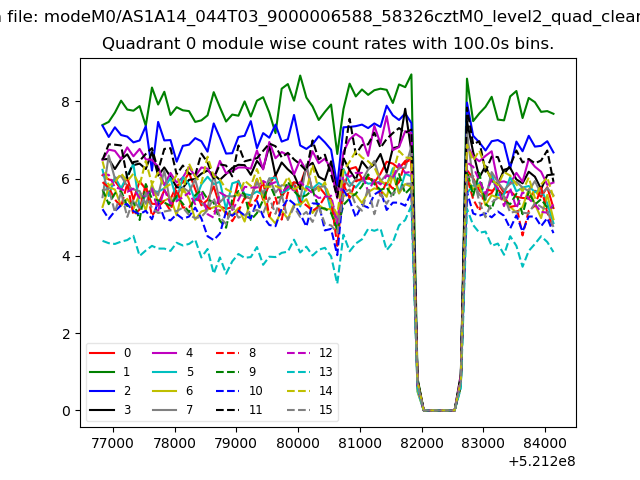

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

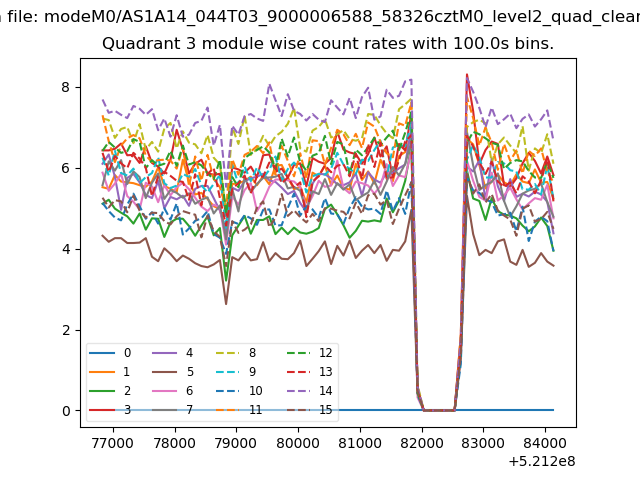

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

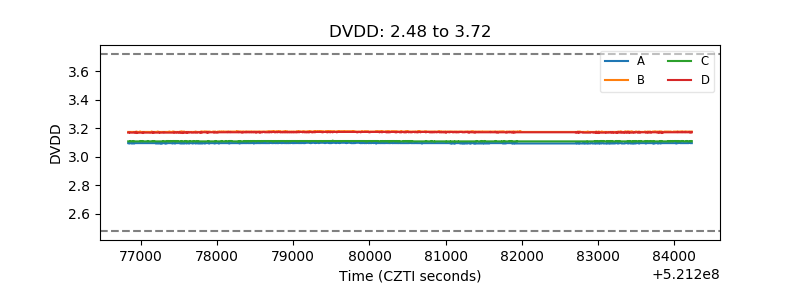

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

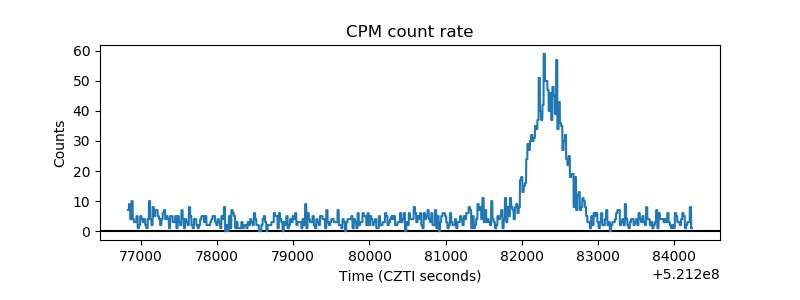

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

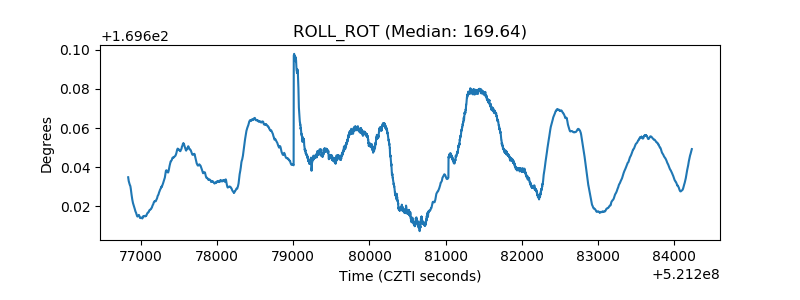

| _ROLL_ROT |  |
| _Roll_DEC |  |

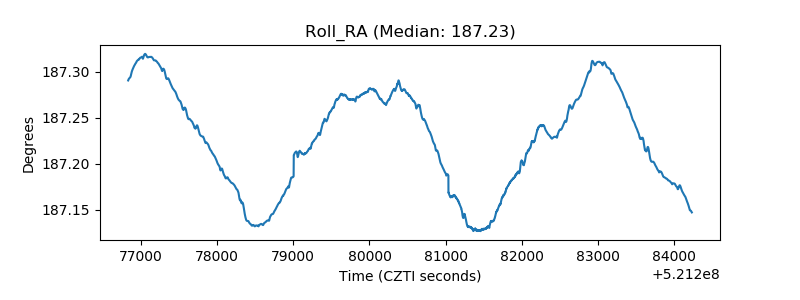

| _Roll_RA |  |
| Veto Counter |  |
