| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58328cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58328cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,451,840 | 112,487,040 |
| Size | 451.5 MB | 107.3 MB |
| Events in quadrant A | 3,971,042 | 731,341 |
| Events in quadrant B | 4,742,339 | 772,238 |
| Events in quadrant C | 3,686,356 | 705,021 |
| Events in quadrant D | 4,517,379 | 653,075 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17352 | 0 |
| B | 0 | 19386 | 0 |
| C | 0 | 16786 | 0 |
| D | 0 | 18766 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7830 | 77 | 0.983397% |
| B | 7830 | 266 | 3.397190% |
| C | 7830 | 25 | 0.319285% |
| D | 7830 | 157 | 2.005109% |

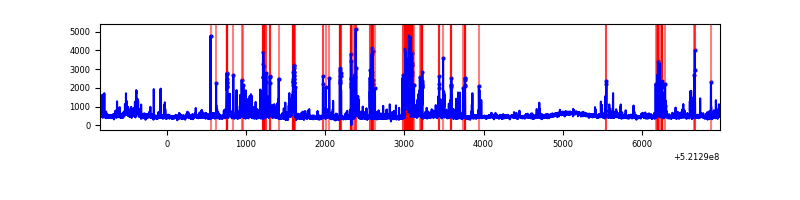

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

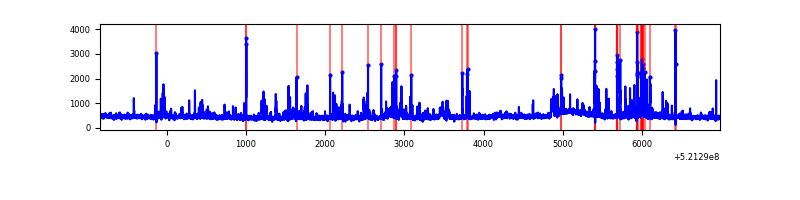

| A | 7830 | 7830 | 42 | 42 | 0.54% | 0.54% |  |

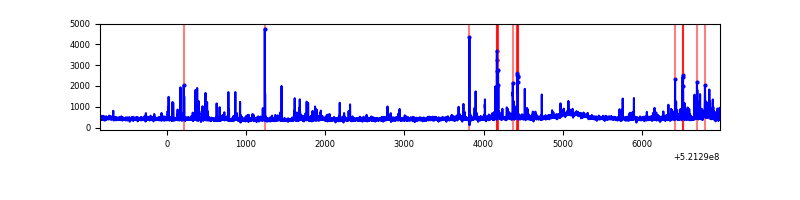

| B | 7830 | 7830 | 186 | 186 | 2.38% | 2.38% |  |

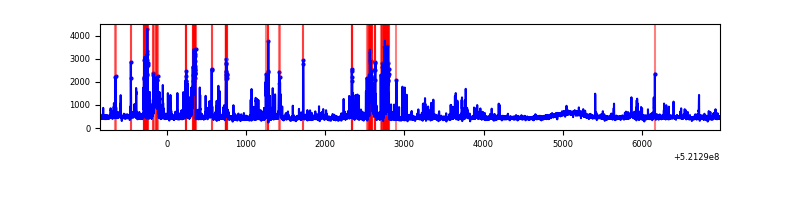

| C | 7830 | 7830 | 20 | 20 | 0.26% | 0.26% |  |
| D | 7830 | 7830 | 150 | 150 | 1.92% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 294025 | 1385.53 | 852 | 829 | 211.6 |
| A | 7 | 64 | 53103 | 247.02 | 852 | 829 | 211.6 |
| A | 4 | 236 | 51841 | 241.06 | 852 | 829 | 211.6 |
| B | 5 | 185 | 468319 | 2644.7 | 831 | 802 | 176.8 |
| B | 10 | 128 | 255091 | 1438.49 | 831 | 802 | 176.8 |
| B | 0 | 213 | 195664 | 1102.32 | 831 | 802 | 176.8 |
| C | 12 | 252 | 193515 | 852.12 | 822 | 811 | 226.1 |
| C | 6 | 13 | 68284 | 298.36 | 822 | 811 | 226.1 |
| C | 14 | 254 | 57337 | 249.95 | 822 | 811 | 226.1 |
| D | 11 | 176 | 345228 | 1474.67 | 822 | 786 | 233.6 |
| D | 10 | 86 | 311242 | 1329.16 | 822 | 786 | 233.6 |
| D | 11 | 129 | 185741 | 791.85 | 822 | 786 | 233.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

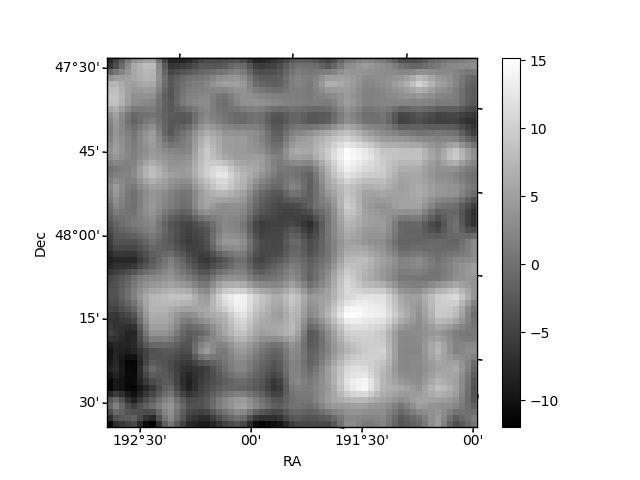

| Plot type | Count rate plots | Images |
|---|---|---|

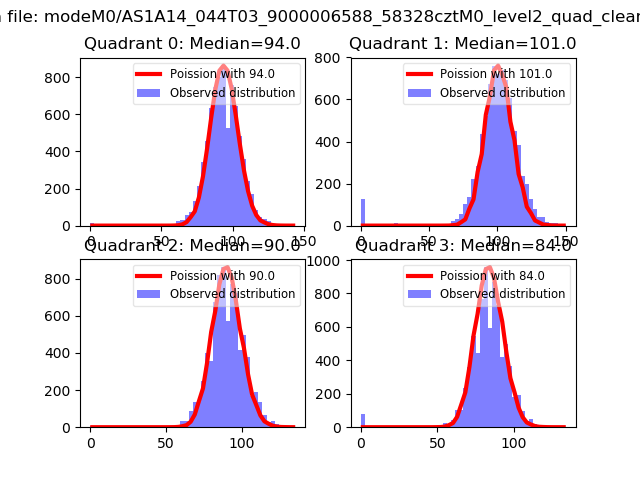

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

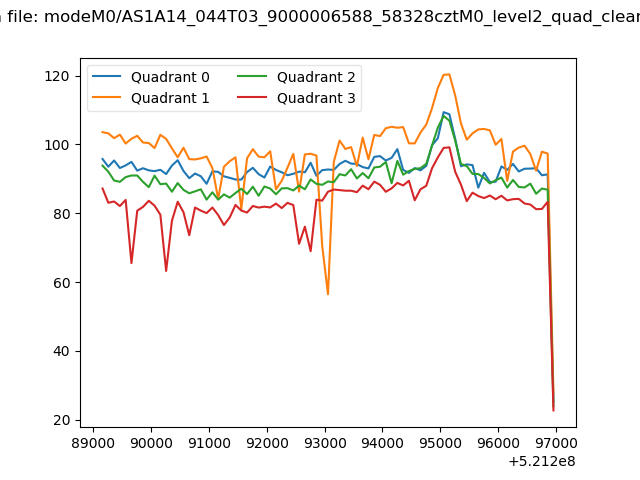

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

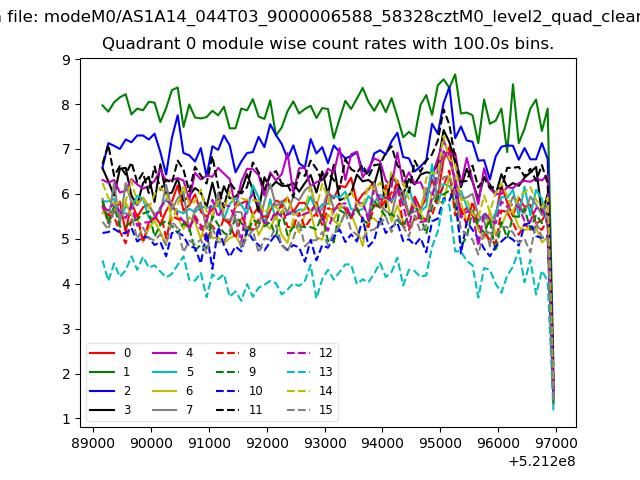

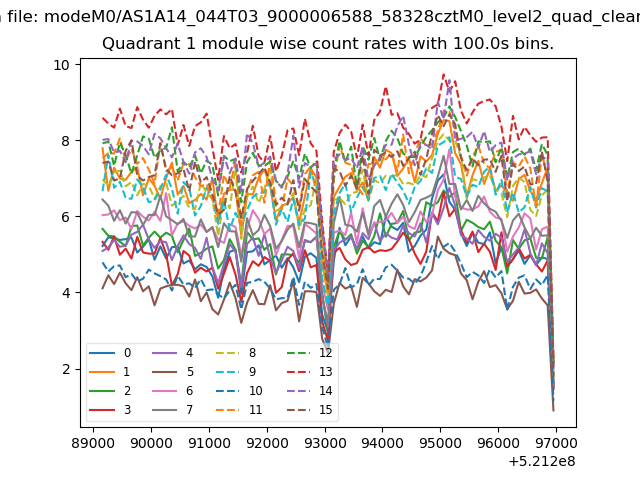

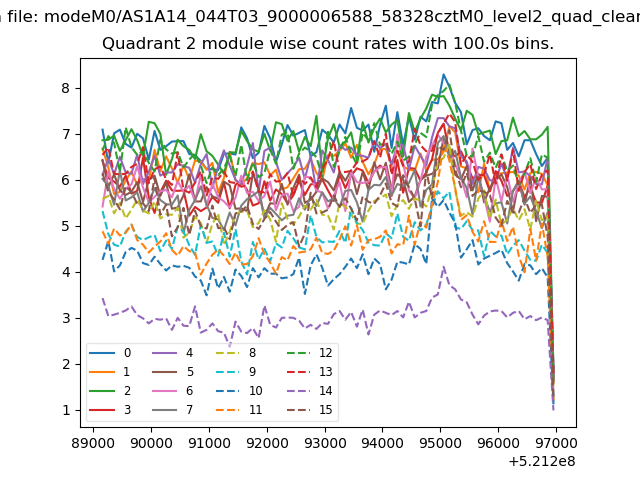

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

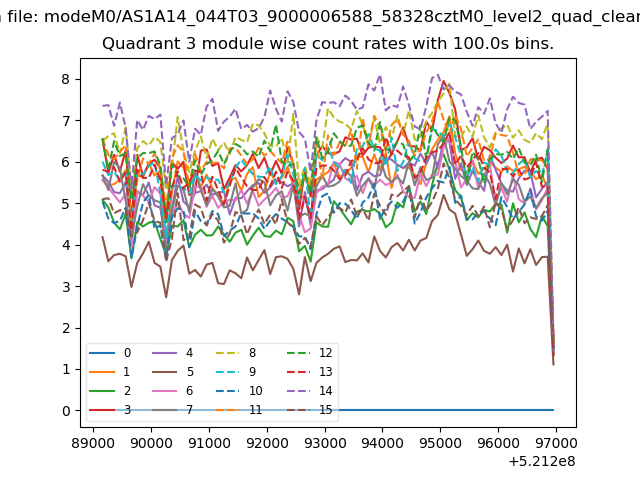

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

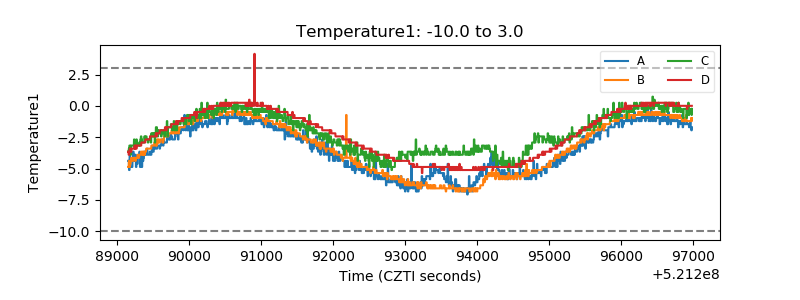

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

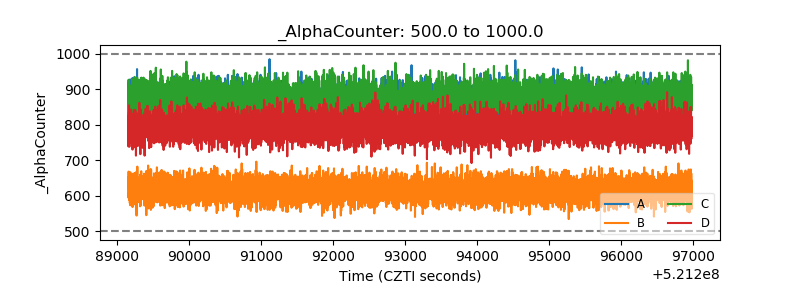

| Alpha Counter |  |

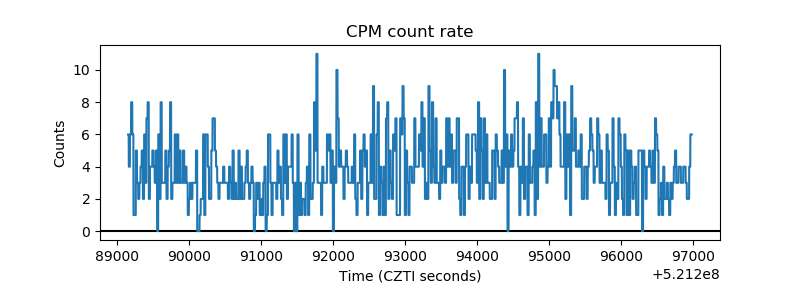

| _CPM_Rate |  |

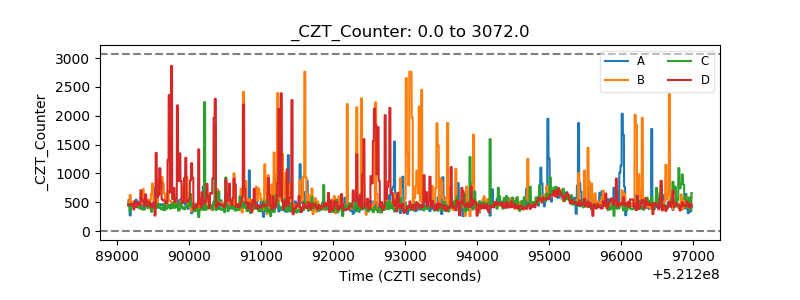

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

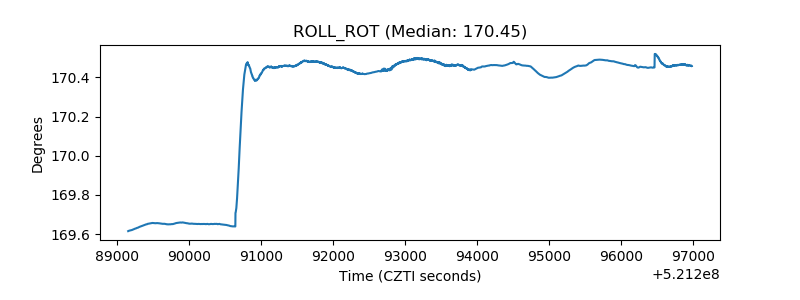

| _ROLL_ROT |  |

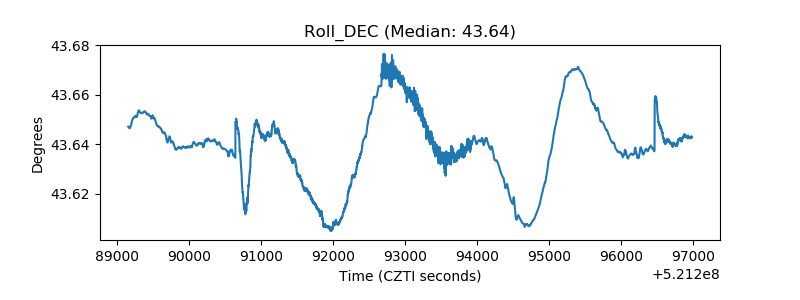

| _Roll_DEC |  |

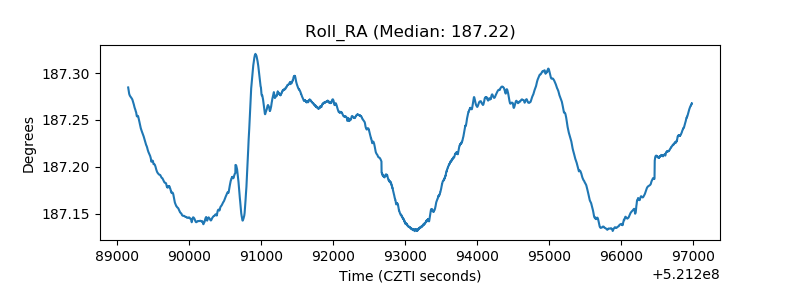

| _Roll_RA |  |

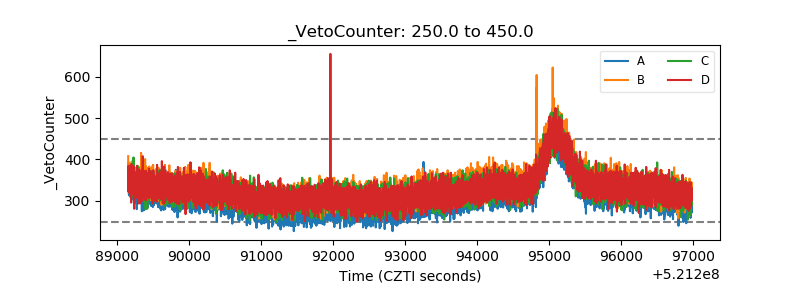

| Veto Counter |  |
