| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58329cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58329cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,007,680 | 109,679,040 |
| Size | 477.8 MB | 104.6 MB |
| Events in quadrant A | 4,055,816 | 715,081 |
| Events in quadrant B | 5,567,208 | 752,916 |
| Events in quadrant C | 3,861,072 | 688,673 |
| Events in quadrant D | 4,468,134 | 632,779 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17441 | 0 |
| B | 0 | 21776 | 6 |
| C | 0 | 17022 | 0 |
| D | 0 | 18427 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7640 | 107 | 1.400524% |
| B | 7640 | 332 | 4.345550% |
| C | 7640 | 47 | 0.615183% |
| D | 7640 | 226 | 2.958115% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7640 | 7640 | 77 | 77 | 1.01% | 1.01% |  |
| B | 7640 | 7640 | 160 | 160 | 2.09% | 2.09% |  |
| C | 7640 | 7640 | 34 | 34 | 0.45% | 0.45% |  |
| D | 7640 | 7640 | 199 | 199 | 2.60% | 2.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 449319 | 2164.01 | 831 | 809 | 207.3 |
| A | 4 | 249 | 74519 | 355.64 | 831 | 809 | 207.3 |
| A | 4 | 238 | 56486 | 268.63 | 831 | 809 | 207.3 |
| B | 10 | 128 | 1252729 | 7190.65 | 813 | 783 | 174.1 |
| B | 4 | 206 | 272770 | 1562.18 | 813 | 783 | 174.1 |
| B | 5 | 185 | 192379 | 1100.44 | 813 | 783 | 174.1 |
| C | 12 | 252 | 308783 | 1386.08 | 809 | 800 | 222.2 |
| C | 8 | 7 | 159320 | 713.42 | 809 | 800 | 222.2 |
| C | 13 | 3 | 91973 | 410.32 | 809 | 800 | 222.2 |
| D | 7 | 222 | 420861 | 1849.92 | 802 | 766 | 227.1 |
| D | 11 | 129 | 234869 | 1030.89 | 802 | 766 | 227.1 |
| D | 2 | 31 | 185340 | 812.79 | 802 | 766 | 227.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

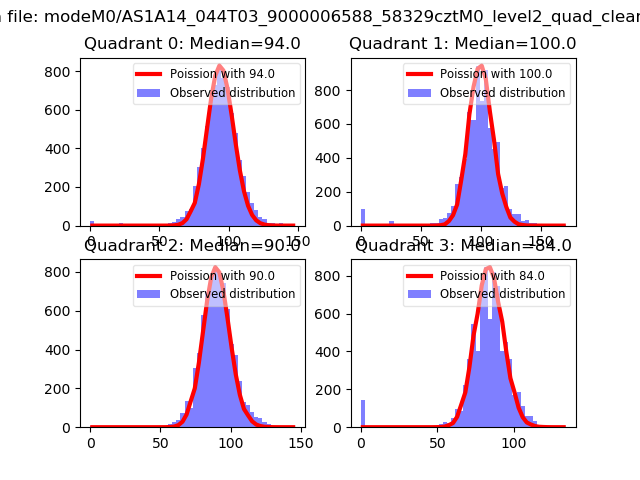

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

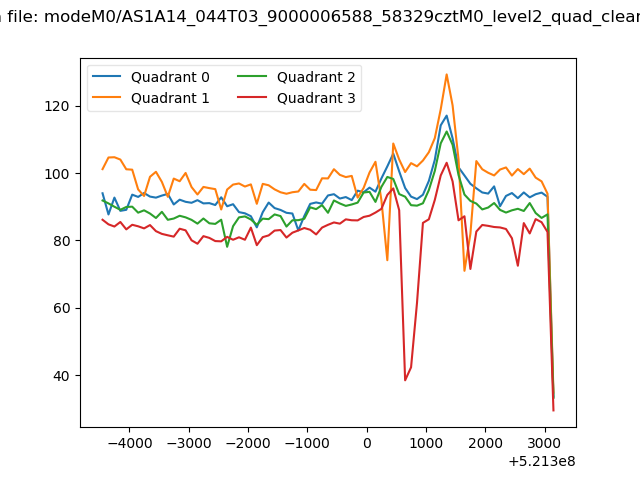

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

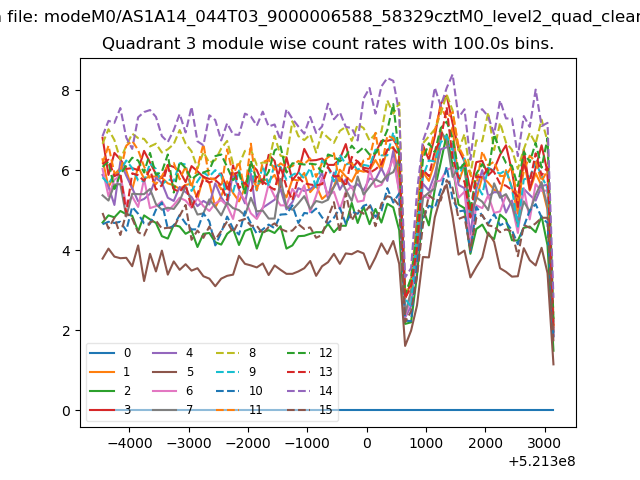

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

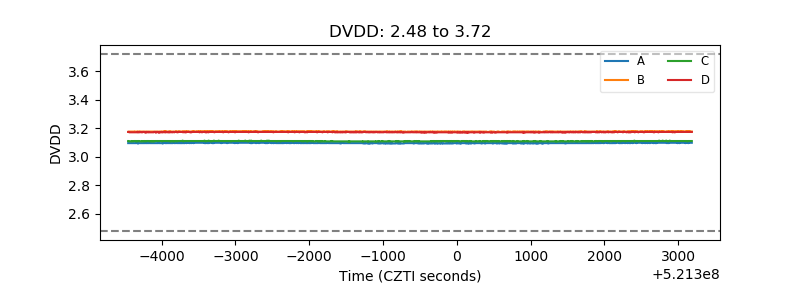

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

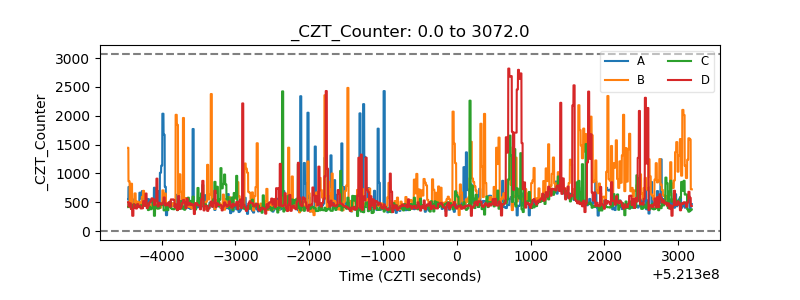

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

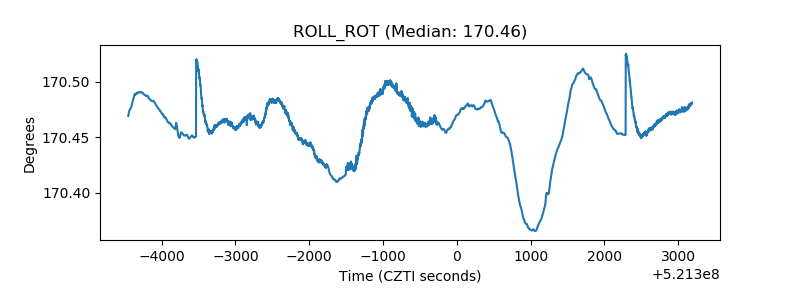

| _ROLL_ROT |  |
| _Roll_DEC |  |

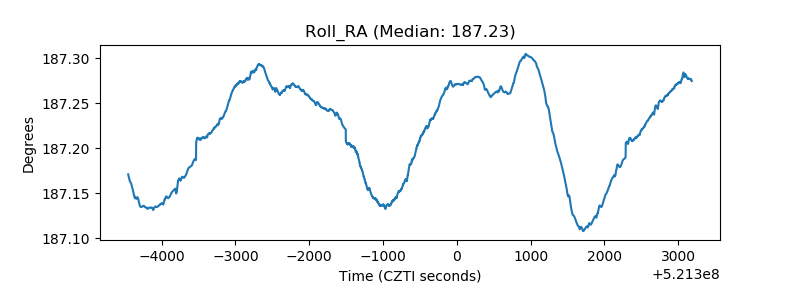

| _Roll_RA |  |
| Veto Counter |  |
