| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58332cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58332cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,178,075,520 | 261,008,640 |
| Size | 1.1 GB | 248.9 MB |
| Events in quadrant A | 9,079,307 | 1,717,612 |
| Events in quadrant B | 14,267,307 | 1,695,735 |
| Events in quadrant C | 8,726,913 | 1,653,350 |
| Events in quadrant D | 10,097,163 | 1,555,996 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40248 | 3 |
| B | 0 | 55212 | 5 |
| C | 0 | 39919 | 3 |
| D | 0 | 42600 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18568 | 146 | 0.786299% |
| B | 18567 | 1735 | 9.344536% |
| C | 18567 | 141 | 0.759412% |
| D | 18568 | 146 | 0.786299% |

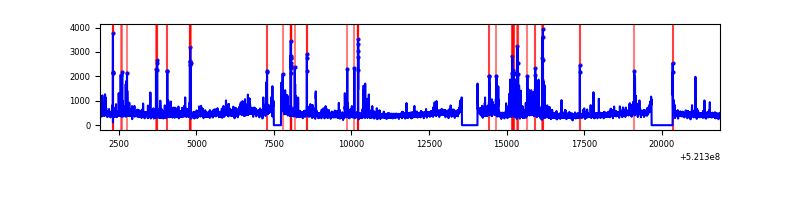

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19988 | 18571 | 66 | 66 | 0.33% | 0.36% |  |
| B | 19987 | 18570 | 977 | 977 | 4.89% | 5.26% |  |
| C | 19987 | 18570 | 79 | 79 | 0.40% | 0.43% |  |
| D | 19988 | 18571 | 132 | 132 | 0.66% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 372214 | 752.9 | 1995 | 1945 | 491.8 |
| A | 7 | 64 | 326092 | 659.12 | 1995 | 1945 | 491.8 |
| A | 7 | 160 | 117867 | 235.71 | 1995 | 1945 | 491.8 |
| B | 4 | 206 | 2880950 | 7129.7 | 1900 | 1829 | 403.8 |
| B | 10 | 128 | 2236704 | 5534.33 | 1900 | 1829 | 403.8 |
| B | 4 | 201 | 254655 | 626.08 | 1900 | 1829 | 403.8 |
| C | 12 | 252 | 330412 | 614.51 | 1946 | 1931 | 534.5 |
| C | 15 | 147 | 153178 | 282.95 | 1946 | 1931 | 534.5 |
| C | 13 | 3 | 117625 | 216.44 | 1946 | 1931 | 534.5 |
| D | 3 | 12 | 605274 | 1111.21 | 1937 | 1855 | 543.0 |
| D | 11 | 129 | 576003 | 1057.3 | 1937 | 1855 | 543.0 |
| D | 12 | 110 | 389271 | 713.43 | 1937 | 1855 | 543.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

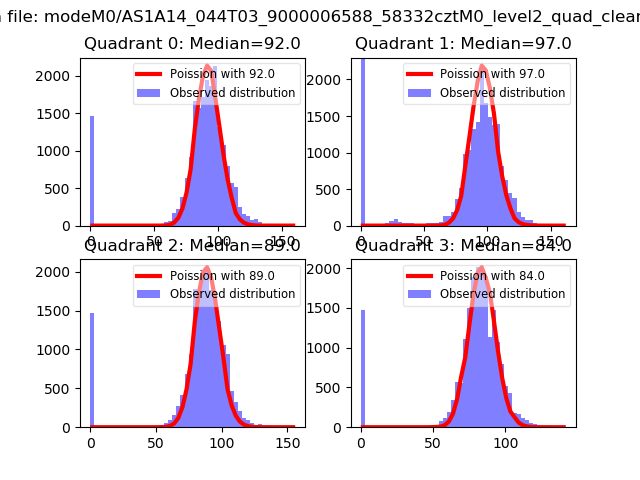

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

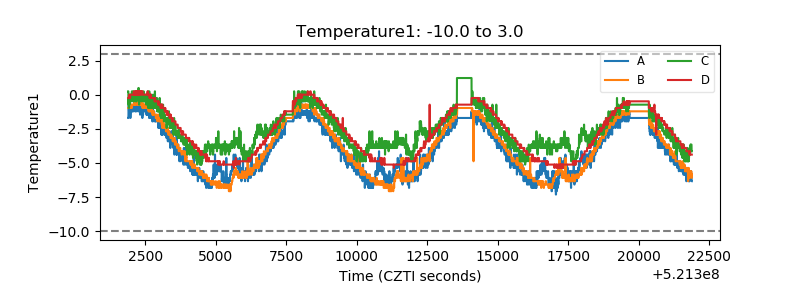

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

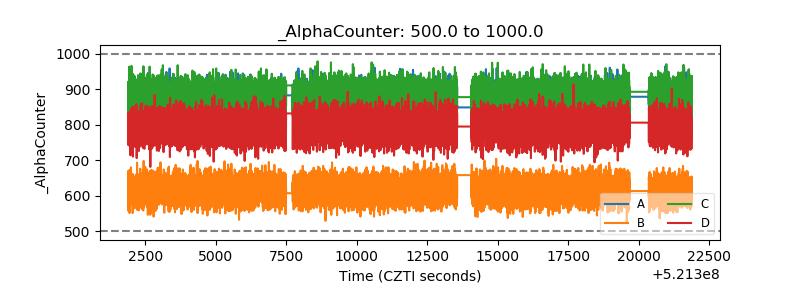

| Alpha Counter |  |
| _CPM_Rate |  |

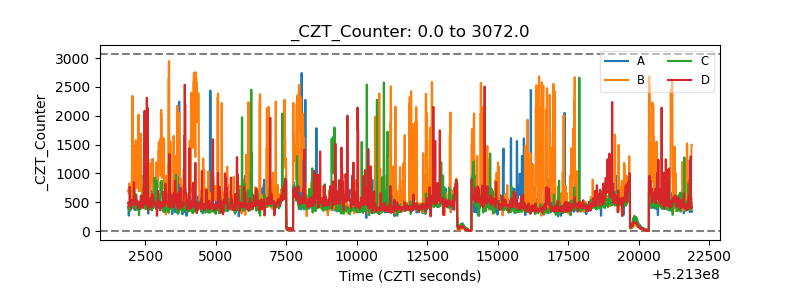

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

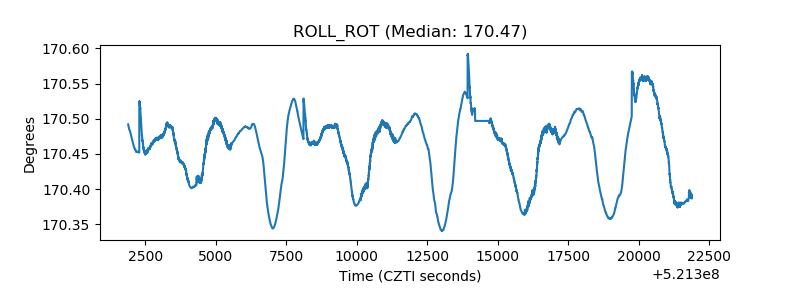

| _ROLL_ROT |  |

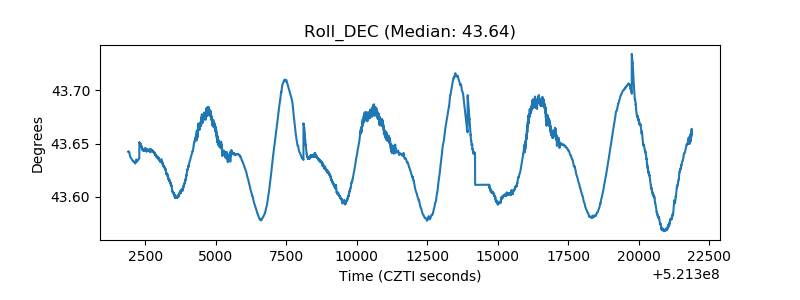

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
