| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58333cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58333cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,347,200 | 97,110,720 |
| Size | 397.1 MB | 92.6 MB |
| Events in quadrant A | 3,331,090 | 641,136 |
| Events in quadrant B | 4,742,189 | 642,510 |
| Events in quadrant C | 3,398,405 | 607,872 |
| Events in quadrant D | 3,419,591 | 582,481 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14780 | 2 |
| B | 0 | 18711 | 2 |
| C | 0 | 14861 | 2 |
| D | 0 | 14841 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6687 | 55 | 0.822491% |
| B | 6688 | 543 | 8.119019% |
| C | 6688 | 125 | 1.869019% |
| D | 6688 | 22 | 0.328947% |

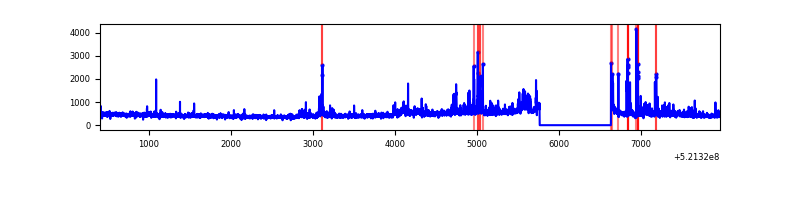

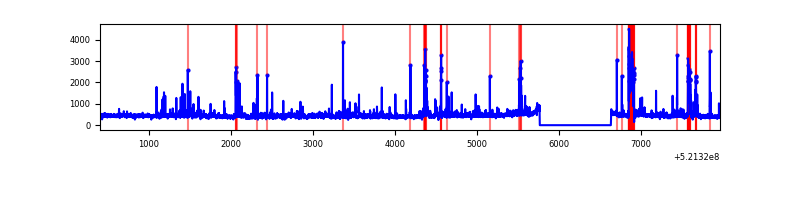

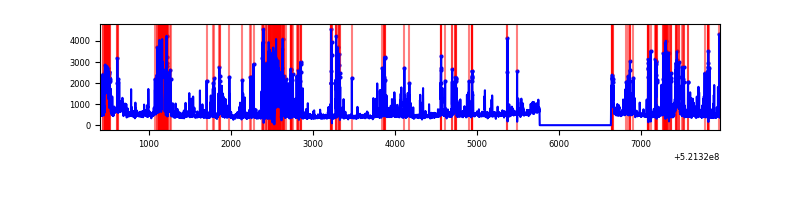

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6688 | 22 | 22 | 0.29% | 0.33% |  |
| B | 7558 | 6689 | 335 | 335 | 4.43% | 5.01% |  |
| C | 7558 | 6689 | 101 | 101 | 1.34% | 1.51% |  |
| D | 7558 | 6689 | 18 | 18 | 0.24% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 193930 | 1071.6 | 719 | 699 | 180.3 |
| A | 13 | 248 | 114166 | 629.25 | 719 | 699 | 180.3 |
| A | 4 | 238 | 92951 | 511.6 | 719 | 699 | 180.3 |
| B | 4 | 206 | 1377415 | 9272.43 | 691 | 667 | 148.5 |
| B | 6 | 255 | 130463 | 874.18 | 691 | 667 | 148.5 |
| B | 5 | 185 | 124604 | 834.72 | 691 | 667 | 148.5 |
| C | 6 | 223 | 193977 | 1003.2 | 696 | 691 | 192.7 |
| C | 14 | 254 | 116728 | 602.26 | 696 | 691 | 192.7 |
| C | 12 | 2 | 83712 | 430.9 | 696 | 691 | 192.7 |
| D | 3 | 12 | 231187 | 1160.97 | 699 | 669 | 198.6 |
| D | 12 | 110 | 181810 | 912.29 | 699 | 669 | 198.6 |
| D | 11 | 129 | 109438 | 547.8 | 699 | 669 | 198.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

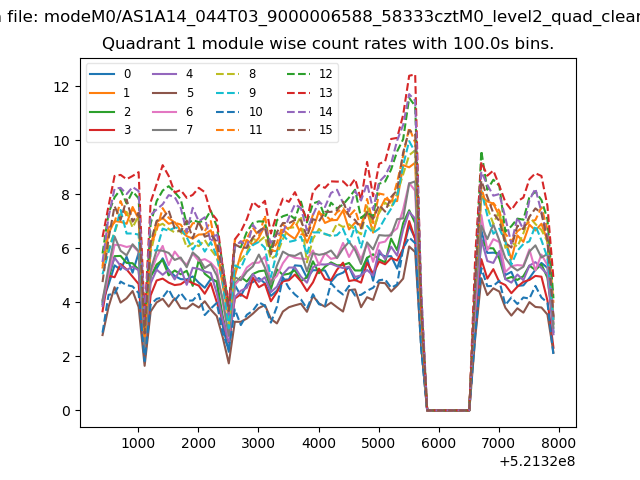

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

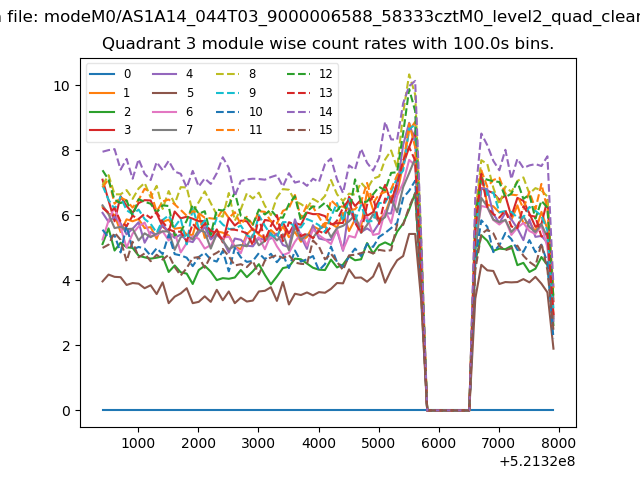

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

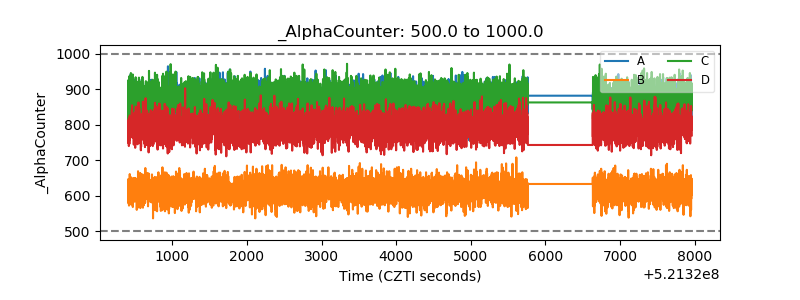

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

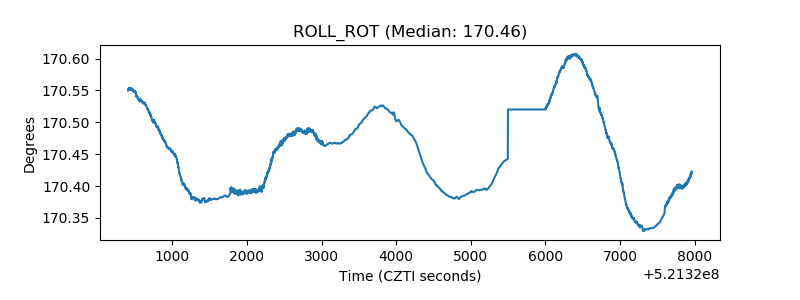

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

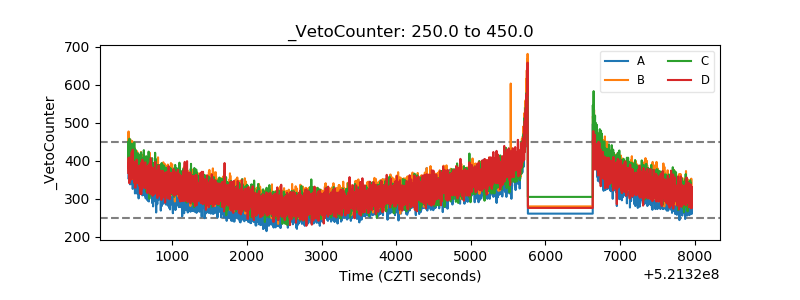

| Veto Counter |  |
