| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58336cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58336cztM0_level2_quad_clean.evt |
| Size (bytes) | 387,385,920 | 102,458,880 |
| Size | 369.4 MB | 97.7 MB |
| Events in quadrant A | 3,510,188 | 668,498 |
| Events in quadrant B | 3,922,389 | 699,873 |
| Events in quadrant C | 3,141,702 | 650,147 |
| Events in quadrant D | 3,231,897 | 606,807 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15172 | 2 |
| B | 0 | 16379 | 2 |
| C | 0 | 14417 | 2 |
| D | 0 | 14531 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6852 | 71 | 1.036194% |
| B | 6853 | 279 | 4.071210% |
| C | 6853 | 44 | 0.642055% |
| D | 6853 | 66 | 0.963082% |

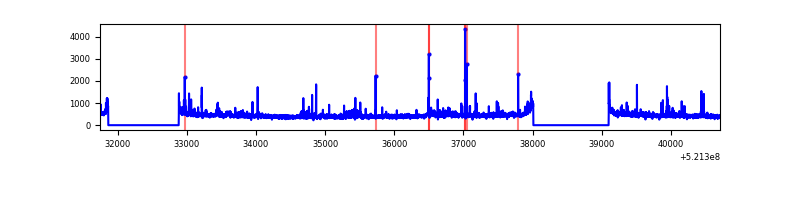

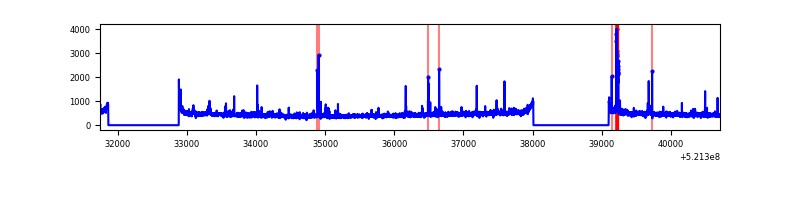

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8962 | 6854 | 19 | 19 | 0.21% | 0.28% |  |
| B | 8963 | 6855 | 128 | 128 | 1.43% | 1.87% |  |
| C | 8963 | 6855 | 8 | 8 | 0.09% | 0.12% |  |
| D | 8963 | 6855 | 23 | 23 | 0.26% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 160 | 191635 | 1014.65 | 755 | 737 | 188.1 |
| A | 4 | 238 | 115466 | 609.8 | 755 | 737 | 188.1 |
| A | 2 | 143 | 84036 | 442.75 | 755 | 737 | 188.1 |
| B | 4 | 201 | 240825 | 1518.29 | 744 | 718 | 158.1 |
| B | 5 | 185 | 142600 | 897.18 | 744 | 718 | 158.1 |
| B | 4 | 171 | 96376 | 604.88 | 744 | 718 | 158.1 |
| C | 12 | 252 | 71480 | 348.78 | 740 | 734 | 202.8 |
| C | 6 | 13 | 48362 | 234.81 | 740 | 734 | 202.8 |
| C | 14 | 254 | 39381 | 190.53 | 740 | 734 | 202.8 |
| D | 11 | 129 | 97435 | 464.74 | 730 | 697 | 208.2 |
| D | 2 | 252 | 77435 | 368.66 | 730 | 697 | 208.2 |
| D | 5 | 173 | 46039 | 217.83 | 730 | 697 | 208.2 |

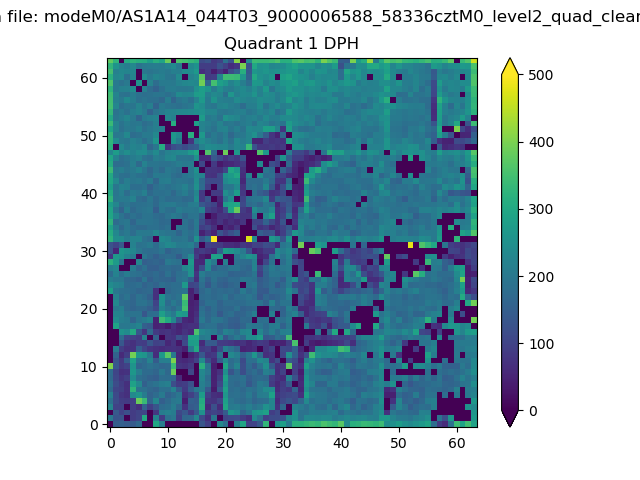

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

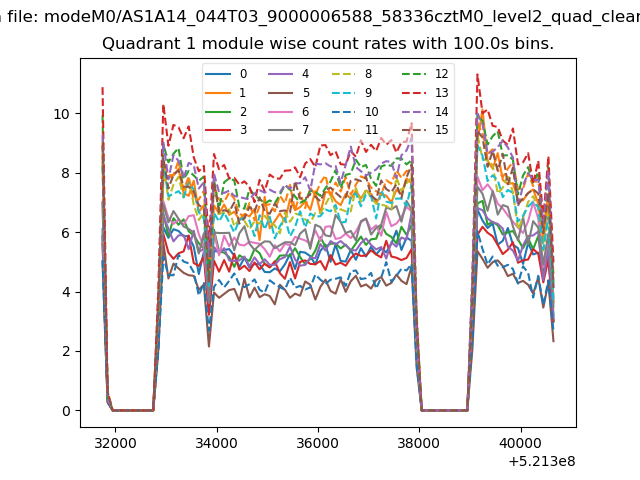

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

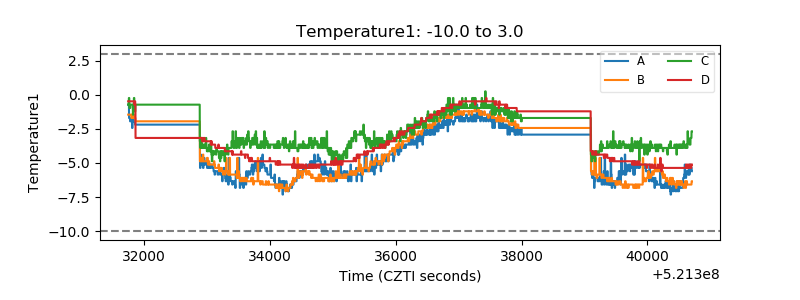

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

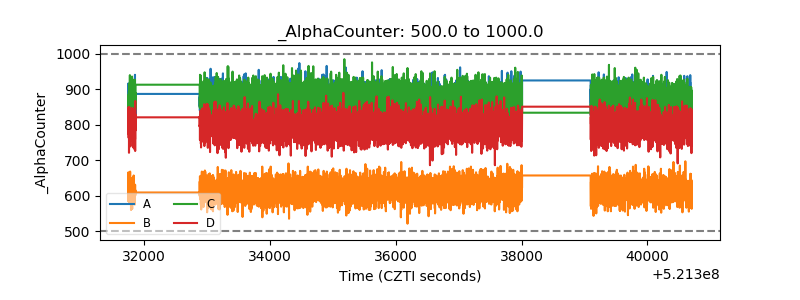

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

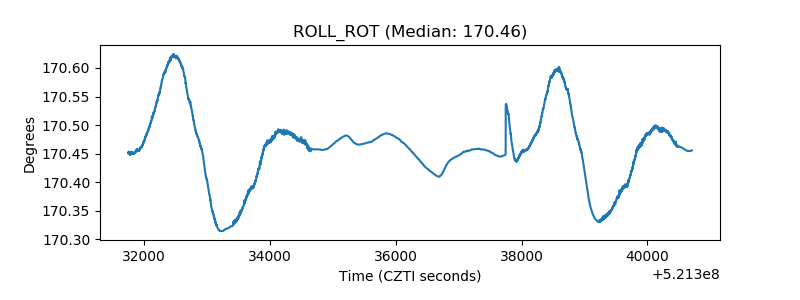

| _ROLL_ROT |  |
| _Roll_DEC |  |

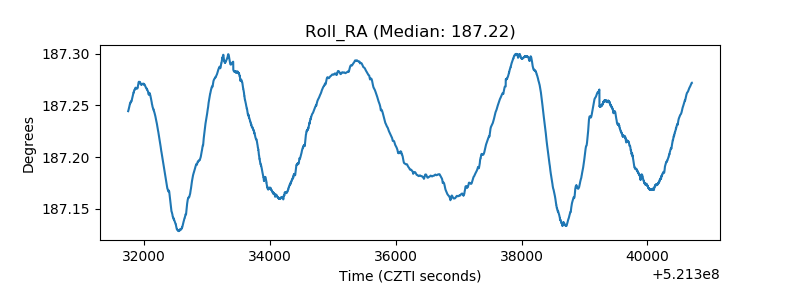

| _Roll_RA |  |
| Veto Counter |  |
