| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58337cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58337cztM0_level2_quad_clean.evt |
| Size (bytes) | 391,469,760 | 97,560,000 |
| Size | 373.3 MB | 93.0 MB |
| Events in quadrant A | 3,114,151 | 642,787 |
| Events in quadrant B | 3,705,839 | 683,715 |
| Events in quadrant C | 3,912,240 | 597,901 |
| Events in quadrant D | 3,258,541 | 581,260 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13717 | 2 |
| B | 0 | 15363 | 2 |
| C | 0 | 16252 | 2 |
| D | 0 | 14177 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6424 | 53 | 0.825031% |
| B | 6424 | 234 | 3.642590% |
| C | 6424 | 342 | 5.323786% |
| D | 6424 | 83 | 1.292030% |

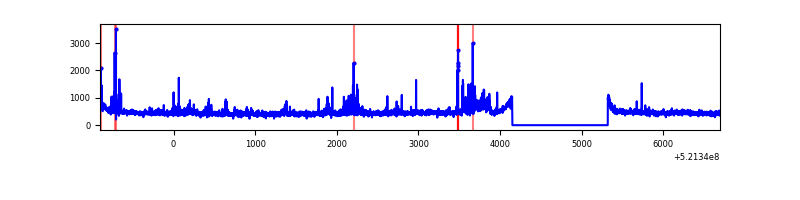

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6425 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7594 | 6425 | 107 | 107 | 1.41% | 1.67% |  |
| C | 7594 | 6425 | 232 | 232 | 3.06% | 3.61% |  |
| D | 7594 | 6425 | 47 | 47 | 0.62% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 84157 | 462.67 | 723 | 703 | 180.4 |
| A | 8 | 246 | 72584 | 398.51 | 723 | 703 | 180.4 |
| A | 13 | 248 | 58683 | 321.44 | 723 | 703 | 180.4 |
| B | 5 | 185 | 301069 | 1977.52 | 713 | 690 | 151.9 |
| B | 10 | 246 | 105910 | 692.71 | 713 | 690 | 151.9 |
| B | 4 | 171 | 65723 | 428.14 | 713 | 690 | 151.9 |
| C | 15 | 198 | 968553 | 5107.39 | 690 | 685 | 189.5 |
| C | 12 | 252 | 73728 | 385.44 | 690 | 685 | 189.5 |
| C | 14 | 254 | 59231 | 308.94 | 690 | 685 | 189.5 |
| D | 14 | 49 | 171199 | 870.11 | 690 | 657 | 196.0 |
| D | 11 | 129 | 149677 | 760.3 | 690 | 657 | 196.0 |
| D | 2 | 252 | 76388 | 386.38 | 690 | 657 | 196.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

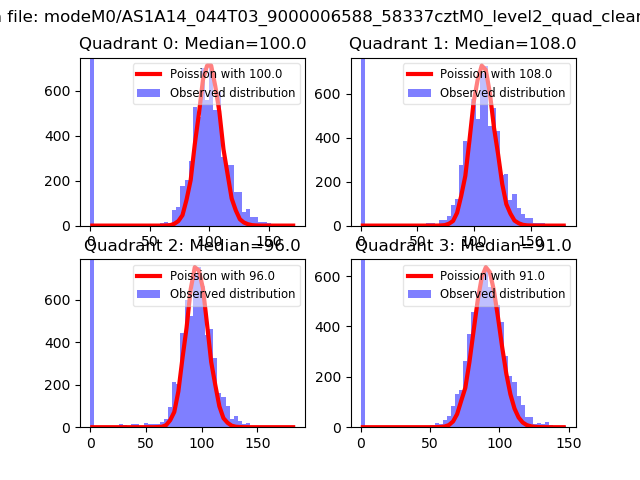

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

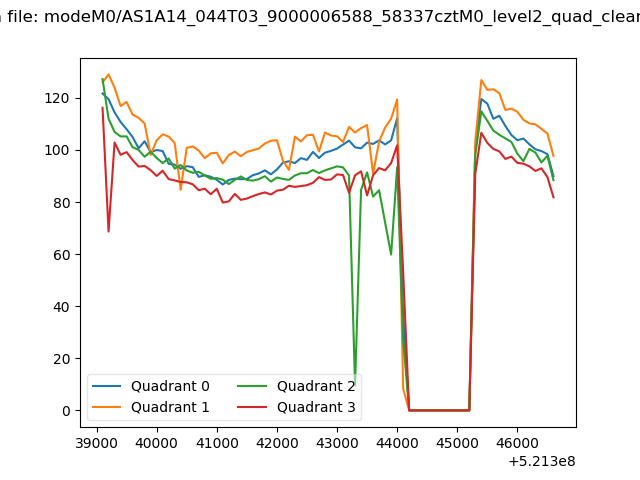

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

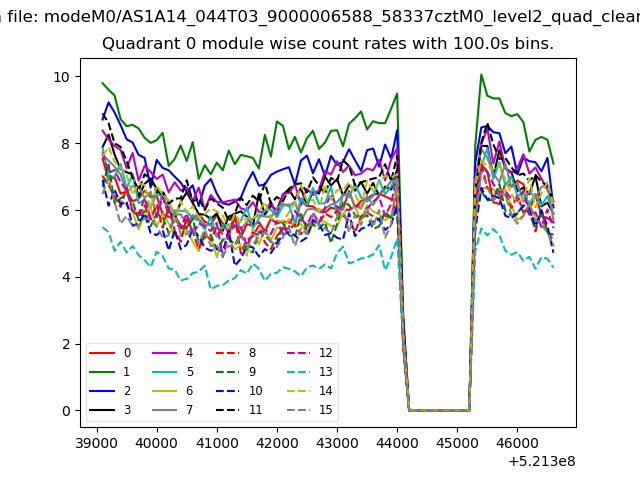

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

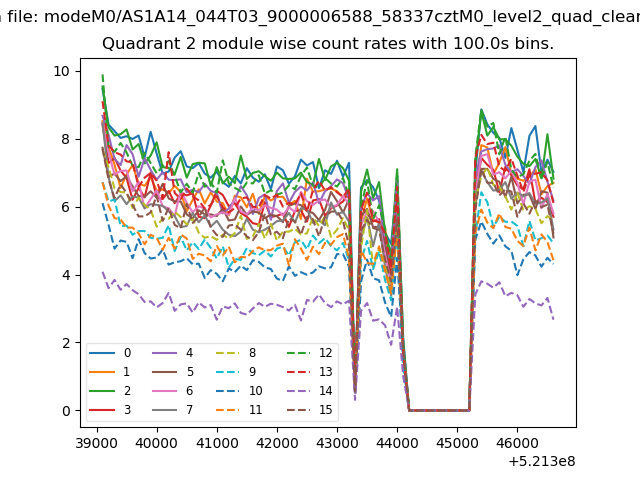

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

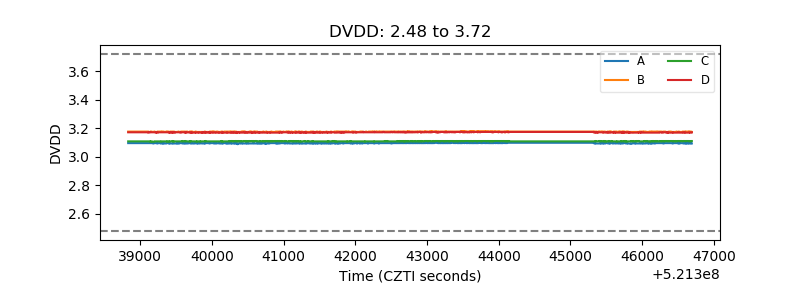

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

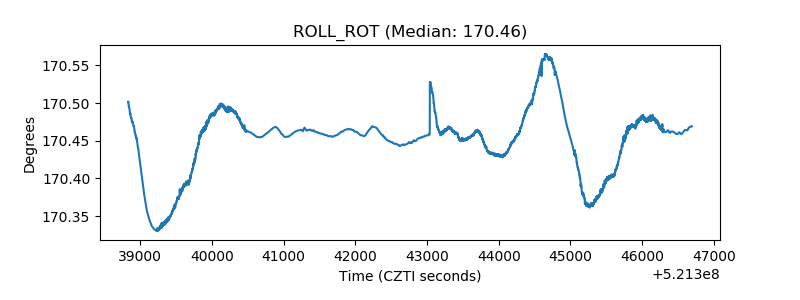

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
