| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58340cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58340cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,409,600 | 99,267,840 |
| Size | 411.4 MB | 94.7 MB |
| Events in quadrant A | 3,334,446 | 649,073 |
| Events in quadrant B | 4,078,113 | 675,856 |
| Events in quadrant C | 3,354,594 | 627,877 |
| Events in quadrant D | 4,674,259 | 579,947 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14676 | 2 |
| B | 0 | 16543 | 2 |
| C | 0 | 14746 | 2 |
| D | 0 | 18461 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6785 | 204 | 3.006632% |
| B | 6785 | 409 | 6.028003% |
| C | 6785 | 144 | 2.122329% |
| D | 6785 | 264 | 3.890936% |

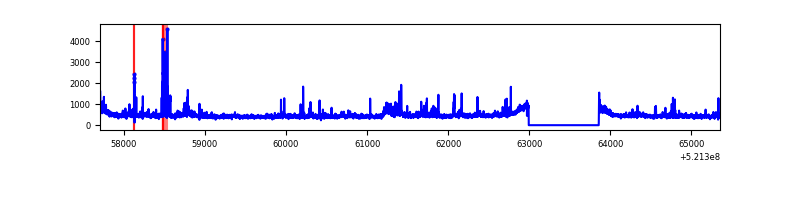

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7650 | 6786 | 21 | 21 | 0.27% | 0.31% |  |
| B | 7650 | 6786 | 134 | 134 | 1.75% | 1.97% |  |
| C | 7650 | 6786 | 11 | 11 | 0.14% | 0.16% |  |
| D | 7650 | 6786 | 127 | 127 | 1.66% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 86822 | 458.5 | 765 | 744 | 187.7 |
| A | 2 | 143 | 66061 | 347.92 | 765 | 744 | 187.7 |
| A | 12 | 114 | 46941 | 246.07 | 765 | 744 | 187.7 |
| B | 4 | 201 | 268342 | 1687.42 | 747 | 720 | 158.6 |
| B | 10 | 128 | 117567 | 736.75 | 747 | 720 | 158.6 |
| B | 8 | 234 | 100069 | 626.42 | 747 | 720 | 158.6 |
| C | 6 | 223 | 282560 | 1384.56 | 742 | 737 | 203.5 |
| C | 6 | 13 | 46826 | 226.43 | 742 | 737 | 203.5 |
| C | 9 | 38 | 27604 | 131.99 | 742 | 737 | 203.5 |
| D | 12 | 110 | 748228 | 3610.61 | 738 | 705 | 207.0 |
| D | 11 | 176 | 352857 | 1700.93 | 738 | 705 | 207.0 |
| D | 8 | 160 | 226646 | 1091.32 | 738 | 705 | 207.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

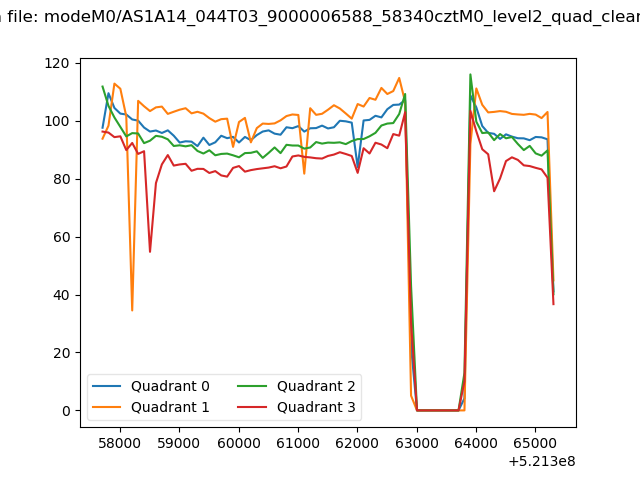

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

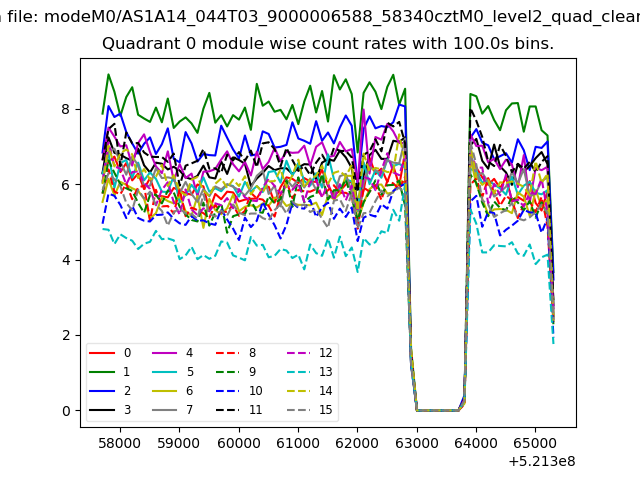

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

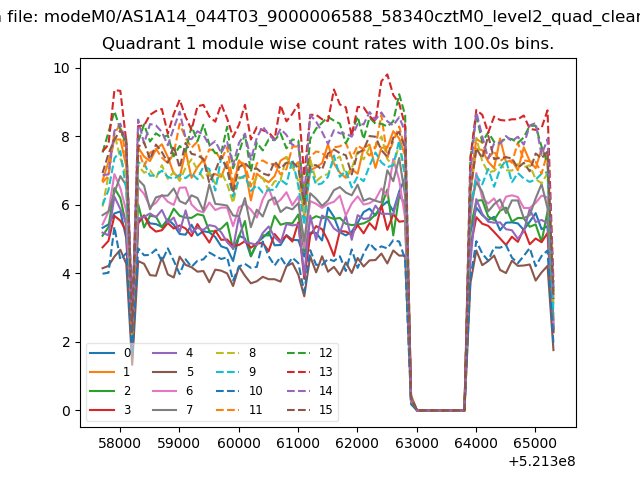

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

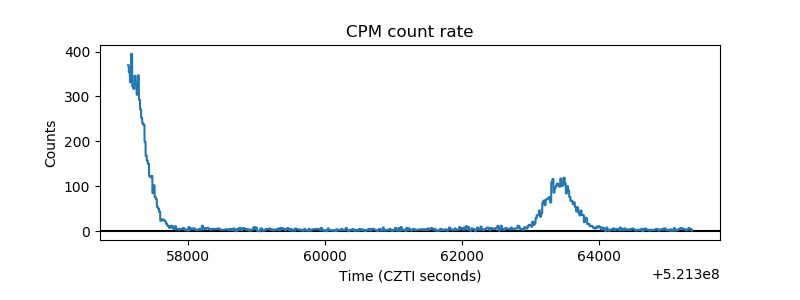

| _CPM_Rate |  |

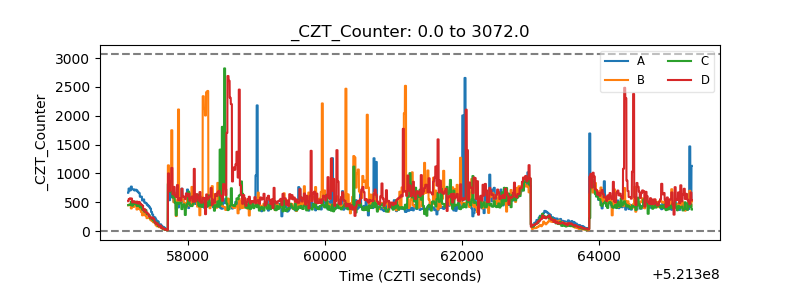

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

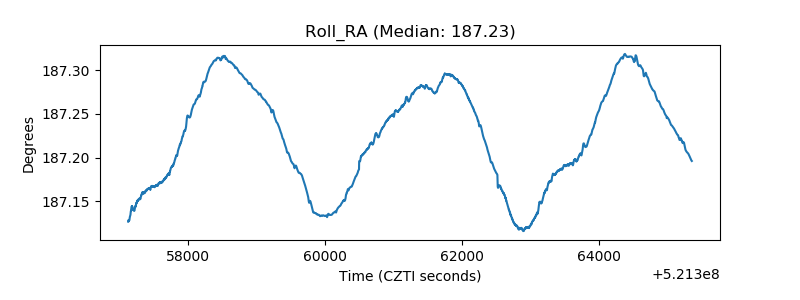

| _Roll_RA |  |
| Veto Counter |  |
