| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58344cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58344cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,428,160 | 97,516,800 |
| Size | 615.5 MB | 93.0 MB |
| Events in quadrant A | 4,351,607 | 662,474 |
| Events in quadrant B | 6,711,477 | 665,010 |
| Events in quadrant C | 7,883,383 | 505,468 |
| Events in quadrant D | 4,384,271 | 616,281 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18202 | 0 |
| B | 0 | 24965 | 0 |
| C | 0 | 28509 | 0 |
| D | 0 | 17762 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7229 | 338 | 4.675612% |
| B | 7229 | 812 | 11.232536% |
| C | 7230 | 1823 | 25.214385% |
| D | 7229 | 107 | 1.480149% |

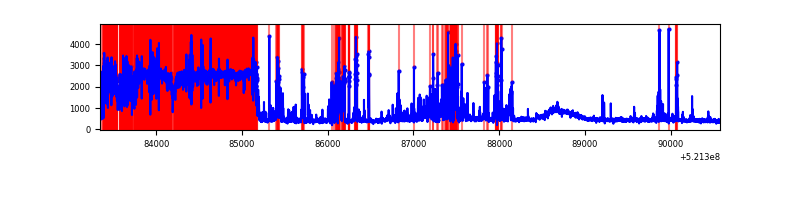

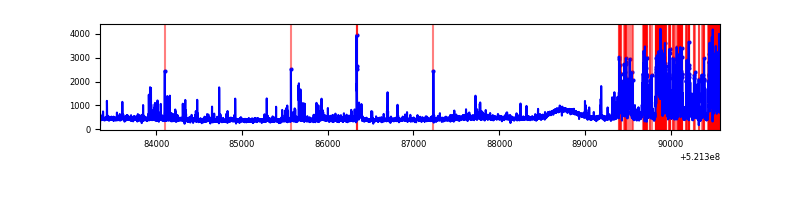

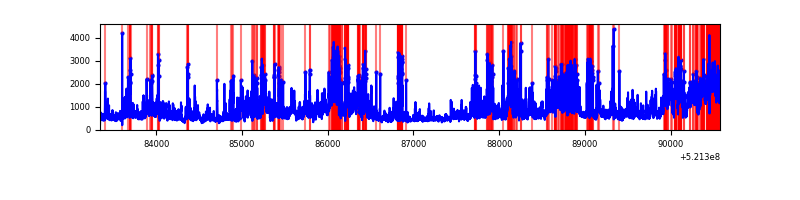

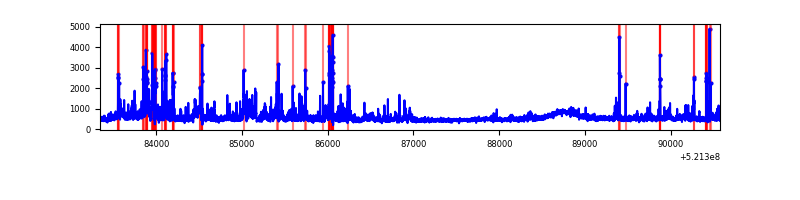

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7229 | 7229 | 225 | 225 | 3.11% | 3.11% |  |
| B | 7229 | 7229 | 469 | 469 | 6.49% | 6.49% |  |
| C | 7230 | 7230 | 1651 | 1651 | 22.84% | 22.84% |  |
| D | 7229 | 7229 | 92 | 92 | 1.27% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 230 | 971900 | 4908.14 | 786 | 762 | 197.9 |
| A | 13 | 248 | 83125 | 416.26 | 786 | 762 | 197.9 |
| A | 2 | 143 | 56937 | 283.91 | 786 | 762 | 197.9 |
| B | 10 | 128 | 1710692 | 10508.79 | 756 | 727 | 162.7 |
| B | 6 | 255 | 872438 | 5357.2 | 756 | 727 | 162.7 |
| B | 8 | 234 | 272288 | 1668.91 | 756 | 727 | 162.7 |
| C | 15 | 148 | 4187720 | 23307.77 | 653 | 647 | 179.6 |
| C | 6 | 223 | 767647 | 4269.58 | 653 | 647 | 179.6 |
| C | 6 | 13 | 81218 | 448.51 | 653 | 647 | 179.6 |
| D | 3 | 12 | 272823 | 1241.33 | 776 | 741 | 219.2 |
| D | 2 | 31 | 259805 | 1181.93 | 776 | 741 | 219.2 |
| D | 12 | 110 | 196340 | 892.39 | 776 | 741 | 219.2 |

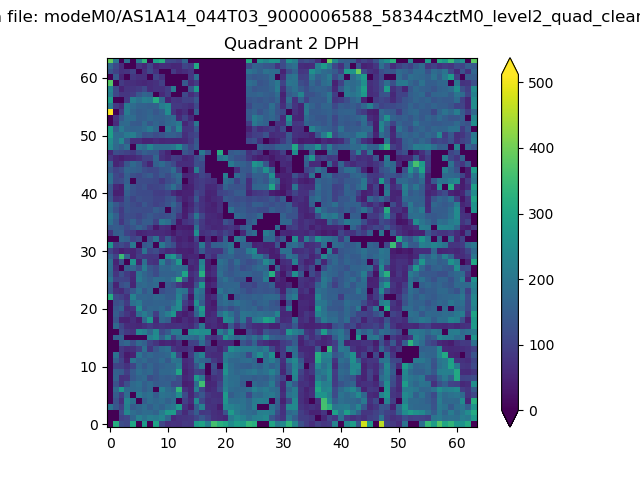

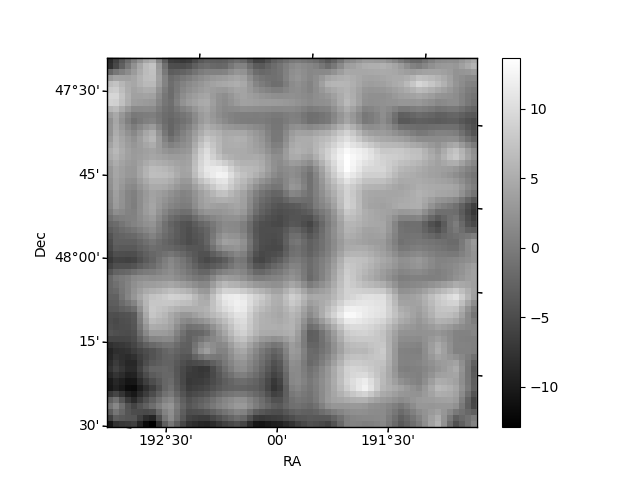

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

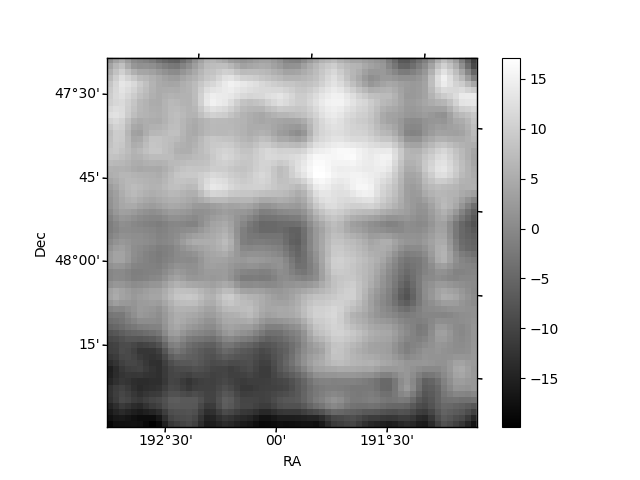

Quadrant C |

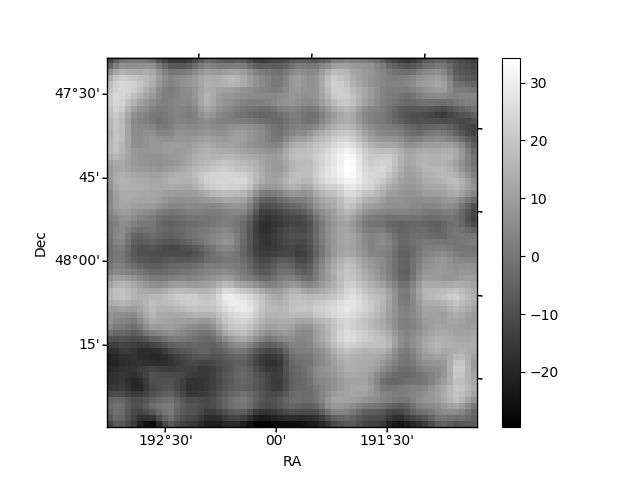

| Plot type | Count rate plots | Images |
|---|---|---|

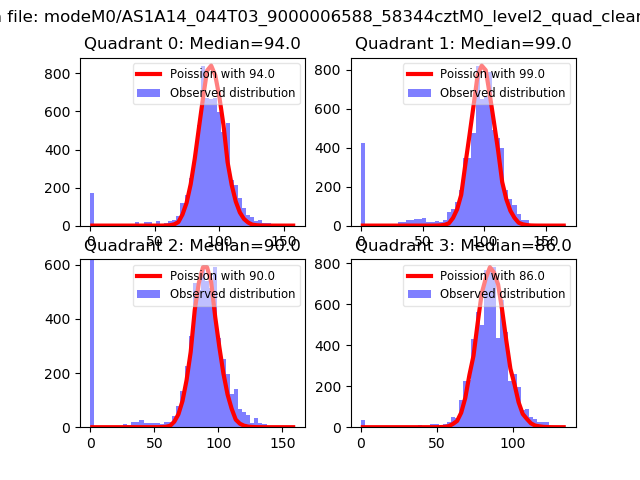

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

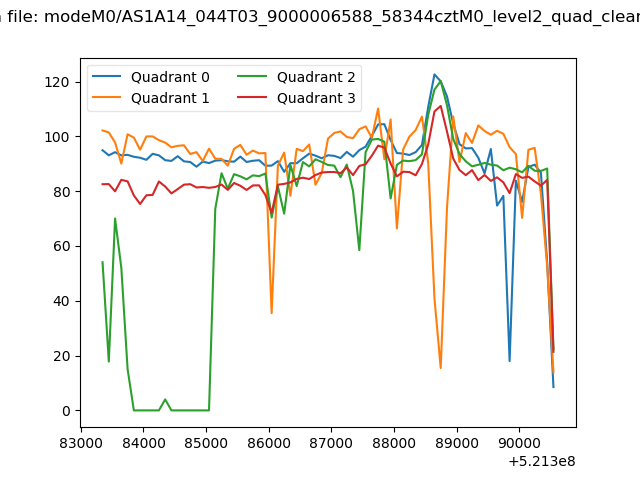

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

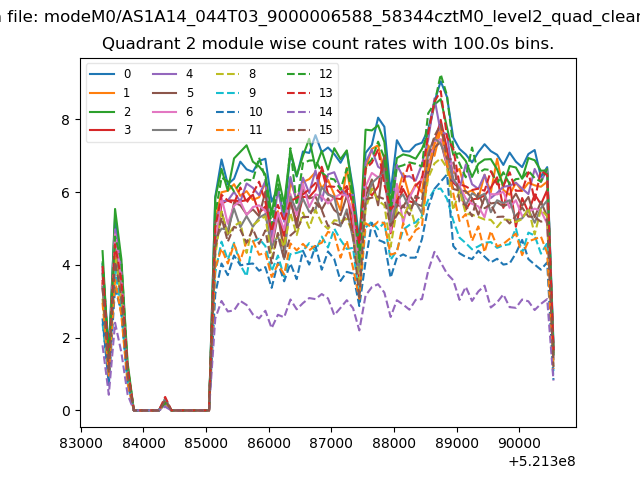

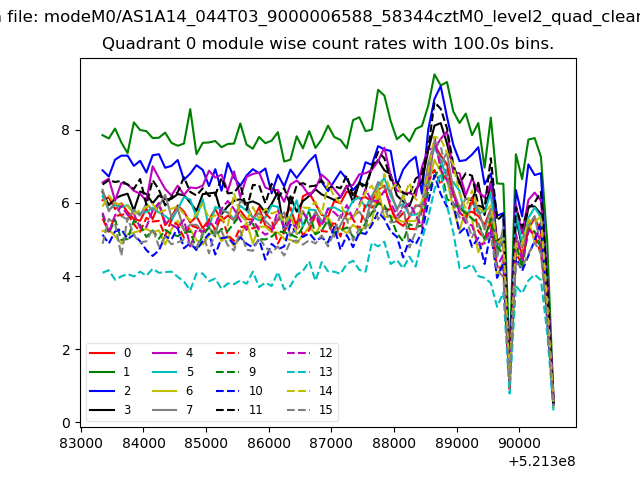

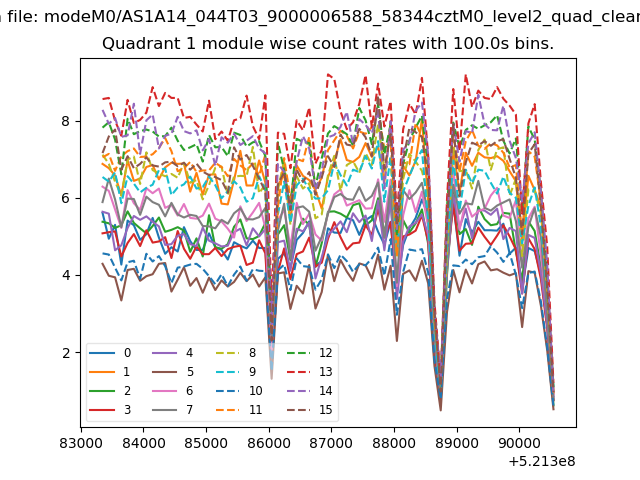

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

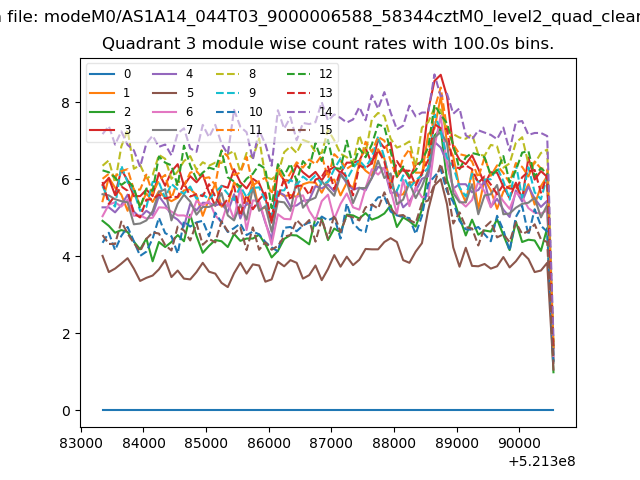

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

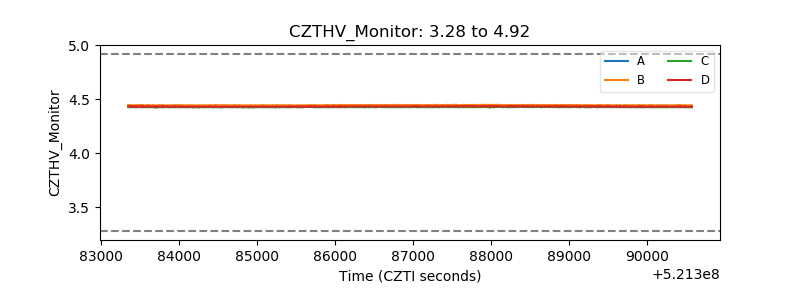

| CZT HV Monitor |  |
| D_VDD |  |

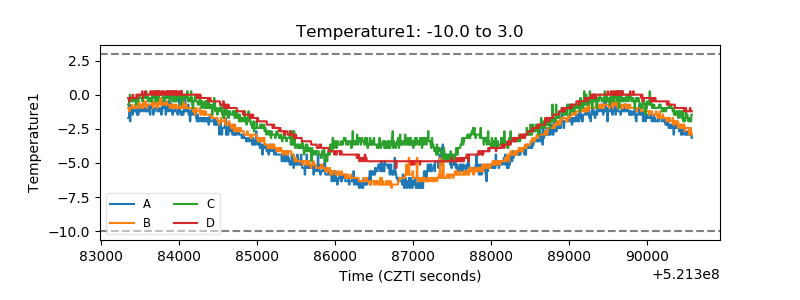

| Temperature 1 |  |

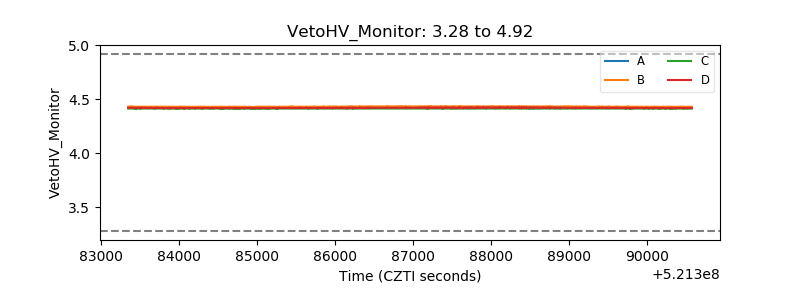

| Veto HV Monitor |  |

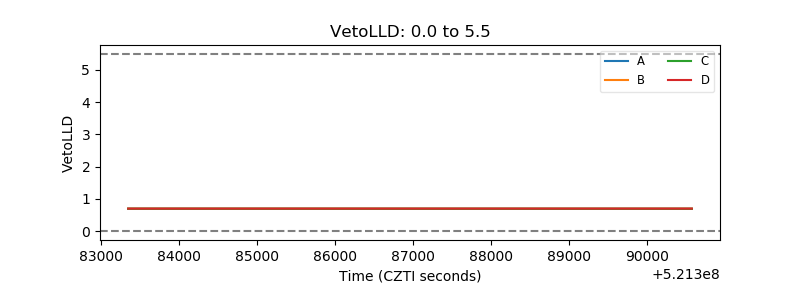

| Veto LLD |  |

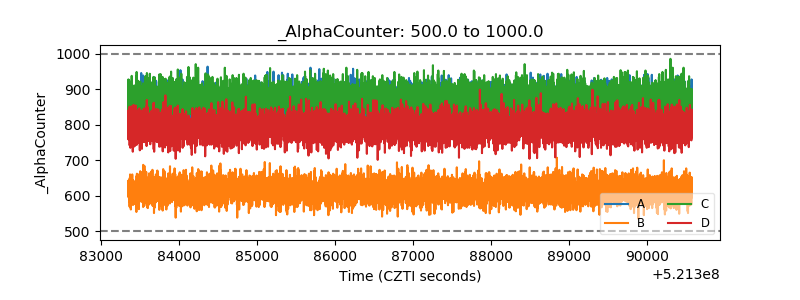

| Alpha Counter |  |

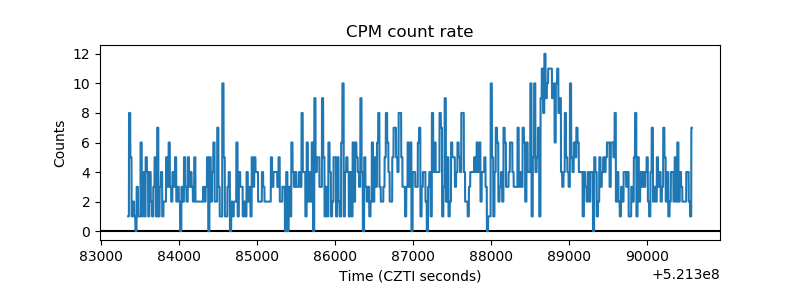

| _CPM_Rate |  |

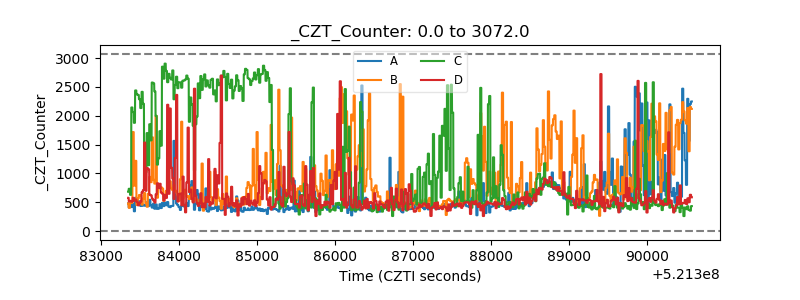

| CZT Counter |  |
| +2.5 Volts monitor |  |

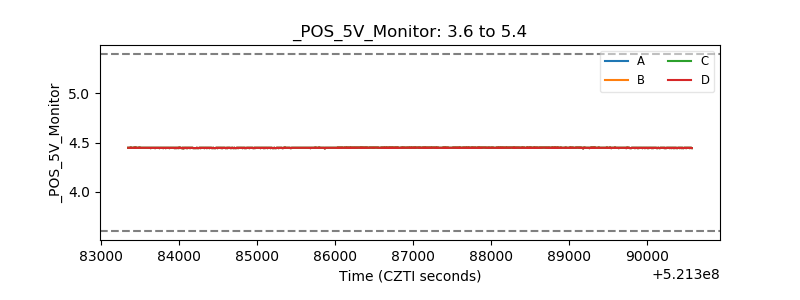

| +5 Volts monitor |  |

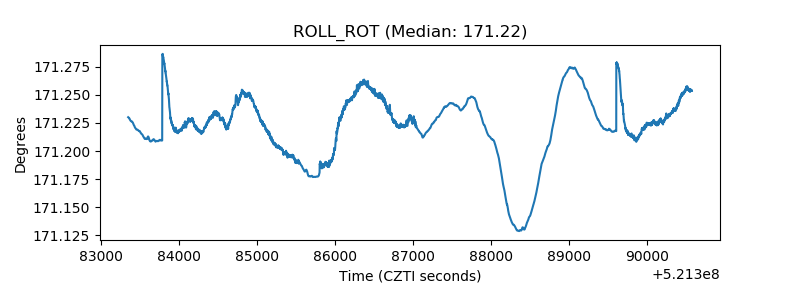

| _ROLL_ROT |  |

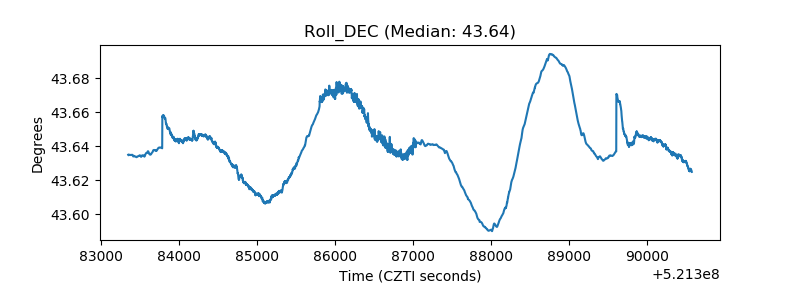

| _Roll_DEC |  |

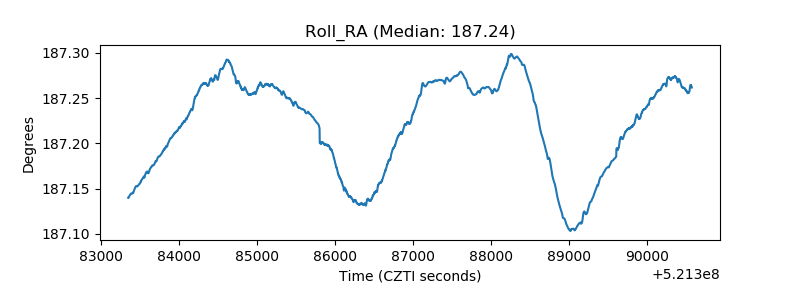

| _Roll_RA |  |

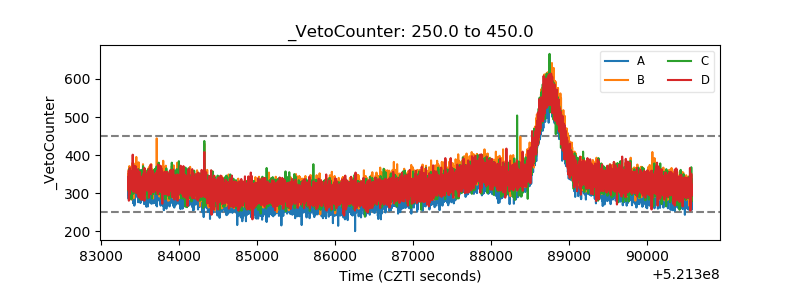

| Veto Counter |  |
