| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58348cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58348cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,205,440 | 98,173,440 |
| Size | 397.9 MB | 93.6 MB |
| Events in quadrant A | 3,120,249 | 647,700 |
| Events in quadrant B | 5,300,700 | 643,950 |
| Events in quadrant C | 3,319,238 | 621,214 |
| Events in quadrant D | 3,175,172 | 586,387 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14378 | 2 |
| B | 0 | 20533 | 2 |
| C | 0 | 14919 | 2 |
| D | 0 | 14367 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6787 | 52 | 0.766171% |
| B | 6787 | 576 | 8.486813% |
| C | 6787 | 66 | 0.972447% |
| D | 6786 | 32 | 0.471559% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

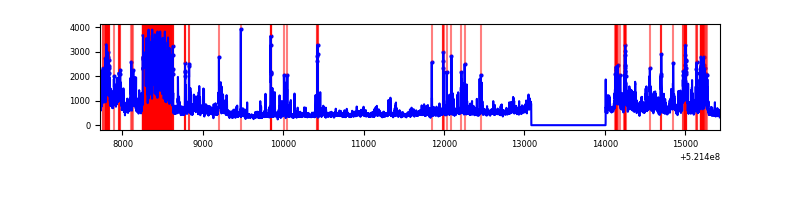

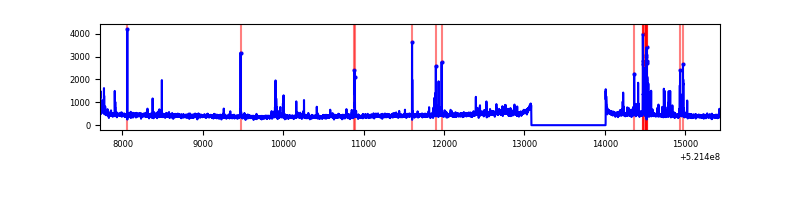

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7712 | 6788 | 22 | 22 | 0.29% | 0.32% |  |
| B | 7712 | 6788 | 386 | 386 | 5.01% | 5.69% |  |
| C | 7712 | 6788 | 38 | 38 | 0.49% | 0.56% |  |
| D | 7711 | 6787 | 20 | 20 | 0.26% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 158165 | 863.13 | 729 | 709 | 182.4 |
| A | 2 | 143 | 34727 | 186.48 | 729 | 709 | 182.4 |
| A | 3 | 14 | 34133 | 183.22 | 729 | 709 | 182.4 |
| B | 10 | 128 | 1709492 | 11293.49 | 702 | 676 | 151.3 |
| B | 5 | 185 | 234633 | 1546.21 | 702 | 676 | 151.3 |
| B | 8 | 234 | 147771 | 972.14 | 702 | 676 | 151.3 |
| C | 6 | 223 | 201624 | 1024.26 | 712 | 706 | 196.2 |
| C | 4 | 5 | 140616 | 713.25 | 712 | 706 | 196.2 |
| C | 3 | 30 | 79665 | 402.53 | 712 | 706 | 196.2 |
| D | 3 | 12 | 151288 | 741.12 | 711 | 677 | 203.2 |
| D | 11 | 129 | 117326 | 574.0 | 711 | 677 | 203.2 |
| D | 5 | 173 | 53690 | 260.86 | 711 | 677 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

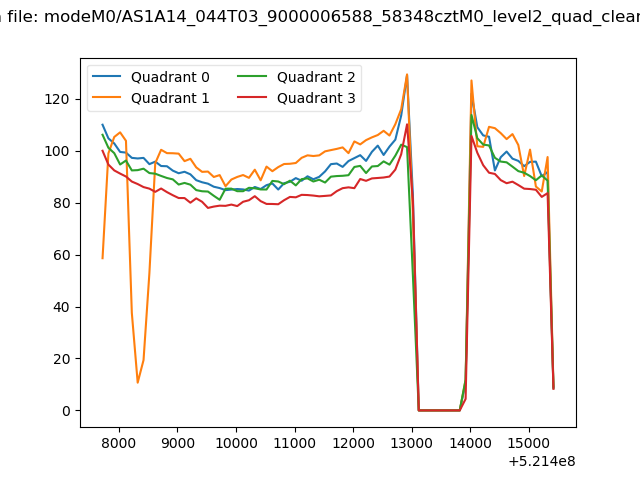

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

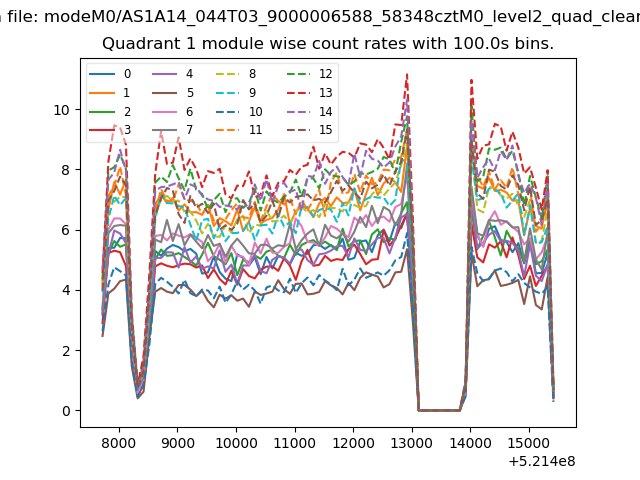

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

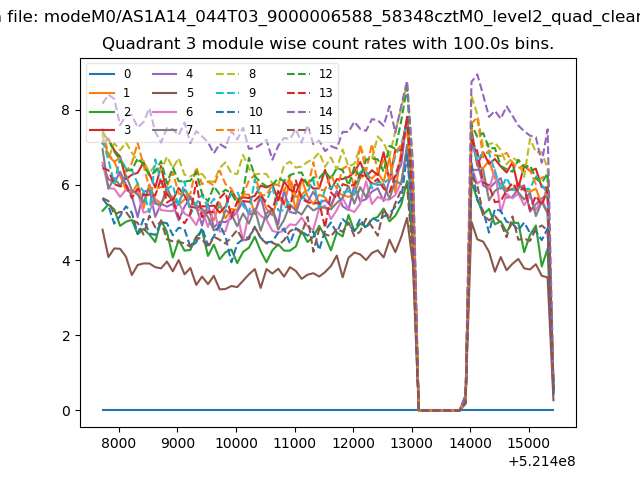

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

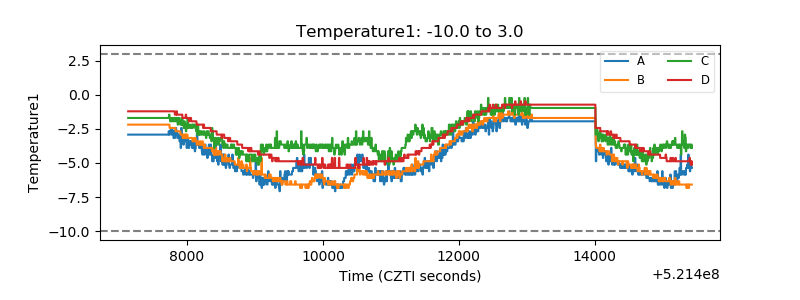

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

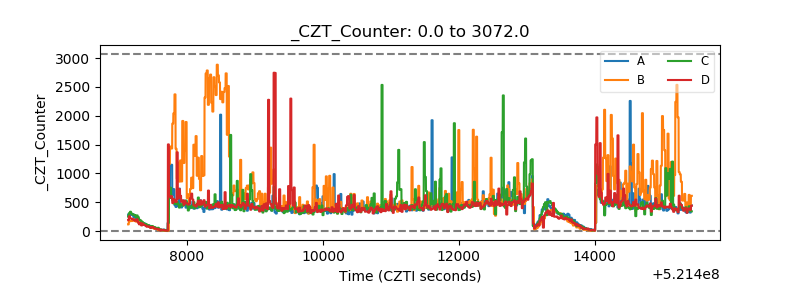

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

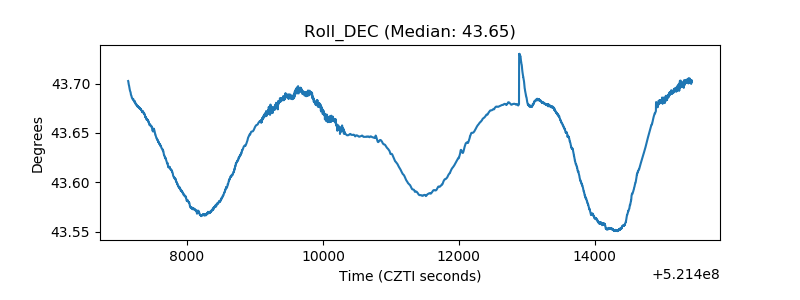

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
