| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58351cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58351cztM0_level2_quad_clean.evt |
| Size (bytes) | 388,926,720 | 94,345,920 |
| Size | 370.9 MB | 90.0 MB |
| Events in quadrant A | 3,057,738 | 611,343 |
| Events in quadrant B | 3,895,486 | 648,050 |
| Events in quadrant C | 3,783,348 | 580,769 |
| Events in quadrant D | 3,145,698 | 556,240 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13909 | 2 |
| B | 0 | 15996 | 2 |
| C | 0 | 16028 | 2 |
| D | 0 | 14106 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6610 | 57 | 0.862330% |
| B | 6610 | 193 | 2.919818% |
| C | 6610 | 207 | 3.131619% |
| D | 6610 | 18 | 0.272315% |

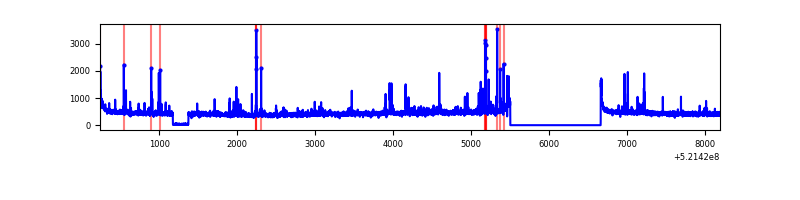

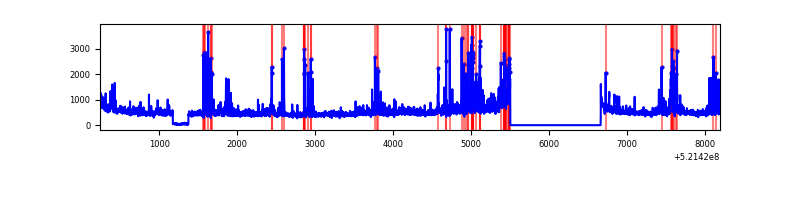

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7953 | 6794 | 16 | 16 | 0.20% | 0.24% |  |
| B | 7953 | 6793 | 74 | 74 | 0.93% | 1.09% |  |
| C | 7953 | 6794 | 152 | 152 | 1.91% | 2.24% |  |
| D | 7953 | 6794 | 8 | 8 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 108231 | 601.64 | 727 | 709 | 178.7 |
| A | 7 | 64 | 24757 | 134.56 | 727 | 709 | 178.7 |
| A | 11 | 3 | 20936 | 113.18 | 727 | 709 | 178.7 |
| B | 5 | 185 | 374628 | 2407.94 | 721 | 692 | 155.3 |
| B | 10 | 128 | 197956 | 1270.27 | 721 | 692 | 155.3 |
| B | 6 | 255 | 117604 | 752.85 | 721 | 692 | 155.3 |
| C | 9 | 38 | 308410 | 1587.52 | 702 | 697 | 193.8 |
| C | 6 | 223 | 261776 | 1346.93 | 702 | 697 | 193.8 |
| C | 4 | 5 | 192371 | 988.86 | 702 | 697 | 193.8 |
| D | 2 | 249 | 92112 | 455.28 | 704 | 672 | 200.8 |
| D | 3 | 12 | 81390 | 401.9 | 704 | 672 | 200.8 |
| D | 2 | 120 | 64879 | 319.69 | 704 | 672 | 200.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

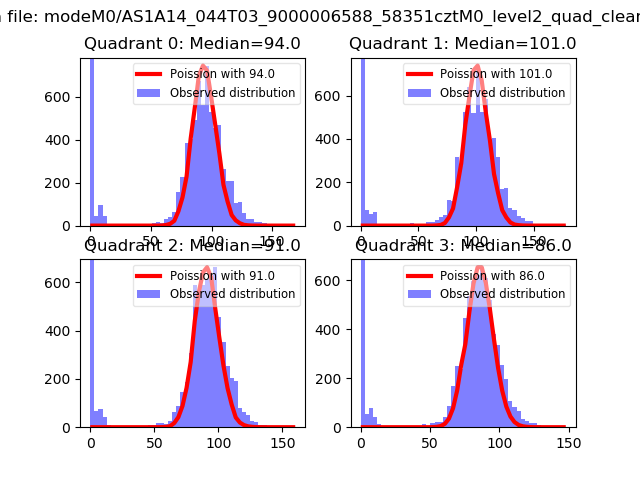

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

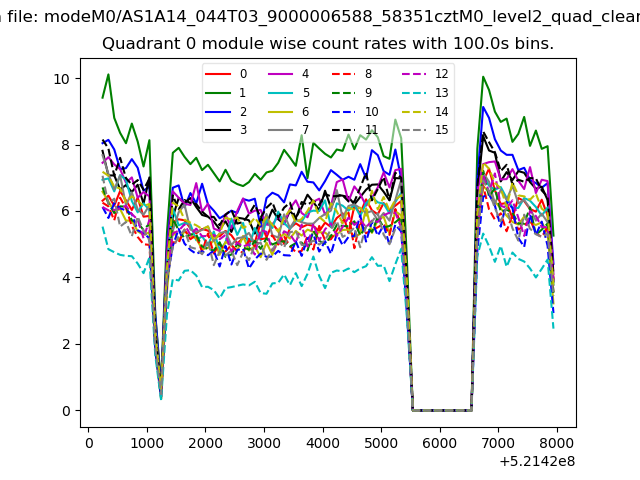

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

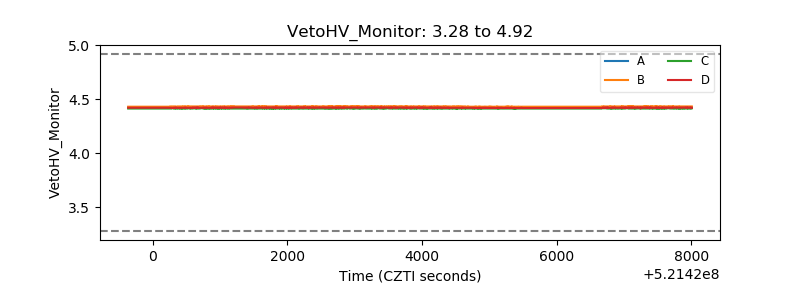

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

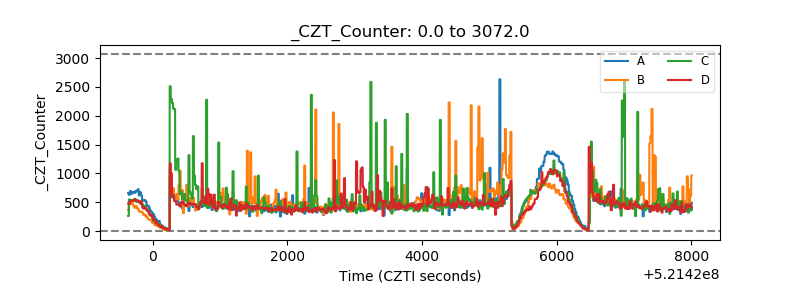

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

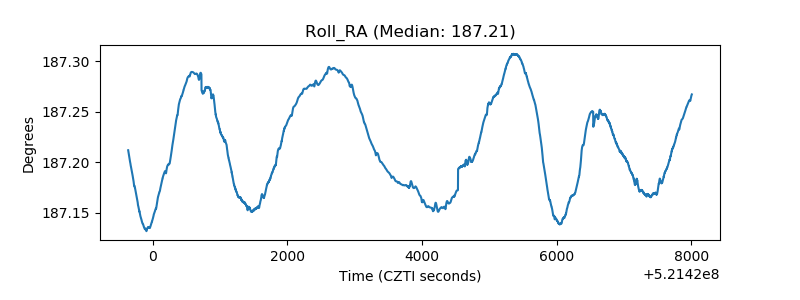

| _Roll_RA |  |
| Veto Counter |  |
