| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58352cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58352cztM0_level2_quad_clean.evt |
| Size (bytes) | 373,985,280 | 99,757,440 |
| Size | 356.7 MB | 95.1 MB |
| Events in quadrant A | 3,085,234 | 653,542 |
| Events in quadrant B | 3,958,669 | 691,378 |
| Events in quadrant C | 3,199,209 | 629,756 |
| Events in quadrant D | 3,095,439 | 594,353 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13809 | 2 |
| B | 0 | 16030 | 2 |
| C | 0 | 14195 | 2 |
| D | 0 | 13834 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6487 | 83 | 1.279482% |
| B | 6487 | 261 | 4.023431% |
| C | 6487 | 94 | 1.449052% |
| D | 6487 | 17 | 0.262063% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8858 | 6490 | 26 | 26 | 0.29% | 0.40% |  |
| B | 8858 | 6489 | 83 | 83 | 0.94% | 1.28% |  |
| C | 8858 | 6490 | 59 | 59 | 0.67% | 0.91% |  |
| D | 8858 | 6490 | 5 | 5 | 0.06% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 143 | 102630 | 568.03 | 733 | 714 | 179.4 |
| A | 13 | 248 | 29639 | 161.21 | 733 | 714 | 179.4 |
| A | 12 | 80 | 27322 | 148.3 | 733 | 714 | 179.4 |
| B | 6 | 255 | 440101 | 2841.06 | 724 | 699 | 154.7 |
| B | 5 | 185 | 209271 | 1348.57 | 724 | 699 | 154.7 |
| B | 10 | 128 | 179376 | 1155.28 | 724 | 699 | 154.7 |
| C | 6 | 223 | 236226 | 1205.05 | 711 | 705 | 195.4 |
| C | 4 | 5 | 63778 | 322.71 | 711 | 705 | 195.4 |
| C | 7 | 12 | 19789 | 97.64 | 711 | 705 | 195.4 |
| D | 11 | 129 | 112698 | 559.62 | 709 | 677 | 200.2 |
| D | 11 | 176 | 57016 | 281.45 | 709 | 677 | 200.2 |
| D | 3 | 12 | 49751 | 245.16 | 709 | 677 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

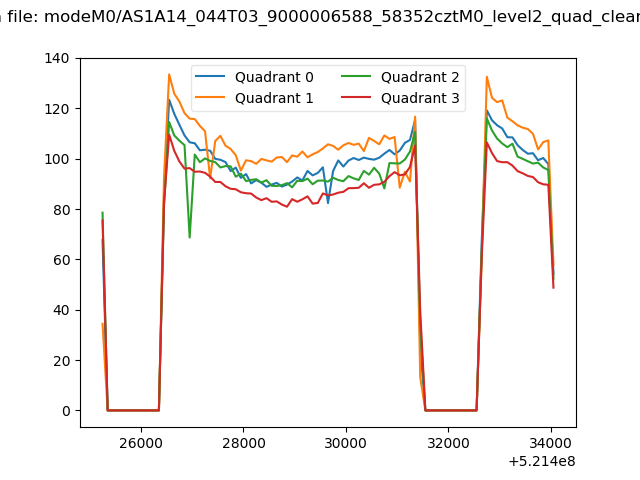

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

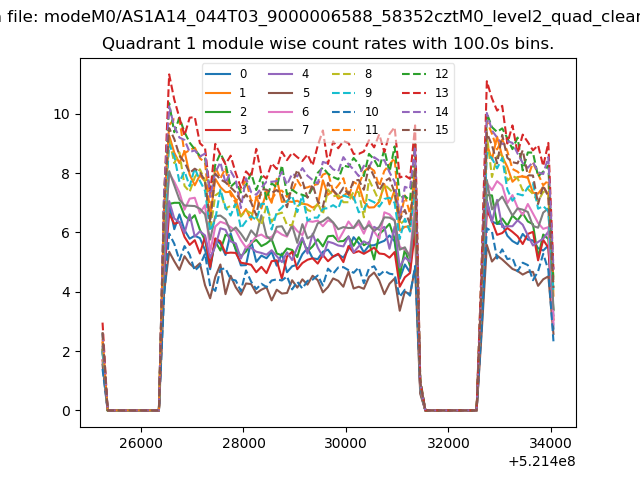

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

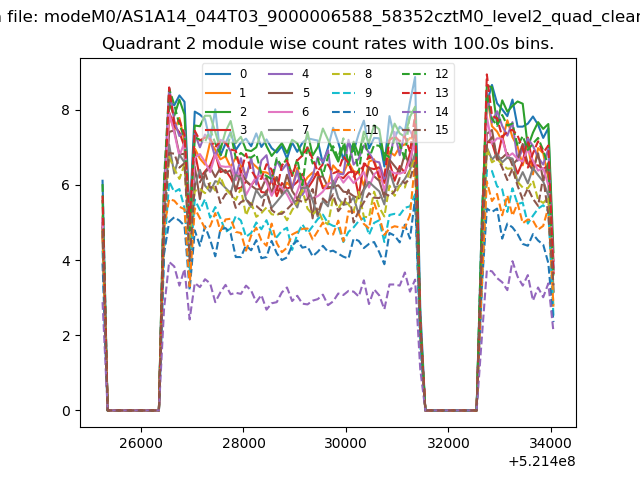

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

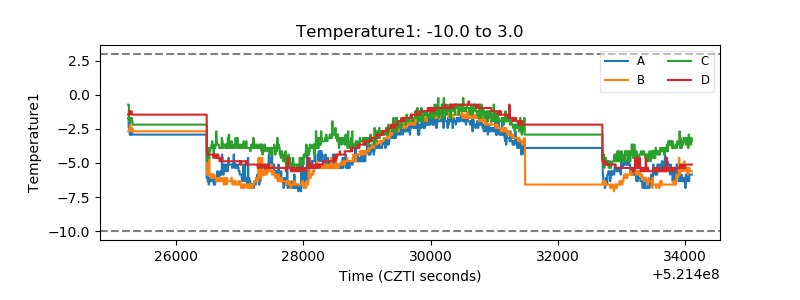

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

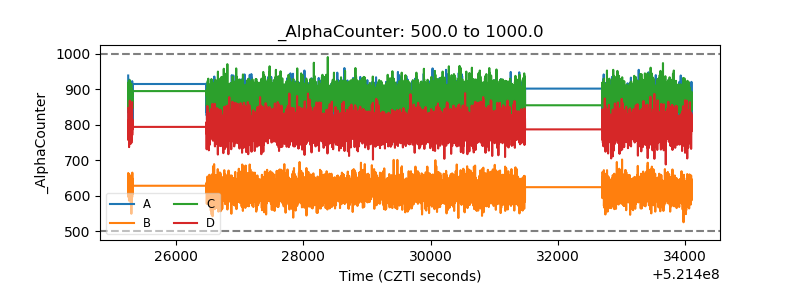

| Alpha Counter |  |
| _CPM_Rate |  |

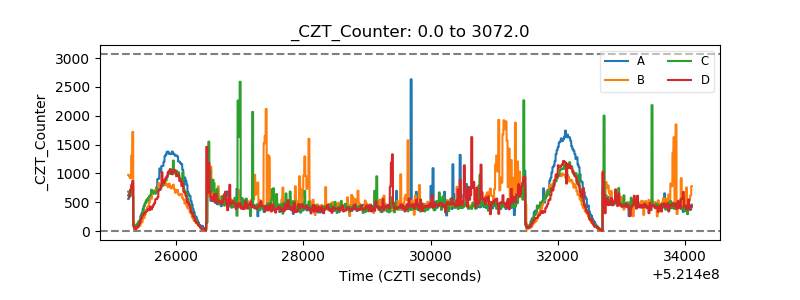

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

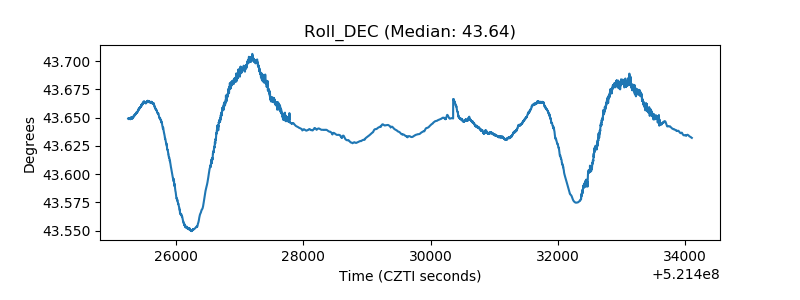

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
