| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58355cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58355cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,999,040 | 83,617,920 |
| Size | 495.0 MB | 79.7 MB |
| Events in quadrant A | 3,358,961 | 632,366 |
| Events in quadrant B | 4,776,724 | 661,724 |
| Events in quadrant C | 7,078,438 | 194,160 |
| Events in quadrant D | 3,470,519 | 574,663 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14797 | 1 |
| B | 0 | 18682 | 3 |
| C | 0 | 25802 | 1 |
| D | 0 | 15095 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6730 | 173 | 2.570579% |
| B | 6730 | 470 | 6.983655% |
| C | 6730 | 4733 | 70.326895% |
| D | 6730 | 120 | 1.783061% |

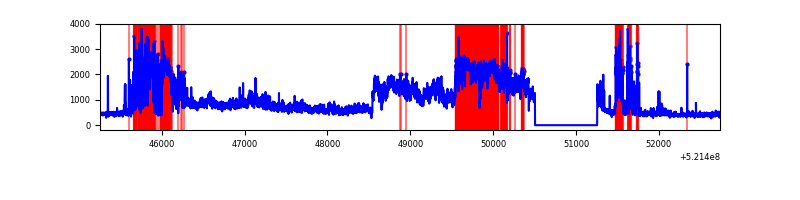

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 6730 | 21 | 21 | 0.28% | 0.31% |  |
| B | 7480 | 6730 | 211 | 211 | 2.82% | 3.14% |  |
| C | 7480 | 6730 | 761 | 761 | 10.17% | 11.31% |  |
| D | 7480 | 6730 | 22 | 22 | 0.29% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 246 | 135797 | 740.56 | 743 | 722 | 182.4 |
| A | 8 | 230 | 75407 | 409.47 | 743 | 722 | 182.4 |
| A | 12 | 80 | 70601 | 383.12 | 743 | 722 | 182.4 |
| B | 10 | 128 | 793957 | 5118.22 | 723 | 695 | 155.0 |
| B | 5 | 185 | 295573 | 1902.59 | 723 | 695 | 155.0 |
| B | 6 | 255 | 230267 | 1481.23 | 723 | 695 | 155.0 |
| C | 15 | 148 | 5842462 | 74466.94 | 280 | 277 | 78.5 |
| C | 12 | 252 | 32582 | 411.77 | 280 | 277 | 78.5 |
| C | 15 | 164 | 21422 | 269.52 | 280 | 277 | 78.5 |
| D | 8 | 160 | 129748 | 639.91 | 719 | 688 | 201.7 |
| D | 2 | 31 | 108198 | 533.06 | 719 | 688 | 201.7 |
| D | 11 | 129 | 102295 | 503.79 | 719 | 688 | 201.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

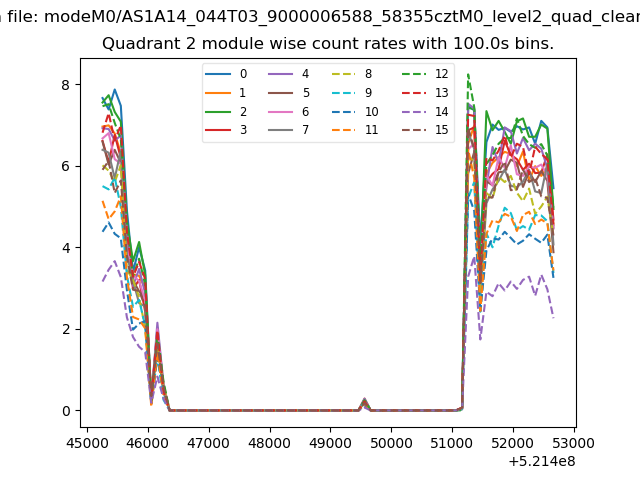

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

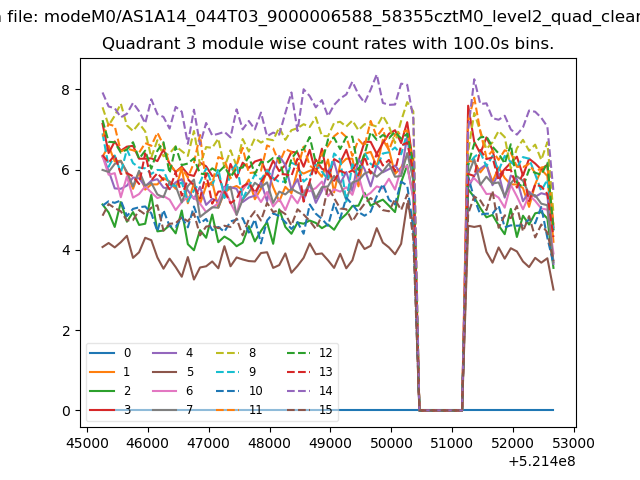

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

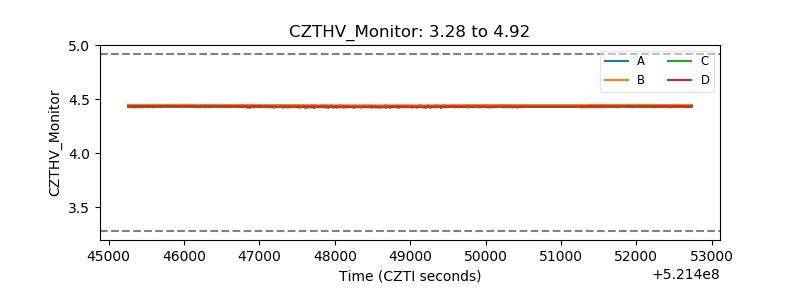

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

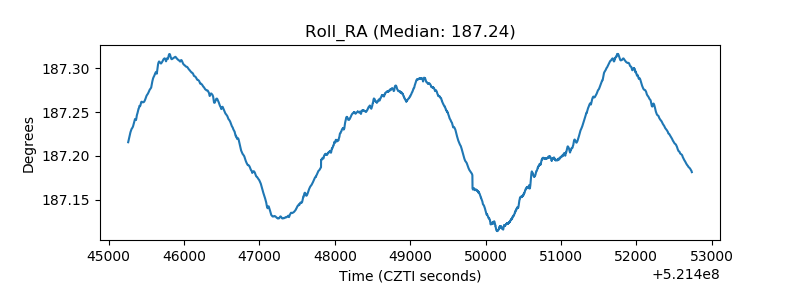

| _Roll_RA |  |

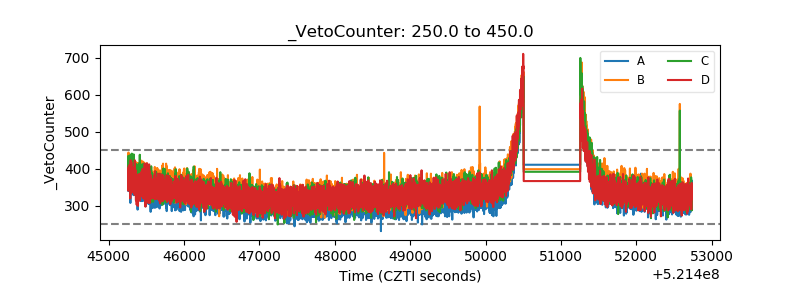

| Veto Counter |  |
