| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58358cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58358cztM0_level2_quad_clean.evt |
| Size (bytes) | 853,459,200 | 80,683,200 |
| Size | 813.9 MB | 76.9 MB |
| Events in quadrant A | 3,835,638 | 669,026 |
| Events in quadrant B | 6,732,067 | 676,539 |
| Events in quadrant C | 16,226,756 | 519 |
| Events in quadrant D | 4,236,757 | 594,598 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 2 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16594 | 9 |
| B | 0 | 25002 | 48 |
| C | 0 | 53152 | 98 |
| D | 0 | 17458 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7218 | 157 | 2.175118% |
| B | 7213 | 719 | 9.968113% |
| C | 7208 | 7205 | 99.958380% |
| D | 7216 | 238 | 3.298226% |

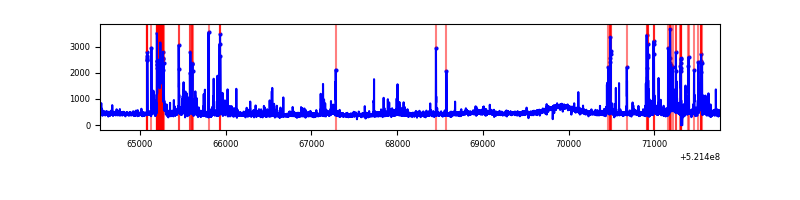

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7229 | 7220 | 125 | 125 | 1.73% | 1.73% |  |
| B | 7229 | 7219 | 496 | 496 | 6.86% | 6.87% |  |
| C | 7229 | 7207 | 5878 | 5878 | 81.31% | 81.56% |  |
| D | 7230 | 7220 | 224 | 224 | 3.10% | 3.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 471695 | 2463.67 | 778 | 760 | 191.2 |
| A | 3 | 62 | 65469 | 338.52 | 778 | 760 | 191.2 |
| A | 5 | 242 | 52303 | 269.64 | 778 | 760 | 191.2 |
| B | 10 | 128 | 1725259 | 10622.98 | 752 | 725 | 162.3 |
| B | 6 | 255 | 778799 | 4792.87 | 752 | 725 | 162.3 |
| B | 0 | 213 | 596636 | 3670.76 | 752 | 725 | 162.3 |
| C | 15 | 148 | 15683197 | 462250.56 | 117 | 116 | 33.9 |
| C | 12 | 252 | 33768 | 991.87 | 117 | 116 | 33.9 |
| C | 4 | 5 | 11821 | 345.0 | 117 | 116 | 33.9 |
| D | 2 | 249 | 801199 | 3718.88 | 753 | 719 | 215.2 |
| D | 11 | 129 | 108122 | 498.97 | 753 | 719 | 215.2 |
| D | 2 | 120 | 101552 | 468.45 | 753 | 719 | 215.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

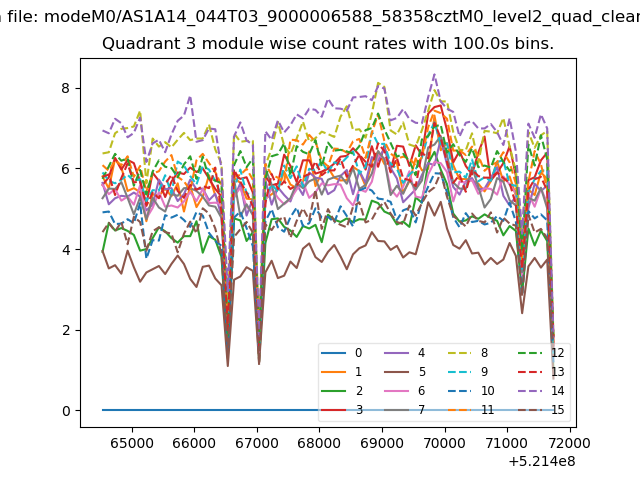

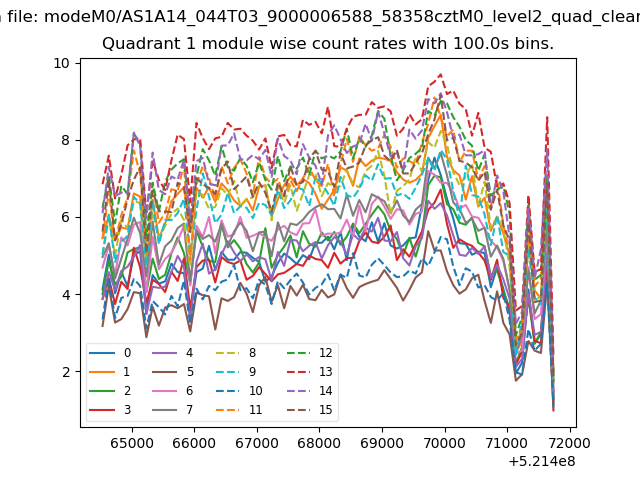

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

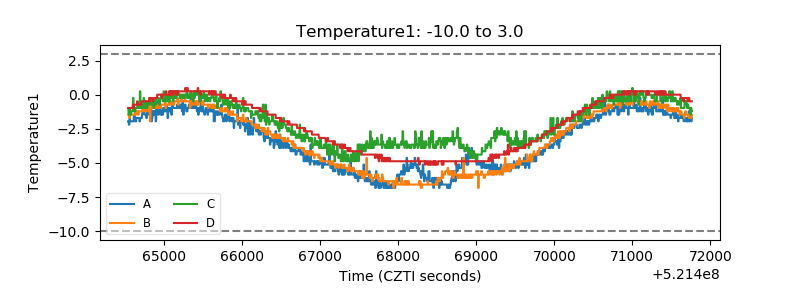

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

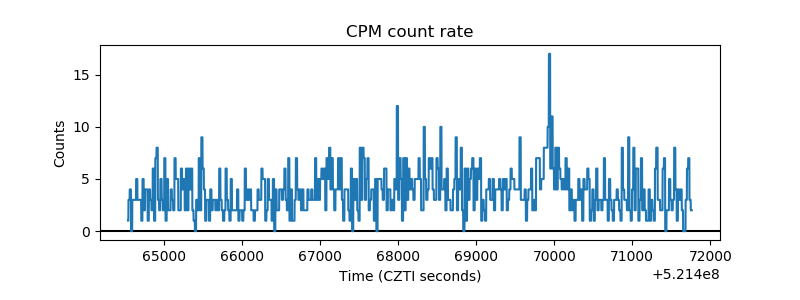

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

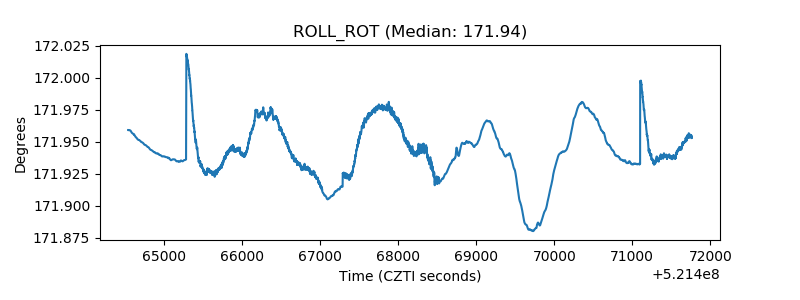

| _ROLL_ROT |  |

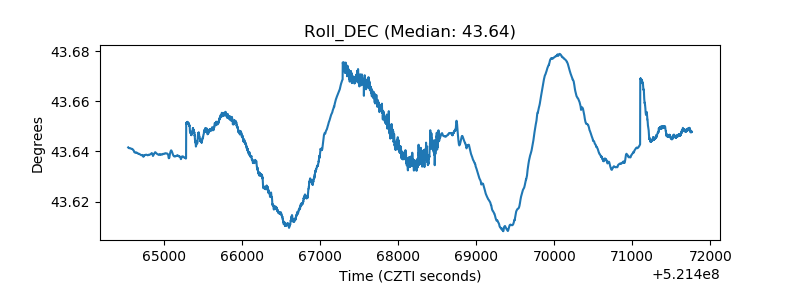

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
