| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58362cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58362cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,849,280 | 87,782,400 |
| Size | 486.2 MB | 83.7 MB |
| Events in quadrant A | 3,487,981 | 588,640 |
| Events in quadrant B | 4,827,072 | 618,590 |
| Events in quadrant C | 6,842,342 | 456,659 |
| Events in quadrant D | 3,216,451 | 546,026 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15128 | 2 |
| B | 0 | 18928 | 1 |
| C | 0 | 24926 | 1 |
| D | 0 | 14147 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6421 | 173 | 2.694284% |
| B | 6421 | 382 | 5.949229% |
| C | 6421 | 1485 | 23.127239% |
| D | 6422 | 42 | 0.654002% |

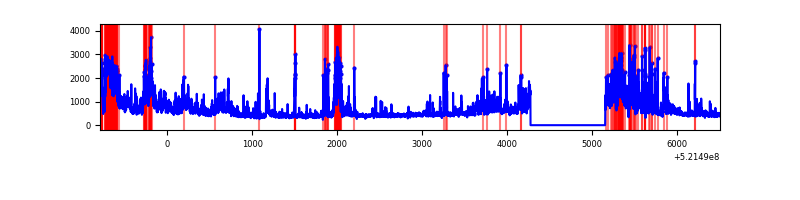

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7301 | 6422 | 137 | 137 | 1.88% | 2.13% |  |
| B | 7301 | 6422 | 269 | 269 | 3.68% | 4.19% |  |
| C | 7301 | 6421 | 1362 | 1362 | 18.65% | 21.21% |  |
| D | 7302 | 6423 | 31 | 31 | 0.42% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 246 | 278235 | 1656.63 | 670 | 651 | 167.6 |
| A | 13 | 248 | 202742 | 1206.08 | 670 | 651 | 167.6 |
| A | 10 | 251 | 124040 | 736.39 | 670 | 651 | 167.6 |
| B | 10 | 128 | 688046 | 4845.1 | 662 | 638 | 141.9 |
| B | 0 | 213 | 606658 | 4271.45 | 662 | 638 | 141.9 |
| B | 6 | 255 | 441685 | 3108.66 | 662 | 638 | 141.9 |
| C | 15 | 148 | 4141760 | 25338.02 | 588 | 583 | 163.4 |
| C | 4 | 5 | 252831 | 1543.39 | 588 | 583 | 163.4 |
| C | 12 | 252 | 41439 | 249.98 | 588 | 583 | 163.4 |
| D | 11 | 129 | 242116 | 1290.93 | 660 | 630 | 187.1 |
| D | 3 | 12 | 190449 | 1014.73 | 660 | 630 | 187.1 |
| D | 5 | 173 | 50561 | 266.92 | 660 | 630 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

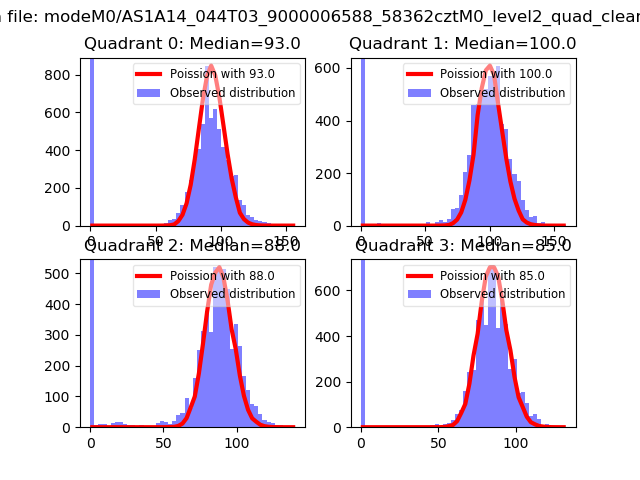

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

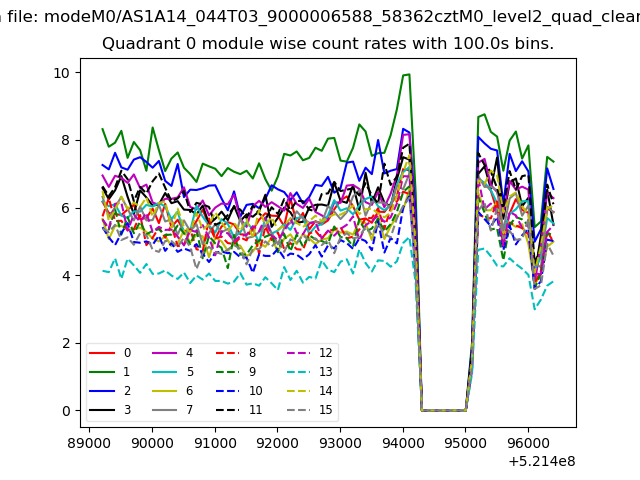

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

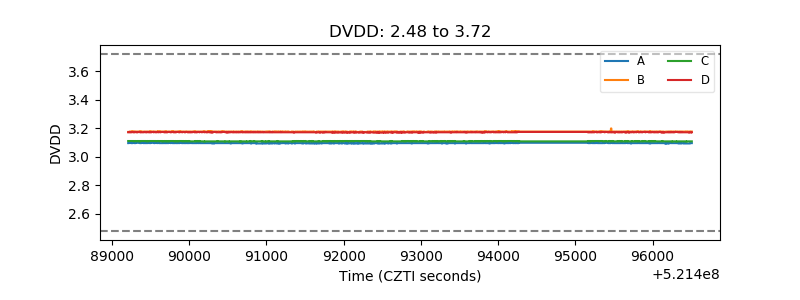

| D_VDD |  |

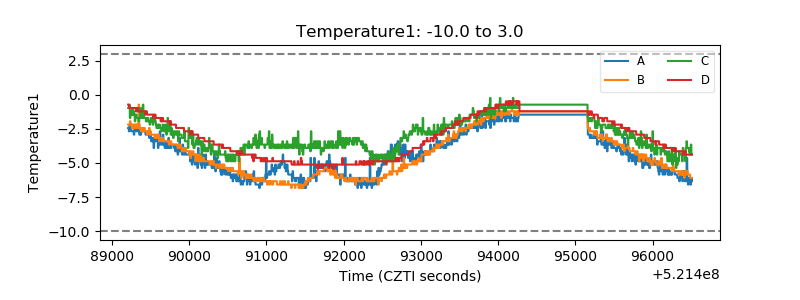

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

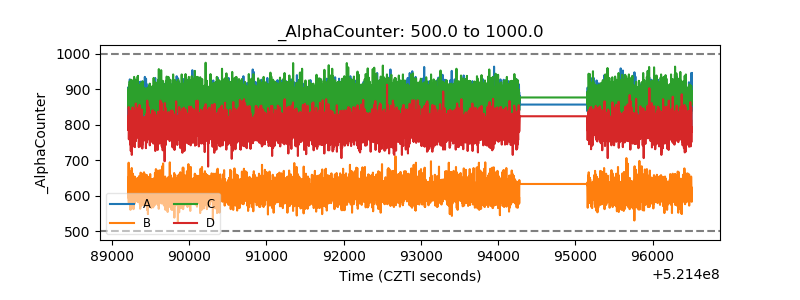

| Alpha Counter |  |

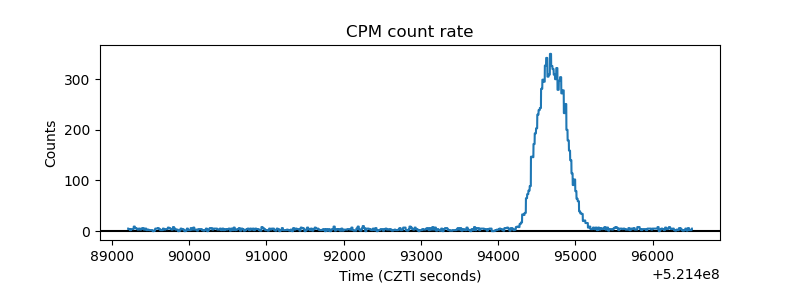

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

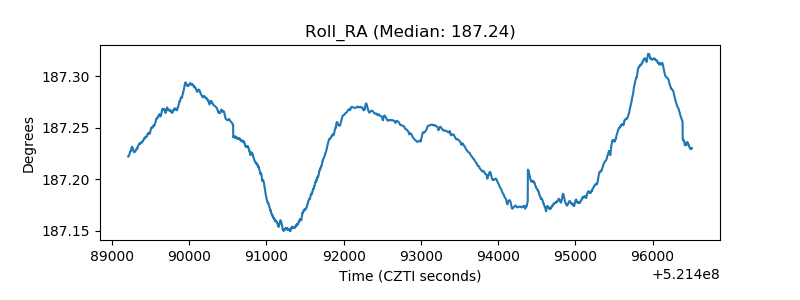

| _Roll_RA |  |
| Veto Counter |  |
