| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58364cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58364cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,997,760 | 94,973,760 |
| Size | 402.4 MB | 90.6 MB |
| Events in quadrant A | 3,488,407 | 607,940 |
| Events in quadrant B | 4,671,090 | 653,133 |
| Events in quadrant C | 3,331,152 | 599,489 |
| Events in quadrant D | 3,623,529 | 560,473 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15191 | 2 |
| B | 0 | 18480 | 2 |
| C | 0 | 14664 | 2 |
| D | 0 | 15444 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6519 | 194 | 2.975917% |
| B | 6518 | 261 | 4.004296% |
| C | 6518 | 59 | 0.905186% |
| D | 6518 | 113 | 1.733661% |

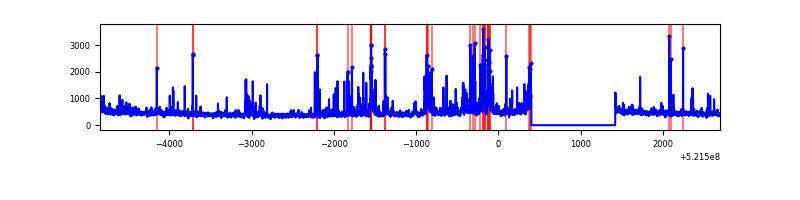

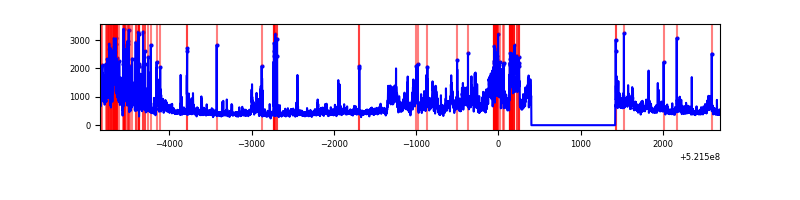

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7539 | 6520 | 170 | 170 | 2.25% | 2.61% |  |
| B | 7538 | 6518 | 142 | 142 | 1.88% | 2.18% |  |
| C | 7538 | 6519 | 43 | 43 | 0.57% | 0.66% |  |
| D | 7538 | 6519 | 105 | 105 | 1.39% | 1.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 246 | 419068 | 2444.03 | 688 | 671 | 171.2 |
| A | 13 | 248 | 106439 | 617.84 | 688 | 671 | 171.2 |
| A | 3 | 245 | 92115 | 534.16 | 688 | 671 | 171.2 |
| B | 10 | 128 | 1063891 | 7231.15 | 686 | 661 | 147.0 |
| B | 0 | 213 | 377813 | 2565.05 | 686 | 661 | 147.0 |
| B | 5 | 172 | 127134 | 860.16 | 686 | 661 | 147.0 |
| C | 15 | 148 | 132366 | 698.49 | 683 | 673 | 188.5 |
| C | 14 | 245 | 126162 | 665.58 | 683 | 673 | 188.5 |
| C | 9 | 38 | 93427 | 491.96 | 683 | 673 | 188.5 |
| D | 5 | 32 | 314295 | 1634.44 | 674 | 645 | 191.9 |
| D | 11 | 129 | 197844 | 1027.61 | 674 | 645 | 191.9 |
| D | 3 | 12 | 124865 | 647.31 | 674 | 645 | 191.9 |

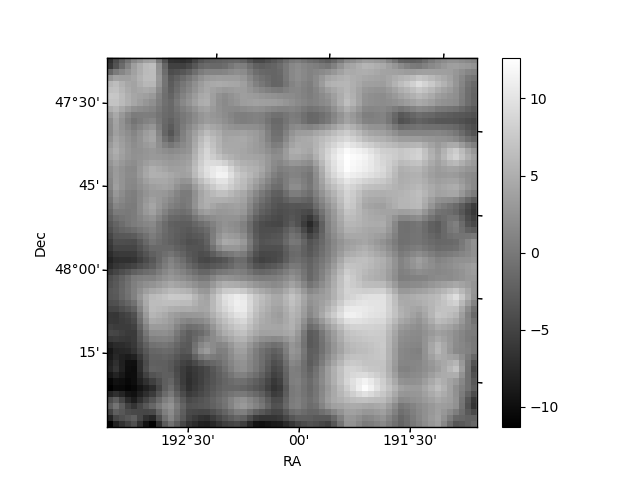

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

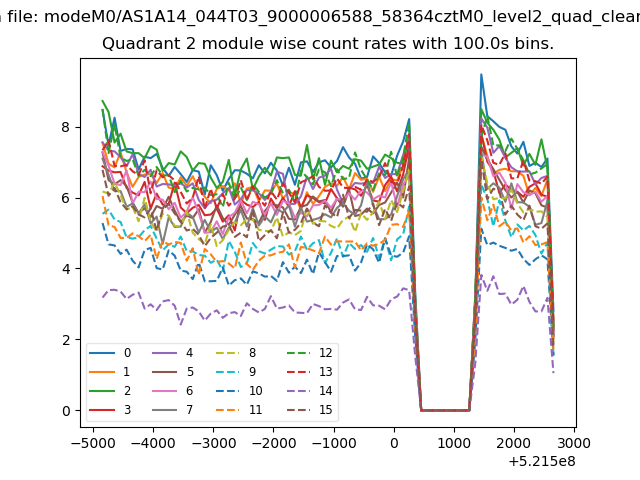

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

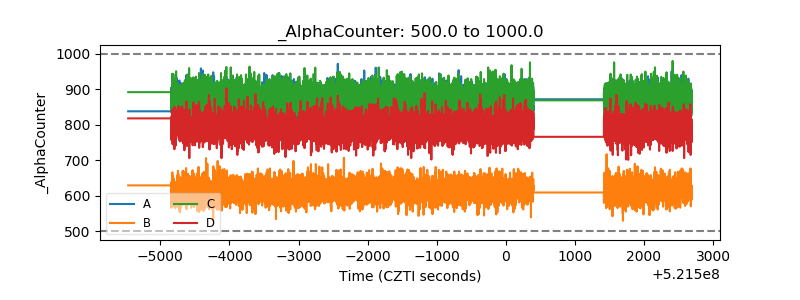

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

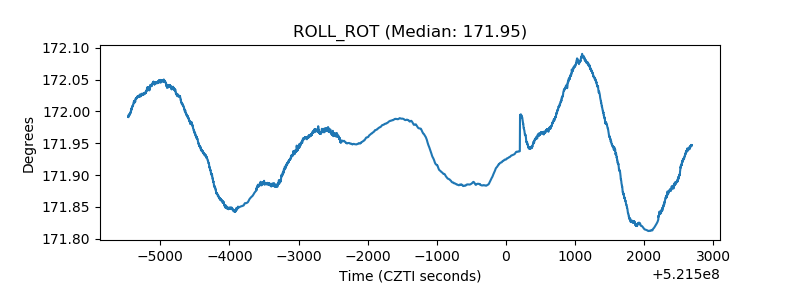

| _ROLL_ROT |  |

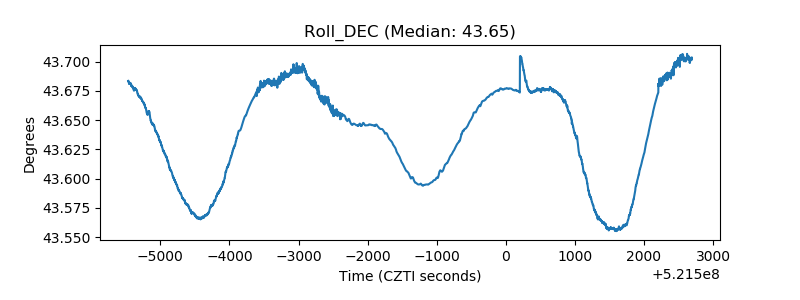

| _Roll_DEC |  |

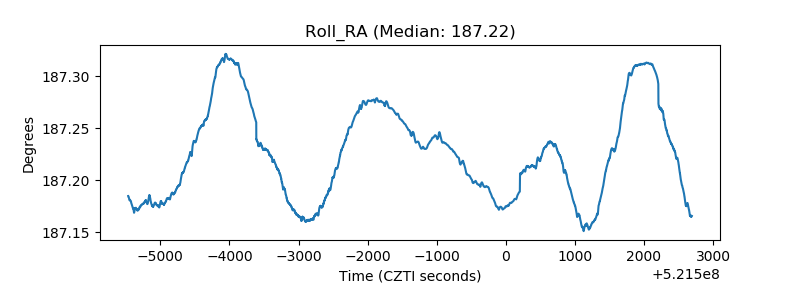

| _Roll_RA |  |
| Veto Counter |  |
