| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58365cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58365cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,985,920 | 104,057,280 |
| Size | 415.8 MB | 99.2 MB |
| Events in quadrant A | 3,325,957 | 678,699 |
| Events in quadrant B | 4,895,548 | 723,963 |
| Events in quadrant C | 3,782,690 | 648,798 |
| Events in quadrant D | 3,591,219 | 612,736 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15153 | 2 |
| B | 0 | 19509 | 2 |
| C | 0 | 16285 | 2 |
| D | 0 | 15764 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6990 | 61 | 0.872675% |
| B | 6991 | 197 | 2.817909% |
| C | 6991 | 157 | 2.245745% |
| D | 6991 | 100 | 1.430411% |

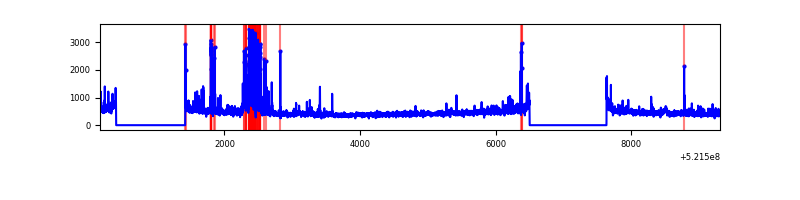

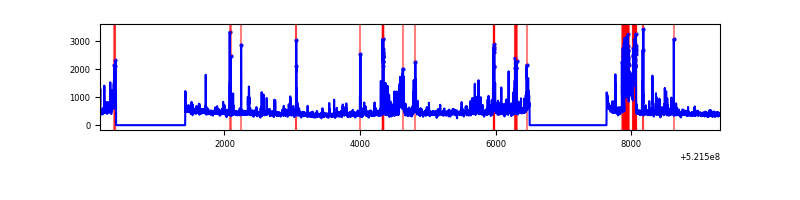

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9145 | 6992 | 39 | 39 | 0.43% | 0.56% |  |
| B | 9146 | 6992 | 73 | 73 | 0.80% | 1.04% |  |
| C | 9146 | 6993 | 120 | 120 | 1.31% | 1.72% |  |
| D | 9146 | 6993 | 94 | 94 | 1.03% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 143 | 99930 | 527.67 | 761 | 743 | 188.0 |
| A | 13 | 248 | 93237 | 492.07 | 761 | 743 | 188.0 |
| A | 8 | 246 | 64292 | 338.08 | 761 | 743 | 188.0 |
| B | 10 | 128 | 1502184 | 9259.84 | 753 | 725 | 162.1 |
| B | 4 | 201 | 57949 | 352.91 | 753 | 725 | 162.1 |
| B | 0 | 153 | 43731 | 265.23 | 753 | 725 | 162.1 |
| C | 4 | 5 | 464293 | 2269.84 | 742 | 735 | 204.2 |
| C | 14 | 245 | 209987 | 1024.61 | 742 | 735 | 204.2 |
| C | 12 | 252 | 65162 | 315.47 | 742 | 735 | 204.2 |
| D | 5 | 32 | 310814 | 1497.19 | 733 | 702 | 207.1 |
| D | 11 | 129 | 80406 | 384.8 | 733 | 702 | 207.1 |
| D | 2 | 31 | 69507 | 332.18 | 733 | 702 | 207.1 |

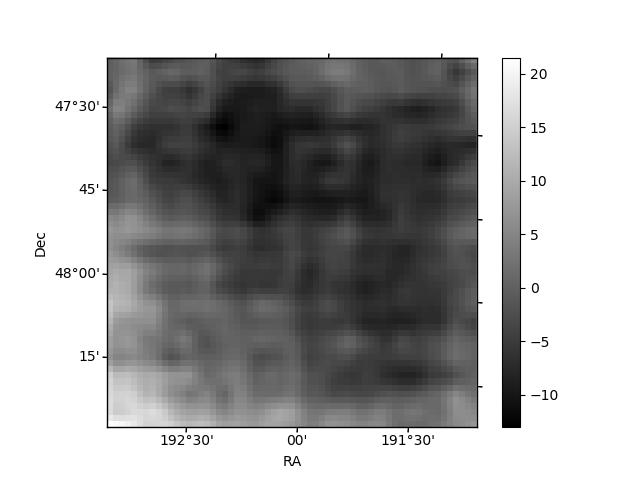

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

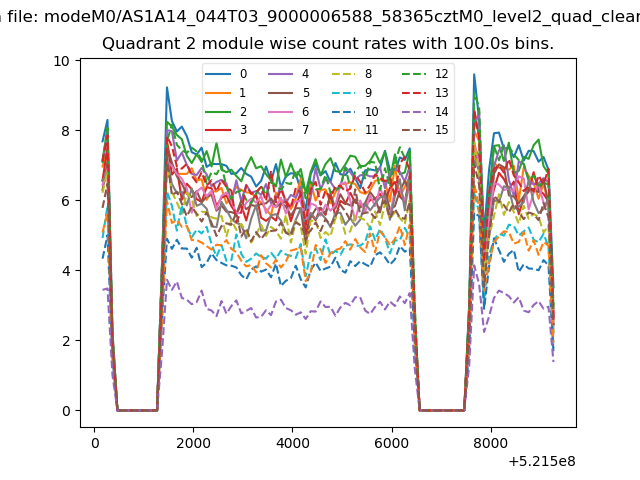

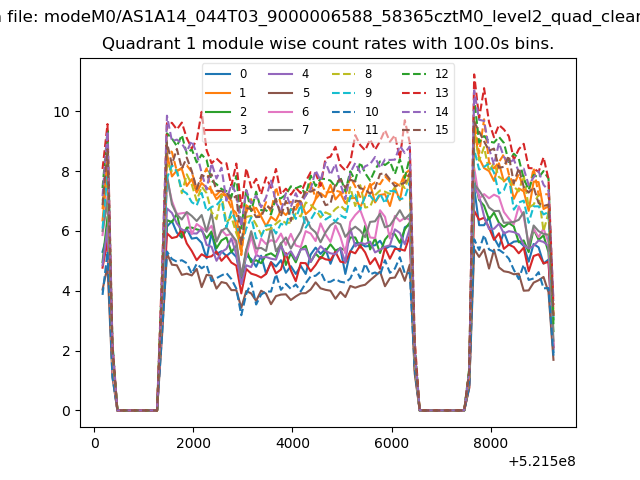

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

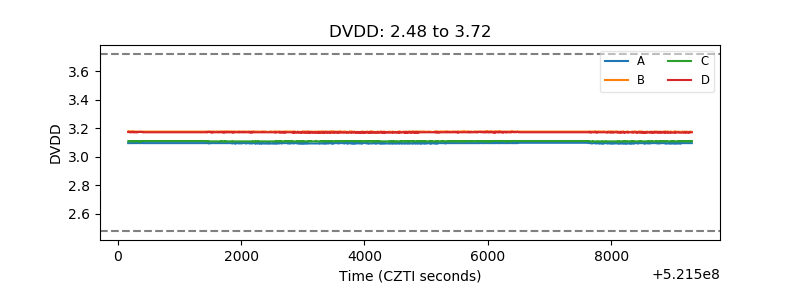

| D_VDD |  |

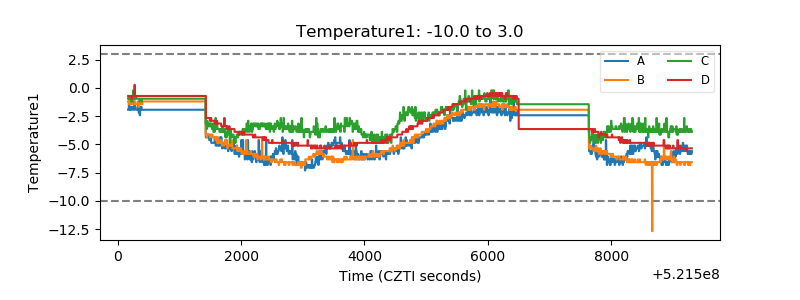

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

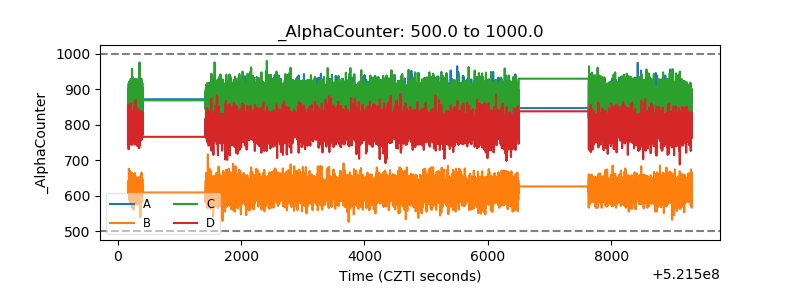

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
