| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T03_9000006588_58368cztM0_level2.fits | modeM0/AS1A14_044T03_9000006588_58368cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,941,440 | 97,329,600 |
| Size | 417.7 MB | 92.8 MB |
| Events in quadrant A | 3,453,497 | 645,794 |
| Events in quadrant B | 5,906,397 | 624,767 |
| Events in quadrant C | 3,084,948 | 632,987 |
| Events in quadrant D | 3,257,450 | 588,222 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14865 | 2 |
| B | 0 | 21951 | 2 |
| C | 0 | 13973 | 2 |
| D | 0 | 14347 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6539 | 183 | 2.798593% |
| B | 6539 | 1016 | 15.537544% |
| C | 6539 | 72 | 1.101086% |
| D | 6539 | 88 | 1.345772% |

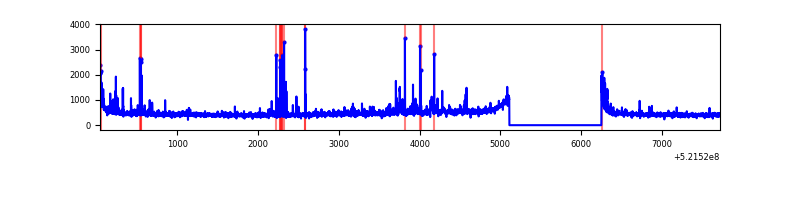

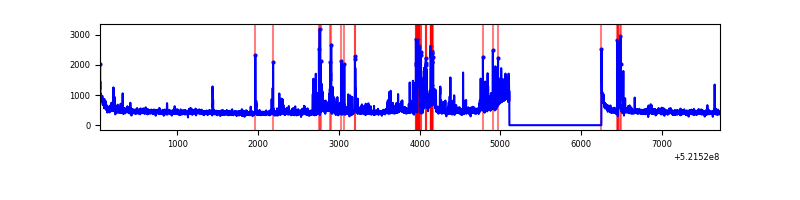

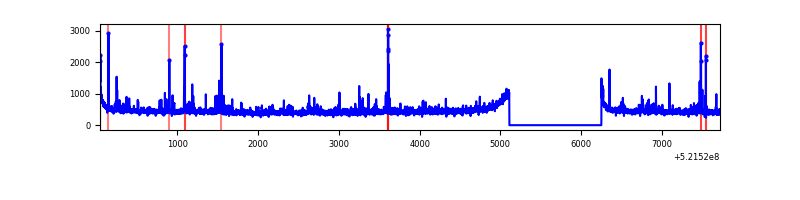

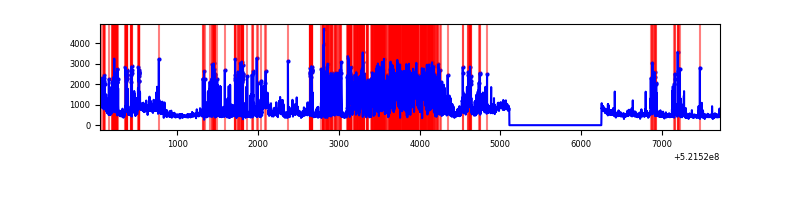

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7679 | 6539 | 63 | 63 | 0.82% | 0.96% |  |
| B | 7679 | 6539 | 565 | 565 | 7.36% | 8.64% |  |
| C | 7679 | 6540 | 15 | 15 | 0.20% | 0.23% |  |
| D | 7679 | 6540 | 23 | 23 | 0.30% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 317741 | 1747.35 | 742 | 724 | 181.4 |
| A | 9 | 255 | 48384 | 262.69 | 742 | 724 | 181.4 |
| A | 8 | 246 | 43787 | 237.36 | 742 | 724 | 181.4 |
| B | 5 | 172 | 2420884 | 16114.56 | 695 | 669 | 150.2 |
| B | 10 | 128 | 380356 | 2528.08 | 695 | 669 | 150.2 |
| B | 6 | 255 | 113248 | 749.59 | 695 | 669 | 150.2 |
| C | 1 | 16 | 75932 | 377.6 | 723 | 716 | 199.2 |
| C | 4 | 5 | 51778 | 256.34 | 723 | 716 | 199.2 |
| C | 14 | 245 | 38896 | 191.67 | 723 | 716 | 199.2 |
| D | 11 | 129 | 148493 | 731.16 | 716 | 685 | 202.2 |
| D | 8 | 160 | 123541 | 607.73 | 716 | 685 | 202.2 |
| D | 5 | 173 | 43758 | 213.07 | 716 | 685 | 202.2 |

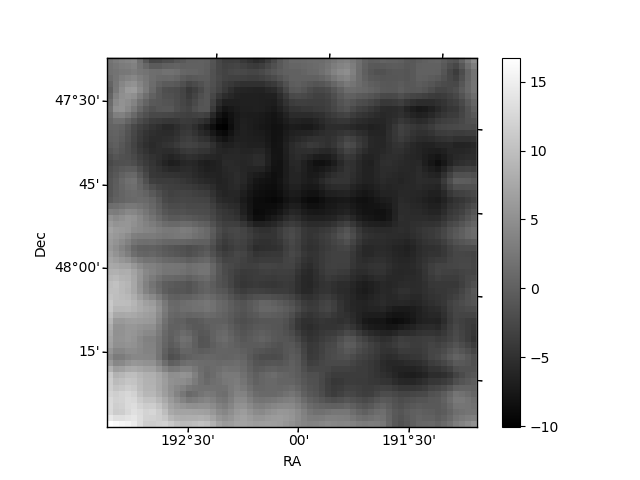

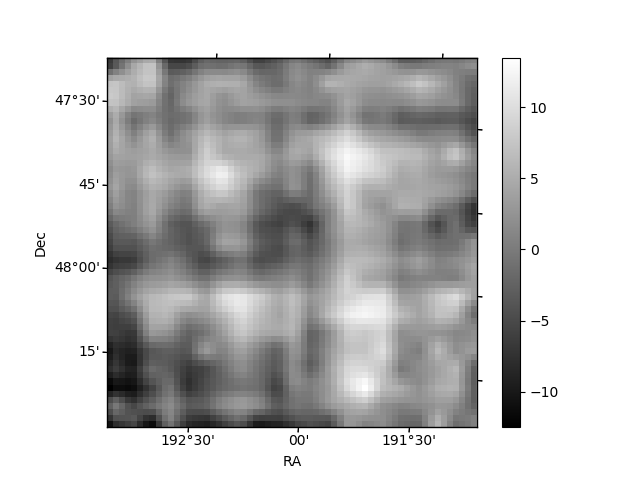

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

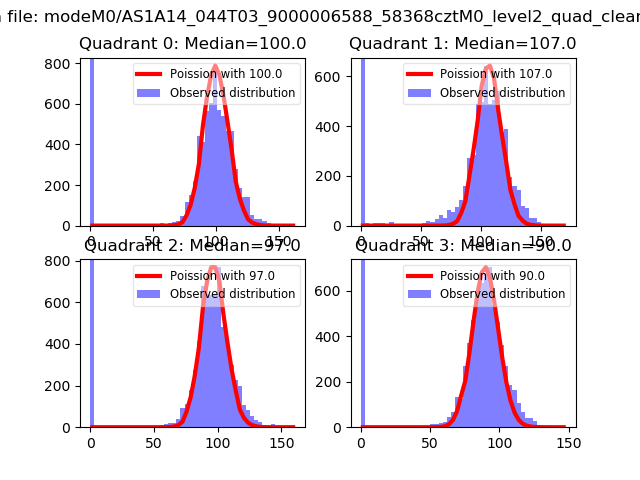

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

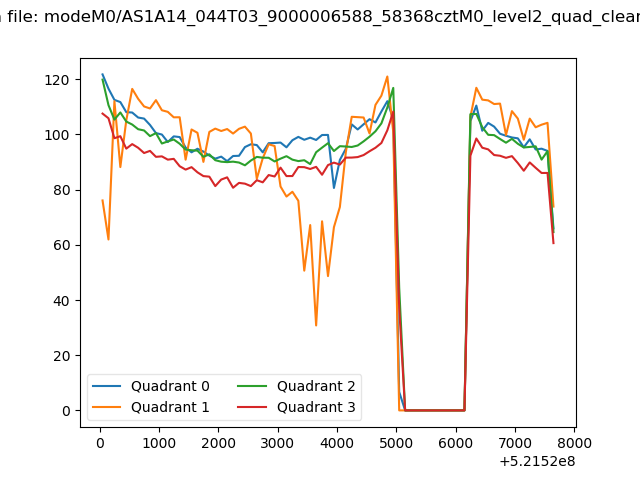

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

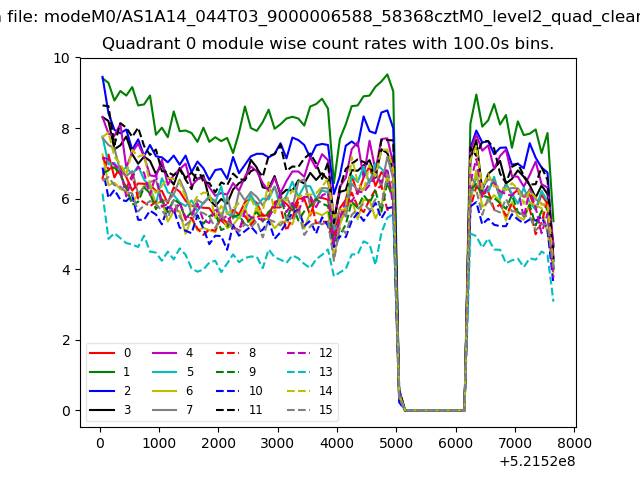

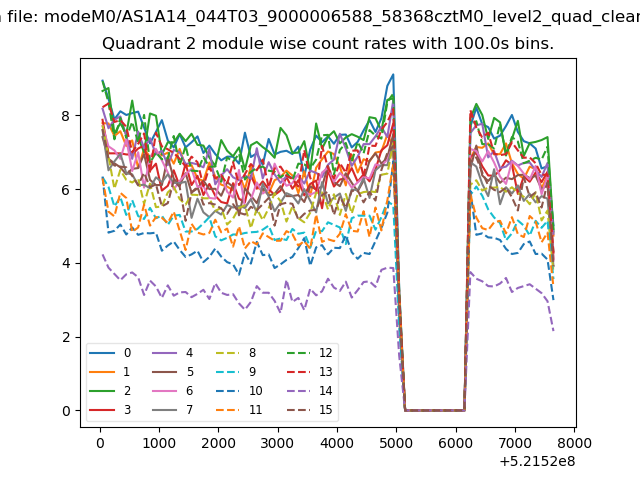

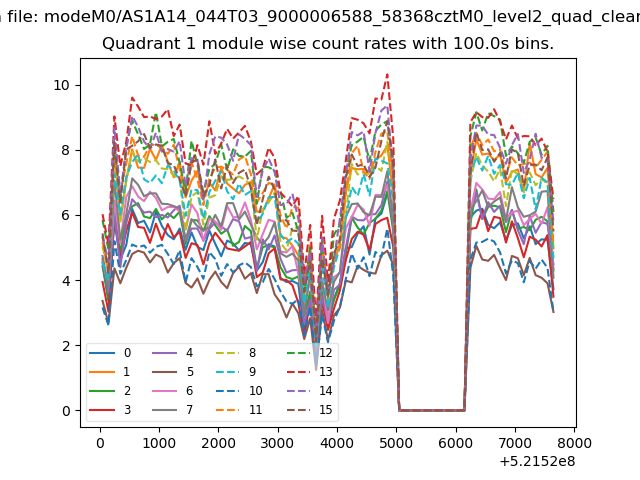

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

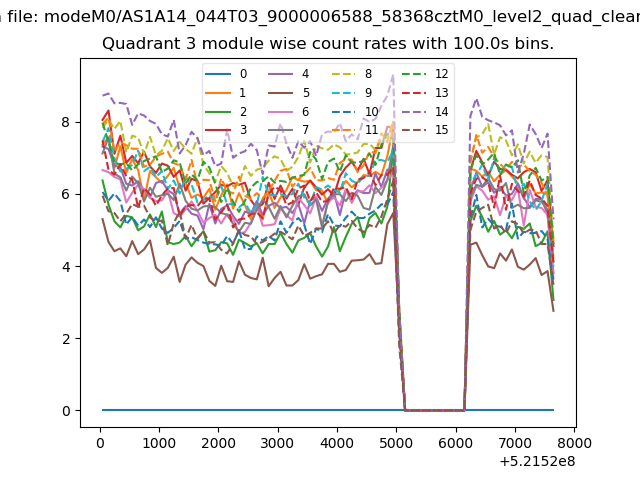

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

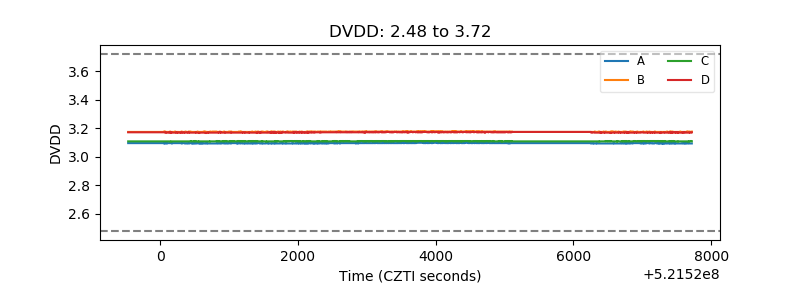

| D_VDD |  |

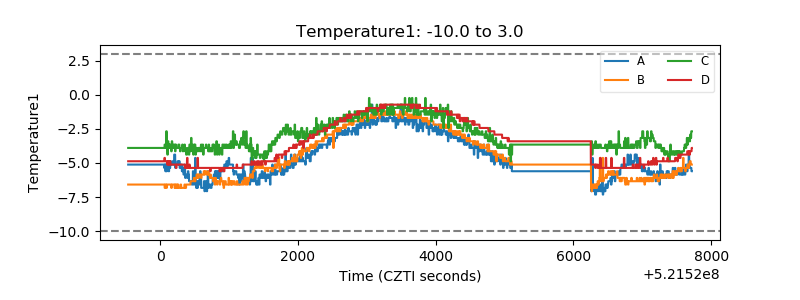

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

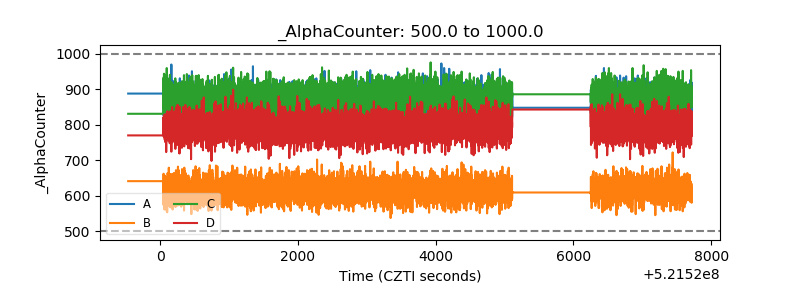

| Alpha Counter |  |

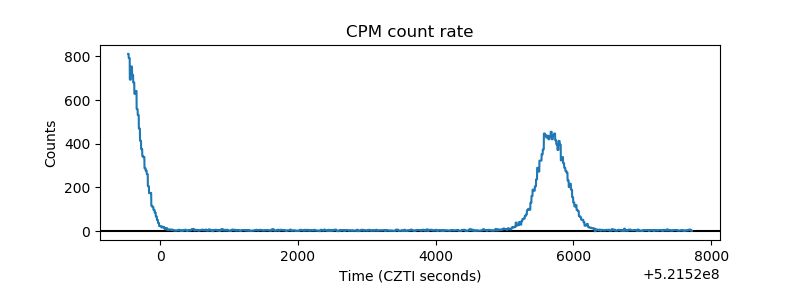

| _CPM_Rate |  |

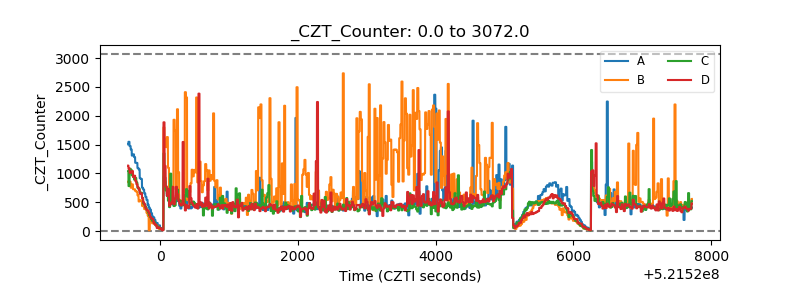

| CZT Counter |  |

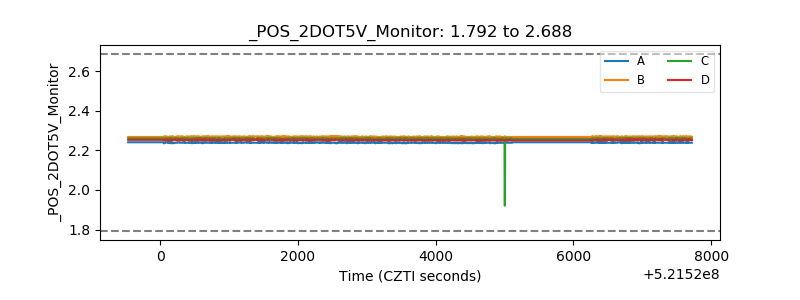

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

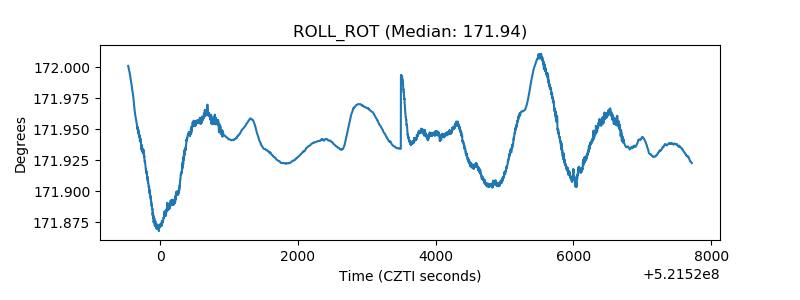

| _ROLL_ROT |  |

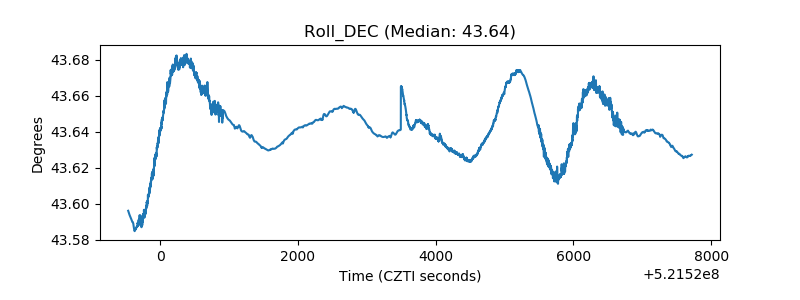

| _Roll_DEC |  |

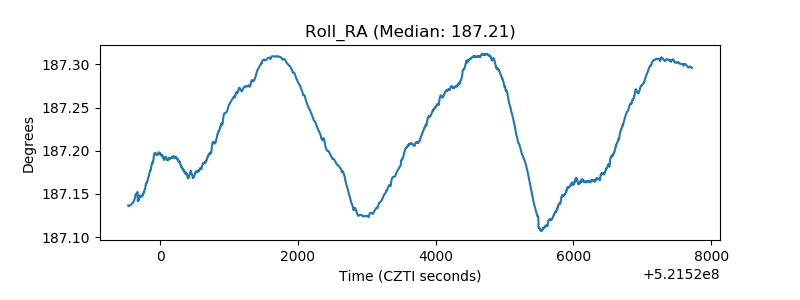

| _Roll_RA |  |

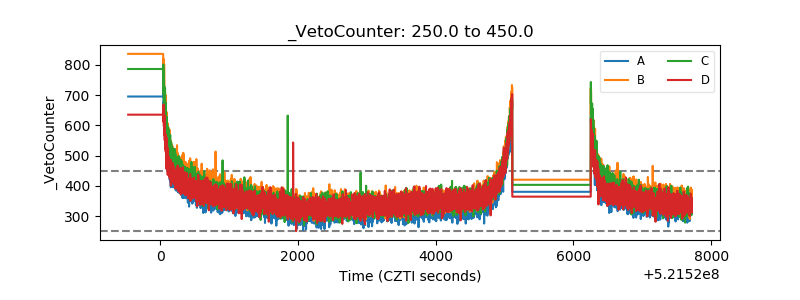

| Veto Counter |  |
